SNAP-TEX-FB16-H

SNAP-TEX-FB16-H

$114.00 (USA and Canada only)

Availability: In stock
16-Point Breakout Board for SNAP I/O with Fuses and Bussed Power (120-240 V)

Please call (800) 321-6786 to order.

Production Specification

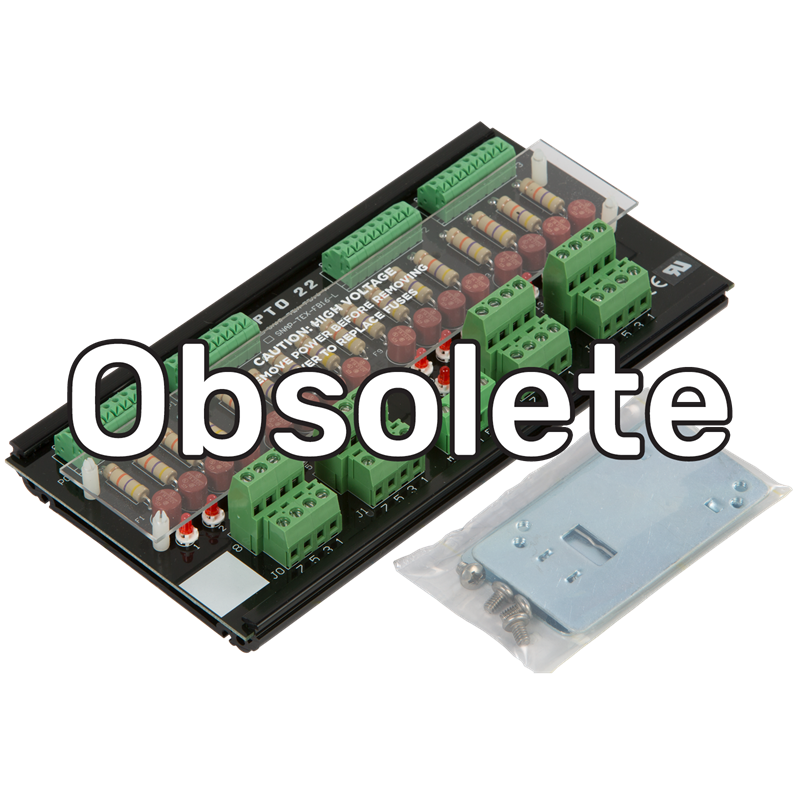

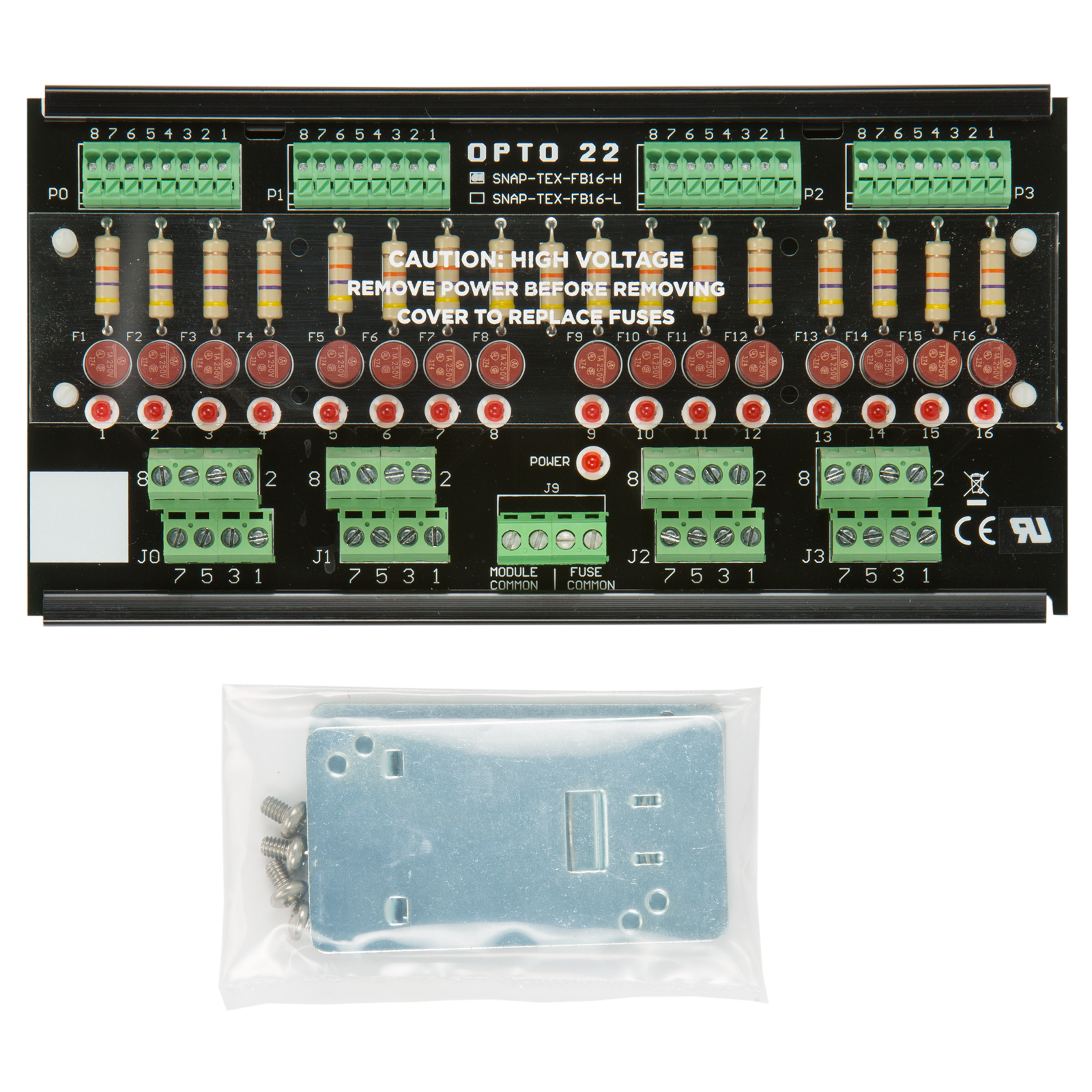

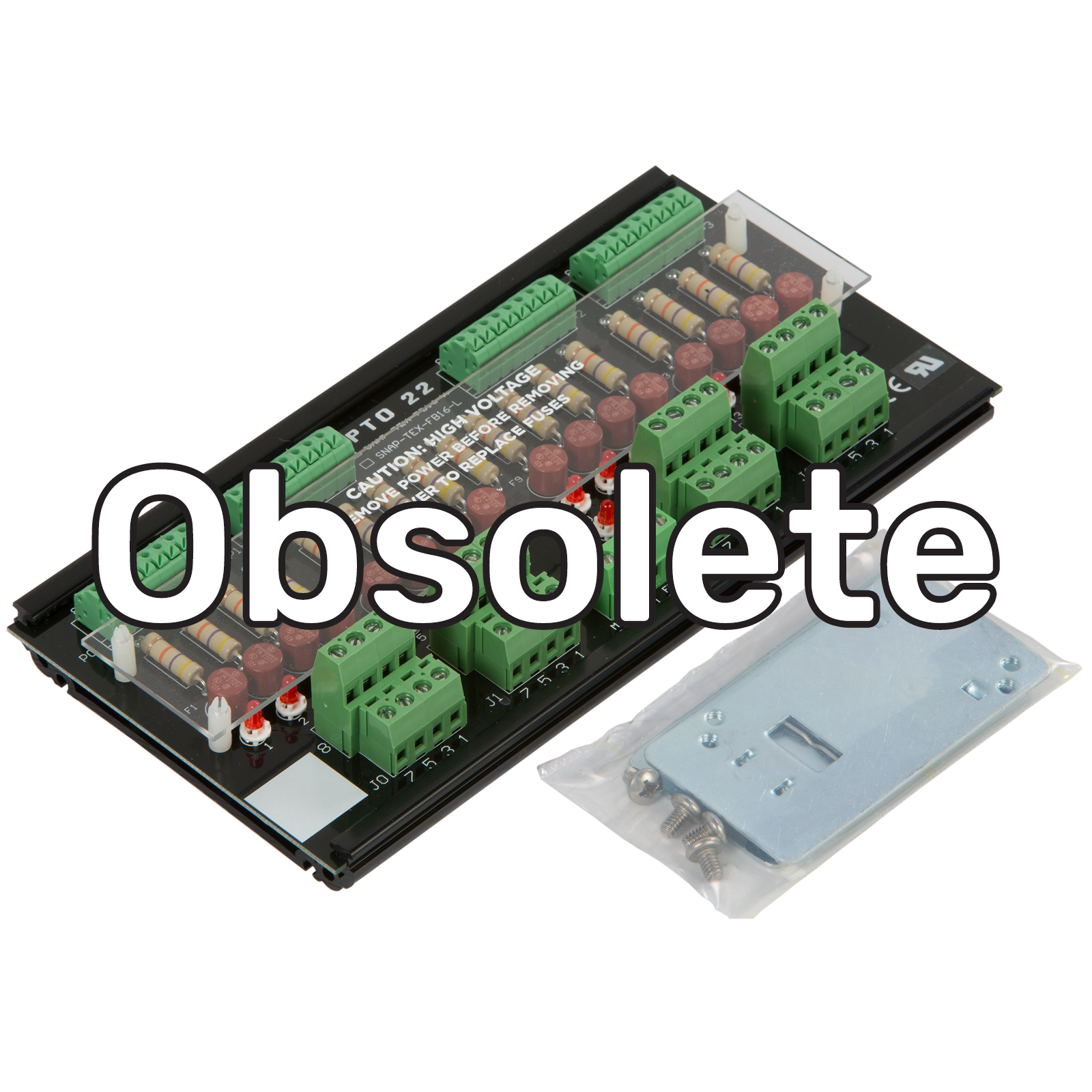

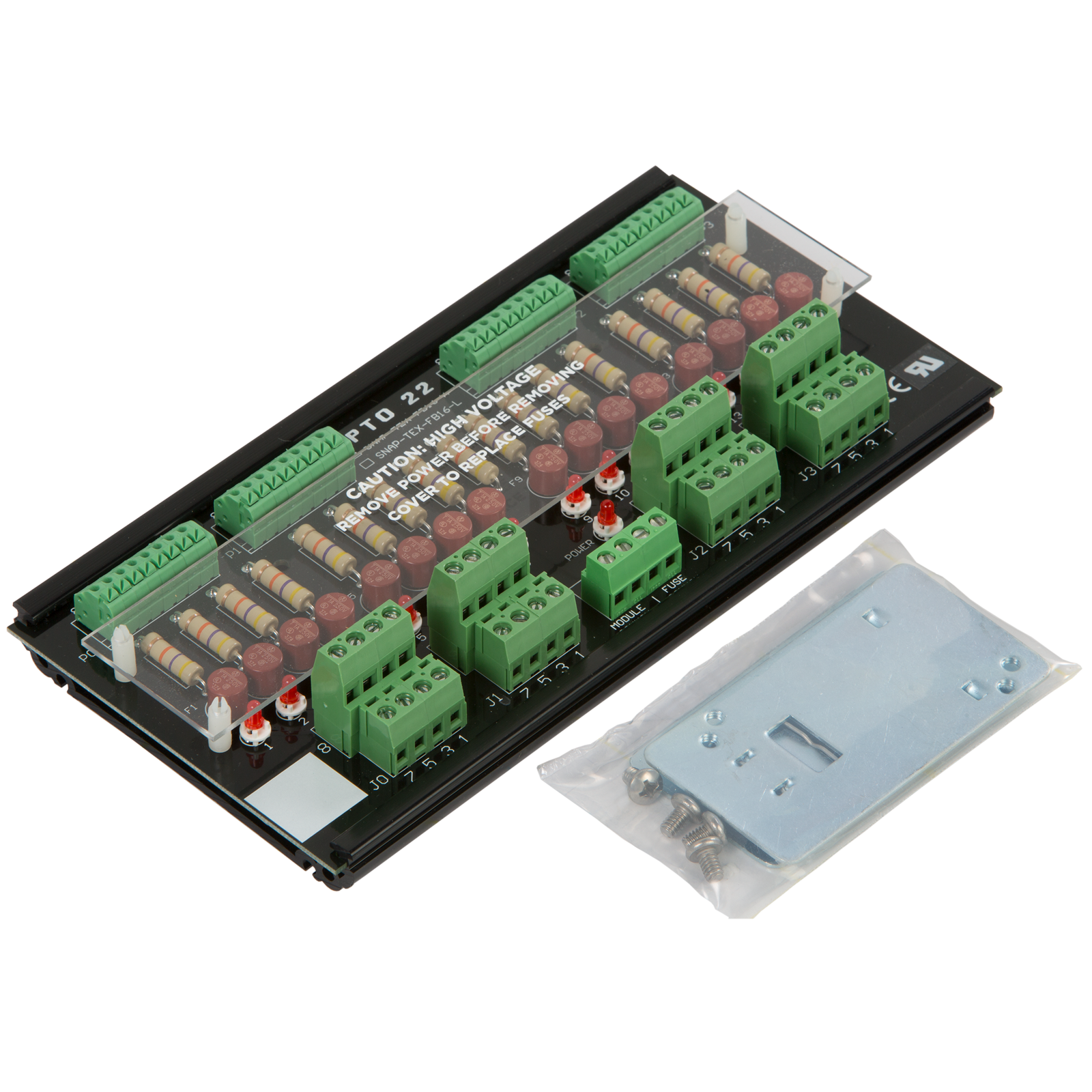

Part of the SNAP TEX family of mounting and wiring accessories, the SNAP-TEX-FB16-H breakout board provides a fuse and a fuse-blown indicator for each of its 16 channels. In addition, it provides 120–240 volts of power to loads. Simply attach the power source to a single spot in the middle of the rack, and power goes out to solenoids or switches, depending on the module you’re using. The SNAP-TEX-FB16-H is used primarily for digital inputs and outputs.

CAUTION: Odd pins on the SNAP-TEX-FB16-H breakout board are connected. When connecting to four-channel digital modules, use only straight-through (SNAP-TEX-CBS6) or odd (SNAP-TEX-CBO6) cables with this board. When connecting to 16- or 32-channel modules, use the SNAP-HD-ACF6 cable.

See the data sheet for recommended module, cable, and breakout board combinations.

Or see: Modules, Cables, and Breakout Boards Compatibility Charts

Build your system in the SNAP I/O Configurator.

Feature

SNAP-TEX-32

SNAP-TEX-FB16-H

SNAP-TEX-FB16-L

Use with I/O modules

2- or 4-channel analog inputs/outputs; 4-channel digital inputs/outputs *

4-channel digital inputs and outputs
16- and 32-ch digital inputs/outputs

4-channel digital inputs and outputs
16- and 32-ch digital inputs/outputs

Use with cables

SNAP-TEX-CBE6 (even pins connected), SNAP-TEX-CBO6 (odd pins connected), or SNAP-TEX-CBS6 (no connections), depending on module.

4-ch modules: SNAP-TEX-CBO6 (odd pins connected)** or SNAP-TEX-CBS6 (straight-through), depending on module.
16-ch modules: SNAP-HD-ACF6
32-ch modules: SNAP-HD-CBF6

4-ch modules: SNAP-TEX-CBO6 (odd pins connected)** or SNAP-TEX-CBS6 (straight-through), depending on module.
16-ch modules: SNAP-HD-ACF6
32-ch modules: SNAP-HD-CBF6

Connectors

32 spring connectors; accommo­dates eight 4-channel modules

16 spring connectors; accommo­dates four 4-channel modules

16 spring connectors; accommo­dates four 4-channel modules

Fusing

none

1 A, 250 V, fast-acting fuse for each
I/O point (16 total). Replace with Opto 22 PN FUSE01G4.

1 A, 250 V, fast-acting fuse for each
I/O point (16 total). Replace with Opto 22 PN FUSE01G4.

Indicators

none

1 LED per fuse (16 LEDs total)

1 LED per fuse (16 LEDs total)

Bussed power

none

120–240 V

12–24 V

Agency Approv­als

CE, RoHS, DFARS

UL, CE, RoHS, DFARS

UL, CE, RoHS, DFARS

Warranty

30 months

30 months

30 months

* Can also be used with 8-, 16-, or 32-channel digital and analog inputs (not thermocouples).
**
IMPORTANT: Do NOT USE the FB16 breakout boards with a SNAP-TEX-CBE6 cable. The board has odd pins connected; the cable has even pins connected.

SNAP TEX Cables and Breakout Boards Data Sheet

SNAP TEX cables and breakout boards are part of the SNAP TEX family of wiring and mounting accessories. These parts save time and expense during installation, maintenance, and debugging by reducing the time and effort required to wire field devices to SNAP I/O modules.

Declaration of Conformity (EMC, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

No downloads are available for this product.

Video: SNAP TEX Wiring and Mounting Accessories

A quick overview of SNAP TEX wiring and mounting accessories.
