Products > SNAP-TEX-MR10-16C

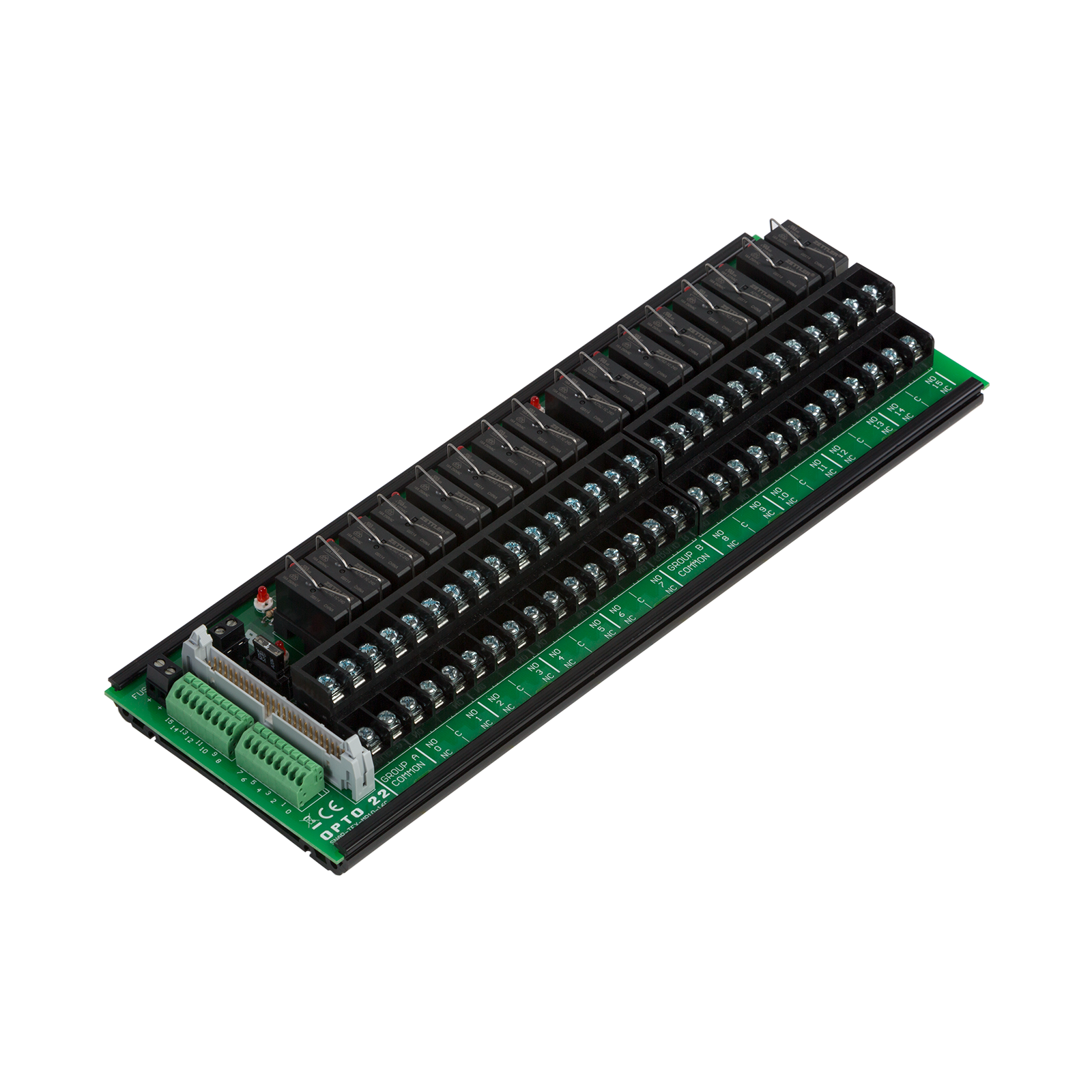

SNAP-TEX-MR10-16C
Hover over image to zoom in

SNAP-TEX-MR10-16C

$484.00 (USA and Canada only)

Availability: In stock

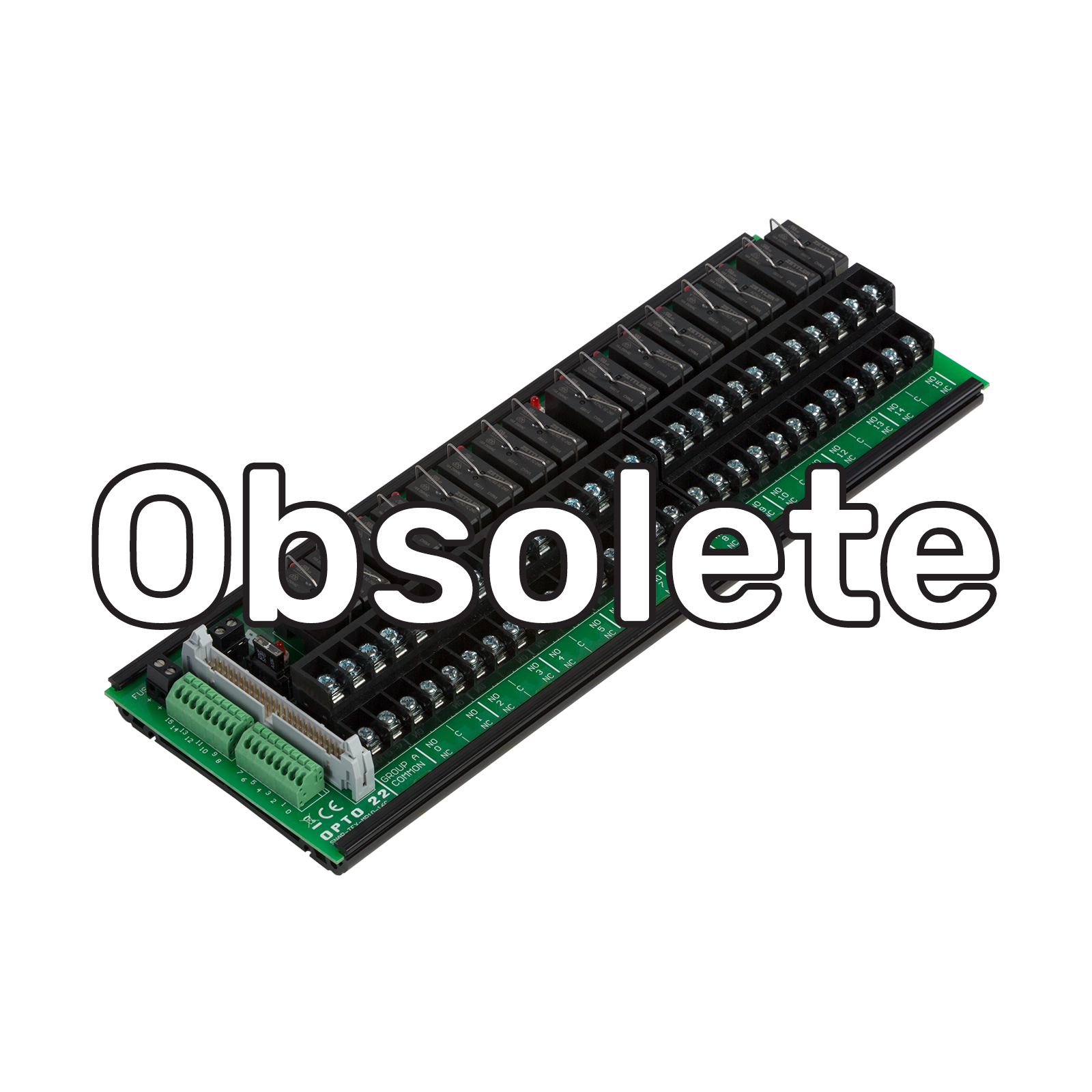

OBSOLETE 16-Point Breakout Board with Mechanical Relays and Header Connector, for High-Density Digital Output Modules
Data Sheet

Production Specification

*** NOTE: This part is OBSOLETE and no longer available when current stock is depleted. ***

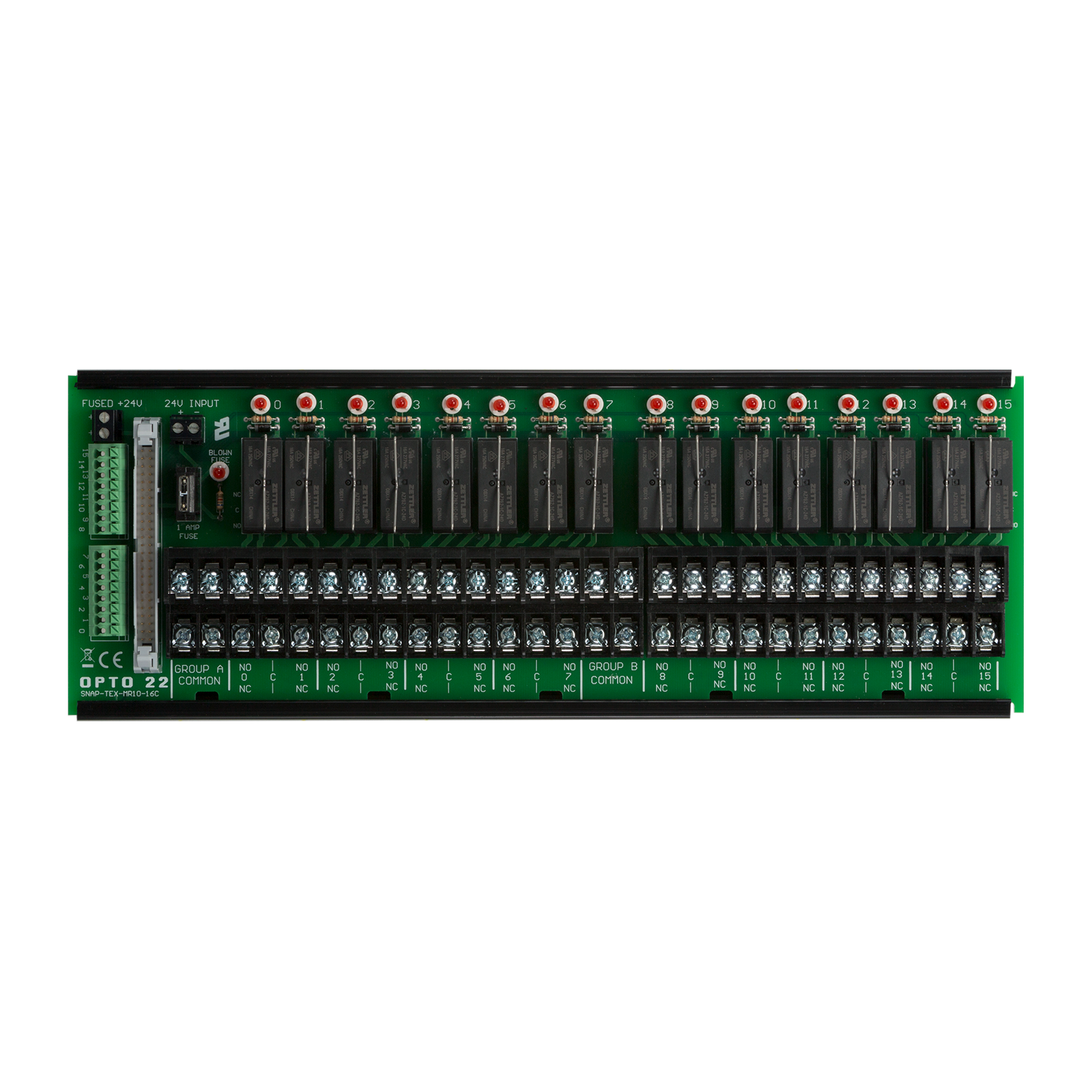

The SNAP-TEX-MR10-16C breakout board is designed for high-current switching of outputs through SNAP high-density digital (HDD) output modules. The board includes 16 mechanical relays, one for each point, that can switch up to 10 A per point. (Without the breakout board, SNAP HDD output modules can switch a maximum of 0.75 A per point.)

The SNAP-TEX-MR10-16C includes on/off indicators for each point, and each point can be wired for normally closed or normally open. The board requires 24 VDC power.

A header connector allows two MR10-16C breakout boards to connect to one SNAP-ODC-32-SRC 32-point digital output module using a SNAP-HD-G4F6 cable. The advantage of using this breakout board and cable with the module is that you do not have to wire them; simply snap the cable onto the top of the module and then plug the other two cable ends into the header connectors on the two boards.

NOTE: A replacement relay, the SNAP-MR10, is available.

Build your system in the SNAP I/O Configurator.

Feature

SNAP-TEX-MR10-16C

Use with I/O modules

SNAP-ODC5-i, SNAP-ODC5A-i,
SNAP-ODC5SRC, SNAP-ODC-32-SRC

Use with cables

• For one high-density SNAP-ODC-32-SRC module, use a SNAP-HD-G4F6 cable to connect two breakout boards to one module.

• For four 4-point modules, use SNAP-TEX-CBO6 (odd pins bussed) or SNAP-TEX-CBS6 (no bussing), depending on module.

Use with jumper straps

STRAP2Q, STRAP4Q

Relay contacts

SPDT (1 Form C)
Typical life expectancy (Electrical): 1 x 105

Switching capacity

10 A @ 250 VAC

Switch On time

7 ms nominal

Switch Off time

3 ms nominal

Fusing

24 V fuse for board. Opto 22 p/n SNAP-FUSE1AC

Indicators

16 On/Off status indicators (one for each channel)
1 fuse-blown indicator

Power requirements (all positions On)

24 VDC @ 300 mA

Agency Approvals

UL, CE, RoHS, DFARS

Warranty

30 months from date of manufacture
