Products > SNAP-TEX-MR10-4
SNAP-TEX-MR10-4
Hover over image to zoom in

SNAP-TEX-MR10-4

$198.00 (USA and Canada only)

Availability: In stock

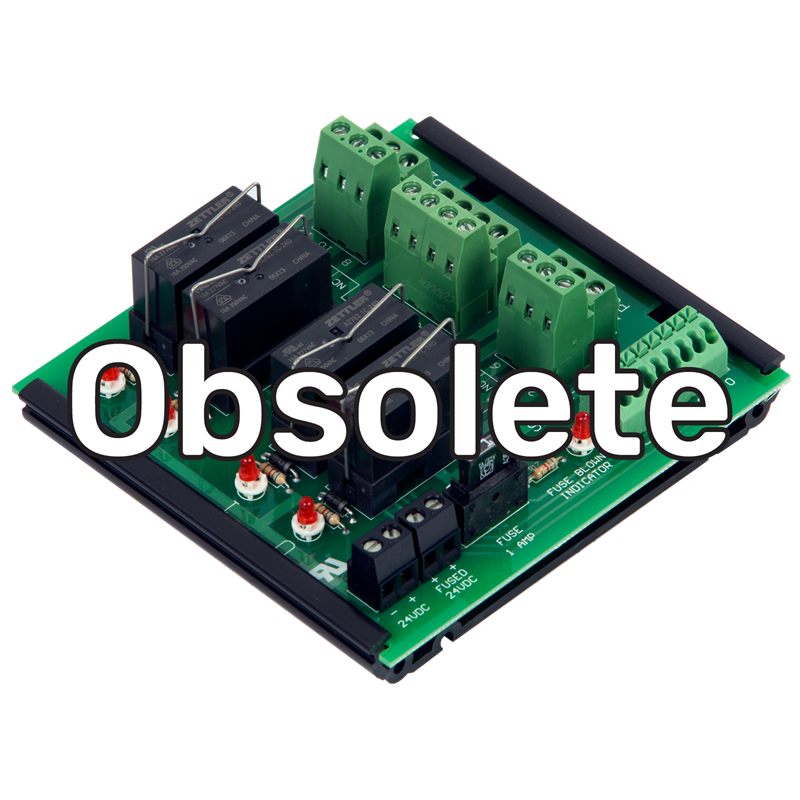

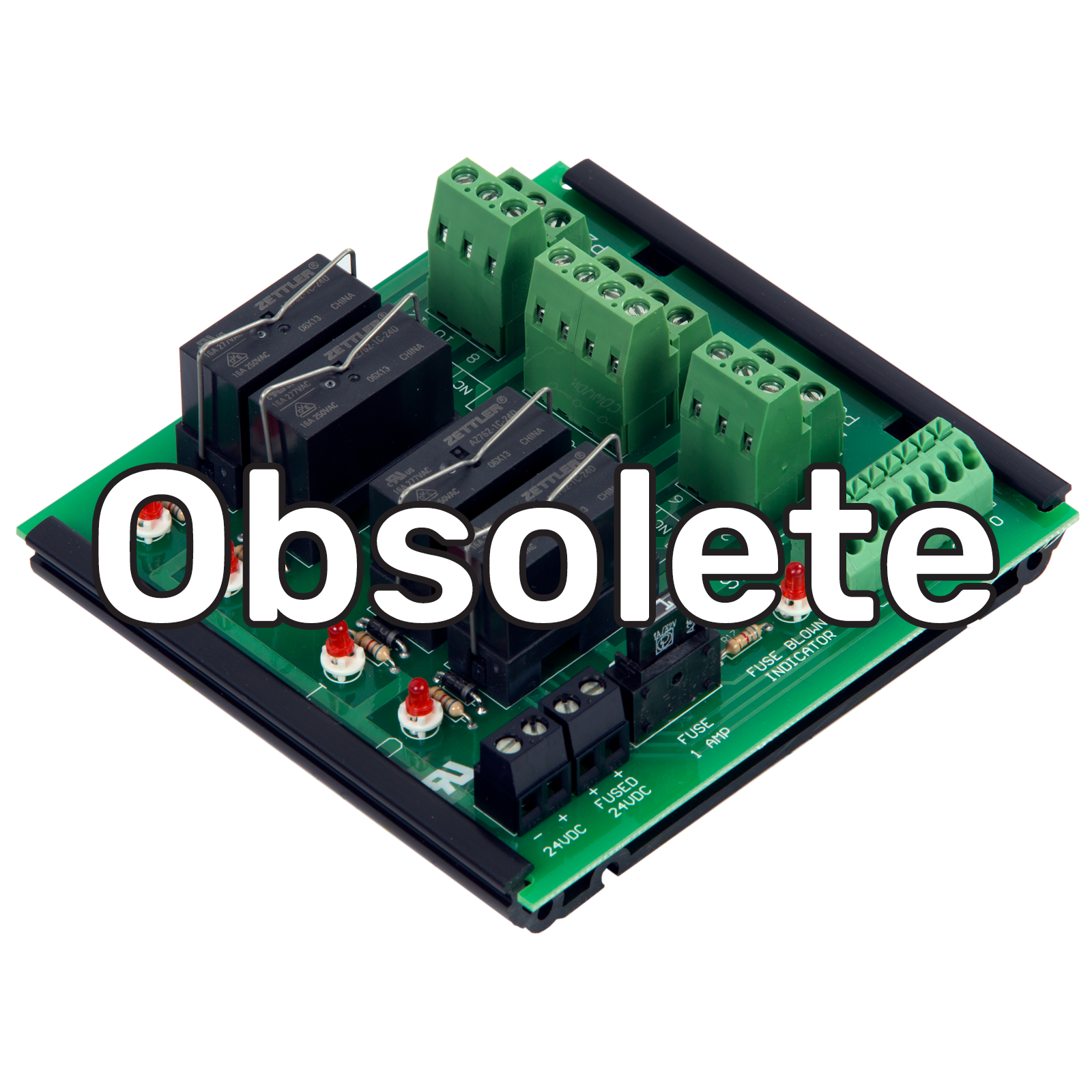

OBSOLETE 4-Point Breakout Board with Mechanical Relays for SNAP Digital Output Modules
Data Sheet

Production Specification

*** NOTE: This part is OBSOLETE and no longer available when current stock is depleted. ***

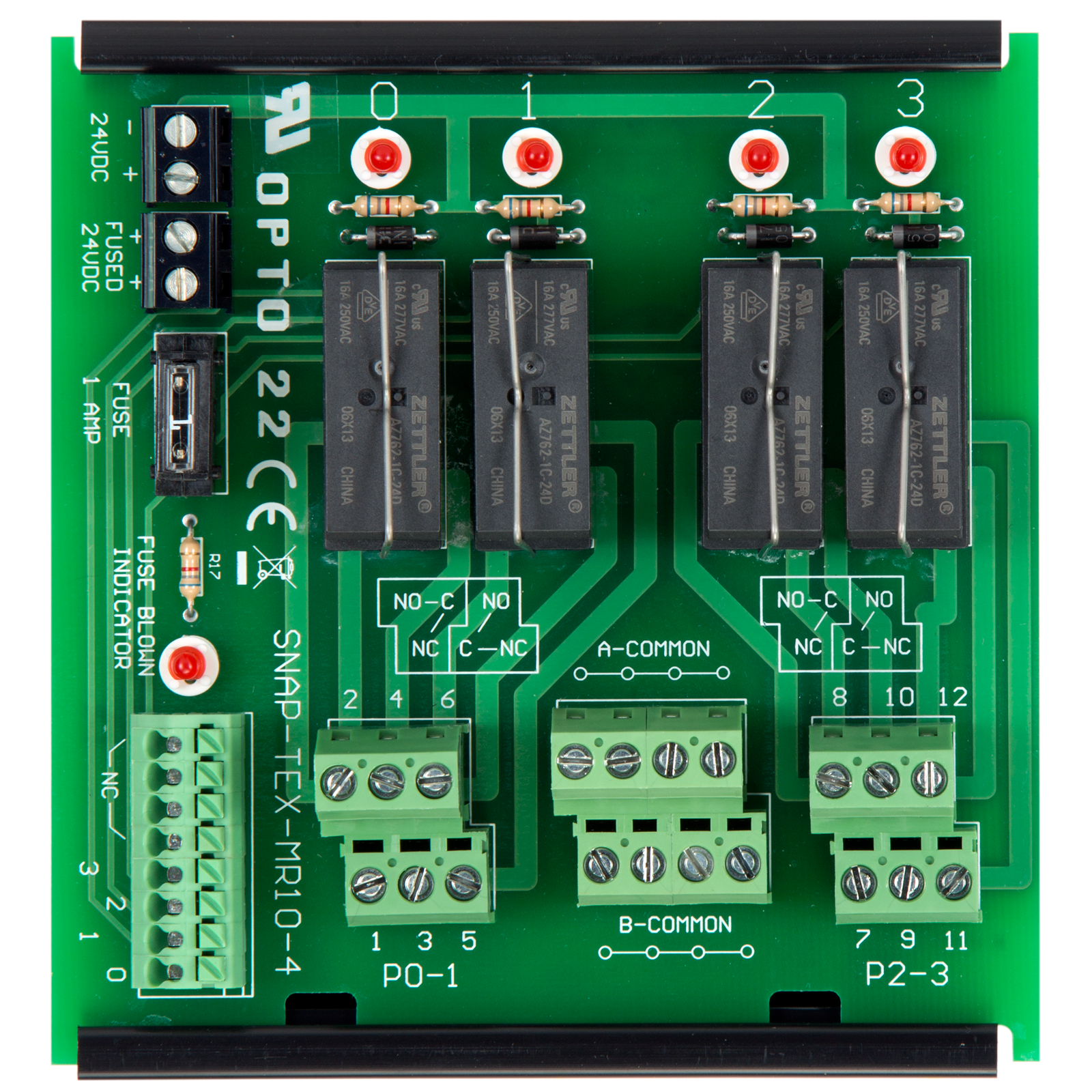

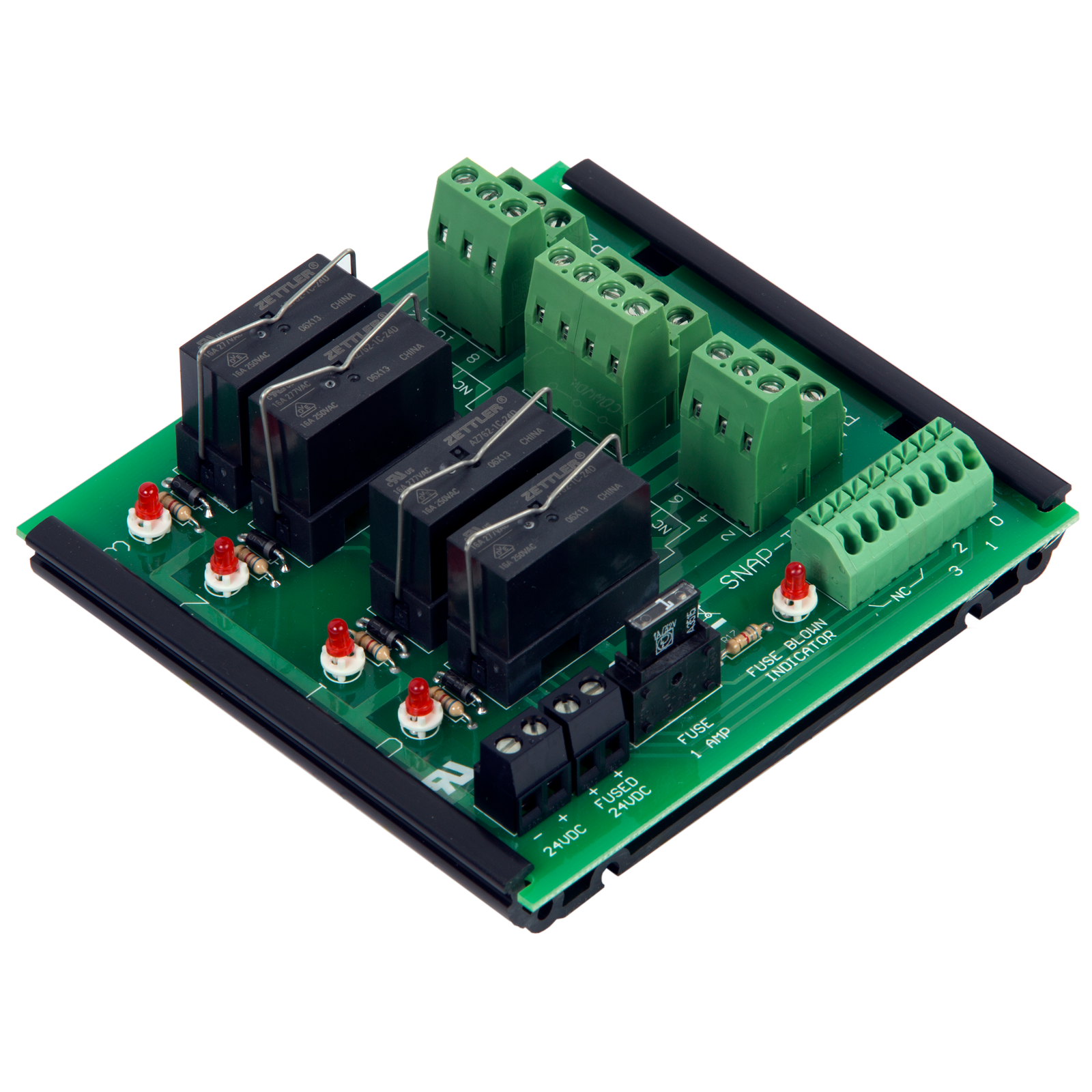

The SNAP-TEX-MR10-4 breakout board is designed for high-current switching of outputs through a 4-point SNAP digital output module. The board includes 4 mechanical relays, one for each point, that can switch up to 10 A per point. (Without the breakout board, SNAP digital output modules can switch up to 0.75 A per point.)

The SNAP-TEX-MR10-4 includes on/off indicators for each point, and each point can be wired for normally closed or normally open. The board requires 24 VDC power.

The MR board is used with a 4-channel digital output module such as the SNAP-ODC5-i or the SNAP-ODC5SRC, and a SNAP-TEX-CBO6 cable.

For reference: Modules, Cables, and Breakout Boards Compatibility Charts

If you need more channels, see the SNAP-TEX-MR10-16.

NOTE: A replacement relay, the SNAP-MR10, is available.

Build your system in the SNAP I/O Configurator.

Feature

SNAP-TEX-MR10-4

SNAP-TEX-MR10-16

Use with I/O modules

SNAP-ODC5-i, SNAP-ODC5A-i,
SNAP-ODC5SRC, SNAP-ODC-32-SRC

SNAP-ODC5-i, SNAP-ODC5A-i,
SNAP-ODC5SRC, SNAP-ODC-32-SRC

Use with cables

SNAP-TEX-CBO6 (odd pins bussed),SNAP-TEX-CBS6 (no bussing), or SNAP-HD-CBF6, depend­ing on module.

SNAP-TEX-CBO6 (odd pins bussed),SNAP-TEX-CBS6 (no bussing), or SNAP-HD-CBF6, depending on module.

Relay contacts

SPDT (1 Form C)
Typical life expectancy (Electrical): 1 x 105

SPDT (1 Form C)
Typical life expectancy (Electrical): 1 x 105

Switching capacity

10 A @ 240 VAC

10 A @ 240 VAC

Switch On time

7 ms nominal

7 ms nominal

Switch Off time

3 ms nominal

3 ms nominal

Fusing

24 V fuse for board. Opto 22 p/n SNAP-FUSE1AC

24 V fuse for board. Opto 22 p/n SNAP-FUSE1AC

Indicators

4 On/Off status indicators (one for each channel)
1 fuse-blown indicator

16 On/Off status indicators (one for each channel)
1 fuse-blown indicator

Power requirements (all positions On)

24 VDC @ 75 mA

24 VDC @ 300 mA

Agency Approvals

UL, CE, RoHS, DFARS; UKCA

UL, CE, RoHS, DFARS; UKCA

Warranty

30 months from date of manufacture

30 months from date of manufacture

1756

SNAP TEX Cables and Breakout Boards Data Sheet

SNAP TEX cables and breakout boards are part of the SNAP TEX family of wiring and mounting accessories. These parts save time and expense during installation, maintenance, and debugging by reducing the time and effort required to wire field devices to SNAP I/O modules. This data sheet covers the following part numbers:

View

2375

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

View

2285

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

View

1648

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

View

1057

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

View

0893

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

View

0891

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

View
No downloads are available for this product.

Video: SNAP TEX Wiring and Mounting Accessories

A quick overview of SNAP TEX wiring and mounting accessories.
