SNAP-UP1-M64

$1,302.00 (USA and Canada only)

Availability: Call for Availability
SNAP Ultimate controller/brain, analog/simple digital/serial, for ioProject systems

Please call (800) 321-6786 to order.

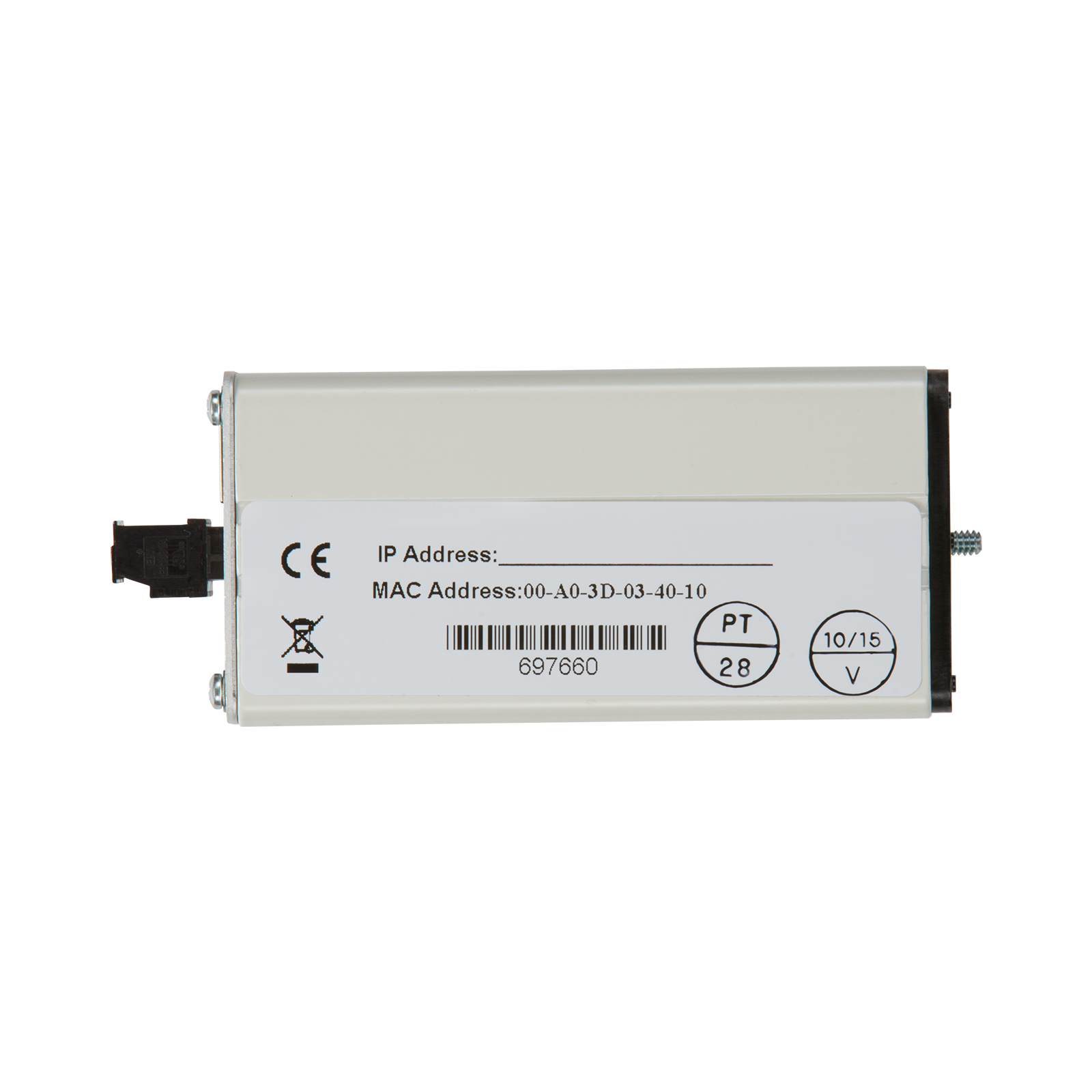

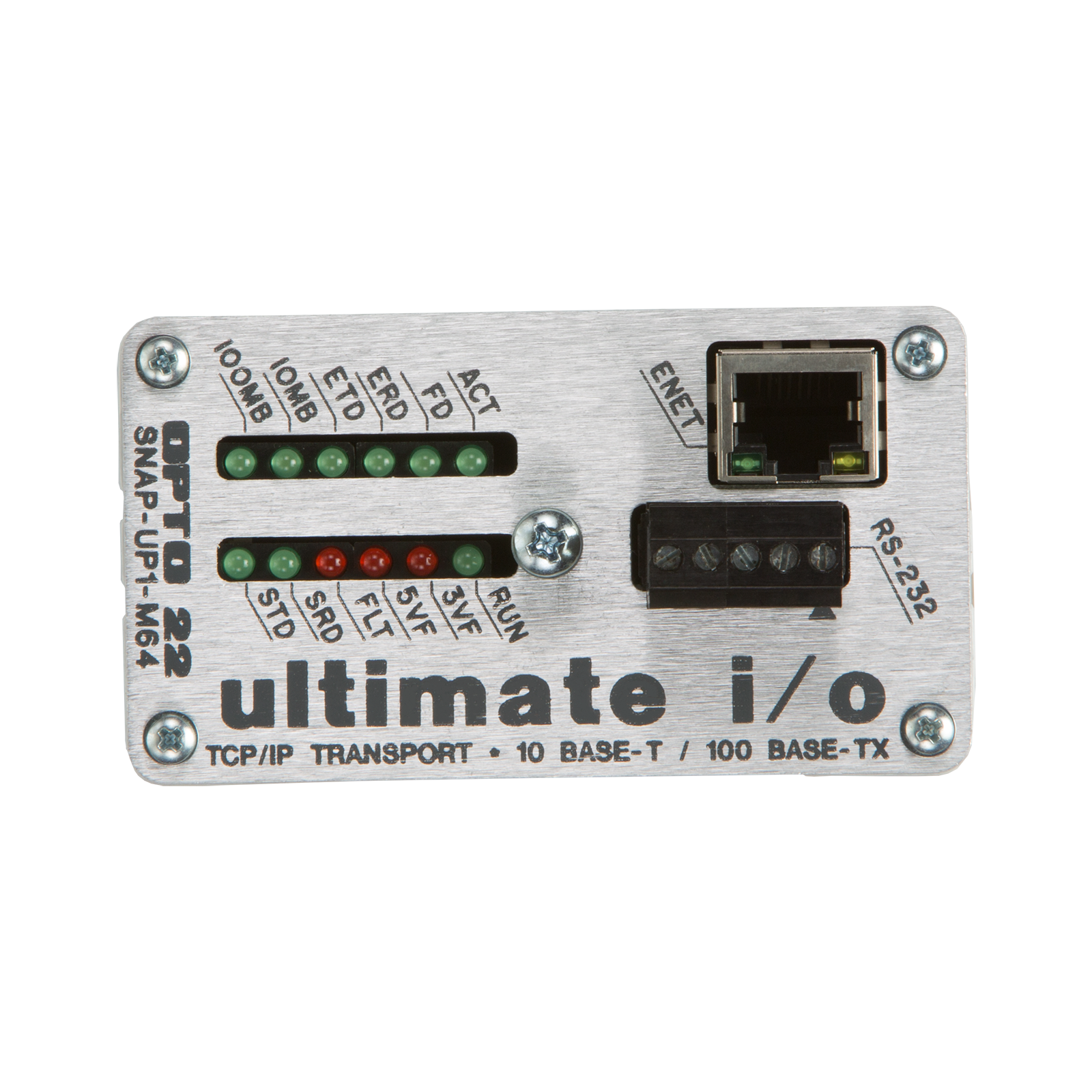

SNAP-UP1-M64

Production Specification

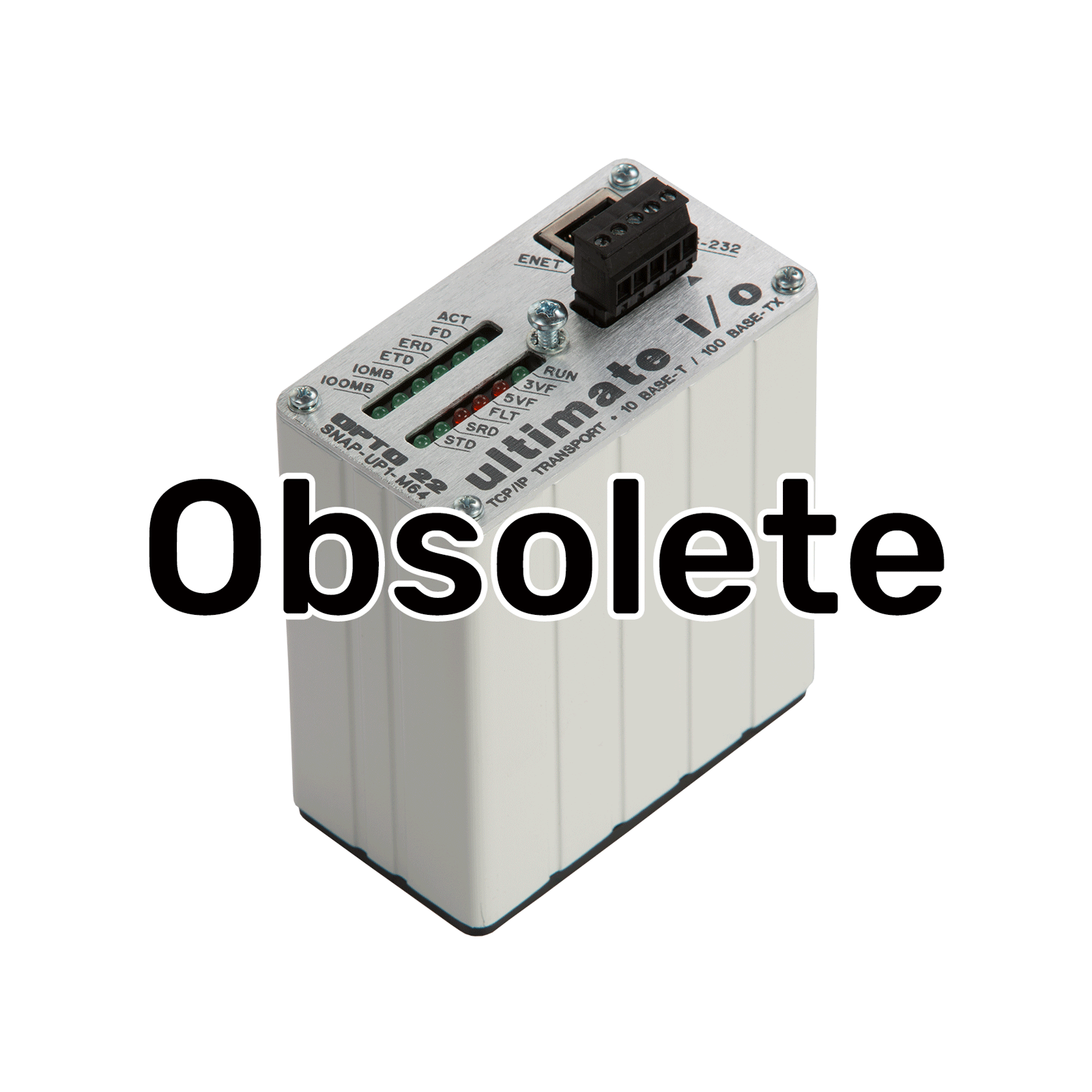

NOTE: Although fully supported and still in production, this is a legacy product and not recommended for new designs. For new designs, the SNAP-PAC-R2 on-the-rack controller has the same features as the SNAP-UP1-M64 but is more powerful.

-------------

The SNAP-UP1-M64 controller/brain is a programmable I/O and communications processor. It can be used as a rack-mounted controller or as an I/O unit in a larger control system based on a more powerful Opto 22 controller, such as the SNAP-PAC-S1. The SNAP-UP1-M64 mounts on SNAP PAC racks, such as the SNAP-PAC-RCK16.

Used as a rack-mounted controller, the SNAP-UP1-M64 is programmed using the ioProject Basic software suite, which is included in the purchase price. The newer PAC Project software suite was designed for SNAP PAC controllers but also offers limited support for SNAP Ultimate I/O.

NOTE: Not all SNAP I/O modules are compatible with this controller. See Legacy and Current Product Comparison and Compatibility Charts to determine compatibility.

SNAP-UP1-ADS, SNAP-UP1-D64, and SNAP-UP1-M64

Power Requirements

5.0 VDC to 5.2 VDC at 1.2 A maximum (does not include module power requirements)

Processor

32-bit ColdFire 5407

Memory:
  Total RAM
  Battery-backed RAM
  Flash EEPROM



16 MB
512 KB
8 MB

Backup battery

CR2032, fixed (not user replaceable)

Network Interface

IEEE 802.3 network, 10Base-T and 100Base-TX

Serial Port

RS-232

Serial Data Rates

Default is 19,200 baud; baud rate is soft-selectable from 150 to 115,200 baud.

Maximum Ethernet Segment Length

100 meters with Category 5 or superior UTP.
For 100 Mbps at this distance, use Category 5 or superior solid UTP.

Jumpers (Internal)

Boot to kernel/boot to loader
Reset to factory defaults

Temperature:
  Operating
  Storage



0 °C to 70 °C
-40 °C to 85 °C

Humidity

0–95% humidity, non-condensing

ioProject Software Suite Data Sheet

This data sheet describes Opto 22's legacy ioProject software suite, which provides control and HMI development tools for a SNAP Ethernet-based control system. The ioProject suite includes ioControl, ioDisplay, OptoOPCServer, and ioManager.

NOTE: For new development, use a SNAP PAC controller and PAC Project software.

SNAP Ultimate Brain Data Sheet

The SNAP Ultimate brain is an I/O and communications processor that mounts on a standard SNAP rack. The brain features 10/100 Mbps Fast Ethernet connectivity, programmability, and built-in enterprise connectivity. The brain is programmed using flowchart-based ioControl programming software, which is included in the purchase price of the SNAP Ultimate brain.

NOTE: Although fully supported and still in production, this is a legacy product and not recommended for new development. For new development, see the SNAP PAC R-series controllers—they are more powerful, have two Ethernet network interfaces, run the latest PAC Project software, and are less expensive.

SNAP Ultimate I/O Firmware README

This README file lists revision changes made to the SNAP Ultimate I/O firmware used in SNAP Ultimate brains.

ioProject Readme Notes

Readme for ioProject Basic and Professional, the legacy versions of PAC Project. Includes information on features, enhancements, and bug fixes for each ioProject application: ioControl, ioDisplay, OptoOPCServer, ioManager, and ioUtilities.

SNAP Legacy Firmware README

This README file lists revision changes made to the firmware used in SNAP PAC family controllers before Version 8.0a, the SNAP-LCE controller, and SNAP Ultimate, Ethernet, and Simple brains.

Legacy Edition, PAC Manager User's Guide

This document is the Legacy Edition of the PAC Manager User's Guide. It includes information about both SNAP PAC hardware and older hardware.

Use this guide if you are using any legacy hardware (SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O, E1 and E2 brain boards) with PAC Manager.

If you are using SNAP PAC controllers and SNAP PAC brains only, use Form 1704, PAC Manager User's Guide instead of this guide.

Modbus/TCP Protocol Guide

This document shows you how to set up communication between Ethernet-based Modbus systems (using Modbus/TCP) and the SNAP PAC System. In addition to the SNAP PAC System (SNAP PAC S-series and R-series controllers and SNAP PAC brains), the guide also covers Modbus/TCP communication with older Opto 22 Ethernet-based devices, including SNAP Ethernet, SNAP Simple, and SNAP Ultimate I/O; and E1 and E2 brain boards.

Allen-Bradley DF1 Integration Kit For ioControl Users Guide

The Allen-Bradley DF1 Integration Kit (Part # IOP-INT-ABDF1) provides users of Opto 22’s ioControl software(version 6.0 and above) an easy method of communicating with Allen-Bradley drivers or PLCs using the DF1 protocol. Opto 22 controllers can act as either a “master” or a “slave” device. They can be connected directly to the serial porton an Allen-Bradley PLC or to Data Highway networks using standard Data Highway interface devices.

OptoMMP Protocol Guide

This guide is for programmers who are writing custom applications to communicate with Opto 22 memory-mapped devices. These devices include SNAP PAC controllers and SNAP PAC EB and SB brains; G4EB2 brains; SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O; E1 and E2 brain boards, and SNAP-LCE controllers.

The guide describes how to use the IEEE 1394-based OptoMMP memory-mapped protocol for programming. The guide also contains the complete memory map for all Opto 22 memory-mapped devices.

NOTE: This guide replaced previous individual programming guides for SNAP Ultimate I/O (form #1312) and SNAP Ethernet I/O (form #1227). This document was formerly called the "SNAP Ethernet-Based I/O Units Protocols and Programming Guide."

SNAP Ethernet-Based I/O Units User's Guide

NOTE:This document describes legacy products that are not recommended for new development. For new development, we recommend SNAP PAC brains and R-series controllers.

This guide shows you how to install, use, and troubleshoot I/O units that contain the following brains: SNAP-B3000-ENET, SNAP-ENET-S64, SNAP-UP1-M64, SNAP-UP1-ADS, SNAP-ENET-RTC, SNAP-ENET-D64, and SNAP-UP1-D64.

NOTE: This guide replaces previous individual user's guides for SNAP Ultimate I/O (form #1311) and SNAP Ethernet I/O (form #1112).

ioManager User's Guide

ioManager is the software tool used to assign IP addresses and configure I/O points and system functions on most Opto 22 Ethernet-based hardware, including SNAP-LCE controllers: SNAP Ethernet, SNAP Ultimate, SNAP Simple, E1, and E2 I/O units; and SNAP-IT units. ioManager can also be used to directly read or write to these devices.

ioControl Commands Quick Reference Card

Quick reference card for using ioControl, including all standard ioControl commands and their OptoScript equivalents. ioControl is part of the ioProject software suite.

ioControl Command Reference

This command reference describes in detail all ioControl programming commands, or instructions. Use with form #1300, the ioControl User's Guide. ioControl is part of the ioProject software suite.

ioControl User's Guide

The ioControl User's Guide includes programming instructions and tips for developing control strategies to run on SNAP Ultimate controller/brains and SNAP-LCE controllers. ioControl is part of the ioProject software suite.

SNAP PAC System Migration Technical Note

This document describes migration options for customers integrating the SNAP PAC System with older Opto 22 systems. It explains the SNAP PAC System's similarities and differences with earlier systems, defines legacy products, and shows how to mix old and new hardware.

Customers moving to the SNAP PAC System may also want to consult form #1693, Legacy and Current Product Comparison and Compatibility Charts.

Caso: Soto la Marina (Spanish)

Caso sobre la automización de una planta de tratamiento de aguas en la ciudad de Soto la Marina, un puerto ubicado en la costa de Tamaulipas en el Golfo de México. (Case study of how a water treatment plant in Soto la Marina, Tamaulipas, Mexico, was automated.)

SNAP-UP1-M64 Controller/Brain Firmware

This download contains current firmware for the SNAP-UP1-M64 controller/brain.

Allen-Bradley DF1 Integration Kit for ioControl

The Allen-Bradley DF1 Integration Kit provides users of Opto 22’s ioControl software (version 6.0 and above) an easy method of communicating with Allen-Bradley drivers or PLCs using the DF1 protocol. Opto 22 controllers can act as either a “master” or a “slave” device. They can be connected directly to the serial port on an Allen-Bradley PLC or to Data Highway networks using standard Data Highway interface devices.

Controller Time Synchronization Application

This software application updates the internal clock for an Ethernet-connected Opto 22 controller. The application runs in Windows at the command prompt, and can update controller clocks regularly or just once.

This application is used with the following Opto 22 controllers:

  • SNAP PAC S- and R-Series
  • Ultimate I/O (UIO)
  • SNAP-LCE
  • SNAP-LCM4
  • M4
  • M4RTU
  • M4IO
This download is freeware. Before downloading, read the Legal Agreement.

Optomation Systems ioControl Functions

A piecewise linear interpolator function PLI under ioControl 5.1. The ioScript version can be easily copied to your program. It can be used for any of the following applications:

  • Calculating volume from tank level measurement (PV=Level Q=Volume)
  • Setpoint Generator (PV=Elapsed Time Q=Required Setpoint, eg Temp or Flow)
  • Flow rate profiling (PV=Dif Pressure Q=Flow Rate)
  • Split Range Control (PV=Common Output Q=Valve1 profile)
  • Adaptive Gain (PV=Secondary Variable Q=PID Gain Value)

SNAP Ethernet I/O BootP Server - Linux

A BootP server for configuring the IP address of the SNAP Ethernet brains and the M4SENET-100 adapter card.

Before you download, read the Legal Agreement.
