KB87804
Published:
Revision: 1.1

In Quick Tag Entry mode, selecting a sub-attribute check-box unchecks both it and the parent attribute


Applies To:

PAC Display Configurator (Basic and Professional)

Versions Affected:

R10.0a-R10.1a and Beta version B10.0b, all builds through 0024

Resolved In Version:

R10.2a


Symptoms:

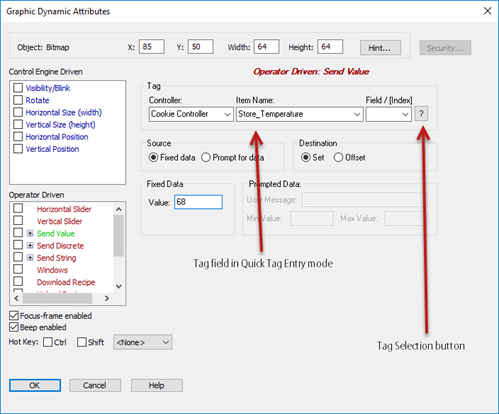

In the Graphic Dynamic Attributes dialog box, there is a way to enter Tag information called Quick Tag Entry mode. If you select this method to enter Tag information for the Send Value, Send Discrete, or Send String attributes and create sub-attributes, when you click on the unchecked box of a sub-attributes, PAC Display removes the check mark from the box of the attribute and sub-attribute, which is incorrect..

Workaround:

Instead of entering tag information with Quick Tag Entry mode, click the Tag Selection button to open the Tag Selection dialog box and enter tag information through that dialog box.

Resolution:

Opto 22 has resolved this issue.

Questions?

Contact: Opto 22 Product Support.
Phone: 800-835-6786 or 951-695-3080
Email: support@opto22.com
