KB87959
Published: June 14, 2019
Revision: 2.0

PAC Display Configurator: Import Window may not allow selection of control engine


Applies To:

PAC Display (Basic and Professional)

Versions Affected:

All versions prior to beta version B10.2B Build 0006

Resolved In Version:

R10.2b


Symptoms:

If you do the following steps in PAC Display Configurator, you'll get an error message (shown below) and you won't be able to import a window:

  1. Click Window > Import Window.
  2. Select an exported window to import and click Open.
  3. In the Choose Imported Window Control Engine dialog, click the control engine on the right side of the import dialog, then click the control engine on the left side of the dialog.

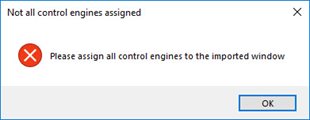

  4. Click OK. You'll see the following message:
  5. Click OK to close the message.

Workaround:

  1. Click Window > Import Window.
  2. Select an exported window and click Open.
  3. In the Choose Imported Window Control Engine dialog, click the control engine on the left side of the import dialog box, then click the control engine on the right side of the dialog.
  4. Click OK.

Resolution:

Opto 22 has resolved this issue.

Questions?

Contact: Opto 22 Product Support.
Phone: 800-835-6786 or 951-695-3080
Email: support@opto22.com
