KB88302
Published: July 3, 2019
Revision: 2.0

CODESYS: Can't configure Steinhart-Hart Coefficients for "Thermistor: Custom Curve" channel type


Applies To:

Opto 22 Library Package for CODESYS Development System

Versions Affected:

1.0.0.0 through 1.0.0.1

Resolved In Version:

1.0.1.0


Symptoms:

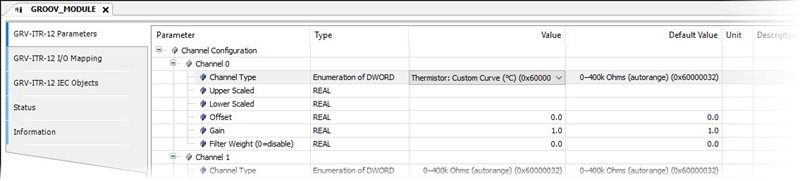

When you plug in a GRV-ITR-12 device into your CODESYS application and you select the channel type "Thermistor: Custom Curve (°C) (0x60000043)", the Parameters page doesn't offer a way to enter the Steinhart-Hart coefficients.

Workaround:

Add custom application code to your CODESYS application to enter the Steinhart-Hart coefficents directly to the OptoMMP memory map.

Resolution:

Opto 22 has resolved this issue.

Questions?

Contact: Opto 22 Product Support.
Phone: 800-835-6786 or 951-695-3080
Email: support@opto22.com
