"between" conditional format rule doesn't work if larger value in left field

Applies To:

groov View running on the following:

GRV-EPIC-PR1, GRV-EPIC-PR2
GROOV-SVR-WIN, GROOV-SVR-WIN-BASE, GROOV-SVR-WIN-SNAP
GROOV-AR1, GROOV-AR1-BASE, GROOV-AR1-SNAP
GROOV-AT1, GROOV-AT1-SNAP

Versions Affected:

GRV-EPIC-PR1, GRV-EPIC-PR2: 2.0.0 to 3.4.5
All others: R4.2a to 4.4c

Resolved In Version:

GRV-EPIC-PR1, GRV-EPIC-PR2: 3.5.0
All others: R4.5a

Symptoms:

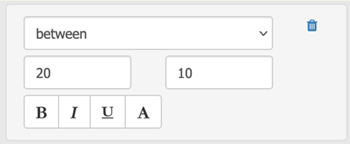

If you configured a gadget with a "between" conditional format rule and you placed the the larger of the two values on the left side of the editor input (as in the following example), the condition will not work:

Workaround:

Swap the left and right numbers.

Resolution:

Opto 22 has resolved this issue.

Questions?

Contact: Opto 22 Product Support.
Phone: 800-835-6786 or 951-695-3080
Email: support@opto22.com
