G4AD22

Production Specification

G4 I/O family

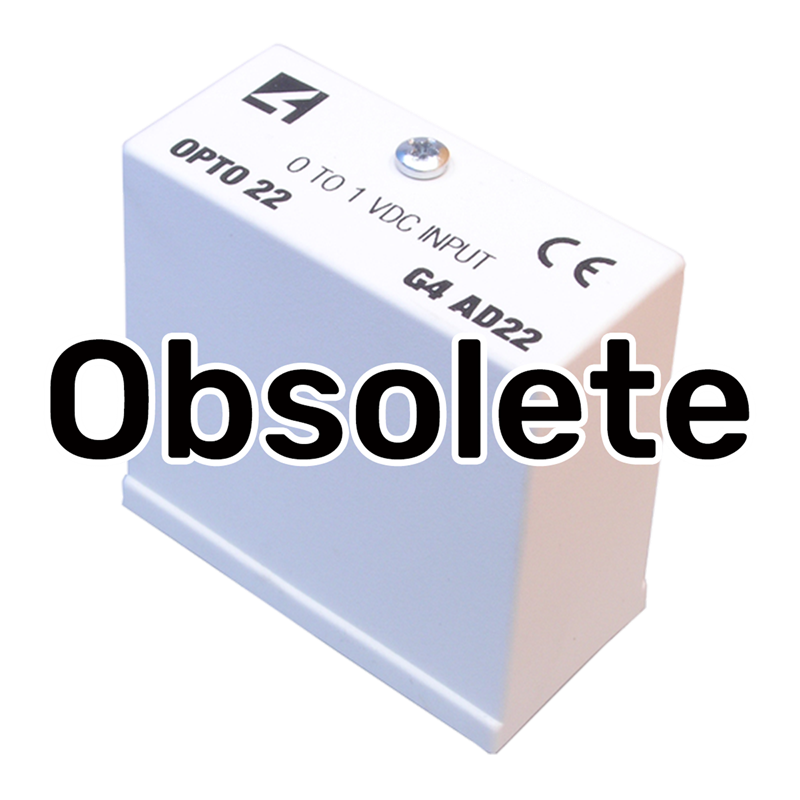

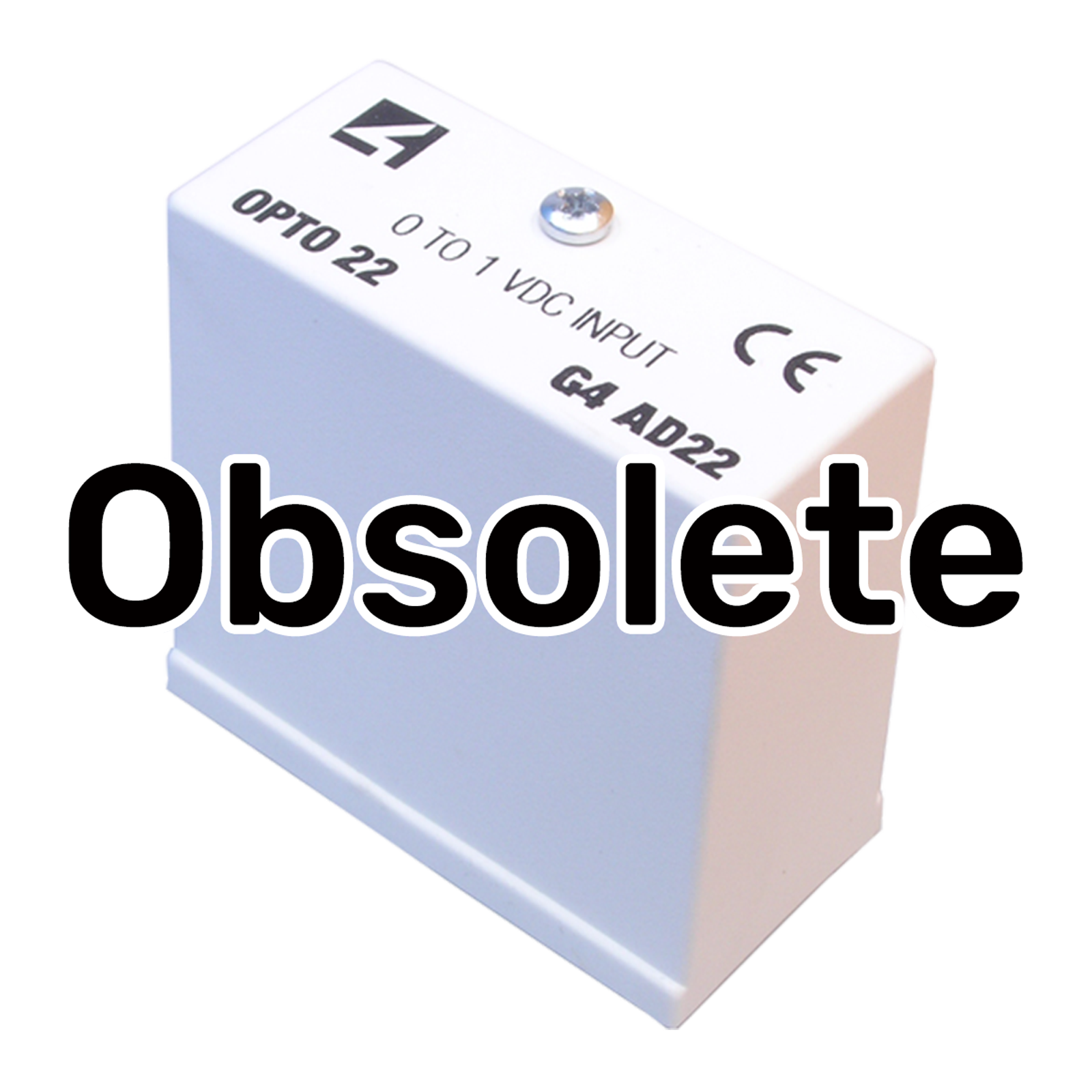

The G4AD22 analog input module provides a single channel of optically isolated voltage-to-digital conversion. Nominal voltage input is 0 to 1 VDC. This module also provides complete electrical channel-to-channel isolation, which eliminates troublesome ground loop problems.



G4AD6

G4AD6HS

G4AD7

G4AD7HS

G4AD9

G4AD11

G4AD12

G4AD13

G4AD22

Nominal Voltage Input

0 to 5 VDC

0 to
5 VDC

0 to
10 VDC

0 to
10 VDC

0 to
50 mV

-5 to
+5 VDC

-10 to
+10 VDC

0 to
100 mV

0 to
1 VDC

Over/Under Range

-0.3 to
11 VDC

-0.3 to
11 VDC

-0.6 to
22 VDC

-0.6
to 22 VDC

-3.0 to
110 mV

-5.6 to
21 VDC

-11.2 to
42 VDC

-6 to
220 mV

-60 mV to
2.2 VDC

Accuracy*

± 5 mV

± 5 mV

± 10 mV

± 10 mV

± 100 µV

± 10 mV

± 20 mV

± 100 µV

± 1 mV\

Response Time
% Of Scale Change
5%
63%



8.4 msec
165 msec



< 3 msec
< 3 msec



8.4 msec
165 msec



< 3 msec
< 3 msec



2 msec
36 mse



8.4 msec
165 msec



8.4 msec
165 msec



2 msec
36 msec



< 3 msec
< 10 msec

* Accuracy figure requires use of gain and offset commands.



Resolution

12 bits

Isolation (Transient)
  Input-to-output
  Input-to-analog supply



4,000 Vrms
4,000 Vrms

Ambient Temperature
  Operating
  Storage



-30 to 70 °C
-40 to 85 °C



G4 Analog Voltage Input Modules Data Sheet
