G4OAC24

$15.00 (USA and Canada only)

Availability: In stock
G4 AC Output 12-140 VAC, 24 VDC Logic

Please call (800) 321-6786 to order.

G4OAC24

Production Specification

G4 I/O family

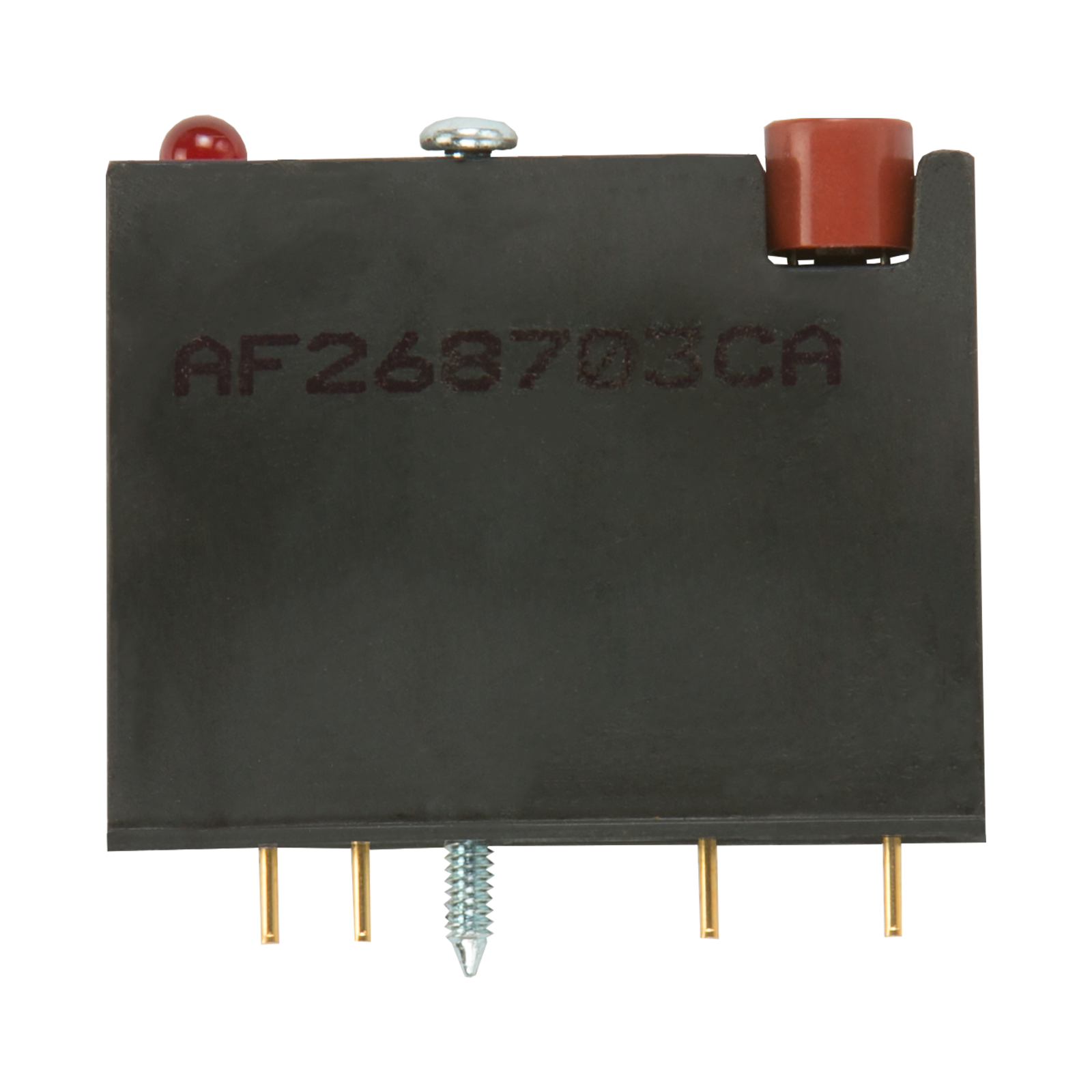

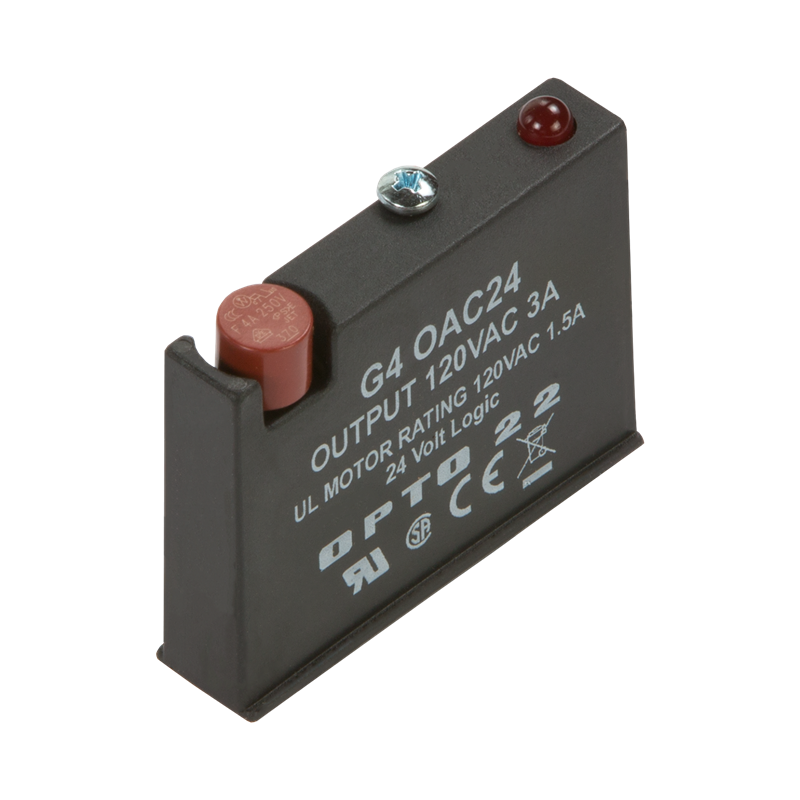

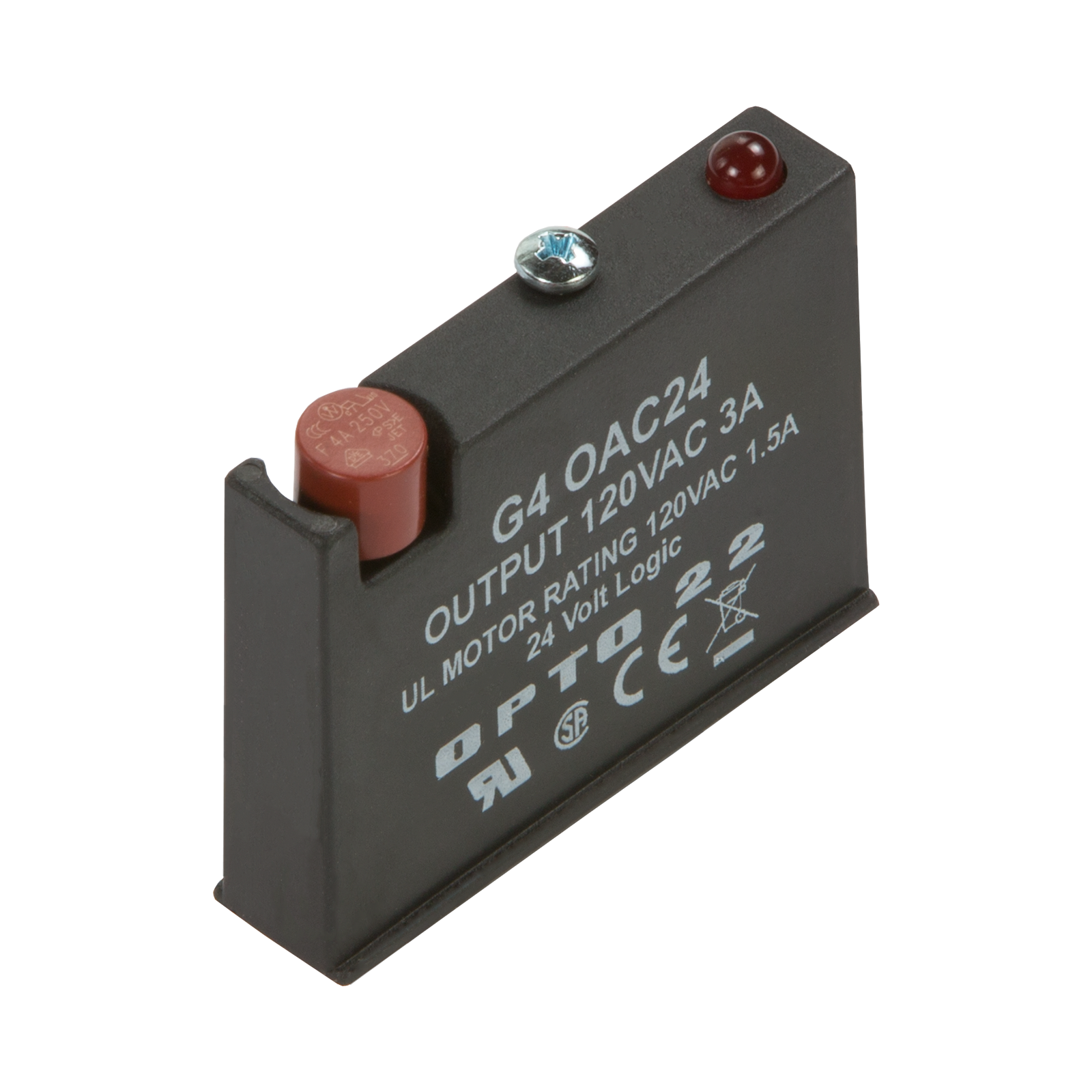

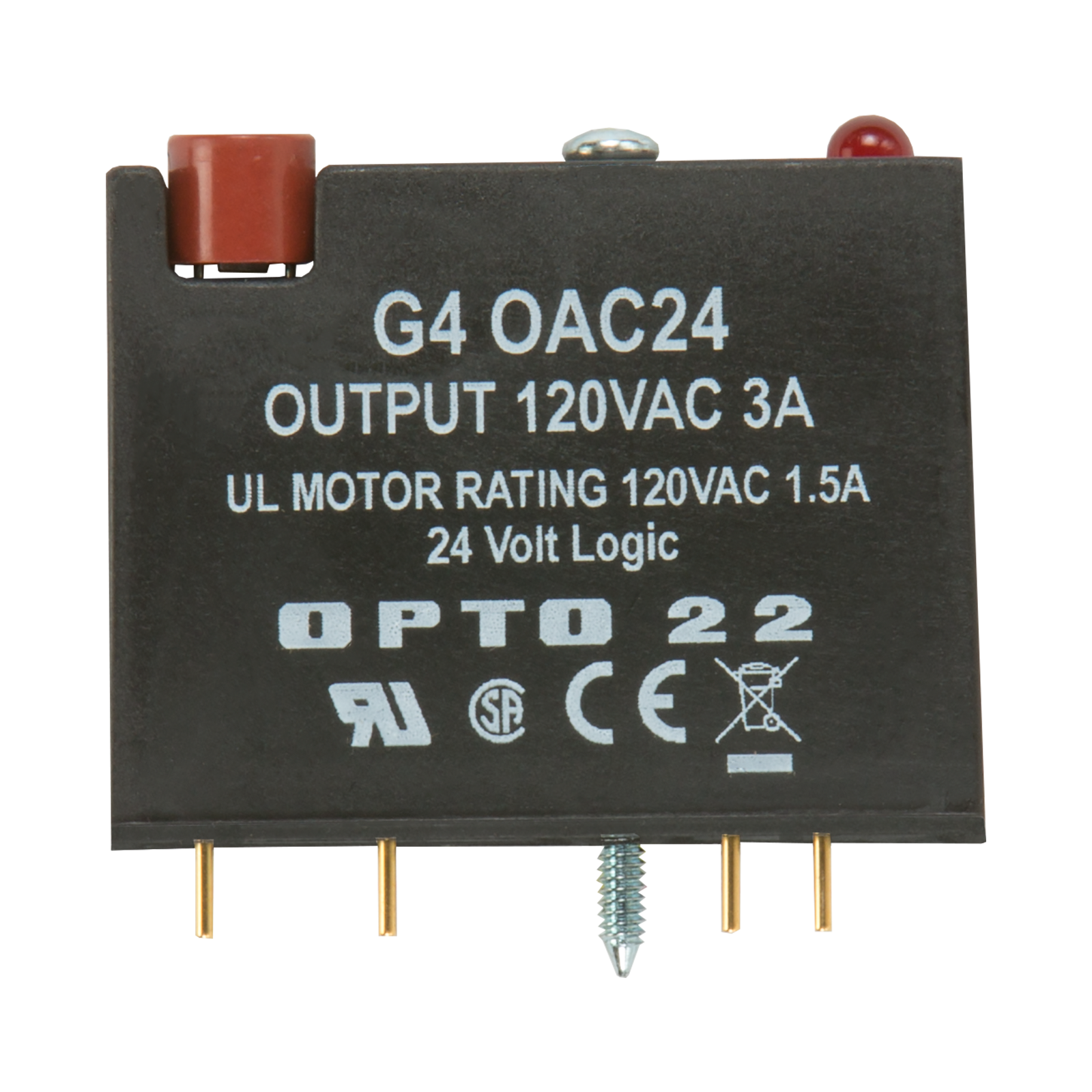

The G4OAC24 is a digital AC output module with an output voltage range of 12–140 VAC, requiring a typical logic voltage of 24 VDC. It is not for use with Opto 22 brains or with a Raspberry Pi, which use 5 VDC logic.

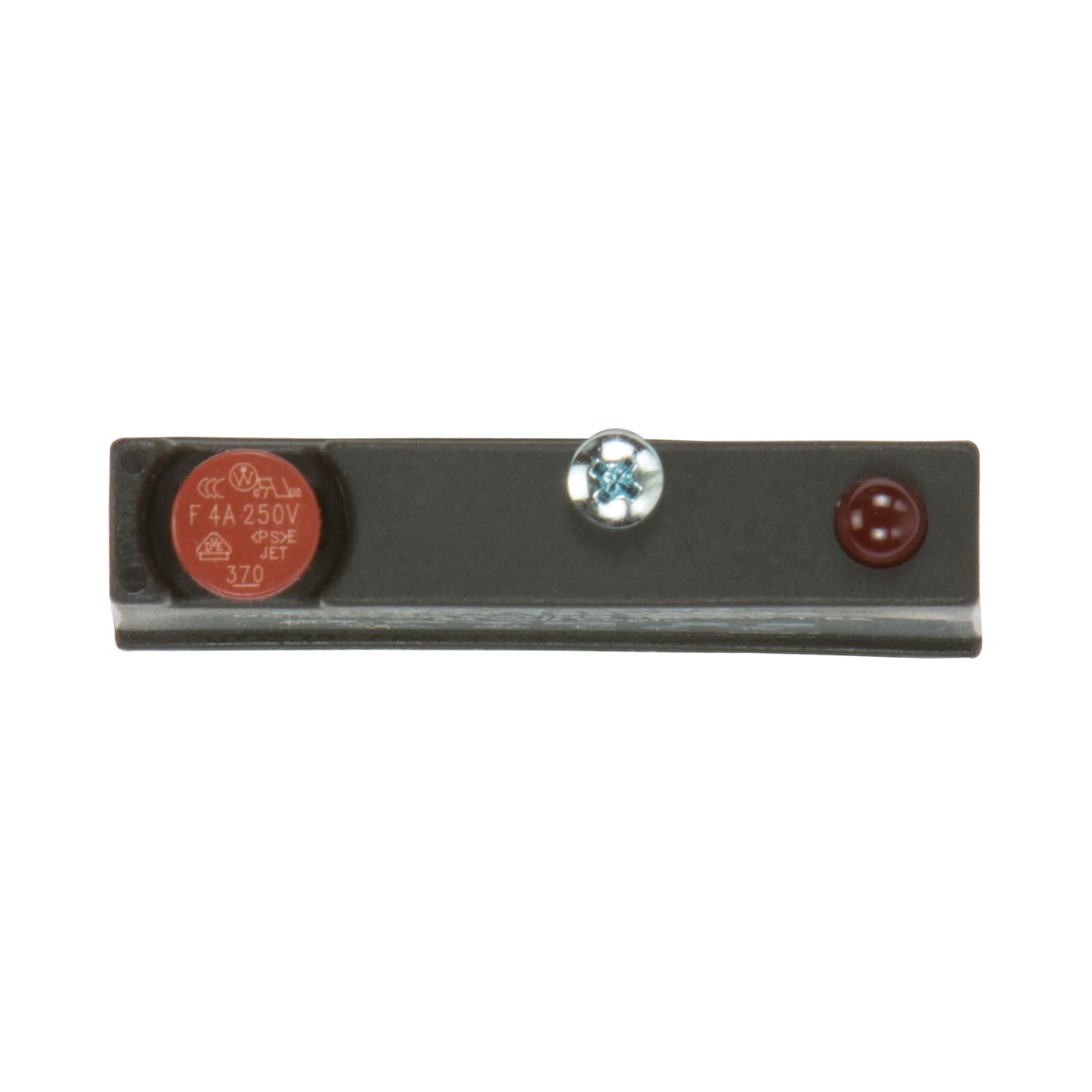

This AC output module is equivalent to a single-pole, single-throw, normally open contact (Form A, SPST-NO). It includes a 4 amp fast-blow fuse.

Opto 22’s G4 AC output modules are used to control or switch AC loads. Each module provides up to 4000 volts of optical isolation (transient) between field outputs and the control side of the circuit, and each features zero voltage turn-on and zero current turn-off.

Typical applications for AC output modules include switching loads such as AC relays, solenoids, motor starters, heaters, lamps, and indicators.



Units

G4OAC15***

G4OAC15A***

G4OAC24***

G4OAC24A***

Nominal line voltage

VAC

120

120/240

120

120/240

Output voltage range

VAC

12–140

24–280

12–140

24–280

Key feature

Current rating:
At 45 °C ambient
At 70 °C ambient



A
A



3
2



3
2



3
2



3
2

UL Motor Load Rating

A

1.5

1.5

1.5

1.5

Isolation input-to-output (transient):

1 ms

1 minute

volts



4000

1500



4000

1500



4000

1500



4000

1500

Off-state leakage at nominal volt­age (60 Hz)

mARMS

5

1.25/2.5

5

1.25/2.5

Logic voltage range

VDC

10.5–16

10.5–16

19.5–32

19.5–32

Logic pickup voltage

VDC

10.5

10.5

19.5

19.5

Logic dropout voltage

VDC

1

1

1

1

Logic input current at nominal logic voltage

mA

15

15

18

18

Control resistance
(Rc in schematic)

ohms

1 K

1 K

2.2 K

2.2 K

One-cycle surge

A peak

80

80

80

80

Turn-on time @ 60 Hz

micro- seconds

8.3*

8.3*

8.3*

8.3*

Turn-off time @ 60 Hz

micro- seconds

8.3**

8.3**

8.3**

8.3**

Peak repetitive voltage

VAC

500

500

500

500

Minimum load current

mA

20

20

20

20

Output voltage drop maximum peak

V

1.6

1.6

1.6

1.6

Operating frequency

Hz

25–65

25–65

25–65

25–65

dV/dT-off-state

V/micro- second

200

200

200

200

dV/dT-commutating

--

snubbed for 0.5 power factor load

snubbed for 0.5 power factor load

snubbed for 0.5 power factor load

snubbed for 0.5 power factor load

Temperature
Operating:
Storage:



°C
°C



-30 to +70
-30 to +85



-30 to +70
-30 to +85



-30 to +70
-30 to +85



-30 to +70
-30 to +85

* One-half cycle maximum. Module turns on at the zero volt crossing of the AC sine wave.
** One-half cycle maximum. Module turns off at the zero current crossing of the AC sine wave.
*** Not for use with Opto 22 brains.
