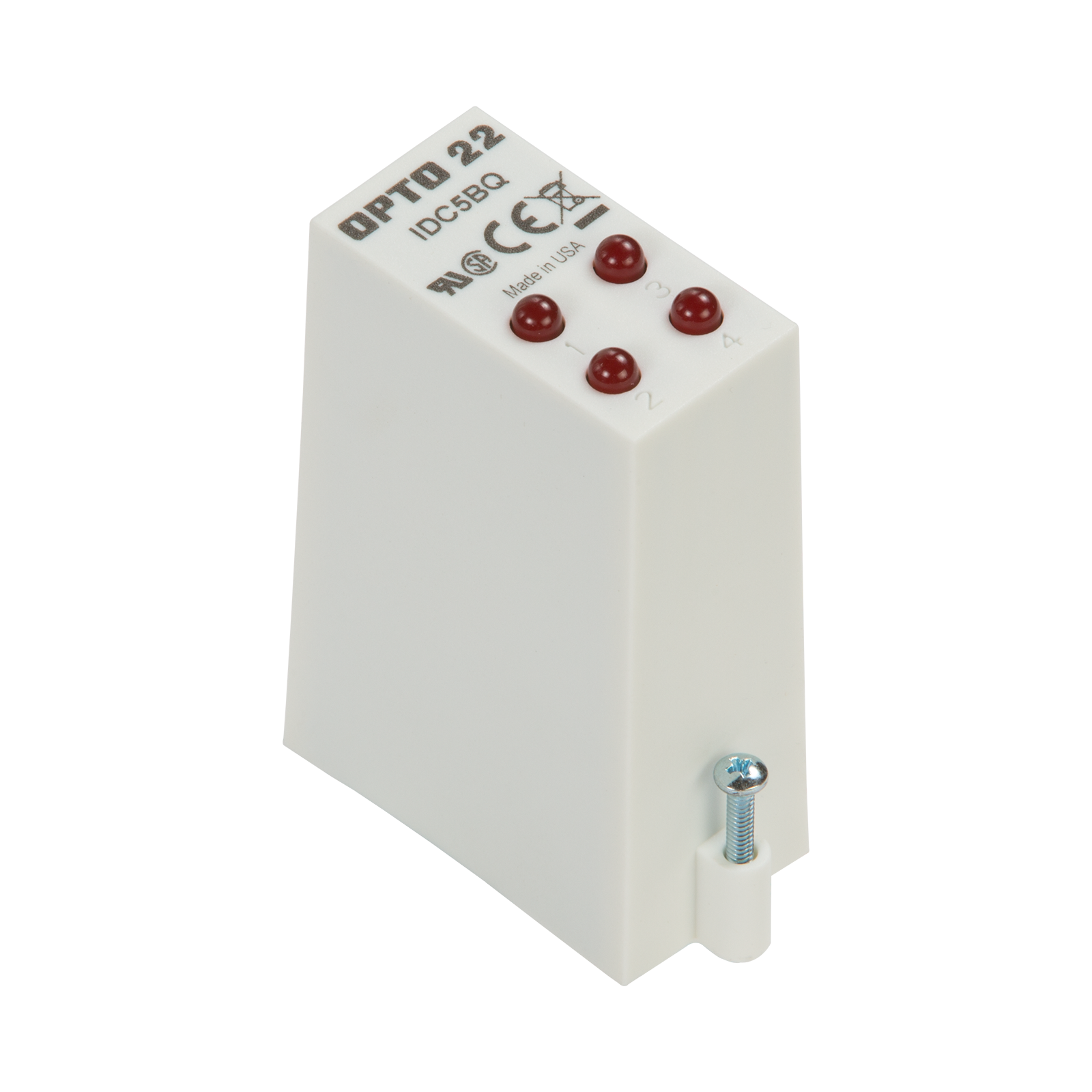

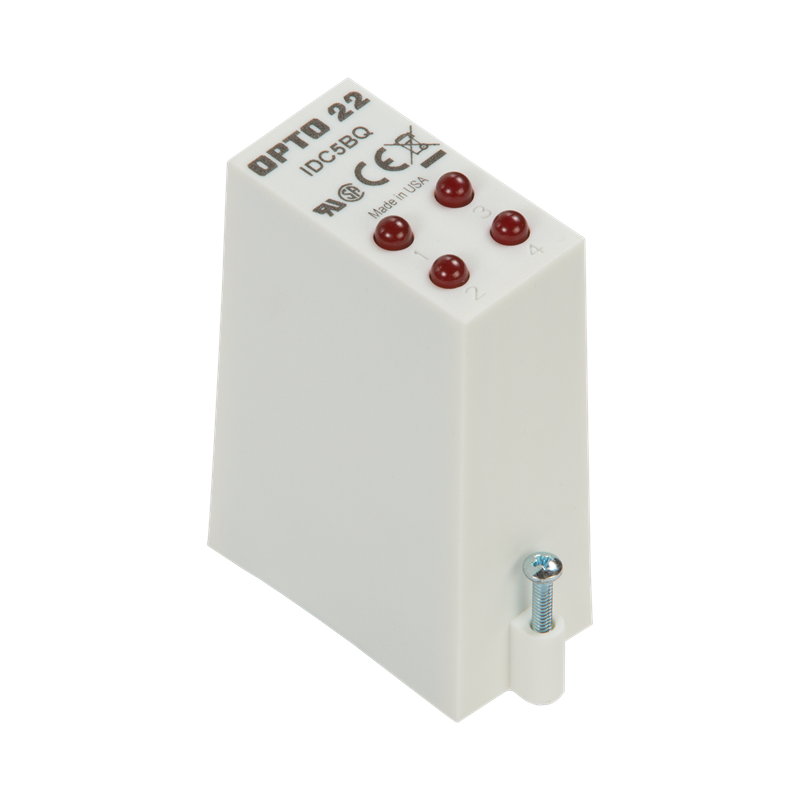

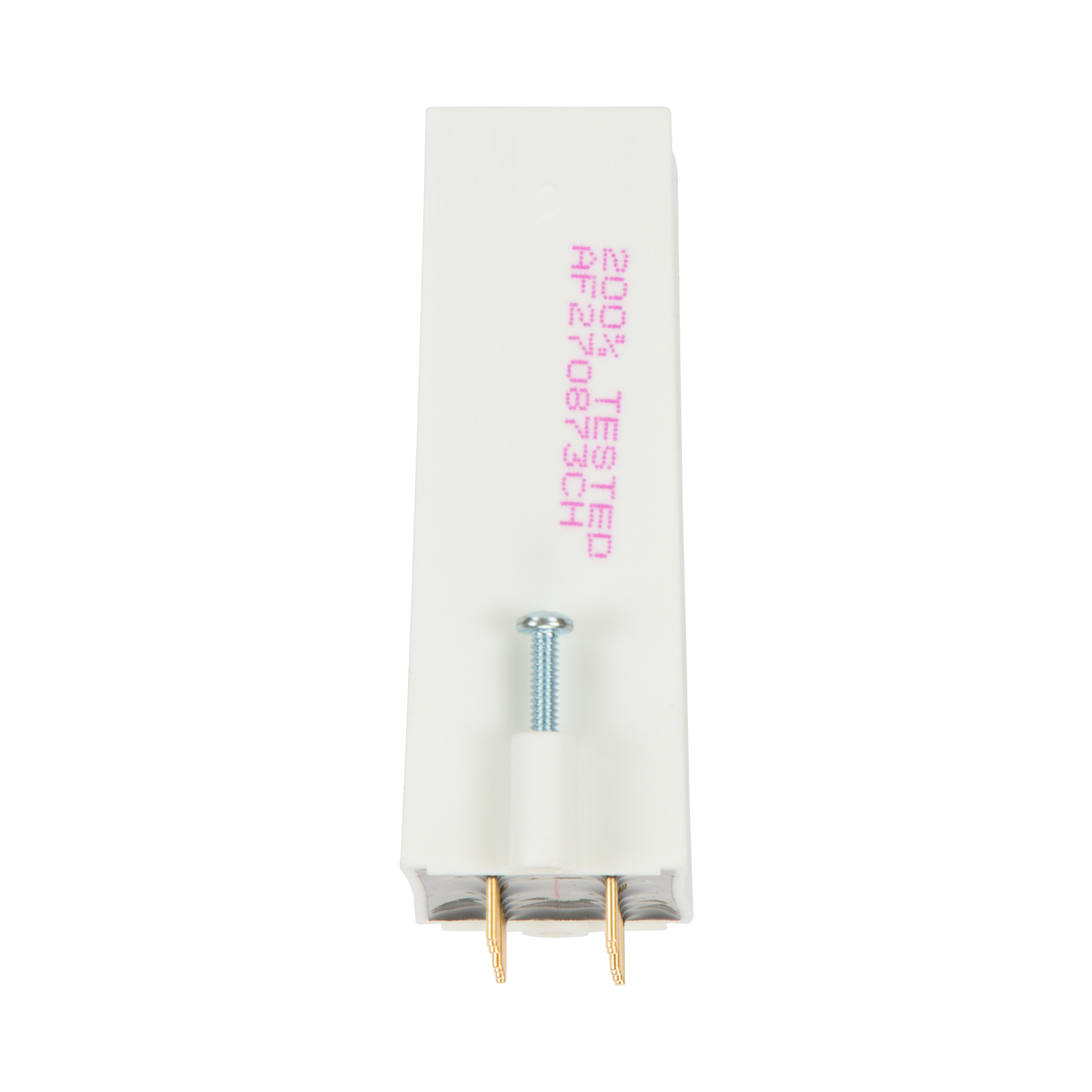

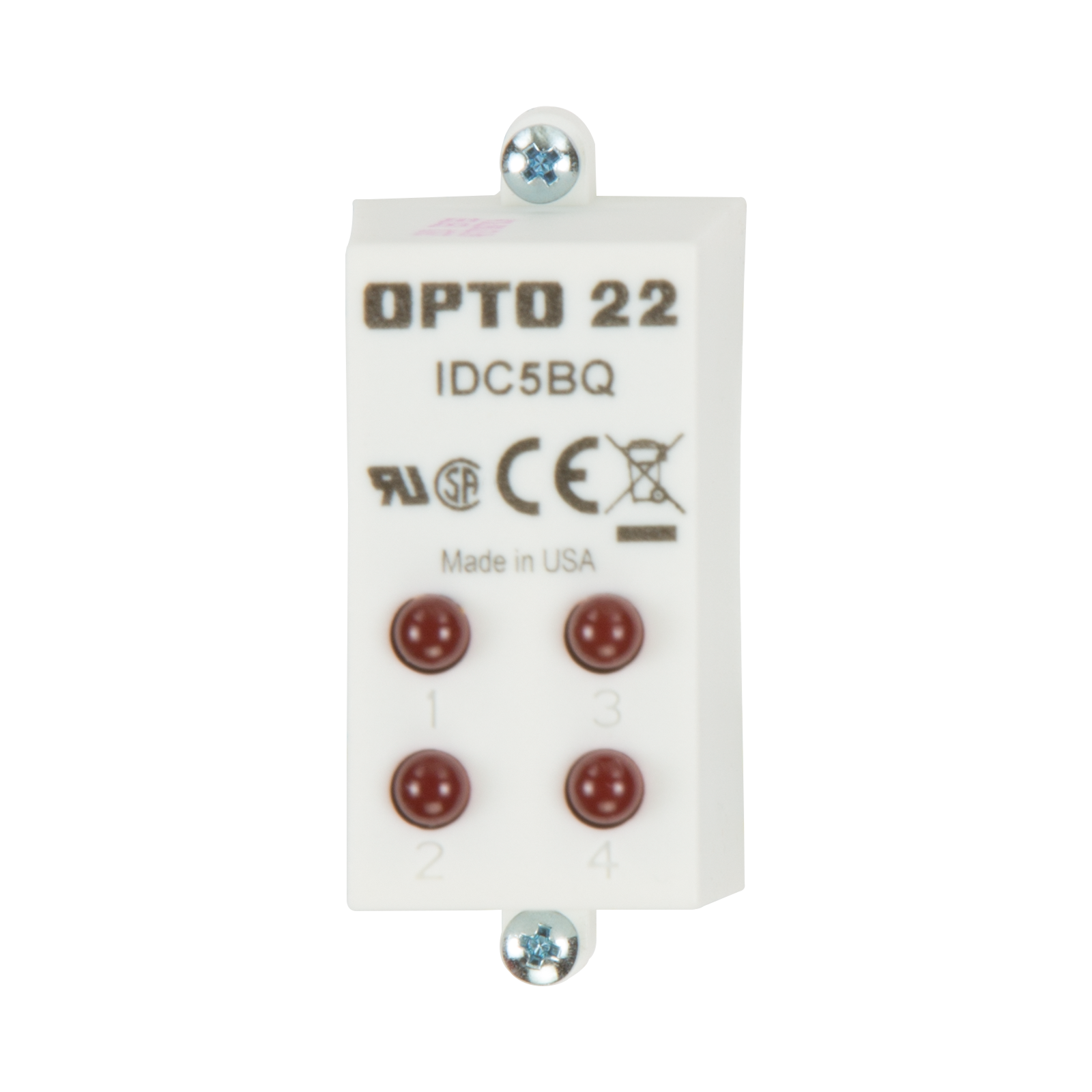

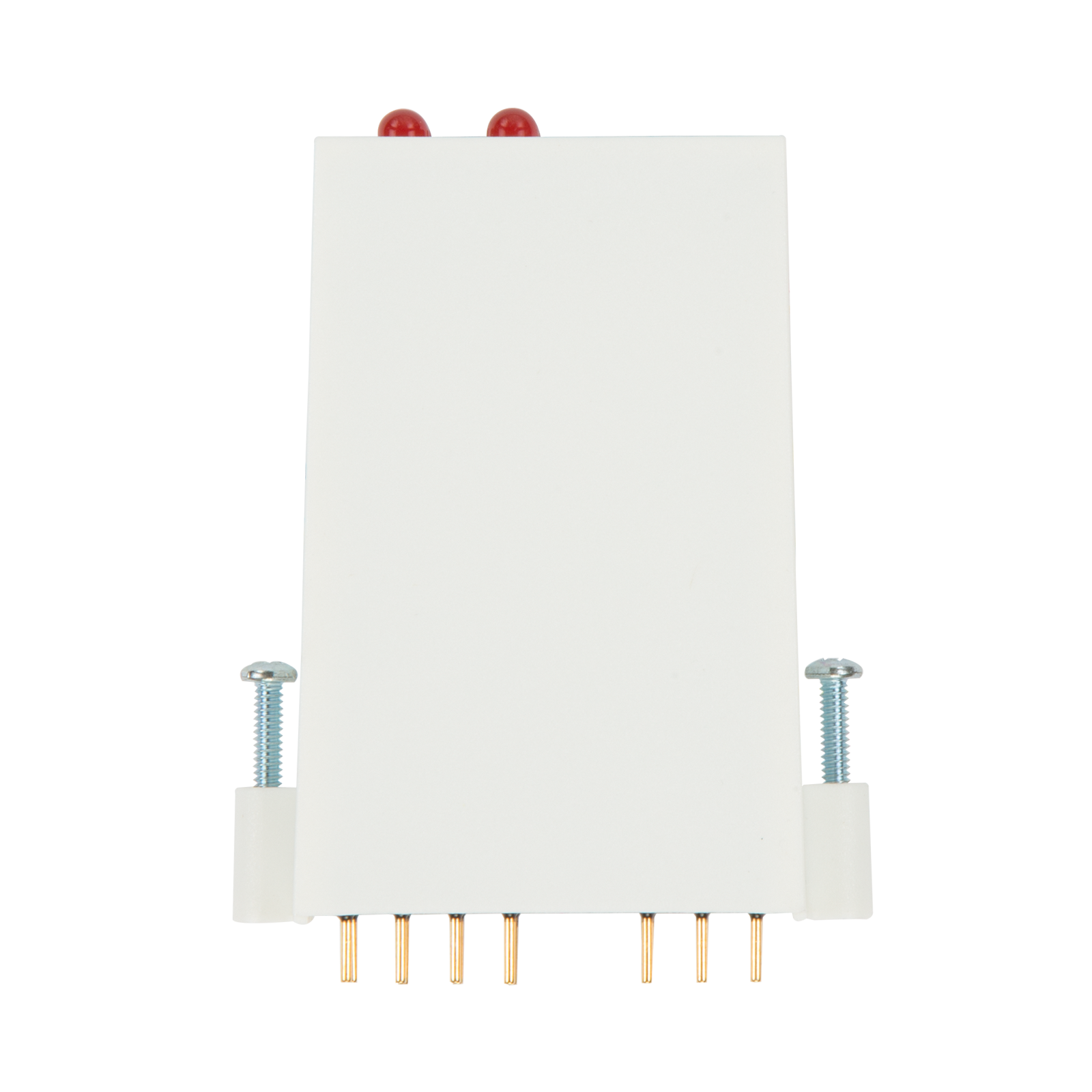

IDC5BQ

$87.00 (USA and Canada only)

Availability: In stock
Quad Pak 4-channel DC Input 4-16 VDC, 5 VDC Logic, High Speed

Please call (800) 321-6786 to order.

IDC5BQ

Production Specification

Quad Pak I/O family

The IDC5BQ is a 4-channel DC digital input. It accepts input voltage of 4-16 VDC and uses 5 VDC logic. It is compatible with Opto 22 Optomux, Pamux, and Mistic protocol brain boards and mounting racks, as well as racks using a direct cable connection to a computer.

The IDC5BQ module is a fast-switching input module for signals produced by photoelectric switches, encoders, DC proximity switches, or TTL devices.

Quad Pak modules contain the equivalent of four single-channel I/O circuits in a single package. Each Quad Pak module can be divided into two pairs, with each pair sharing a common connection.

Quad Pak modules plug into Quad Pak I/O mounting racks. They are not compatible with single-channel racks or SNAP racks.

Operating Ambient Temperature

-30 to 70 °C

Isolation Input-to-Output

4,000 Vrms

Output Voltage Drop

0.4 volts @ 50 mA

Output Current (per channel)

50 mA

Output Leakage With No Input

100 microamps maximum @ 5 VDC

Output Transistor

30 volts breakdown







Units

IDC5Q

IDC5BQ

IAC5Q

IAC5AQ

Input Voltage Range (VAC)

VAC

12–32

N/A

90–140

180–280

Input Voltage Range (VDC)

VDC

10–32

4–16

90–140

180–280

Input Current@ Maximum Line

mA

29

45

11

6.5

Turn-on Time

msec

5

0.05

20

20

Turn-off Time

msec

5

0.1

20

20

Input Allowed For No Output

mA, V

1, 3

0.7, 1

3, 45

1.7, 80

Logic Supply Voltage - Nominal

VDC

5

5

5

5

Logic Supply Voltage - Nominal

VDC

4.5–6

4.5–6

4.5–6

4.5–6

Logic Supply Voltage - Nominal

mA

12

12

12

12

Input Resistance

Ohms

1.5K

300

14K

43K

Control Resistance

Ohms

220

220

220

220
