M4PS120A
Hover over image to zoom in

M4PS120A

Availability: Obsolete

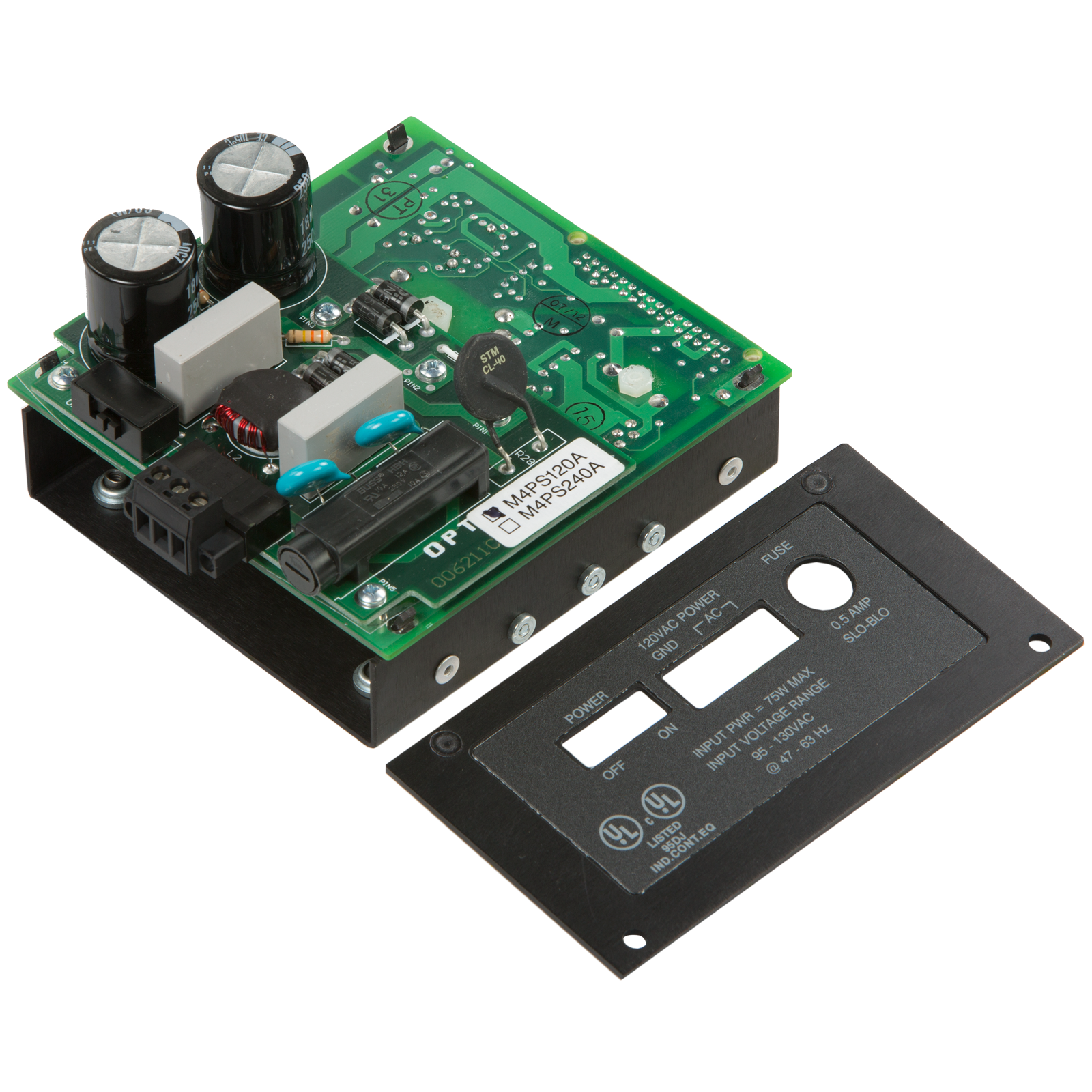

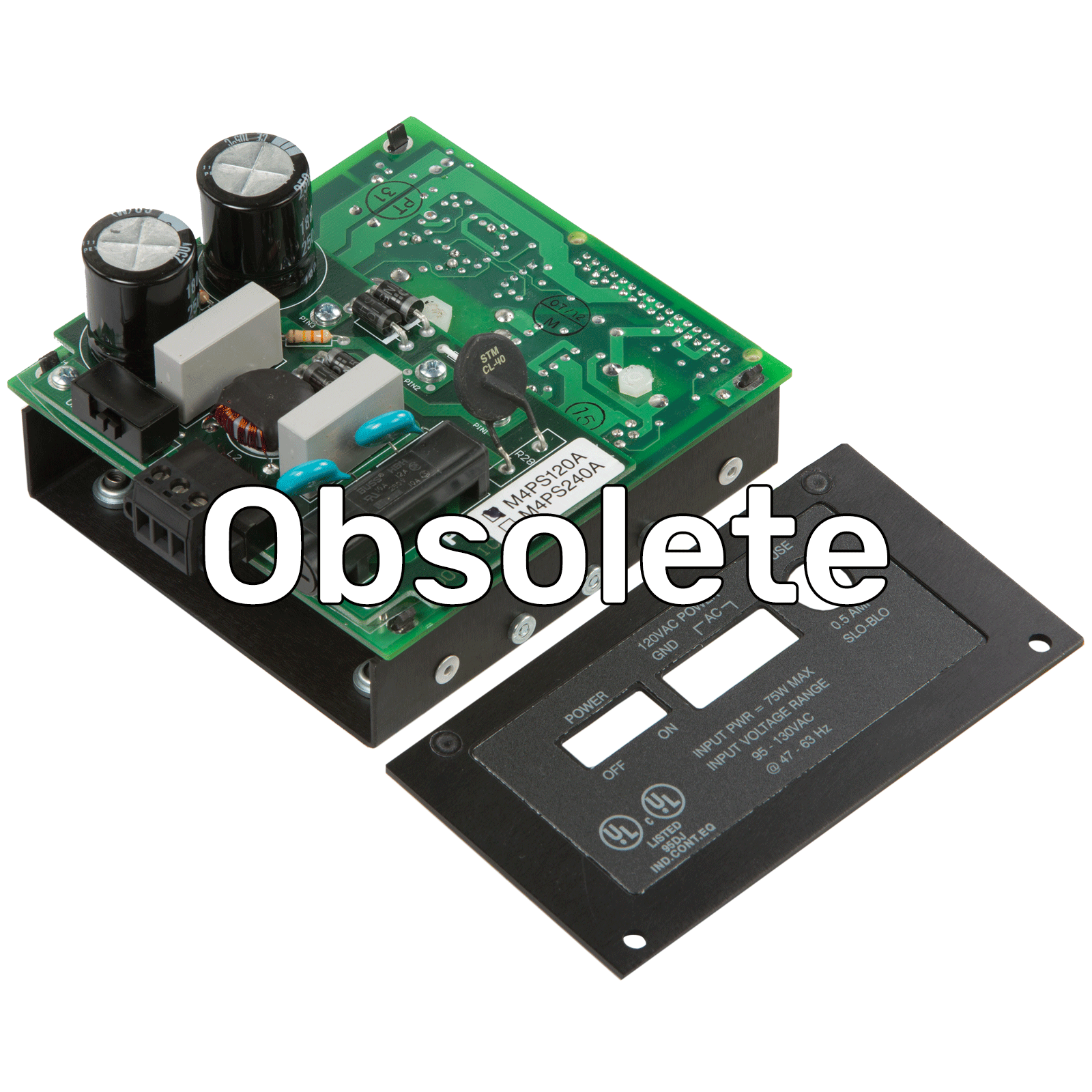

OBSOLETE Modular Controller AC Power Supply 90-130 VAC

Production Specification

*NOTE: This product is now obsolete.*
Modular Controller AC Power Supply 90-130 VAC

Modular Controller Power Supplies

General

Typical Operating Temperature

-20 to 70 °C

Storage Temperature

-40 to 85 °C



Input Power Connector

Wire size range

18–12 AWG

Screw torque

0.5 to 0.6 Nm or
70.8 to 84.9 ounce-inch





M4PS12D

M4PS24D

M4PS48D

M4PS125D

M4PS120A

M4PS240A

Input Voltage Range

9-15 VDC

18-30 VDC

36-60 VDC

94-156 VDC

95-130 VAC

190-250 VAC

Fuse

5.0 A

2.5 A

1.5 A

0.5 A

0.5 A

0.375 A

Frequency Range

--------------

--------------

--------------

--------------

47-63 Hz

47-63 Hz



Power Supplies for M4 Controllers Data Sheet

*** NOTE: These parts are obsolete and no longer available when current stock is depleted. ***

There are six models of input power supplies available for any Modular controller. This data sheet describes these parts: M4PS12D, M4PS24D, M4PS48D, M4PS125D, M4PS120A, M4PS240A.

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.
