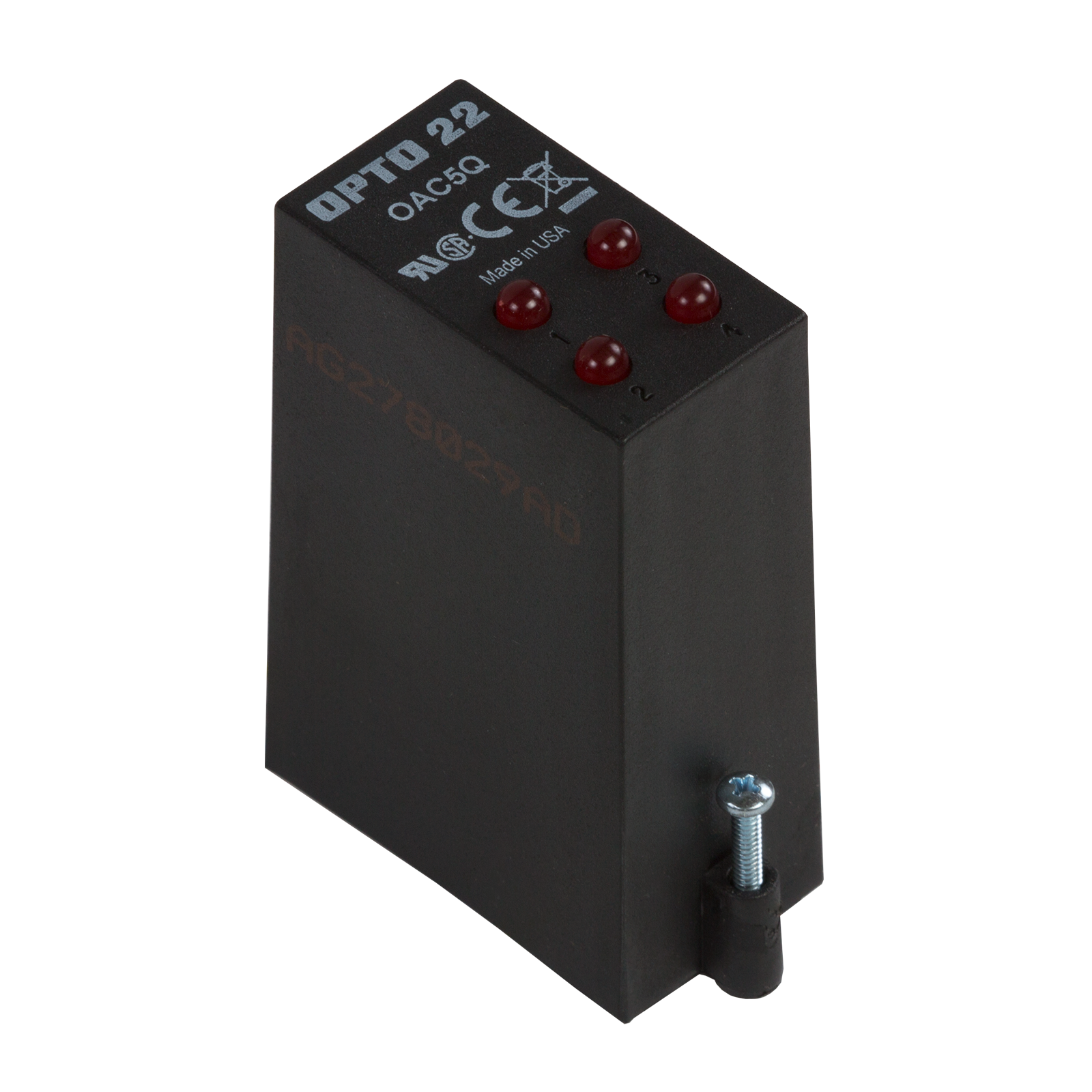

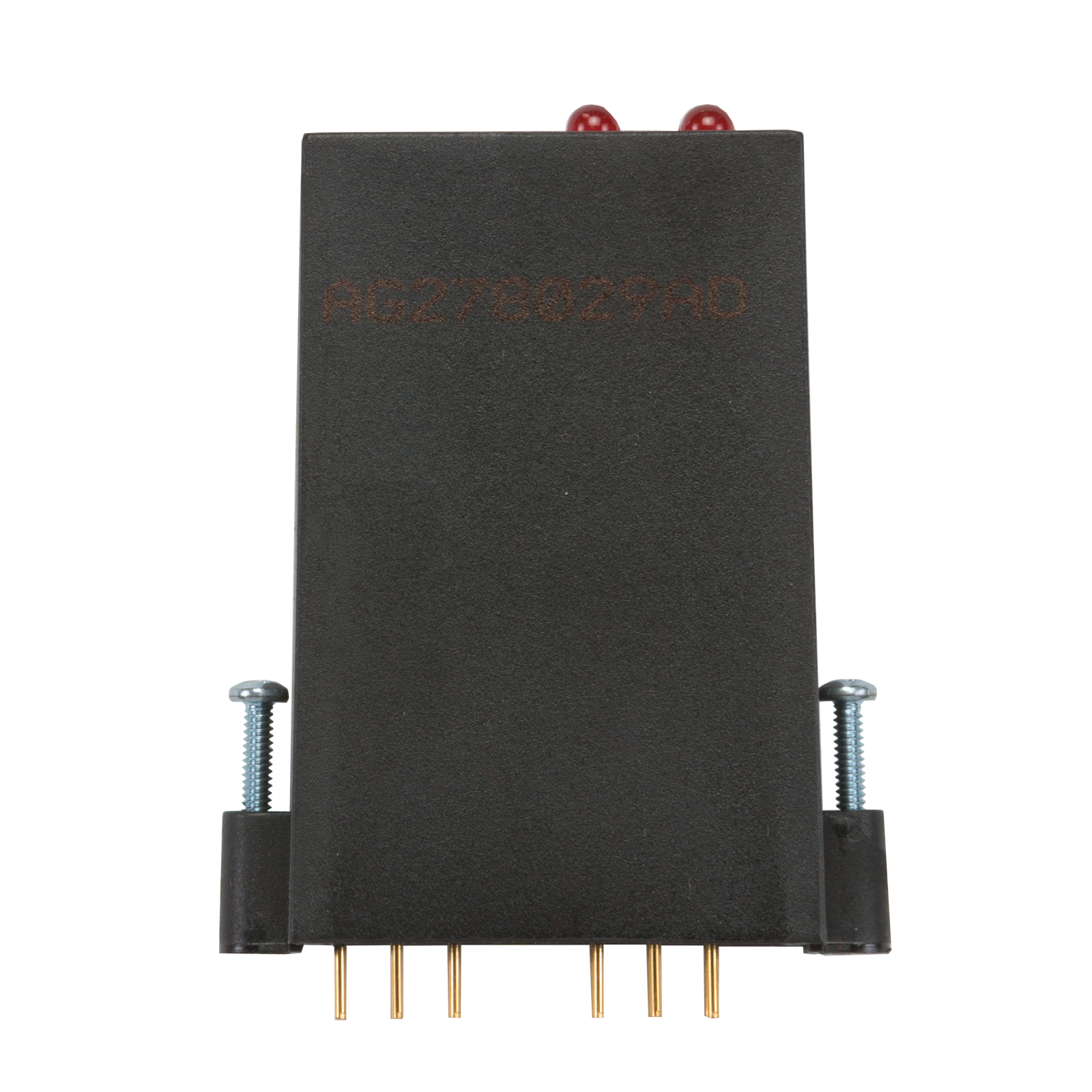

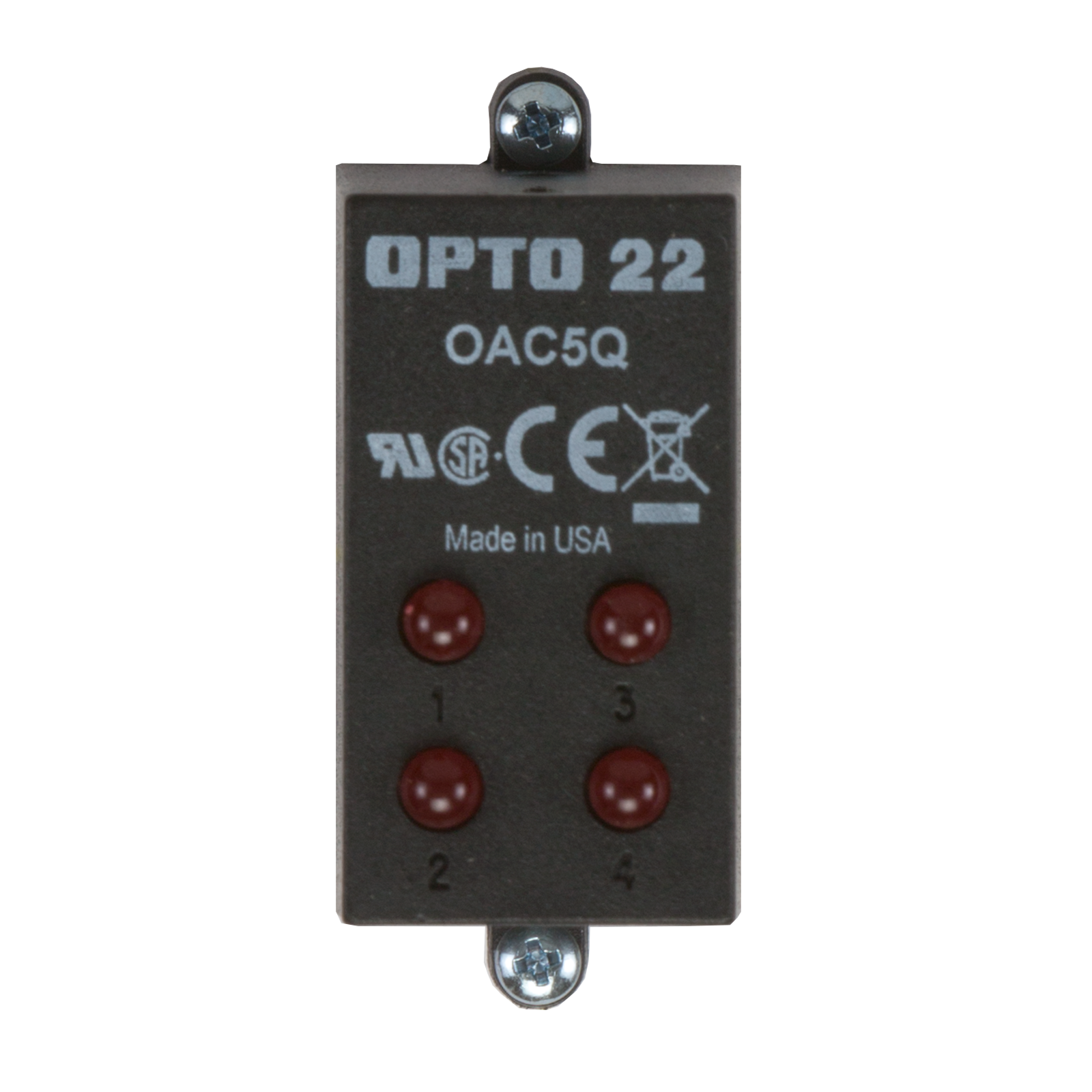

OAC5Q
Hover over image to zoom in

OAC5Q

$104.00 (USA and Canada only)

Availability: In stock
Quad Pak 4-channel AC Output 12-280 VAC, 5 VDC Logic

Production Specification

Quad Pak I/O family

The OAC5Q is a 4-channel AC digital output module used for controlling or switching AC loads of 12-280 VAC. It uses 5 VDC logic and is compatible with Opto 22 Optomux, Pamux, and Mistic protocol brain boards and mounting racks, as well as racks using a direct cable connection to a computer. This module can also be used with a Raspberry Pi, the Digital I/O Carrier Board (part number OPTO-P1-40P), and the PB16HQ mounting rack.

Quad Pak modules contain the equivalent of four single-channel I/O circuits in a single package. Each Quad Pak module can be divided into two pairs, with each pair sharing a common connection.

Quad Pak modules plug into Quad Pak I/O mounting racks. They are not compatible with single-channel racks or SNAP racks.

AC output modules are used for controlling or switching AC loads. Each module provides up to 4,000 Vrms of optical isolation between the field devices and the control logic. The Quad Pak AC output module features zero voltage turn-on and zero current turn-off.

OAC5Q

Line Voltage–Nominal

120/240 VAC

Operating Voltage Range

12-280 VAC

Current Rating (per channel)
  @ 20° C Ambient
  @ 45° C Ambient


3 amps
2 amps

One Cycle Surge

80 amps

Logic Voltage–Nominal

5 VDC

Logic Voltage Range (Vcc)

4-8 VDC

Logic Pickup Voltage

4.0 VDC

Logic Dropout Voltage

2.3 VDC

Logic Input Current
  @ Nominal Logic Voltage
  (lout in Schematic Diagram)

12 mA

Control Resistance (Rc in Schematic Diagram)

220 ohms



Peak Repetitve Voltage

500 volts

Operating Ambient Temperature

-30 to 70 °C

Isolation Input-to-Output

4,000 Vrms

Minimum Load Current

20 milliamps

Operating Frequency

25-65 Hz

Turn-on Time

1/2 cycle maximum-zero voltage

Turn-off Time

1/2 cycle maximum-zero current

DV/DT-Off-state

snubbed for rated 0.5 power factor load

Output VOltage Drop Maximum Peak

1.6 volts

Off-state Leakage
  @ Nominal Voltage-60Hz

5 milliamps, ms

Agency Approvals UL, CE, CSA, UKCA
