OBSOLETE OptoTerminal Power Adapter and Communications Cable

Production Specification

*** NOTE: This part is OBSOLETE and no longer available. ***

**Not recommended for new development.** The manufacturer, Beijer Electronics, has posted an end-of-life notice for OptoTerminal G-70 and OptoTerminal G-75. This cable is used with those products, and the last dates for purchase orders and deliveries in the notice also apply to the cable. Please contact marketing@opto22.com with any concerns.

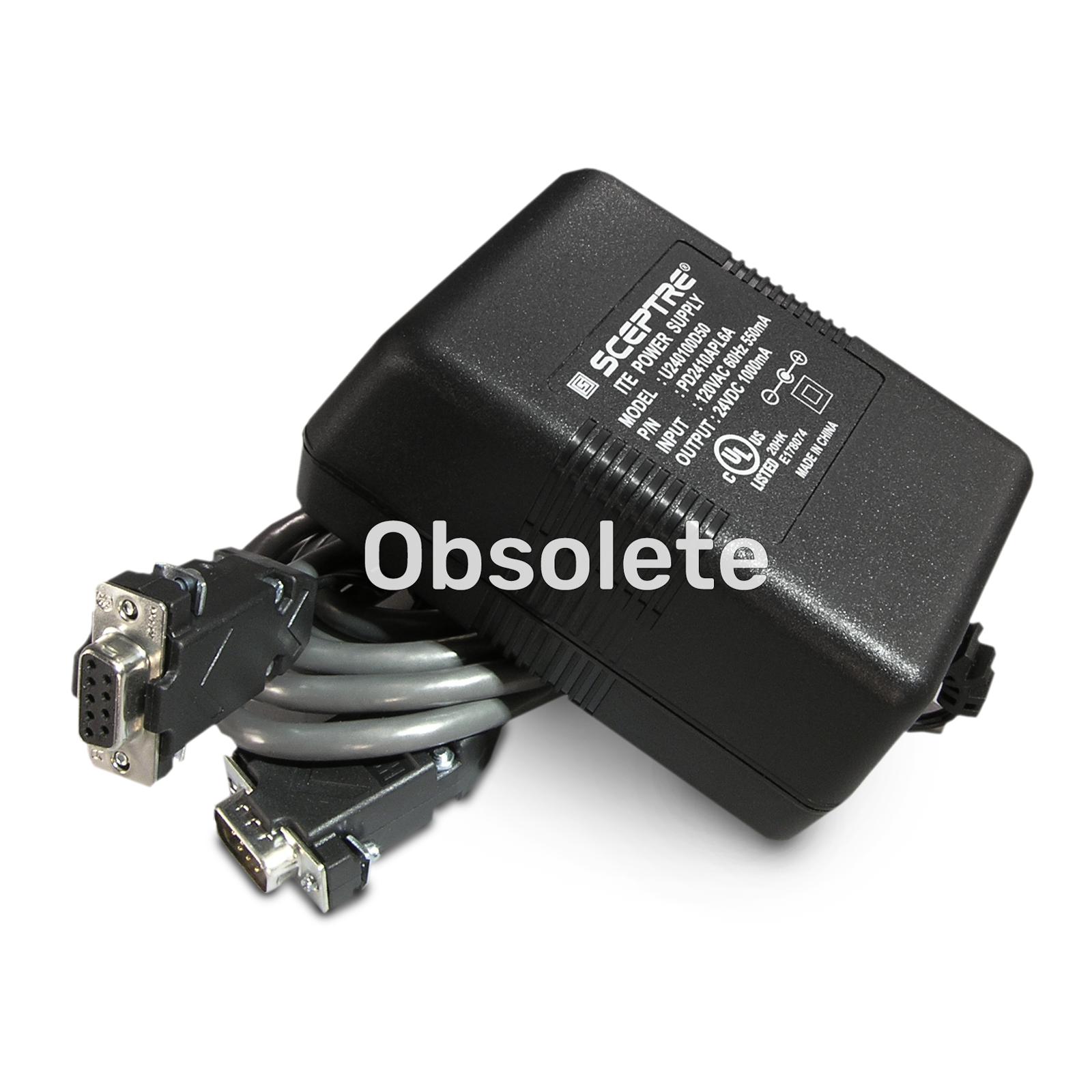

OptoTermCable is a power adapter (120VAC/60Hz to 13.5VDC @ 1.7A) and 6.5 ft (2 m) serial cable used with Opto 22's OptoTerminal-G70 and OptoTerminal-G75 color touch-screen display terminals. This cable is convenient for programming an OptoTerminal on a desk or location other than the final location where the terminal will be installed. (Typically a custom cable is used at the final installation site to match available power and equipment requirements.)
*** NOTE: This part is OBSOLETE and no longer available. ***

Power: 120VAC/60Hz to 13.5VDC @ 1.7A Communications: 6.5 ft (2 m) RS-232 serial, DB9 to DB9

OptoTerminal Data Sheet

*** These products are OBSOLETE and no longer available. ***
Opto 22's OptoTerminal family brings a programmable, Ethernet-enabled, graphics-based operator interface to any location with Opto 22 SNAP Ethernet I/O, SNAP Ultimate I/O, or SNAP-IT systems. Operators can use these mountable display terminals to send commands to and receive real-time data from plant floor equipment and other devices connected to Opto 22 hardware.

OptoTerminal Programmer's Reference Manual

This manual covers the many aspects of the Qlarity Programming language. OptoTerminal software is divided into four major components: User Application (created in Qlarity Foundry™ or a compatible text editor using the Qlarity™ programming language), Application Binary (the user application compiled as binary so it can be downloaded to the terminal), System Software and Operating System (written in C using µC/OS) and the Hardware Abstraction (for the Windows® and the terminal’s hardware drivers).

OptoTerminal Qlarity Foundry User's Manual

Qlarity Foundry™ is a Windows®-based design tool that uses the Qlarity™ programming language to help you design user applications for the OptoTerminal-G70 and OptoTerminal-G75 operator interfaces. This manual covers design basics, user application design, specific Qlarity Foundry functions, and more.

OptoTerminal Hardware User's Manual

Opto 22 OptoTerminals are Ethernet-enabled graphic terminals with object-based programming. These terminals feature a robust list of industrial grade hardware features and options. This manual covers product description, supported interfaces, terminal components, installation instructions, power on setup information, and more.

OptoTerminal Quick Start Guide

This guide shows you how to configure an Opto 22 OptoTerminal-G70 or OptoTerminal-G75 and connect it to an Opto 22 SNAP Ultimate I/O™ , SNAP Ethernet I/O™ , or SNAP-IT™ system over a standard 10/100 Mbps Ethernet network. The guide also includes basic instructions for using the included Qlarity™ Foundry™ programming software to communicate with these Opto 22 I/O systems.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
