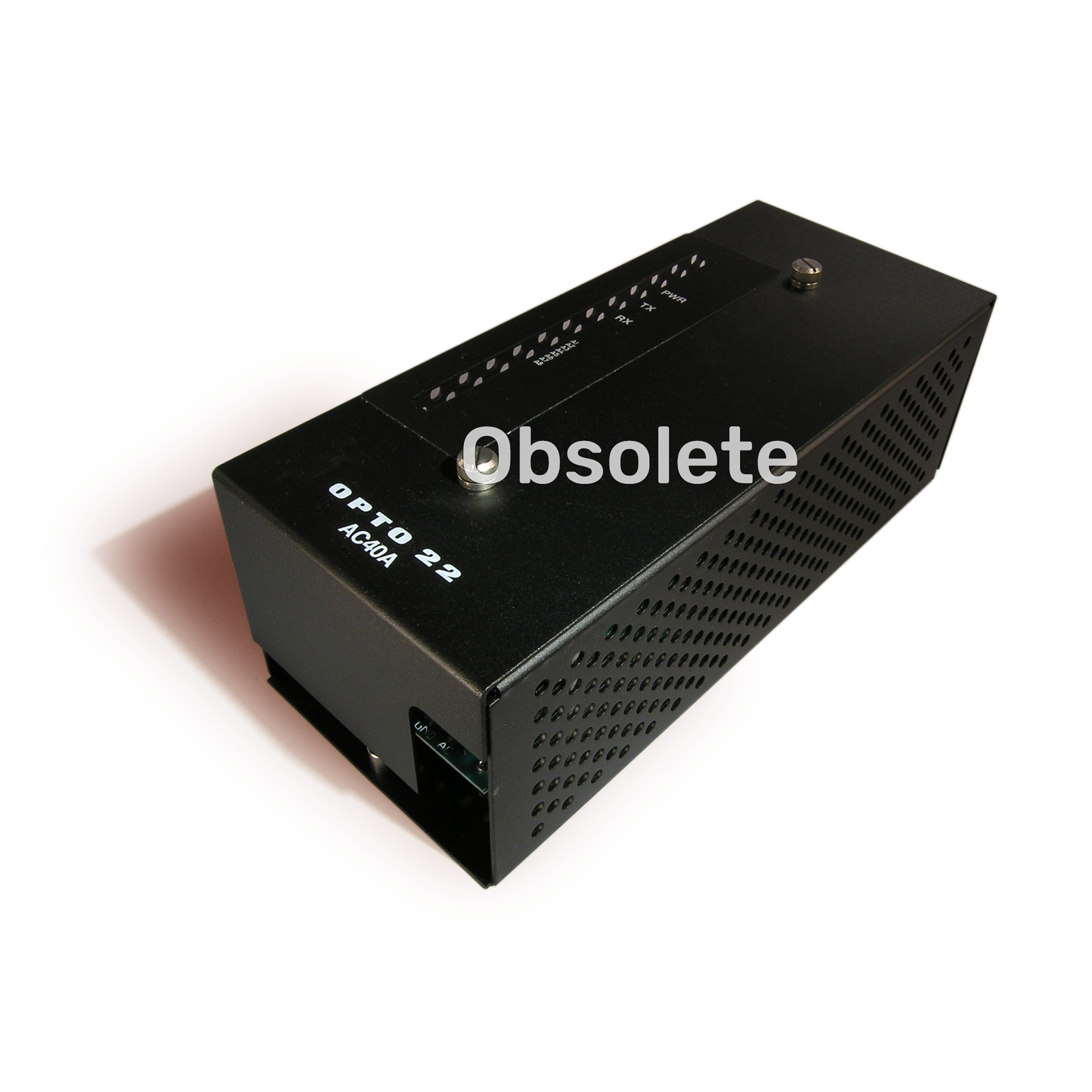

OBSOLETE Fiber Optic Repeater, 120 VAC

Please call (800) 321-6786 to order.

AC40A

Production Specification

Fiber Optic Repeater, 120 VAC

IMPORTANT NOTE: Due to difficulty obtaining parts, this product is now obsolete. Please contact Opto 22 Pre-Sales engineers to discuss options for your specific application.

AC40A and AC40B

Ambient Temperature:

0 °C - 70 °C
95% relative humidity, non-condensing

Power:
  AC40A:
  AC40B:



120 VAC ± 10 VAC 60 Hz
240 VAC ± 20 VAC 50 Hz

Fiber Optic:
  Recommended Fiber Size:



62.5/125 µm

Recommended Fiber:
  "ST" Style Connectors:

Belden Type 225812 (Duplex)
Belden Type 225811 (Single)

Maximum Fiber Length:

3.5 kilometers

Transmitter Characteristics (All Typical)
  Optical Power Output:
  Peak Emission Wavelength:
  Numerical Aperture:
  Optical Port Diameter:



-12.0 dBm
820 nm
0.31
150 µm

Receiver Characteristics (All Typical)
Receiver Sensitivity:
Equivalent Numerical Aperture:
Optical Port Diameter:



-24.0 dBm
0.50
400 µm

RS-485:
Maximum Cable Length:



3,000 feet

Recommended Cable Type
(twisted pair):

100 ohms impedence
12.5 picofarads per foot

Termination Resistance:

220 ohms

Tri-state Biasing Resistance:

470 ohms

Features:
• 2-wire or 4-wire hook-ups
• Asynchronous operation independent of baud rate, parity, or stop bits
• Baud rates to 115.2K baud
• Jumpers for optional termination and biasing
• Up to 32 AC40s per fiber link



Fiber Optic Datalink Repeater Data Sheet

The AC40 is a fiber optic repeater designed to allow RS-485 communication devices to communicate over a fiber optic data link.

Fiber Optic Repeater Adapter

The AC40 fiber optic data link adapter satisfies the requirements of industrial communications by using light instead of conventional electrical signals.
