AD11
Hover over image to zoom in

AD11

$155.00 (USA and Canada only)

Availability: In stock
G1 -5 to +5 VDC Analog Input

Production Specification

G1 I/O family

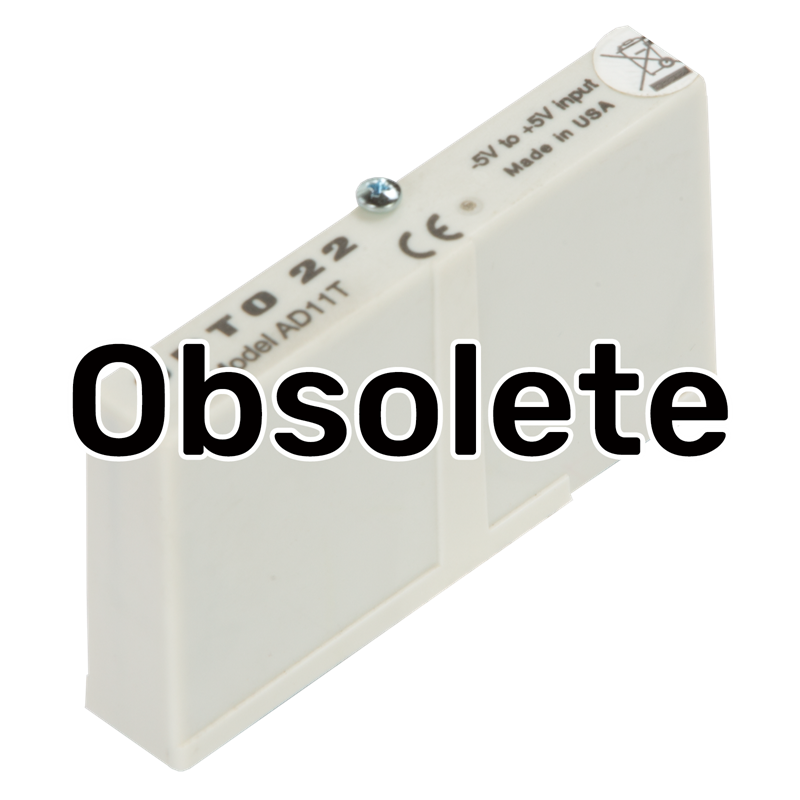

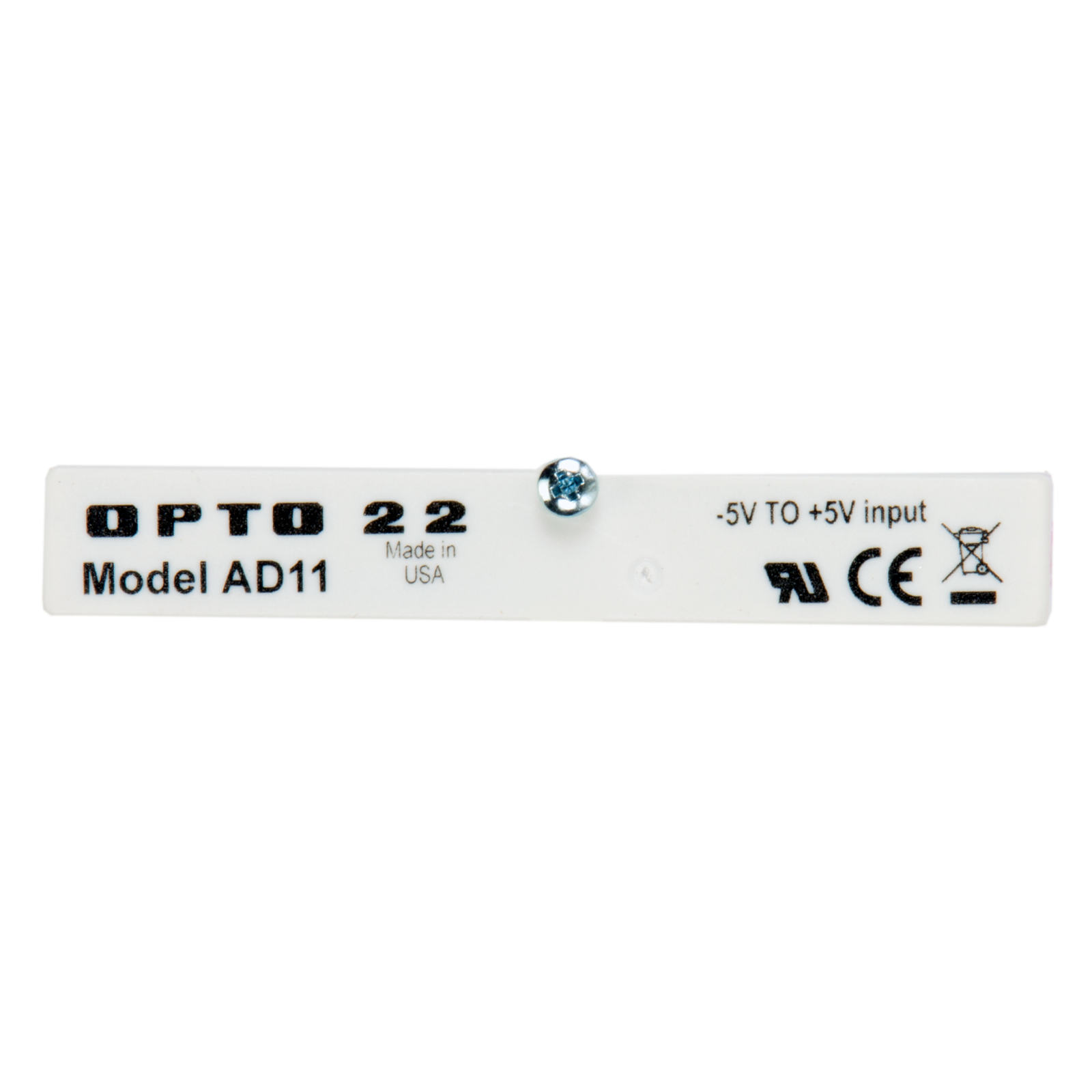

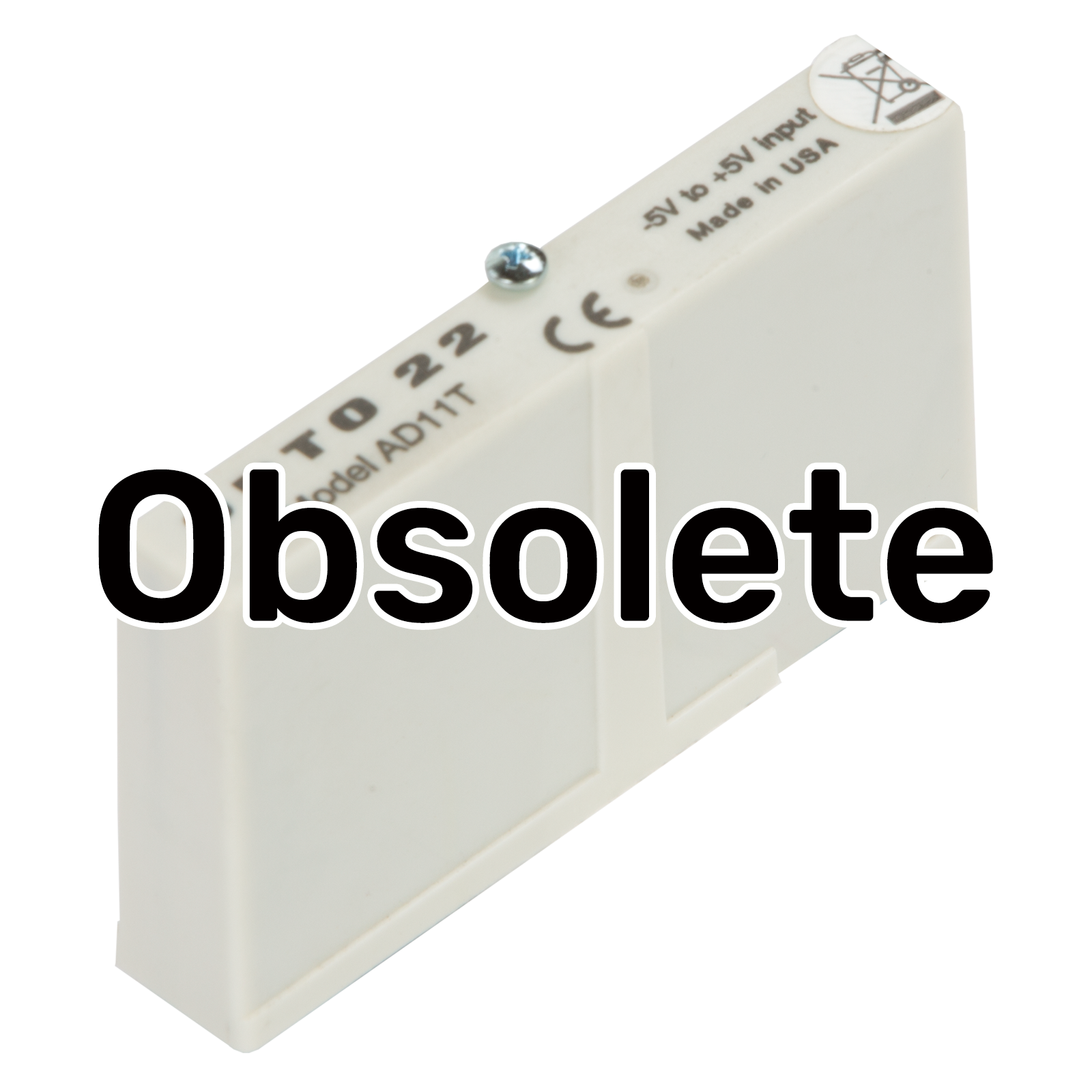

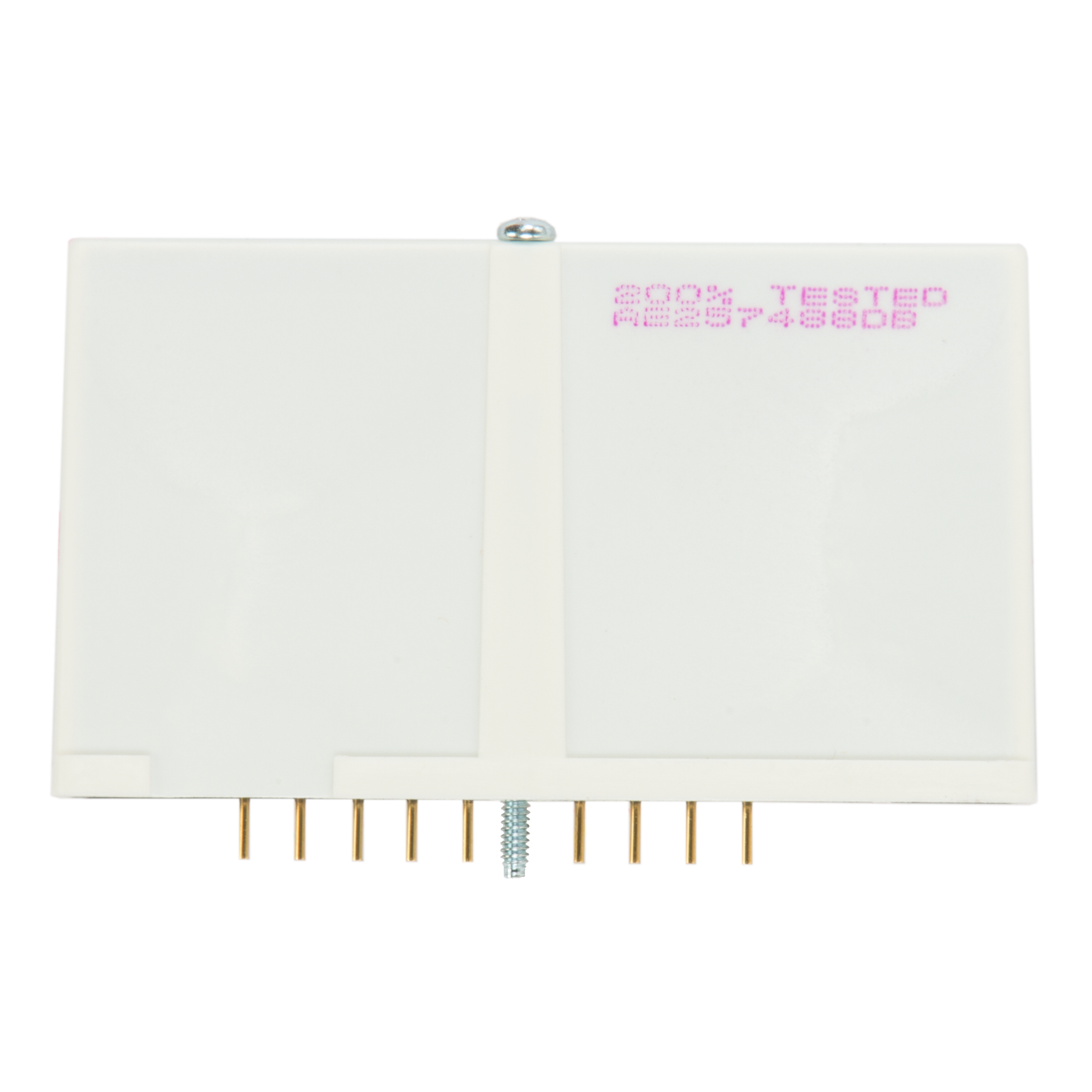

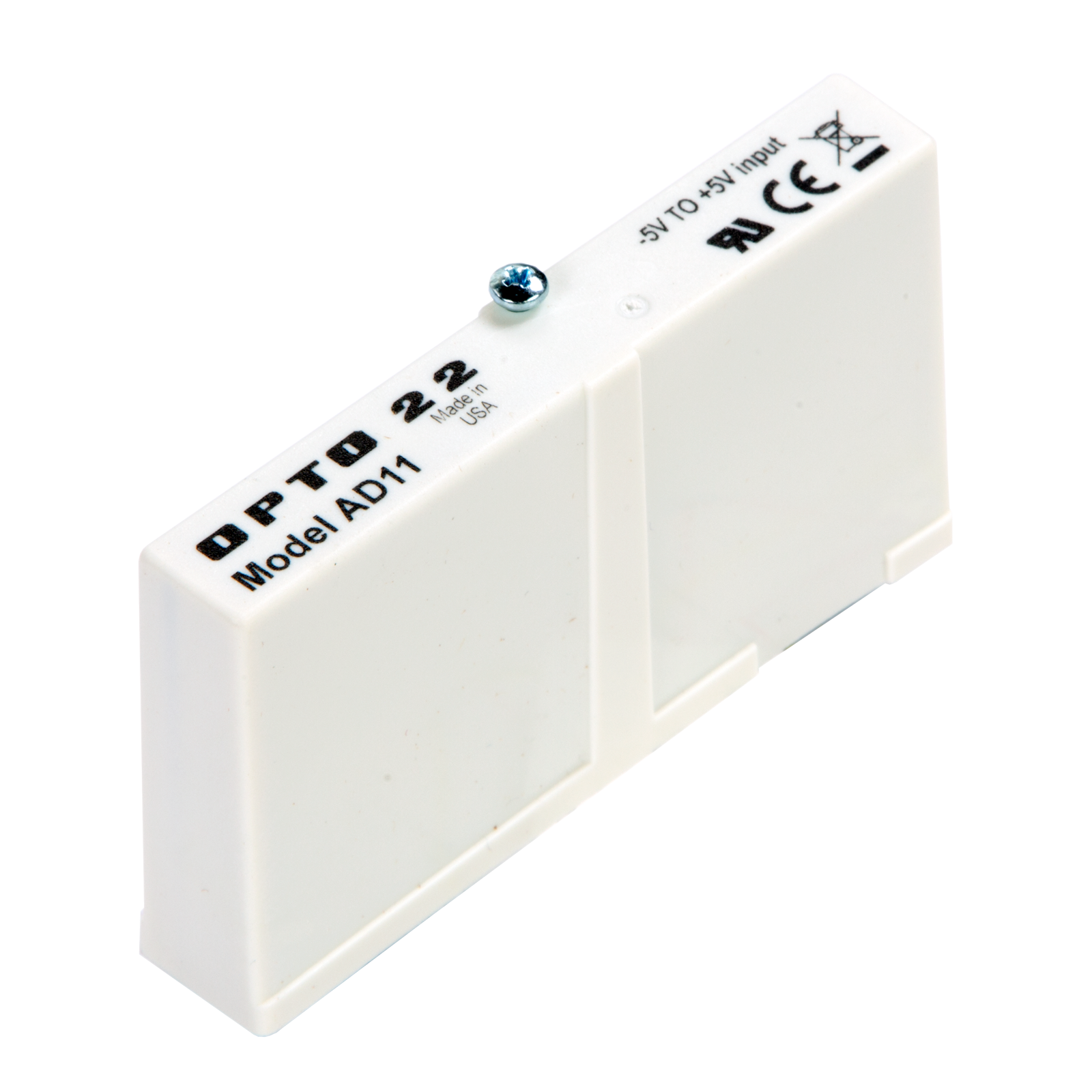

The AD11 analog input module provides a single channel of optically isolated voltage-to-digital conversion. Nominal voltage input is -5 to + 5 VDC.

This module mounts on a G1 analog mounting rack, for example the PB16AH.



AD11

AD12

AD12T

AD13T

Nominal Voltage Input

-5 to + 5 VDC

-10 to 10 VDC

-10 to 10 VDC

0 to 100 mV DC

Over/Under Range Capability

-5.25 to 11 VDC

-10.5 to 11 VDC

-10.5 to 11 VDC

-0.250 to 220 mV DC

Accuracy*

± 10 mV

± 20 mV

± 20 mV

± 100 µV

Power Requirements

15 mA at +15 (+/- 0.25) VDC
12 mA at -15 (+/- 0.25) VDC

15 mA at +15 (+/- 0.25) VDC
12 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

*May be improved by the use of the "Set Offset" or "Set Gain" commands in the OPTOMUX command set.



Input Response Time*

5% of scale change in 8.5 ms 63% of scale change in 165 ms

Resolution

12-bits

Isolation
  Input-to-Output
  Input-to-Analog Supply ("T" Modules)



4,000 VRMS
4,000 VRMS

Temperature
  Operating
  Storage



0 to 70 °C
-25 to 85 °C

*AD6HS input response 100% step change in less than 3 milliseconds.

Standard Voltage Input Modules Data Sheet

Voltage input analog modules provide a single channel of optically isolated voltage-to-digital conversion.
