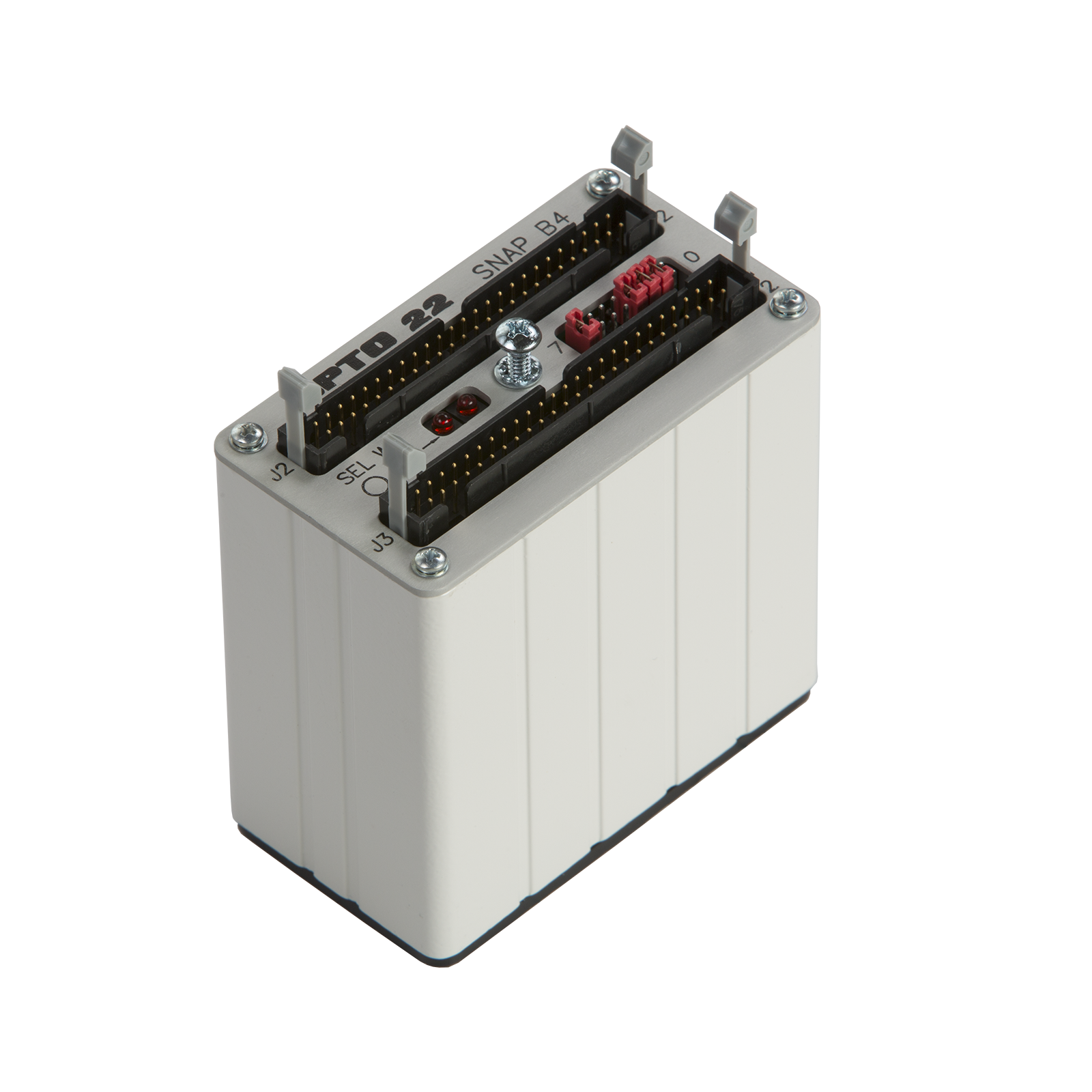

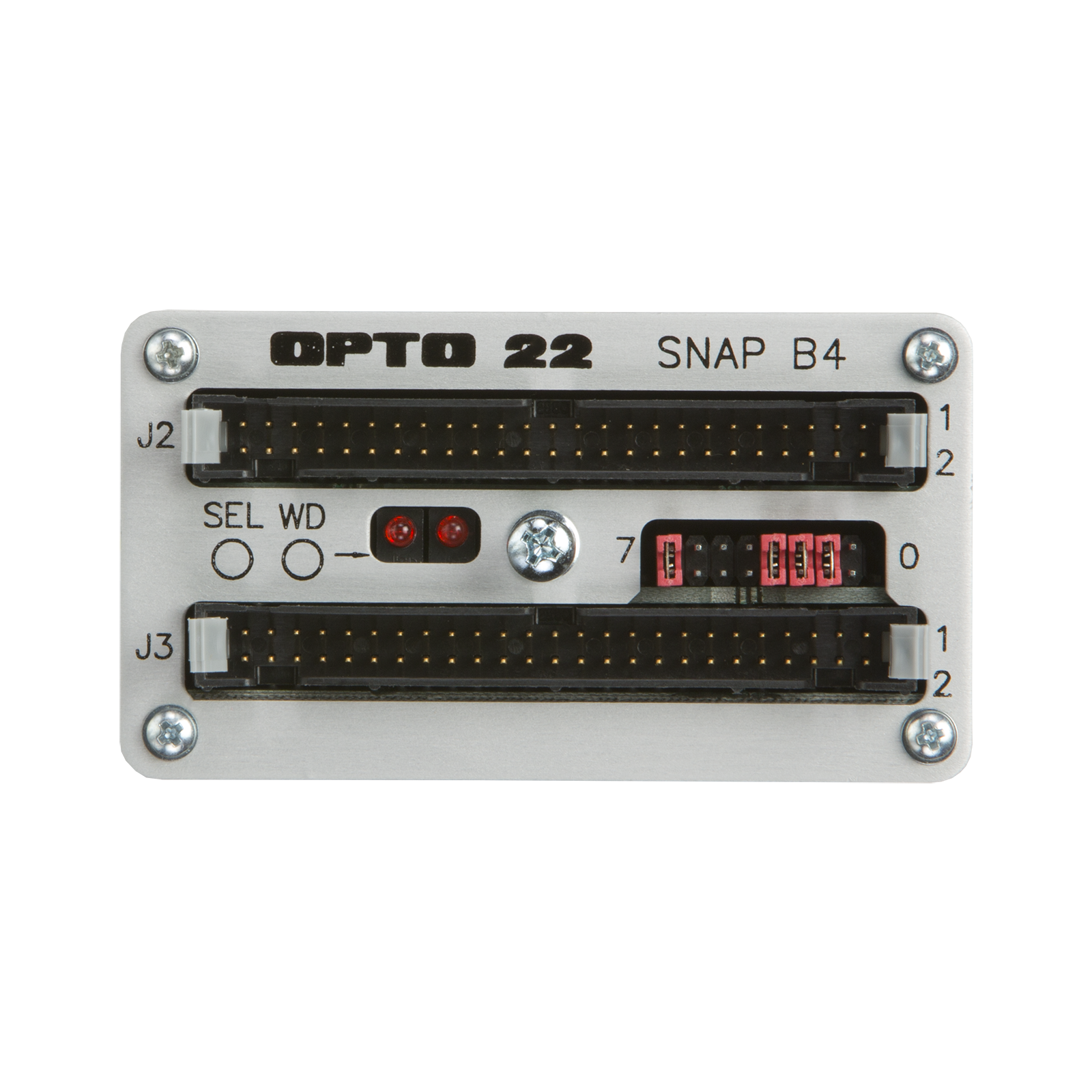

SNAP 32-channel Pamux Protocol Digital Brain Board

Please call (800) 321-6786 to order.

SNAP-B4

Production Specification

SNAP 32-channel Pamux Protocol Digital Brain Board

Power Requirements

5.0 - 5.2 VDC @ 1.0A max.
(If Term1 installed add 0.5A)

Operating Temperature

0 C to 70 °C, 95% humidity, non-condensing

Communications Interface

Pamux Bus; two 50-pin connectors

Range: (Multidrop mode)

Up to 500 feet

LED Indicators

SEL (address selected), WD (watchdog timeout)

Jumpers

0 - 3
4 - 5
6
7

Address
Watchdog Timer Function
Reset Level
Effect of Reset on Channel 0 Watchdog

SNAP High-Speed Digital Brain Board Data Sheet

The SNAP-B4 is a high-performance digital I/O processor used to connect and control up to 32 channels of digital I/O using Opto 22's SNAP B-Series I/O mounting racks and the Pamux bus.
