SNAP 4-Ch High-Speed 2.5 - 16VDC Digital (Discrete) Input Module

Please call (800) 321-6786 to order.

Production Specification

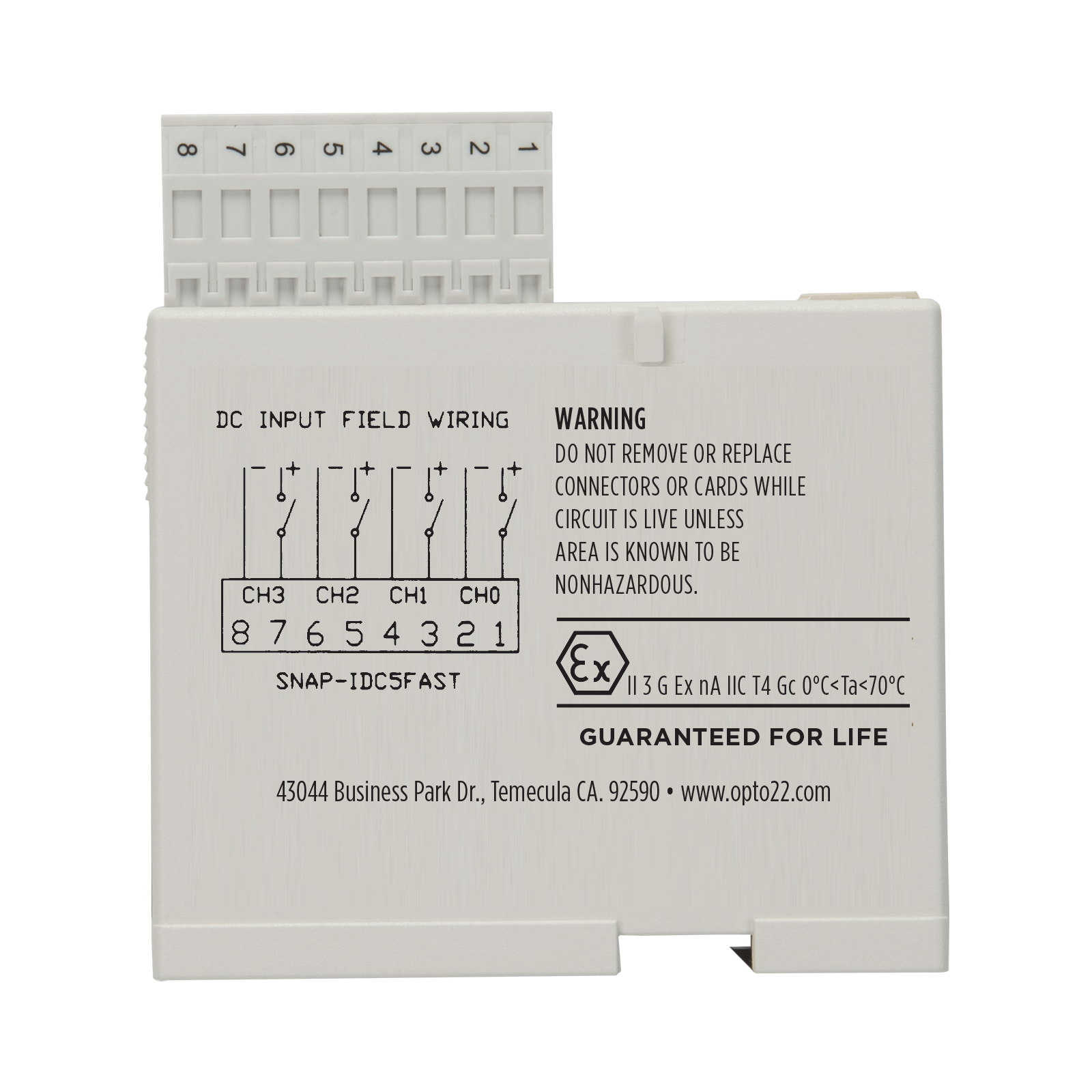

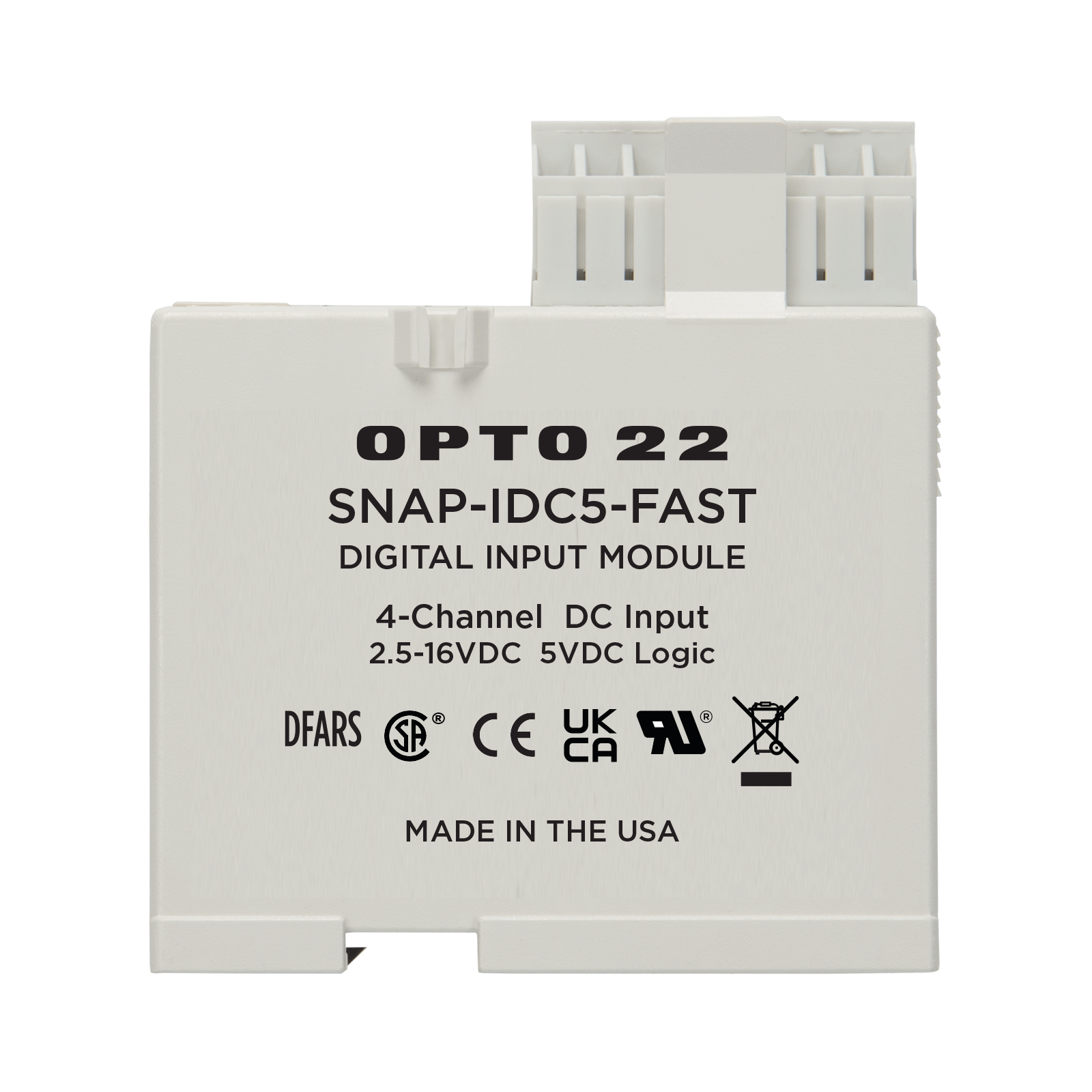

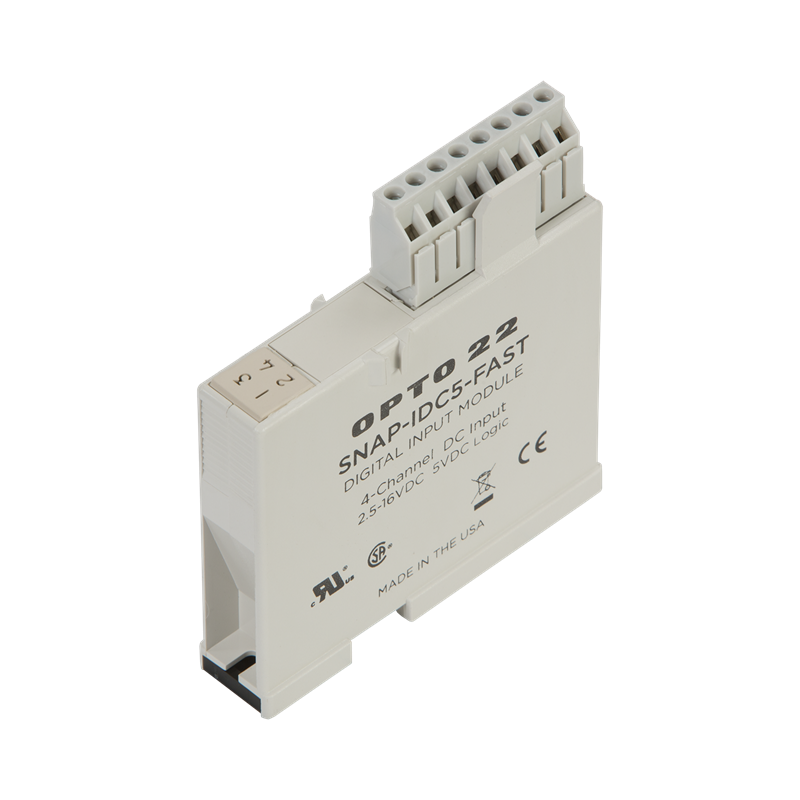

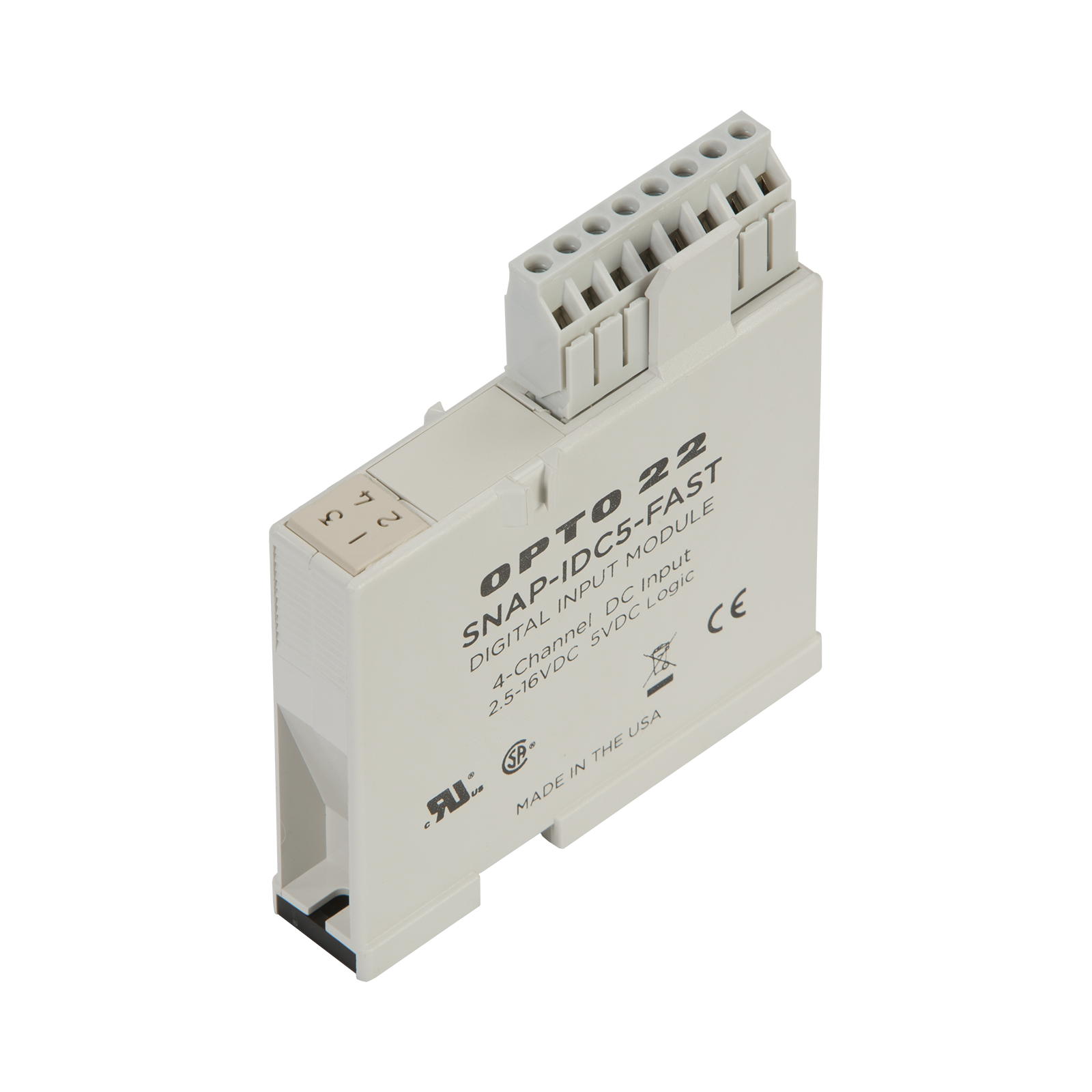

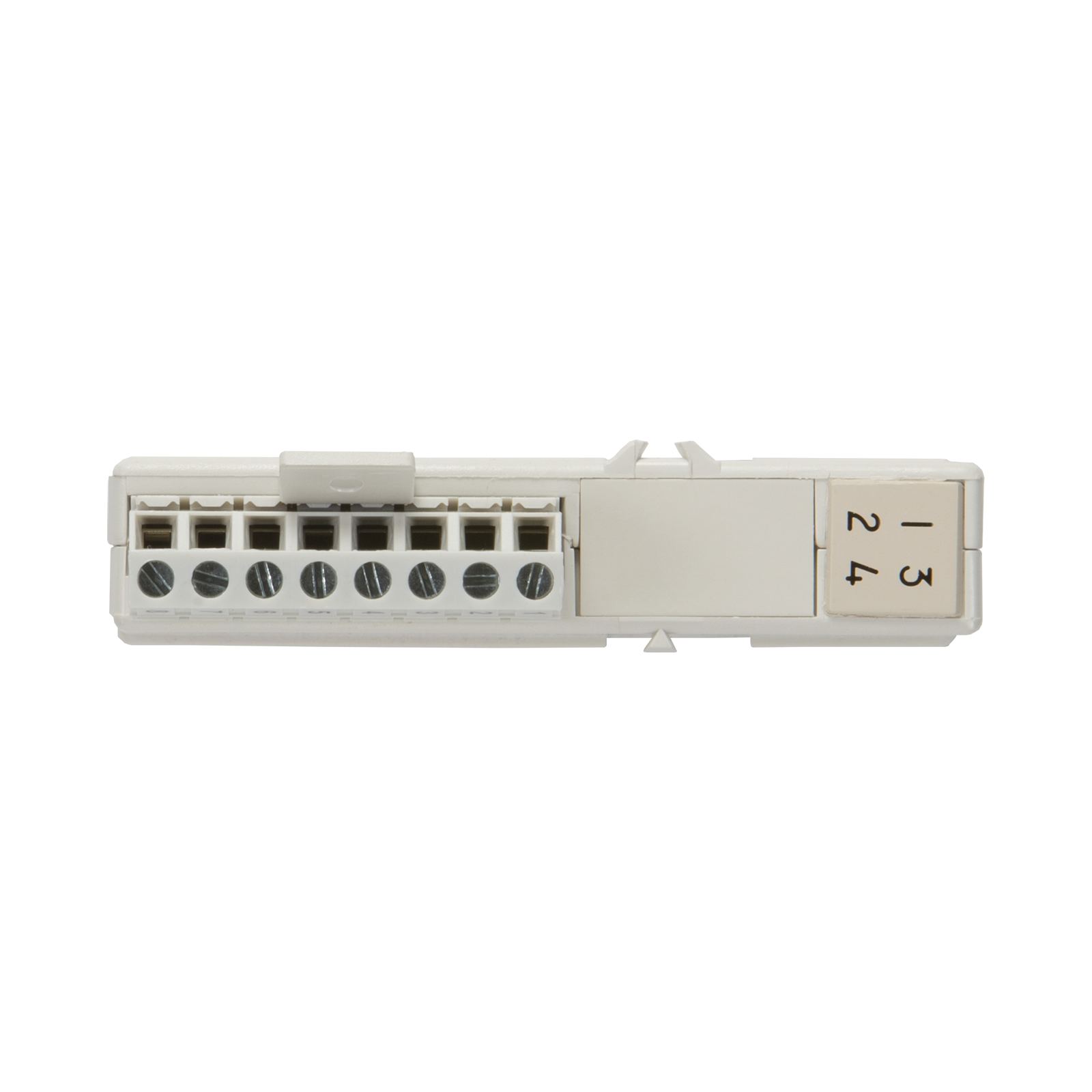

The SNAP-IDC5-FAST provides four channels of high-speed 2.5-16 VDC digital input. Each channel senses the on/off status for DC voltages from sources such as proximity switches, push buttons, or auxiliary contacts. The module has removable top-mounted connectors for easy access to field wiring, as well as channel-specific LEDs for convenient troubleshooting.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For easier, faster wiring, see SNAP TEX cables and breakout boards.

Build your system in the SNAP I/O Configurator.



SNAP-IDC5FAST*

SNAP-IDC5-FAST-A**

SNAP-IDC5MA

Key Feature

High-speed

High-speed

Diagnostic switches

Wire size

22 to 14 AWG

22 to 14 AWG

22 to 14 AWG

Torque, hold-down screws

4 in-lb (0.45 N-m)

4 in-lb (0.45 N-m)

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

5.26 in-lb (0.6 N-m)

5.26 in-lb (0.6 N-m)

Field Side Ratings (each channel)

Nominal Input Voltage

5 VDC

28 VDC

24 VAC/VDC

Channel-to-channel isola­tion

300 VAC
(1,500 V transient)

300 VAC
(1,500 V transient)

300 VAC
(1,500 V transient)

Input Voltage Range

2.5–16 VDC

18–32 VDC

10–32 VAC/VDC

Turn-on Voltage

2.5 VDC

18 VDC

10 VAC/VDC

Turn-off Voltage

1 VDC

5 VDC

3 VAC/VDC

Input Resistance

440 ohms (nominal)

8 K ohms (nominal)

15 K ohms (nominal)

Logic Side Ratings

Logic Output Voltage

<0.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing

<0.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing

<0.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 400 mA sourcing

Logic Supply Voltage***

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

Logic Supply Current

50 mA maximum

50 mA maximum

50 mA maximum

Negative True Logic
Output Drive

TTL 74 Series = 1 UL
TTL 74LS Series = 5 UL

TTL 74 Series = 1 UL
TTL 74LS Series = 5 UL

TTL 74 Series = 1 UL
TTL 74LS Series = 5 UL

Module Ratings

Number of Channels Per Module

4

4

4

Turn-on Time

0.025 msec*

0.025 msec**

5 msec

Turn-off Time

0.025 msec*

0.025 msec**

15 msec

Optical Isolation
(Field Side to Logic Side)

4,000 volts (transient)

4,000 volts (transient)

4,000 volts (transient)

Temperature

-20 °C to 70 °C, operating
-40 °C to 85 °C, storage

-20 °C to 70 °C, operating
-40 °C to 85 °C, storage

-20 °C to 70 °C, operating
-40 °C to 85 °C, storage

Agency Approvals

UL, CE, ATEX, FM, CSA, RoHS, DFARS

UL, CE, CSA, RoHS, DFARS

CE, RoHS, DFARS

Warranty

Lifetime

Lifetime

30 months

* At 20kHz, 5Vp-p square wave input, 50% duty cycle.
** At 20kHz, 28Vp-p square wave input, 50% duty cycle.
*** When used with an I/O processor (brain or on-the-rack controller), the processor requires 5.0 to 5.2 VDC.
