SNAP 2-Axis Quadrature Position Input Module

Please call (800) 321-6786 to order.

Production Specification

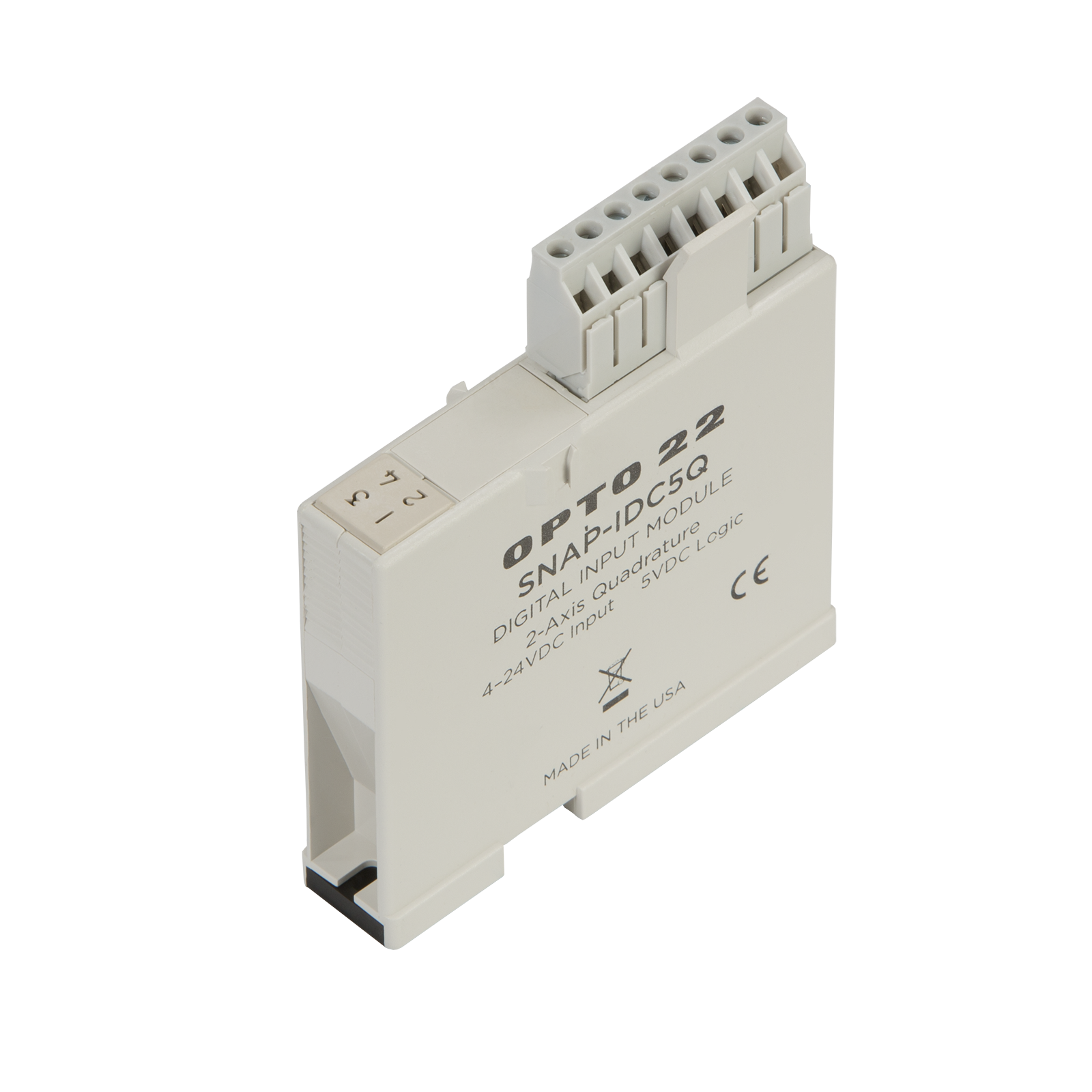

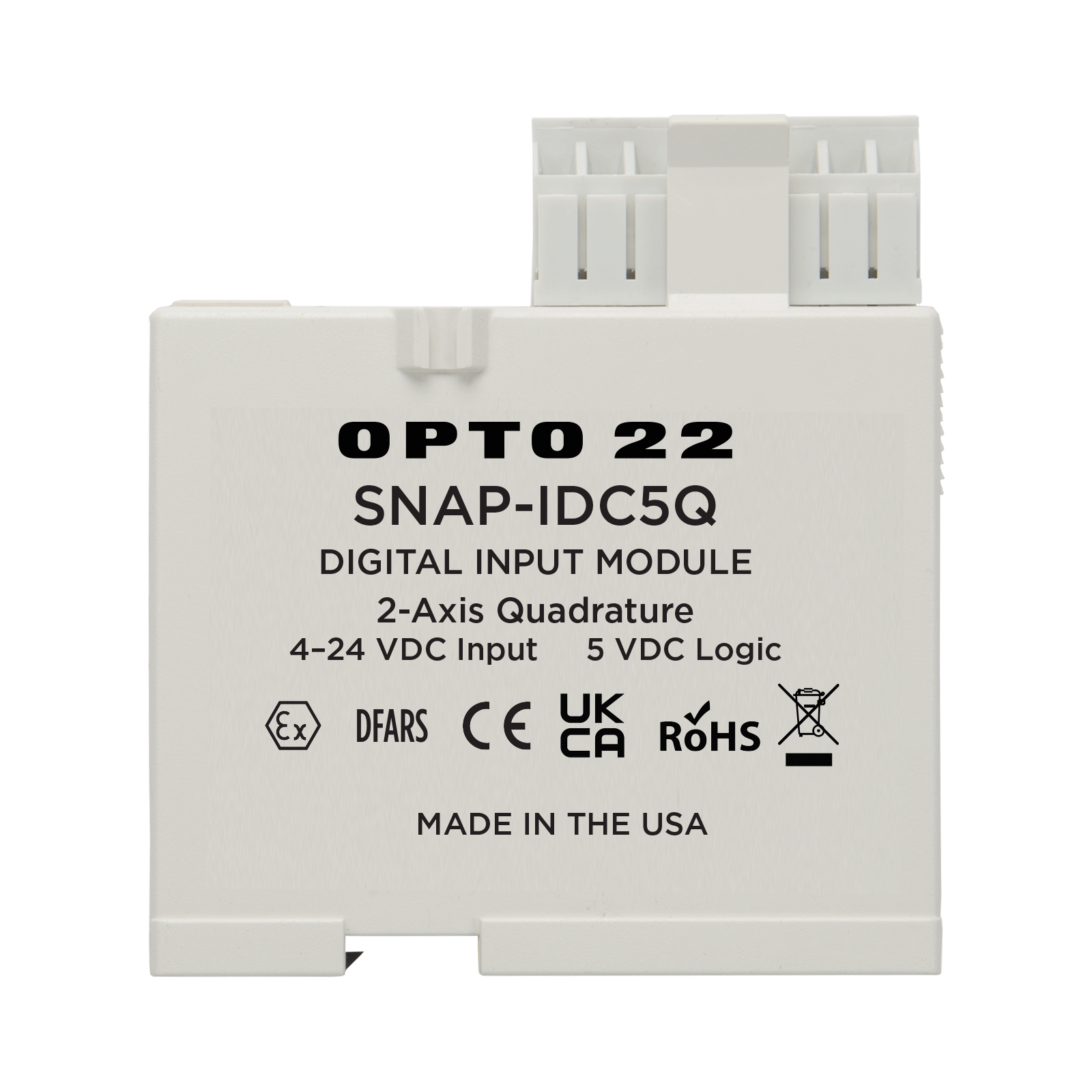

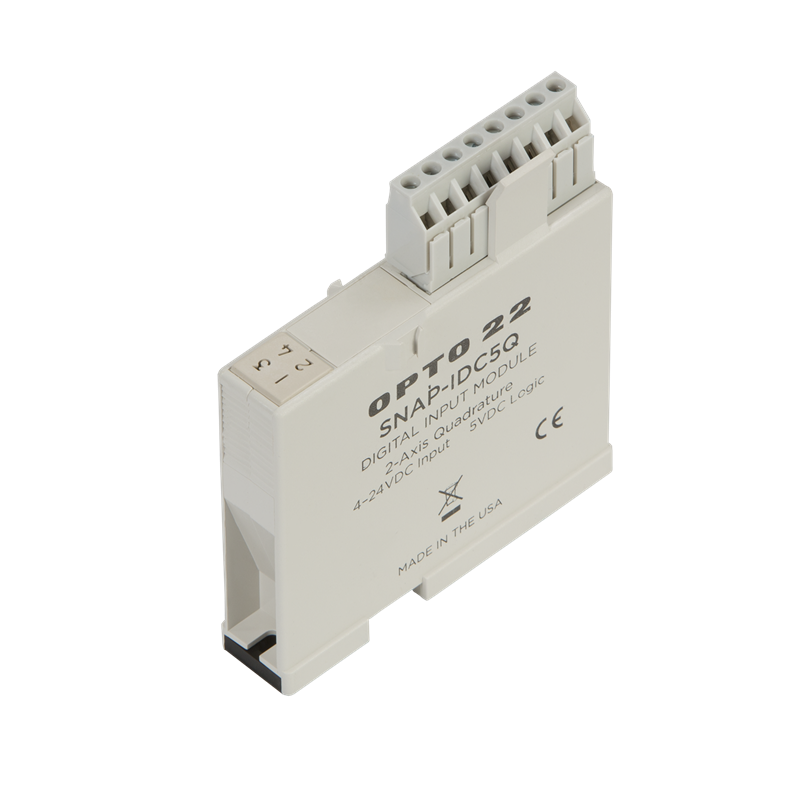

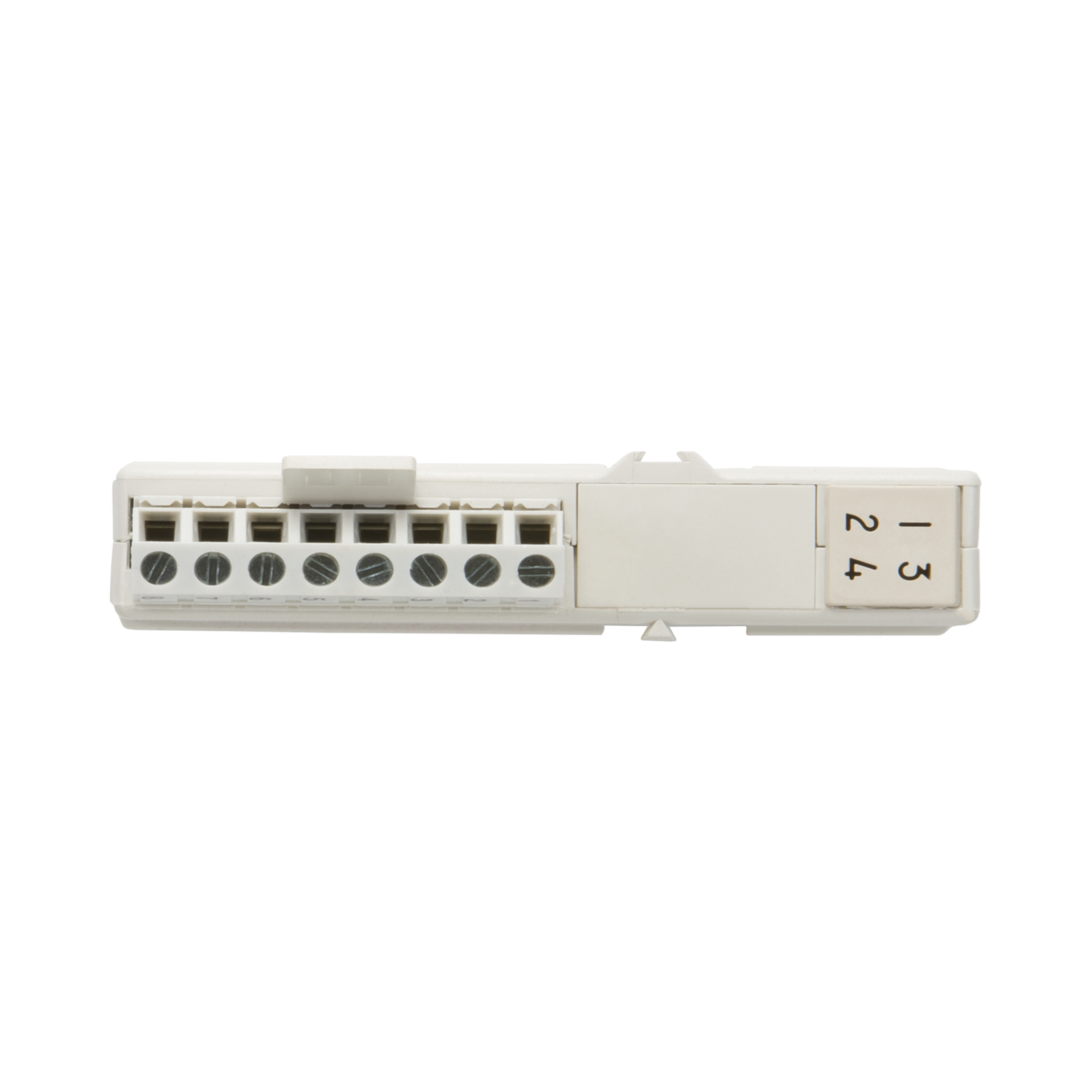

The SNAP-IDC5Q quadrature input module is designed to allow a SNAP brain to resolve two axes of rotating position information from quadrature encoder devices. The module outputs a pulse to the brain upon each change in quadrature state. The brain counts the module output pulses and keeps track of the direction and position.

The SNAP-IDC5Q is used with SNAP-PAC-EB1 brains and SNAP-PAC-R1 controllers. The module is also fully compatible with legacy SNAP-B3000-ENET and SNAP-UP1-ADS brains, as well as B3000 and B3000-HA brains using the mistic protocol.

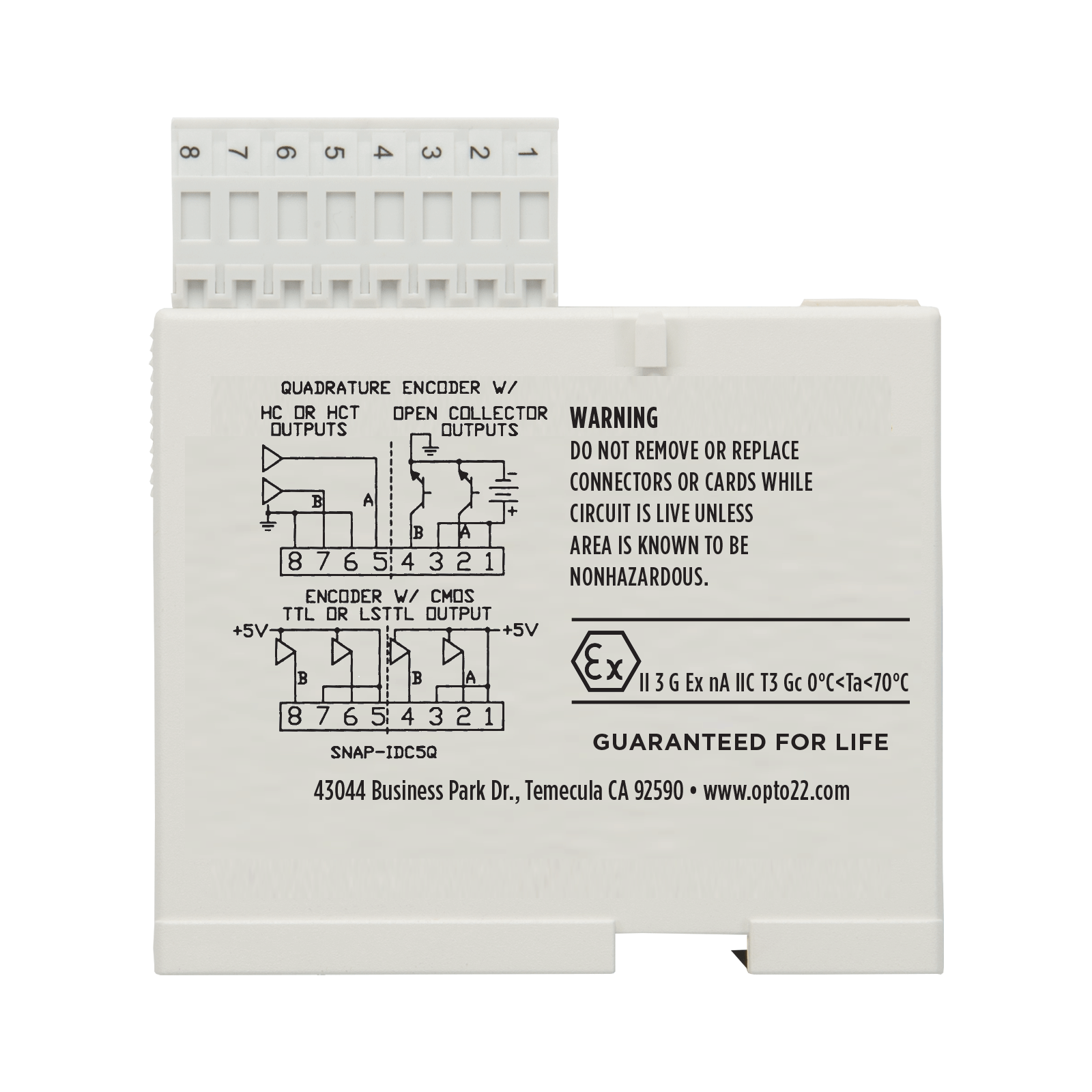

The SNAP-IDC5Q can be used with most quadrature devices, including transducers with TTL, CMOS, and open collector outputs. All inputs are isolated from each other and do not share any common connections.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For easier, faster wiring, see SNAP TEX cables and breakout boards.

Build your system in the SNAP I/O Configurator.

Logic Voltage

5 VDC

Operating Ambient Temperature

-20 to 70 °C

Isolation input-to-output

4,000 Vrms

Input Voltage Range

4–24 VDC

Input Resistance

1K ohms @ 4 V
560 ohms @ 24 V

Input Allowed for No Output

1 V

Logic Supply Current
@ 5 VDC

120 mA

Maximum Input Frequency, 50% Duty Cycle

25 kHz for SNAP PAC brains and controllers with high-speed digital functions
Legacy brains vary*

Maximum Reverse Input Voltage

–21 V

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Agency Approvals

CE, ATEX, FM, RoHS, DFARS

Warranty

Lifetime

* The SNAP-IDC5Q supports an encoder input frequency of 25 kHz. However, legacy I/O brains have limited quadrature counting capability. The following limits apply to them:
2.5 kHz for SNAP-B3000-ENET brains
4 kHz for SNAP-UP1-ADS brains
5 kHz for other legacy brains with high-speed counting
