G4AD4

$245.00 (USA and Canada only)

Availability: In stock

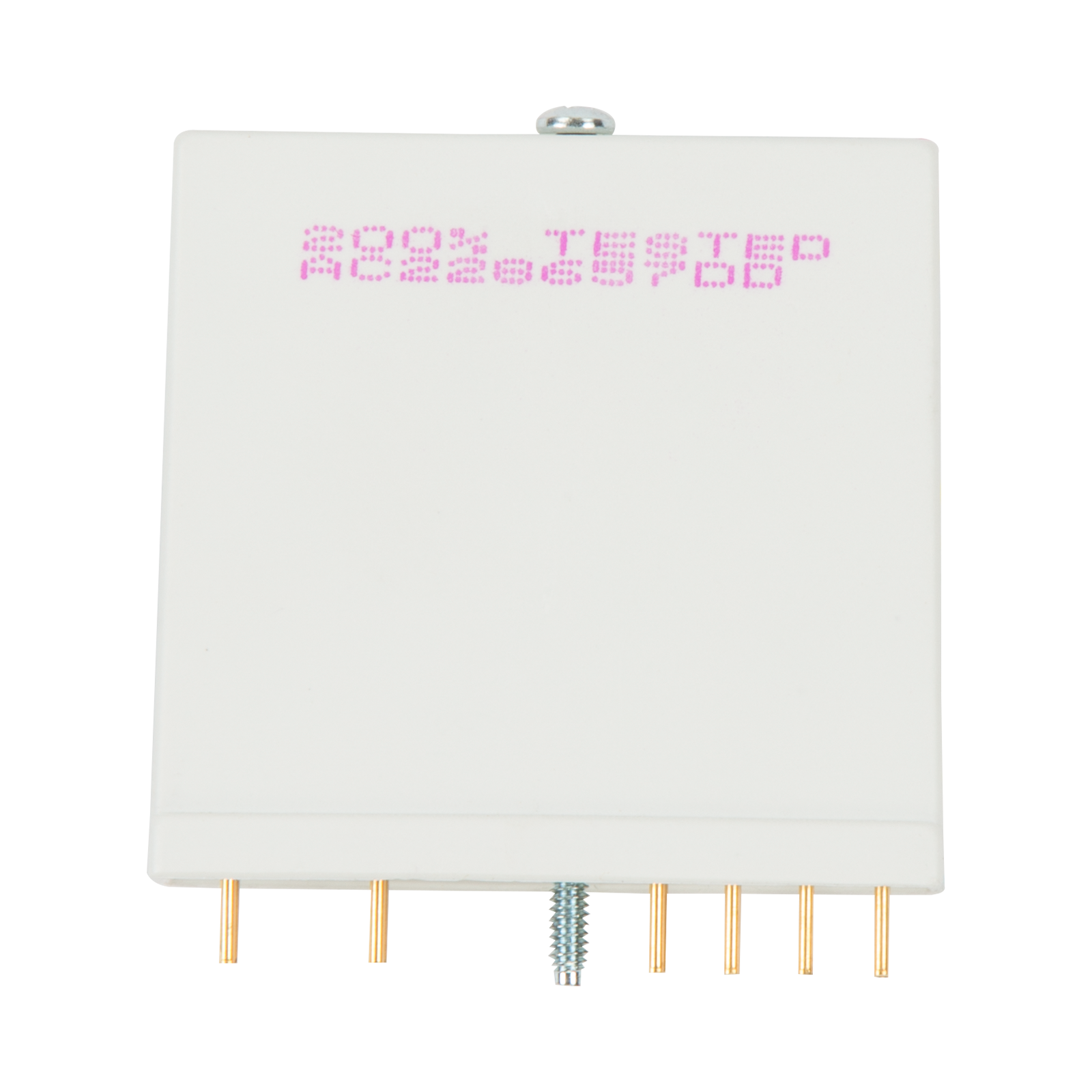

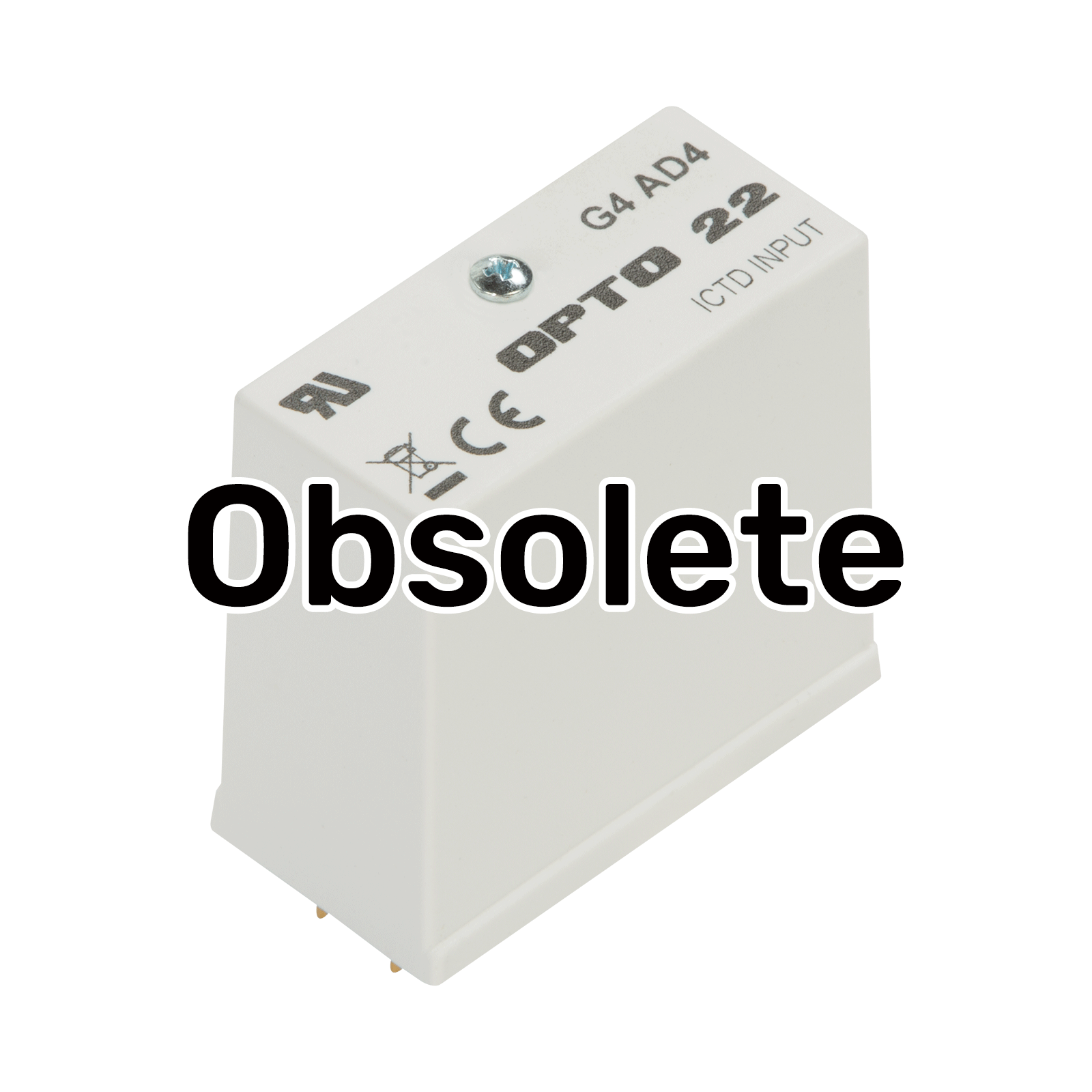

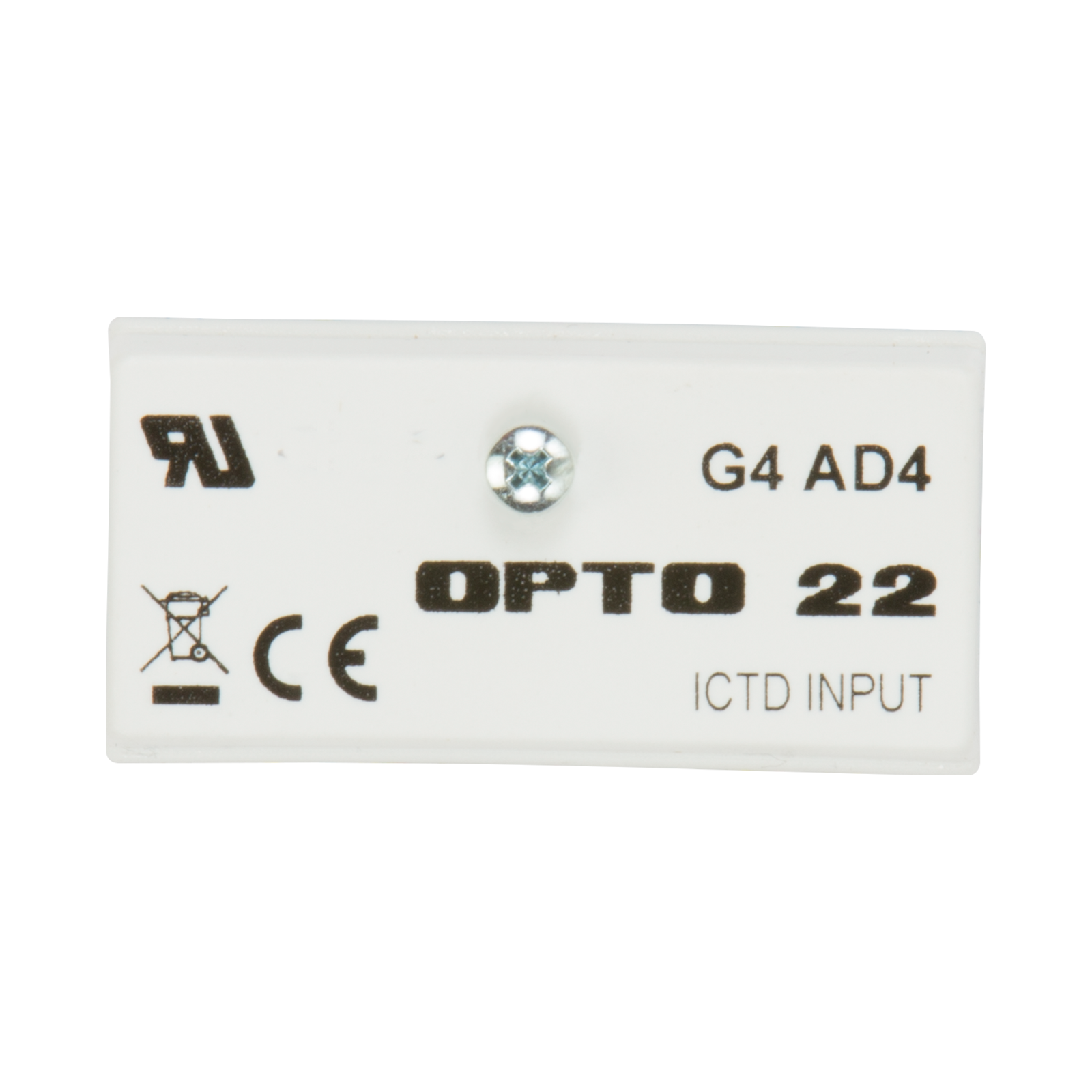

G4 ICTD Temperature Analog Input

Please call (800) 321-6786 to order.

G4AD4

Production Specification

G4 I/O family

The G4AD4 module works in conjunction with any standard ICTD temperature probe and provides a single channel of optically isolated temperature-to-digital conversion. The ICTD can be used in a variety of temperature applications, including energy management and freezer control. The G4AD4 module is compatible with Opto 22’s ICTD probe and all other industry-standard ICTDs.

The G4AD4 module also includes complete electrical channel-to-channel isolation, which eliminates troublesome ground loop problems.

Input Temperature Range
  G4AD4
  ICTD Probe



-188.4 °C to 150 °C
- 40 °C to 100 °C

Input response time

5% full scale step change in 7.8 seconds
63% full scale step change in 150 seconds

Output accuracy*

±0.8 °C

Resolution

12 bits

Thermal time constant (ICTD)

2.5 minutes typical (still air)

Cable length

> 2,000 feet (610 meters)

Isolation(Transient)
  Input-to-output
  Input-to-analog supply



4,000 Vrms
4,000 Vrms

Module Ambient Temperature
  Operating
  Storage



-30 °C to 70 °C
-40 °C to 85 °C

**Accuracy figure requires use of gain and offset commands.



G4 Analog ICTD Input Module Data Sheet

The G4AD4 analog input module works in conjunction with Opto 22’s ICTD probes and other industry-standard ICTDs. The module provides a single channel of optically isolated temperature-to-digital conversion.
