G4D32EB2-UPG
Hover over image to zoom in

G4D32EB2-UPG

$725.00 (USA and Canada only)

Availability: Call for Availability
Ethernet I/O Upgrade for G4D32RS Digital Rack
Data Sheet

Production Specification

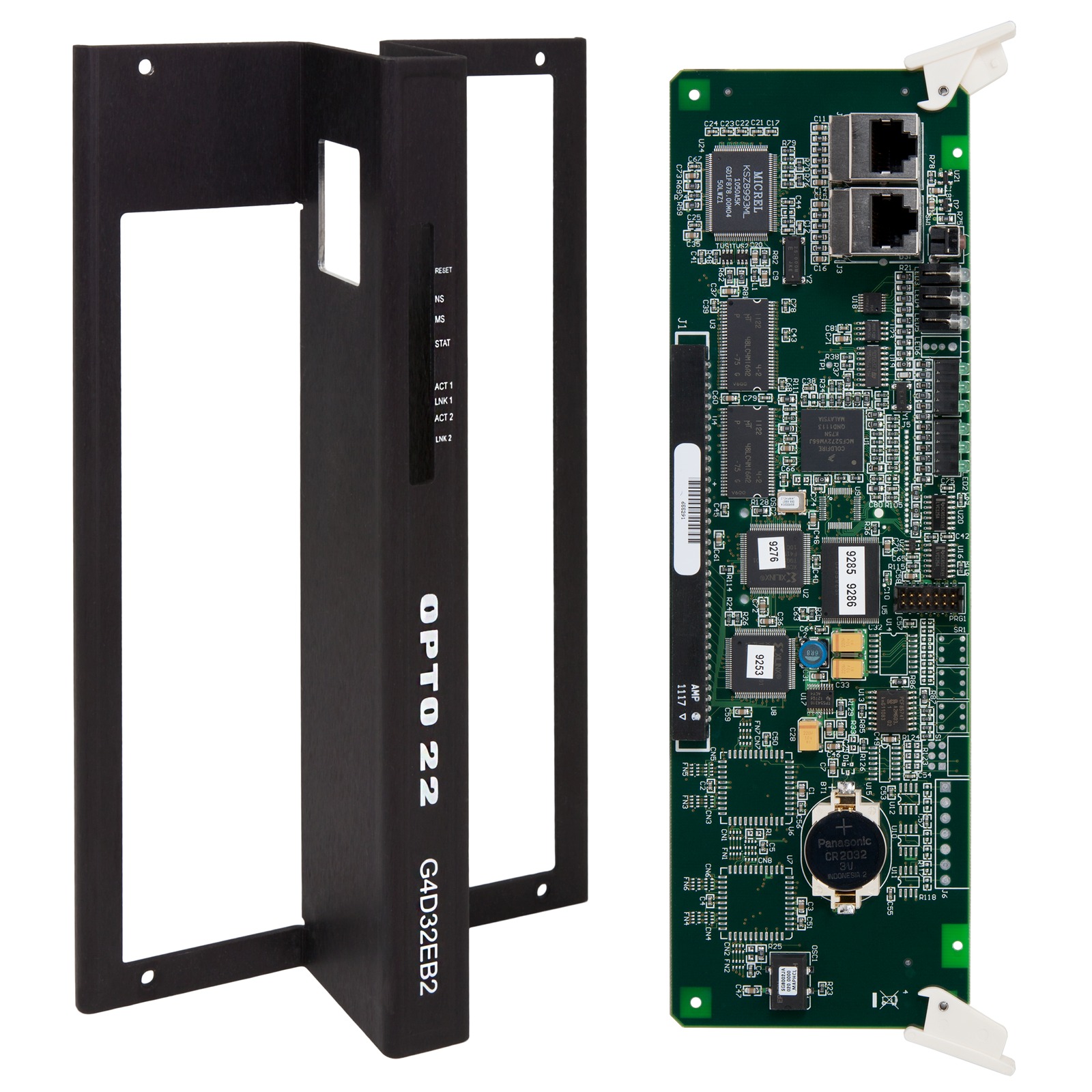

The G4D32EB2-UPG replaces a G4RS brain board on a G4D32RS mistic digital rack. This part number includes a G4EB2 brain and a metal cover designed to fit the brain’s Ethernet connections.

The G4D32EB2-UPG provides physical compatibility, I/O module compatibility, and field-wiring compatibility with the G4D32RS mistic brick. However, this brain uses a different protocol—OptoMMP instead of mistic—and different commands. If you replace a G4RS with the new part, you will need to change your program in order to communicate with the unit.

For a complete Ethernet version of the G4D32RS brick (brain, cover, rack, and regulator), see the G4D32EB2.

To upgrade a B4 brain, see the G4EB2.

G4EB2 Specifications

Input Power on G4D32RS with G4REG (no I/O)

24 VDC at 275 mA maximum (does not include module power requirements)

Input Power on G4PB32H or PB32HQ (no I/O)

5.0–5.2 VDC at 550 mA maximum (does not include module power requirements)

Memory

16 MB RAM

Wired Ethernet Network Interfaces

IEEE 802.3 network, 10Base-T and 100Base-TX. Automatic MDC/MDI-X crossover (Ethernet crossover cable not required for direct connection to PC). Two switched inter­faces, allowing multi-drop (daisy-chain) or standard star network configuration.

Maximum Ethernet Segment Length

100 meters with Category 5 or superior UTP.
For 100 Mbps at this distance, use Category 5 or superior solid UTP.

Backup battery for real-time clock

User replaceable BR2032 coin cell provides 10 years power off backup for system clock

Operating Temperature

0 to 70 °C

Storage Temperature

-40 to 85 °C

Humidity

0–95% humidity, non-condensing

Agency certifications

CE, RoHS, DFARS; UKCA

Warranty

30 months from date of manufacture

1981

G4EB2 Brain Data Sheet

The G4EB2 brain replaces a 32-channel digital brain in a serial or Pamux system with an Ethernet-based 32-channel brain that uses the OptoMMP protocol. Three part numbers are available for specific purposes.
