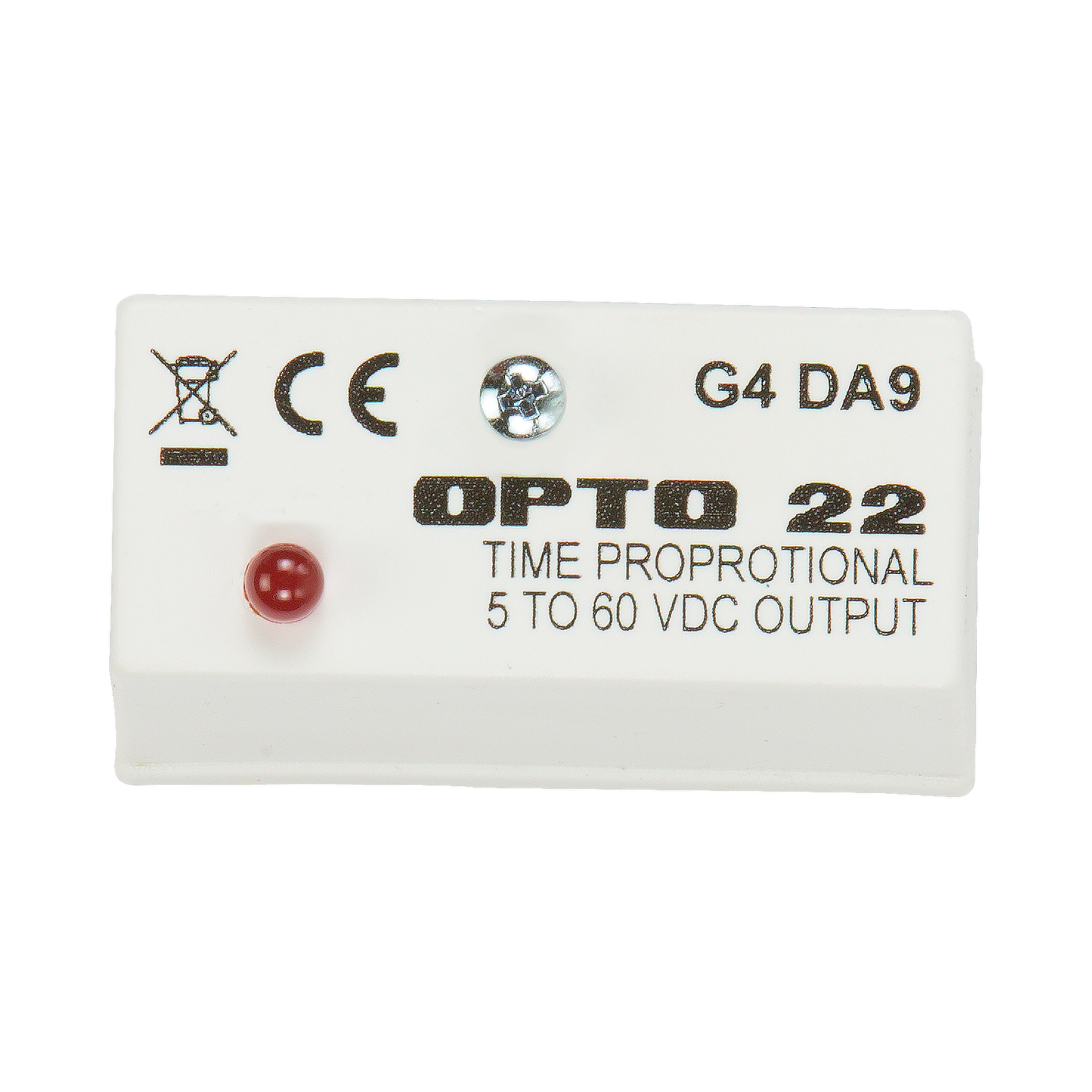

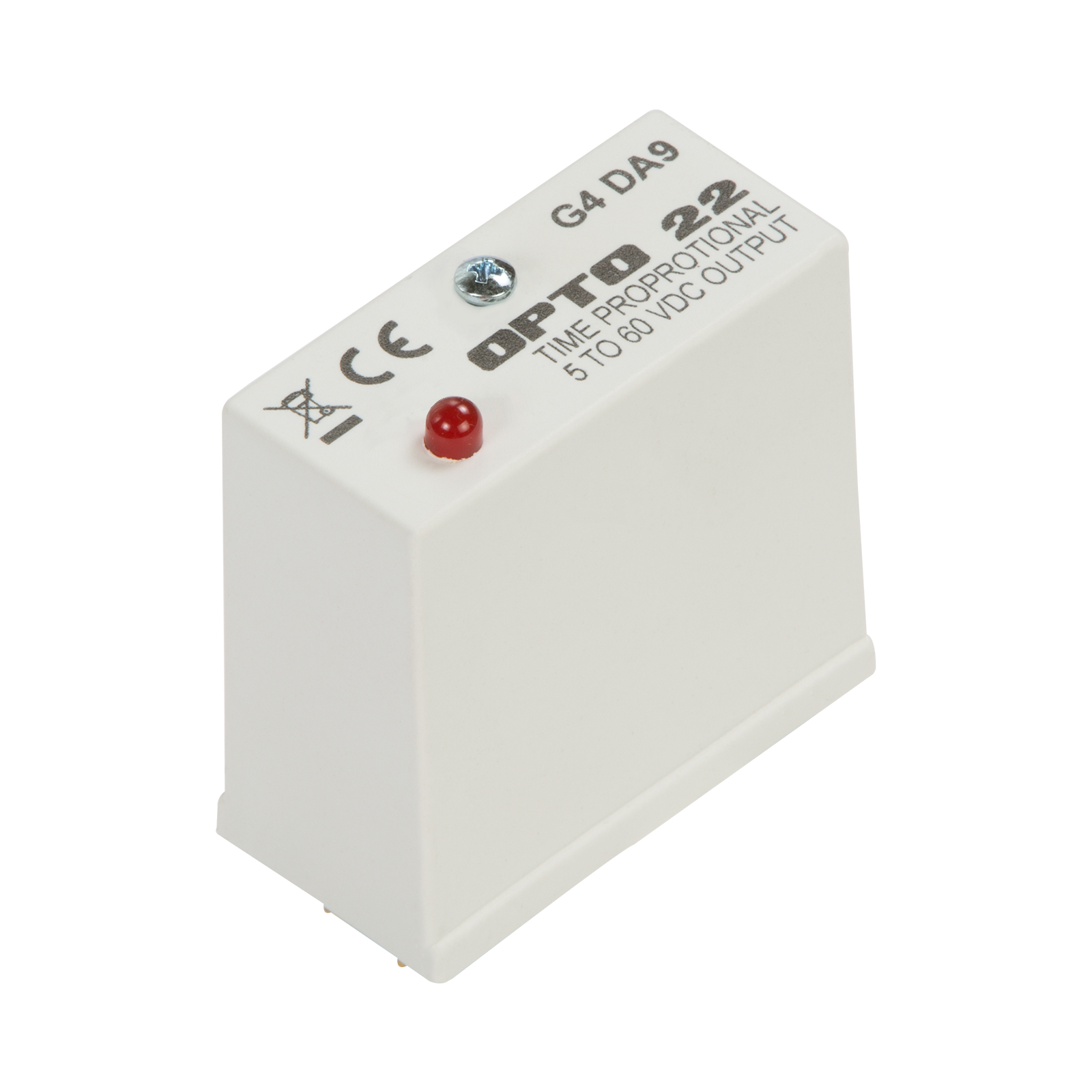

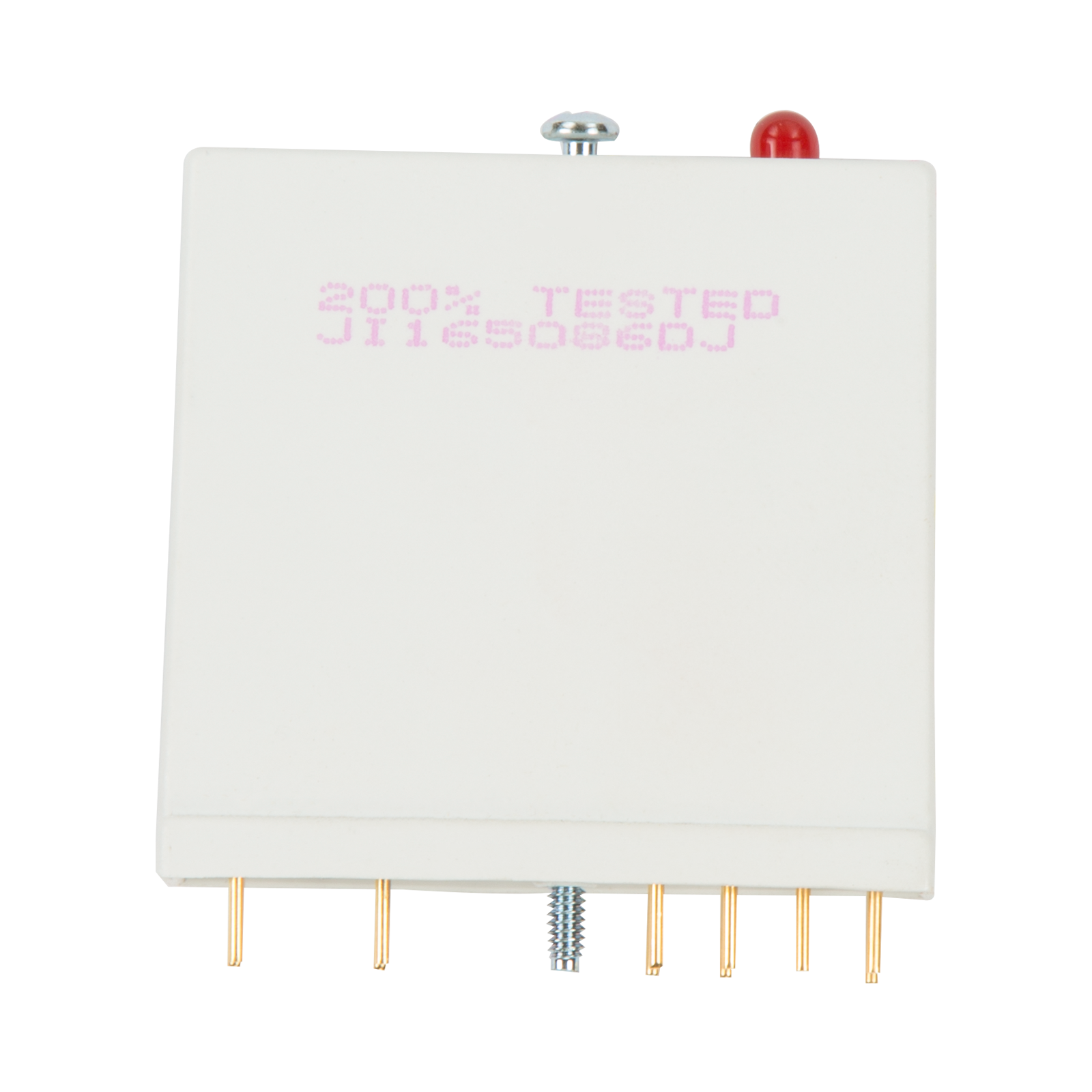

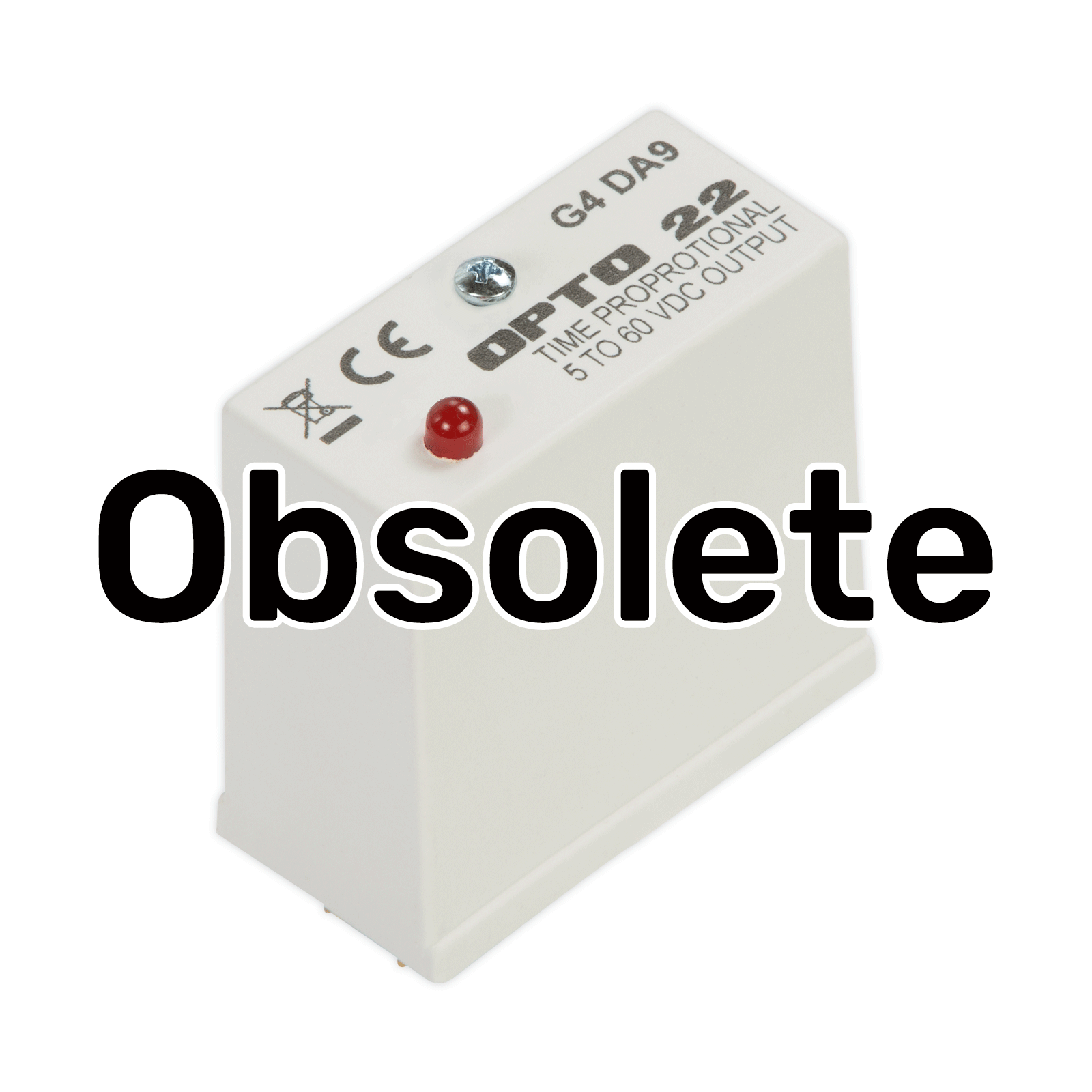

G4 Time Proportional DC Analog Output

Please call (800) 321-6786 to order.

Production Specification

G4 I/O family

The G4DA9 time proportional output (TPO) module provides digital control from a mistic analog brick or modular controller. Each module is optically isolated to 4,000 volts (transient) from field devices and features point-to-point electrical isolation. The G4DA9 switches 5-60 VDC. Together with a Power-series solid-state relay (SSR), the G4DA9 can be used to control heater circuits.



G4DA9

G4DA10

Ambient Temperature
  Operating
  Storage



0 °C to 70 °C
- 25 °C to 85 °C



0 °C to 70 °C
- 25 °C to 85 °C

Isolation Input-to-Output

4,000 Vrms

4,000 Vrms

Turn-on Time

50 ms

Half cycle AC waveform

Turn-off Time

50 ms

Half cycle AC waveform

Output Voltage Drop
Maximum Peak



1.6 V



1.6 V

Operating Voltage Range

5 - 60 VDC

12 - 280 VAC

Current Rating
  at 45 °C Ambient
  at 70 °C Ambient



0.5 A
0.3 A



0.5 A
0.3 A

Surge Rating

1 A for 1 second

80 A (peak) for 1 cycle

Off-State Leakage at
Maximum Voltage



1 mA at 60 VDC



3 mA at 280 VAC

Period

2.048 seconds to 8.7 minutes
4.096 seconds default

2.048 seconds to 8.7 minutes
4.096 seconds default

Resolution

12-bit
Each bit = Period/4096
1 millisecond/bit default

12-bit
Each bit = Period/4096
1 millisecond/bit default

Power Requirements

5 V at 25 mA

5 V at 25 mA



G4 Analog TPO Modules Data Sheet

The G4DA9 and G4DA10 time proportional output (TPO) modules provide digital control from a Mistic Analog brick or Modular controller.
