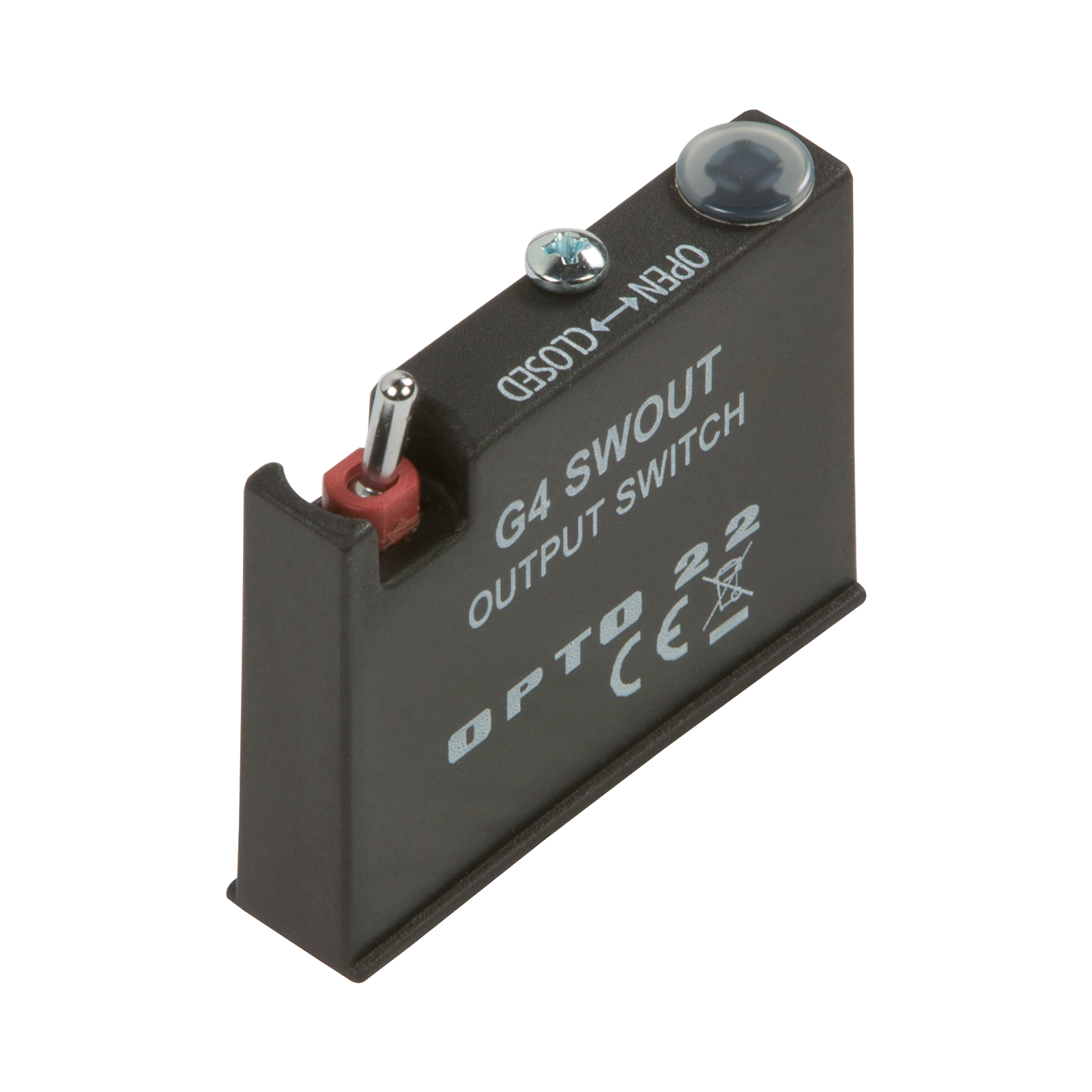

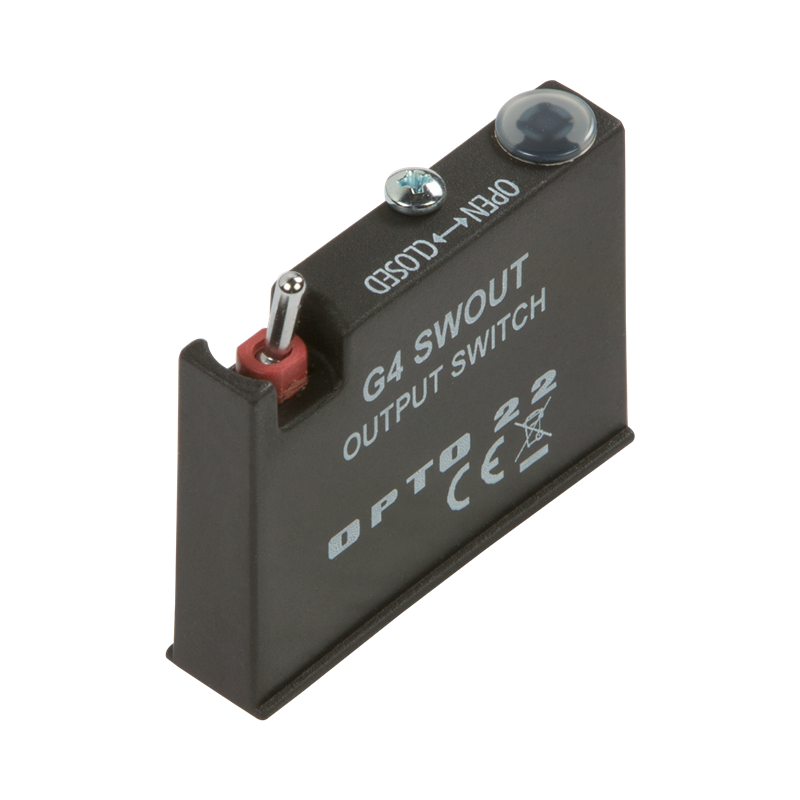

G4SWOUT
Hover over image to zoom in

G4SWOUT

$33.00 (USA and Canada only)

Availability: In stock
G4 Digital Output Switch, 250 VAC

Production Specification

G4 I/O family

The G4SWOUT module is ideal for testing field wiring and devices by simulating an output from the computer.

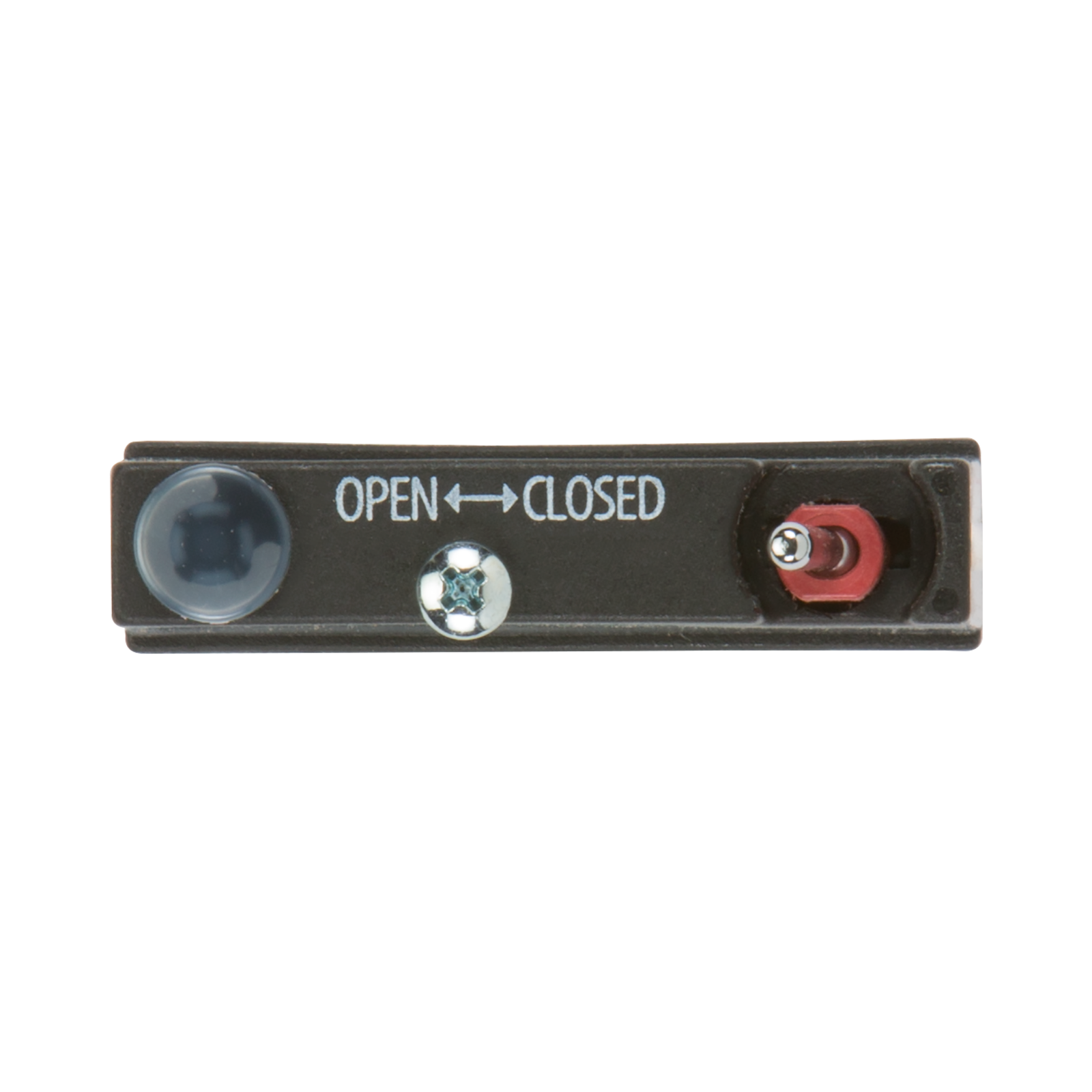

The G4SWOUT output test module provides a manual toggle switch on the field side. The switch closes a contact that shorts the field terminals to turn on a field output. The switch can handle 3 amps at 250 VAC/VDC. Internally, there is no connection to the logic side of the module.

Compatible with Raspberry Pi. The G4SWOUT can be used with the Digital I/O Carrier Board for Raspberry Pi® (part number OPTO-P1-40P) to monitor and control industrial devices with your Raspberry Pi.

Isolation, input-to-output (transient):
1 ms
1 minute



4000 volts
1500 volts

Temperature:
Operating
Storage



-30 to +70 °C
-30 to +85
°C

G4 Digital Switch Modules Data Sheet

G4 digital switch modules are used to simulate an input on an I/O mounting rack (G4SWIN) or an output from a G4 module (G4SWOUT). These modules are ideal for testing application software and field wiring. Each module contains a manual toggle switch. The G4SWIN's switch closes a contact on the logic side of the module; the G4SWOUT's switch is on the field side.

Digital I/O for Raspberry Pi Selection Guide

Now you can safely and reliably sense and switch industrial-level electrical loads with your Raspberry Pi® and Opto 22 industrially hardened digital I/O.

This Selection Guide describes compatible I/O racks and modules, power supplies, and accessories that work with the Raspberry Pi and the Digital I/O Carrier Board for the Pi (OPTO-P1-40P). Specifications, dimensional drawings, and wiring diagrams for racks and I/O modules are included.

For code samples and steps to get started, also see developer.opto22.com.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
