AD4
Hover over image to zoom in

AD4

$163.00 (USA and Canada only)

Availability: In stock
G1 ICTD Analog Input

Production Specification

G1 I/O family

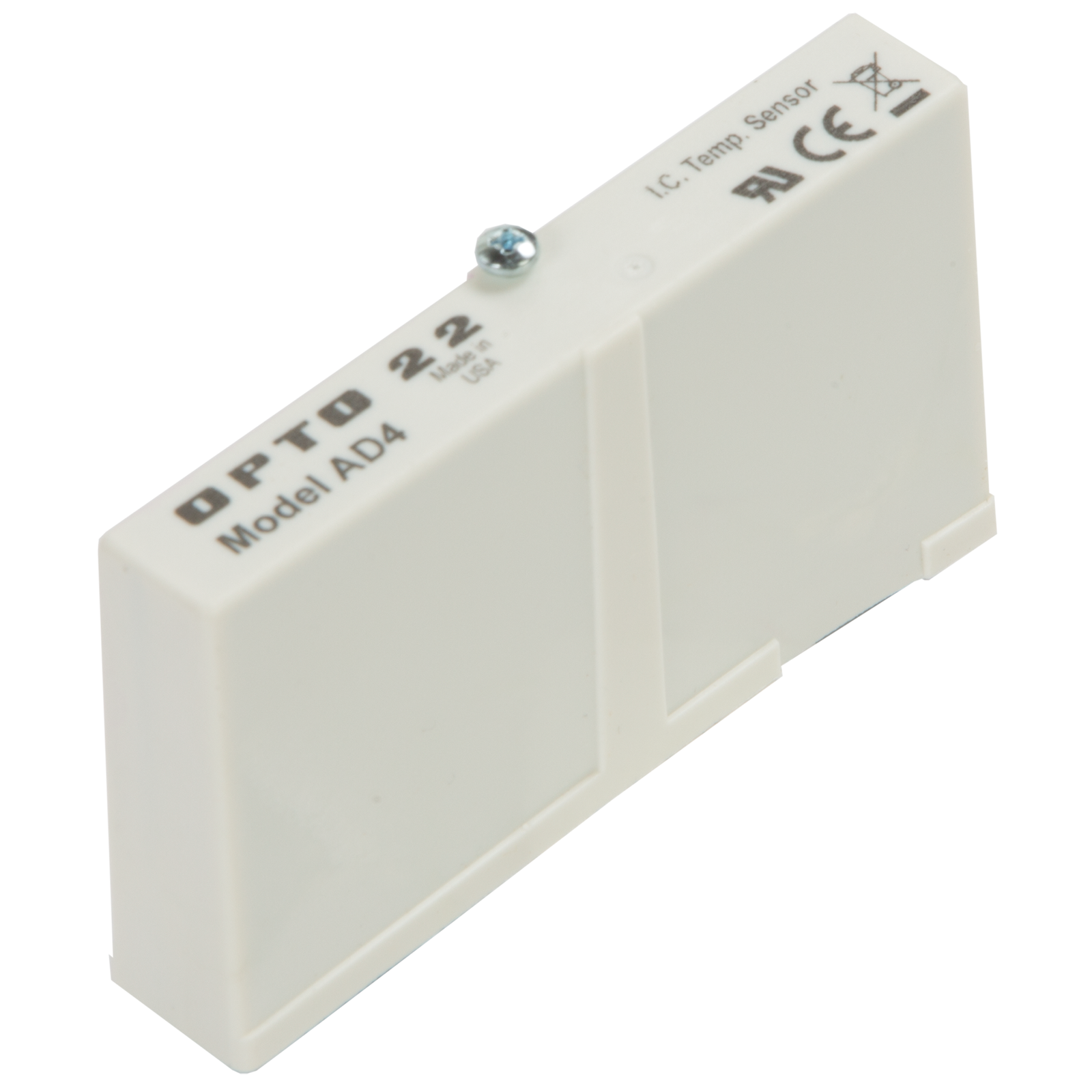

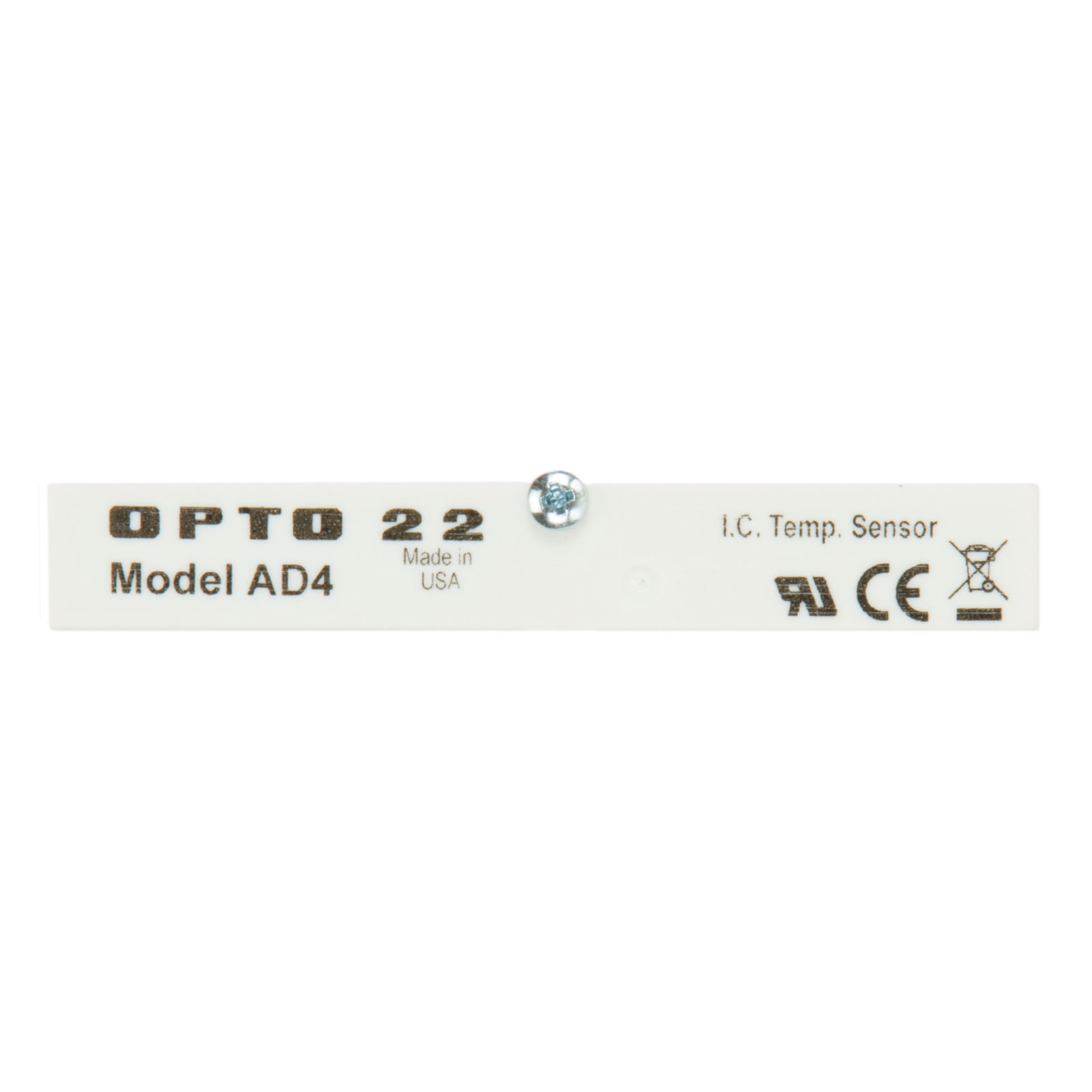

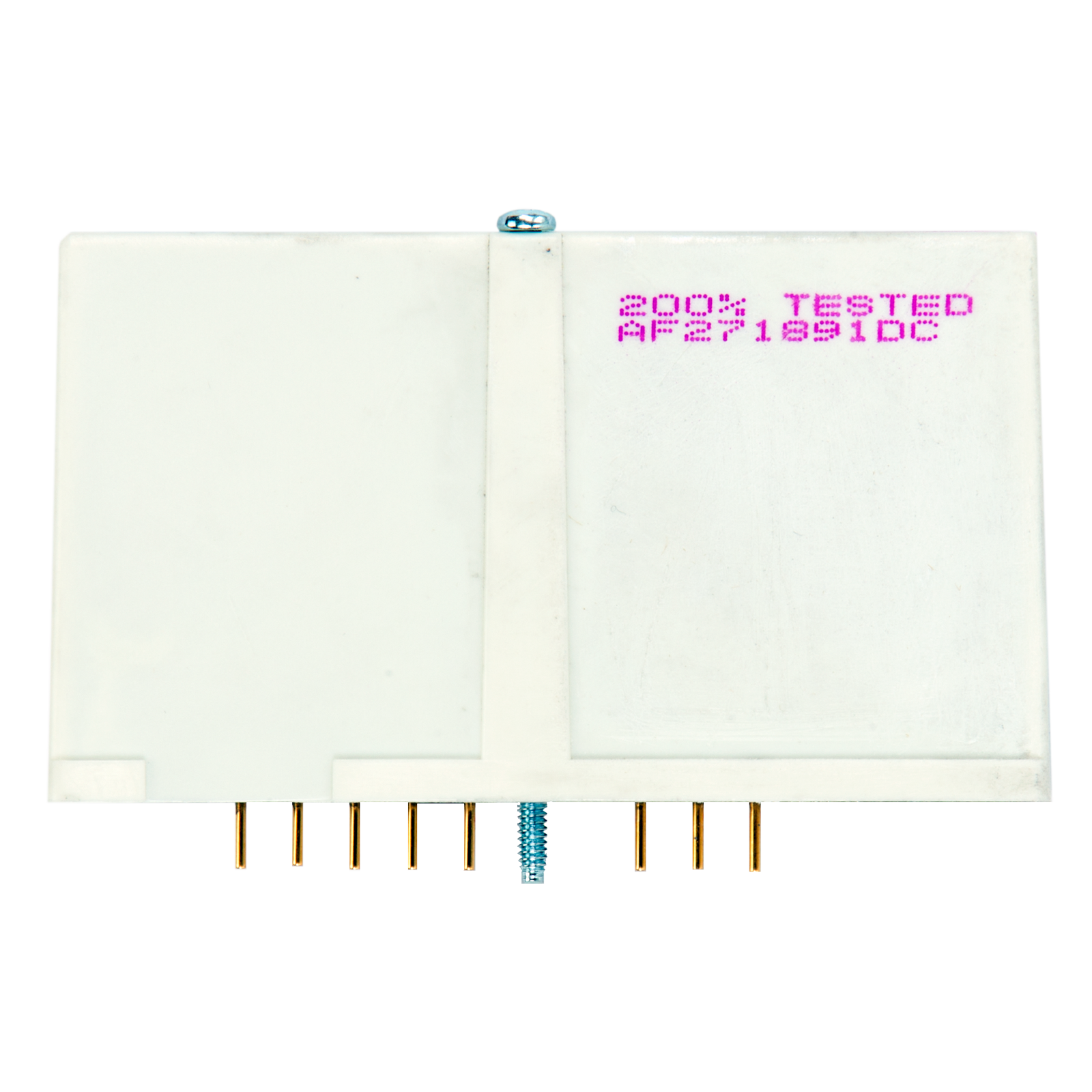

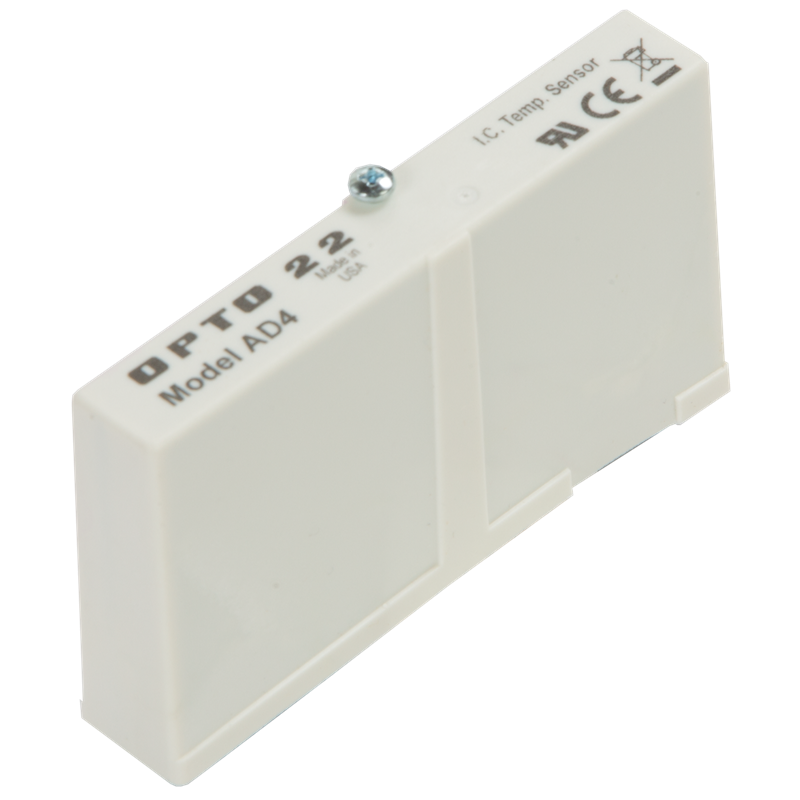

The AD4 module provides a single channel of optically isolated temperature-to-digital conversion. The AD4 module is designed for use with an ICTD probe from Opto 22 or from other vendors. See form 2072, the ICTD Temperature Probes Data Sheet, for more information.

This module mounts on a G1 analog mounting rack, for example the PB16AH.

Input Temperature Range

- 188.4 °C to 150 °C

Input Response Time

5% full scale step change in 7.8 seconds
63% full scale step change in 150 seconds

Accuracy of AD4
Accuracy with ICTD Probe

± 0.3 °C
± 0.8 °C

Resolution with ICTD Probe

0.083 °C

Power Requirements:
  Module

  Logic



16 mA at +15 (+/- 0.25) VDC
11 mA at -15 (+/- 0.25) VDC
1.6 mA at 5 VDC

Thermal Time Constant

2.5 minutes typical (still air)

Cable Length

> 2,000 feet (610 meters)

Isolation
  Input-to-Output



4,000 Vrms

Ambient Temperature
Operating
Storage



0 °C to 70 °C
-25 °C to 85 °C

Agency Approvals UL, CE, UKCA

Standard Analog ICTD Temperature Module Data Sheet

The AD4 module provides a single channel of optically-isolated temperature-to-digital conversion.
