B3000-B
Hover over image to zoom in

B3000-B

$688.00 (USA and Canada only)

Availability: Call for Availability
SNAP Analog/Digital Brain, mistic Protocol
Data Sheet User's Guide

Production Specification

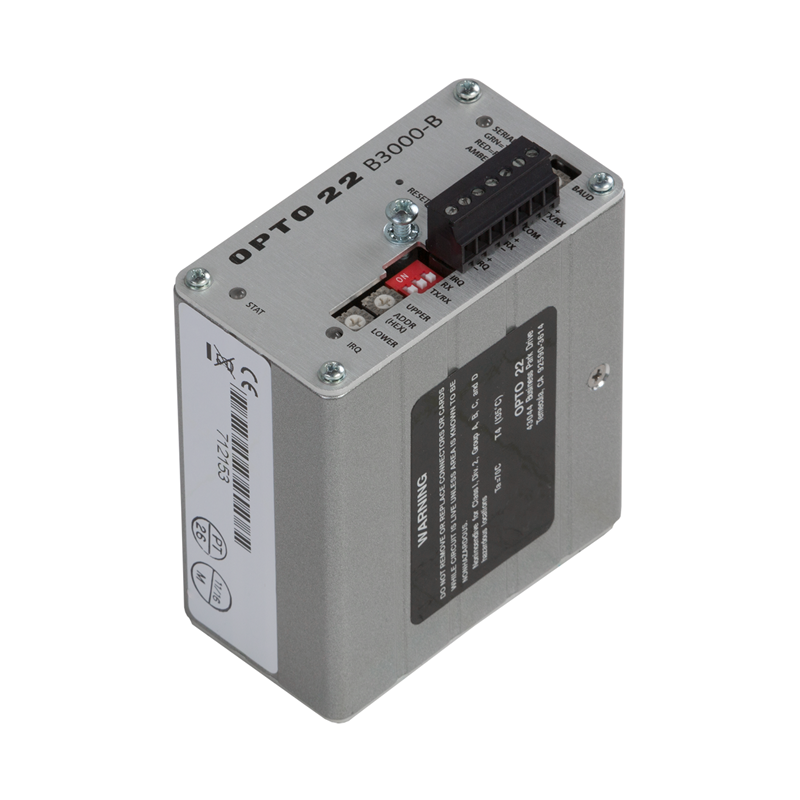

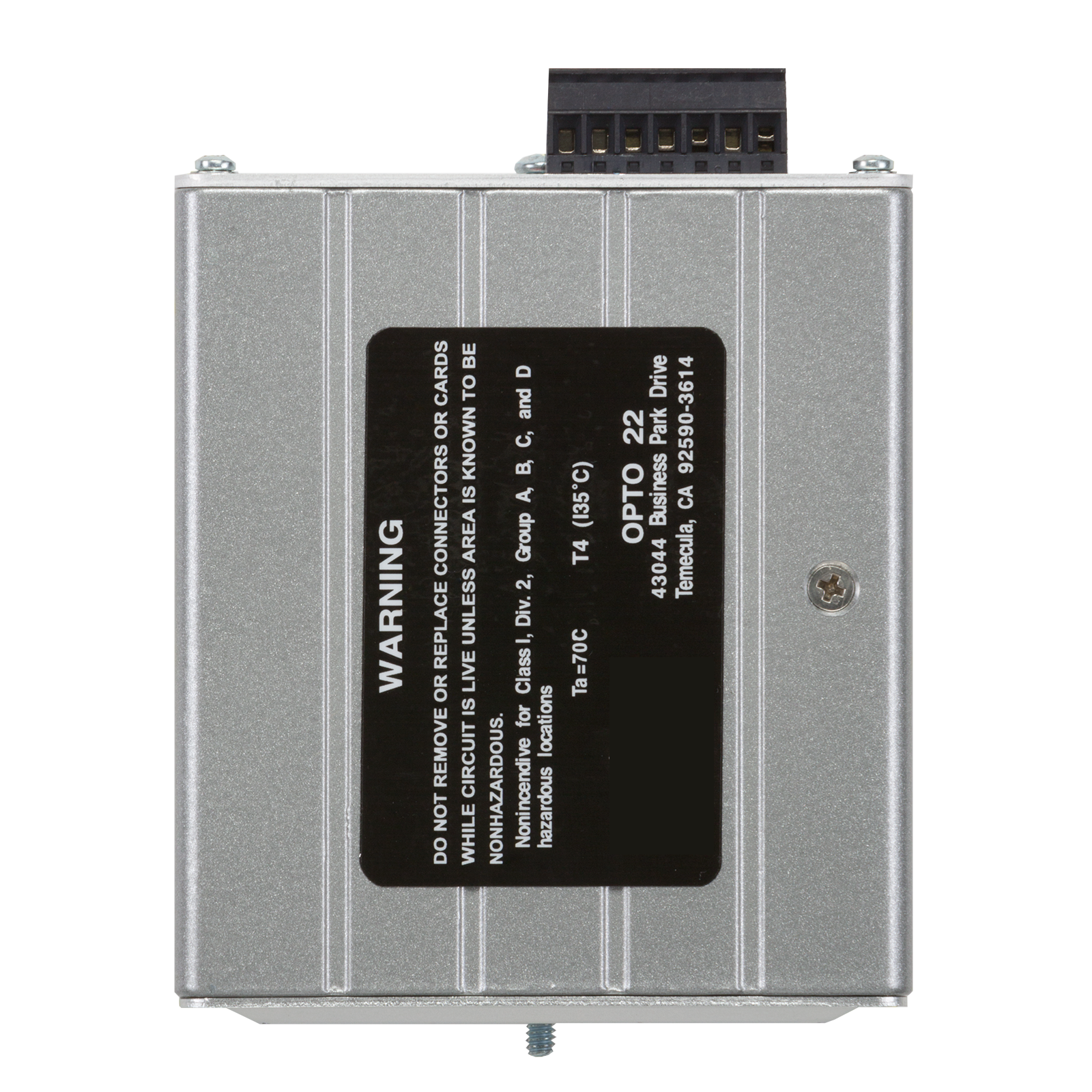

The B3000-B is a mistic serial brain designed as a modern drop-in replacement for the serial B3000 brain, which is obsolete as of October 2009.

The B3000-B has the same functionality as the B3000, except that it does not support the Optomux protocol. Customers requiring an Optomux brain should see the B3000-B-OMUX.

Like the older B3000, the B3000-B is a high-performance processor used to remotely control a mix of SNAP analog and digital I/O modules on a B-series rack.

The brain connects to an Opto 22 controller or a host computer over an RS-485 serial link. It works with both legacy FactoryFloor (mistic) controllers, such as the SNAP-LCM4 and SNAP-LCSX, and with SNAP PAC S-series controllers. (With a SNAP PAC controller, PAC Project Professional is required.)

NOTE: As with the B3000, not all SNAP I/O modules are compatible with the B3000-B. See Legacy and Current Product Comparison and Compatibility Charts.

NOTE: If you're ready to modernize or need easier system integration, see the groov EPIC System. Fully compatible with SNAP PAC, groov EPIC offers secure, efficient data processing and communication for industrial internet of things applications, as well as real-time control and I/O at the edge of your network.

Power Requirements

5.0–5.2 VDC at 750 mA maximum (does not include module power requirements)

Operating Temperature

0 to 60 °C

Storage Temperature

-40 to 85 °C

Humidity

0–95% humidity, non-condensing

Communications Interface

RS-485, 2- or 4-wire, twisted pair(s), with shield

Data Rates

300 baud to 230.4 Kbaud

Range: Multidrop

32 stations maximum between repeaters; up to 3000 ft (914 m) between repeaters

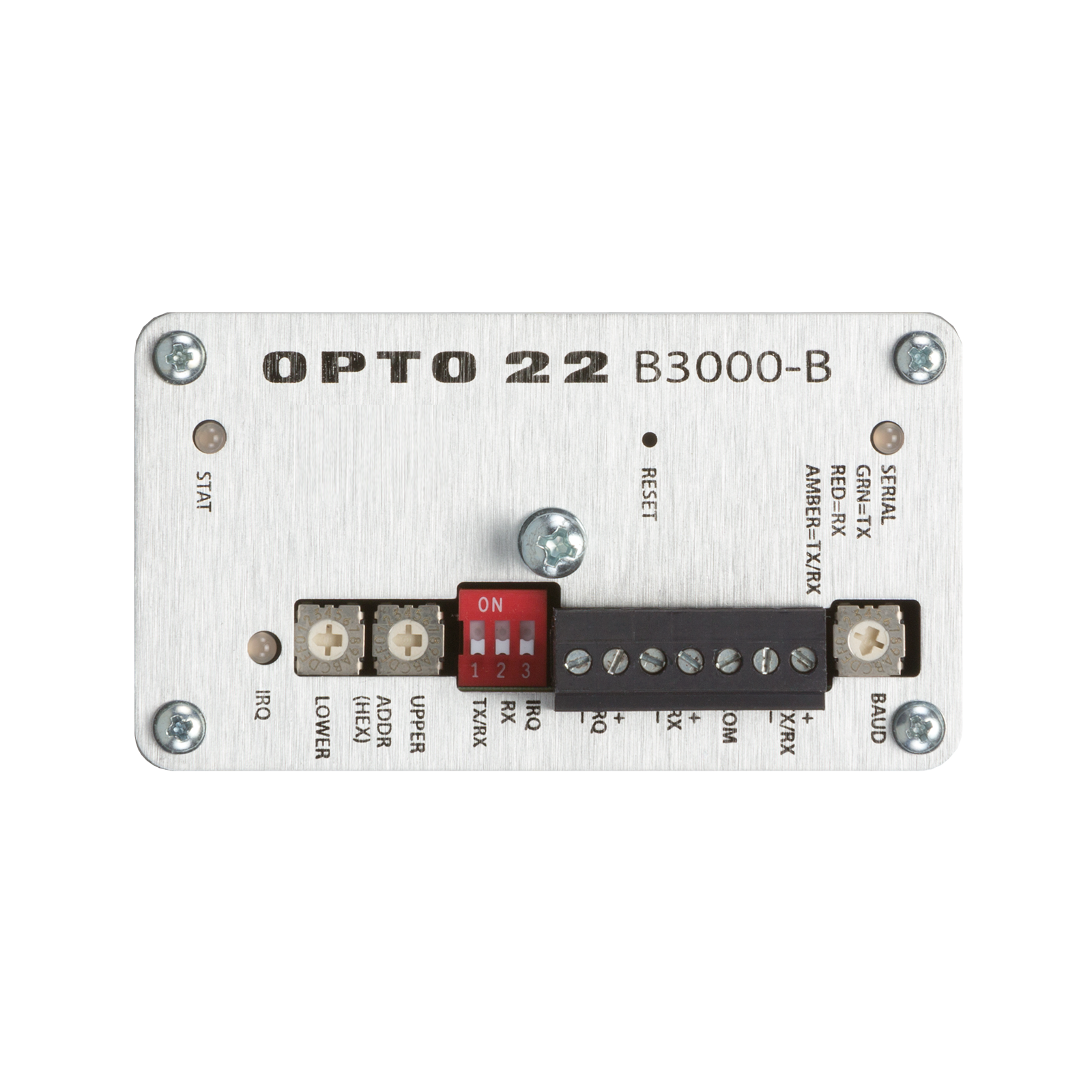

LED indicators

SERIAL (transmit/receive), STAT (brain status), IRQ (interrupt)

Options:
Switch Selectable

Address
Baud rate
Binary/ASCII
CRC/Checksum
Agency Approvals CE, DFARS, UKCA

1794

B3000-B Serial Brains Data Sheet

B3000-B brains are serial brains designed as drop-in replacements for the obsolete B3000. Two models are
available:

  • The B3000-B replaces a B3000 that uses the mistic protocol. This model is compatible with FactoryFloor controllers running OptoControl strategies and SNAP B-series mounting racks. The B3000-B has the same functionality as the B3000 but supports mistic only.
  • The B3000-B-OMUX replaces a B3000 that uses the Optomux protocol. This model is compatible with SNAP B-series mounting racks and contains firmware suited for an Optomux system.
The two models have identical hardware but different firmware. The B3000-B-OMUX has an identifying label on its side.

View

1781

B3000-B Serial Brains User's Guide

B3000-B brains are serial brains designed as drop-in replacements for the obsolete B3000. Two models are
available:

  • The B3000-B replaces a B3000 that uses the mistic protocol. This model is compatible with FactoryFloor controllers running OptoControl strategies and SNAP B-series mounting racks. The B3000-B has the same functionality as the B3000 but supports mistic only.
  • The B3000-B-OMUX replaces a B3000 that uses the Optomux protocol. This model is compatible with SNAP B-series mounting racks and contains firmware suited for an Optomux system.
The two models have identical hardware but different firmware. The B3000-B-OMUX has an identifying label on its side. This guide shows you how to configure, wire, and maintain both brains.

View

1927

Configuring the B3000-B Technical Note

This document shows basic configuration data for the B3000-B serial brain, a drop-in replacement for the obsolete B3000. This document is included in the box when you receive a B3000-B brain.

For more complete information on the B3000-B, see Form 1781, B3000-B Serial Brain Users Guide.

View

1693

Legacy and Current SNAP Product Comparison and Compatibility Charts

This document compares SNAP PAC System hardware and software with legacy Opto 22 SNAP systems and provides compatibility information in a series of detailed charts.

If you're combining SNAP PAC System components with older SNAP hardware and software, see Form #1688, the SNAP PAC System Migration Technical Note.

View

RM_B3000-B_FW

B3000-B Firmware README

This README file lists revision changes made to the firmware used in the B3000-B brain, a serial brain using the mistic protocol.

View

2374

UKCA Declaration of Conformity (ATEX, EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

View

2274

Declaration of Conformity (ATEX, EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

View

1688

SNAP PAC System Migration Technical Note

This document describes migration options for customers integrating the SNAP PAC System with older Opto 22 systems. It explains the SNAP PAC System's similarities and differences with earlier systems, defines legacy products, and shows how to mix old and new hardware.

Customers moving to the SNAP PAC System may also want to consult form #1693, Legacy and Current Product Comparison and Compatibility Charts.

View

1648

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

View

B3000-B Brain Firmware

Firmware for the B3000-B brain. See the README for more information.

View

CAD Drawing: B3000-B SNAP Analog/Digital Brain, mistic Protocol

This CAD file includes drawings for the B3000-B analog/digital brain.

View

Optomux Protocol drivers and utilities

This file installs drivers for E1, E2, B1, B2, and serial B3000 and B3000-B brains. It is based on the "iolib_optomux.dll" library. This toolkit is recommended for all new Optomux-based applications because it supports Optomux communications over both Ethernet and serial networks.

The toolkit can emulate the interface that the earlier library "OptoMWD.dll" provided; however, using this interface is not required. This legacy interface capability is included to help an existing OptoMWD.dll user make a smoother migration to this newer toolkit. The legacy utilities OptoScan and OmuxUser are also included.

This toolkit is compatible with Windows XP and Windows 2000 operating systems. It is not compatible with .NET programming languages.

View
