OPTOEMU-SNR-DR2
Hover over image to zoom in

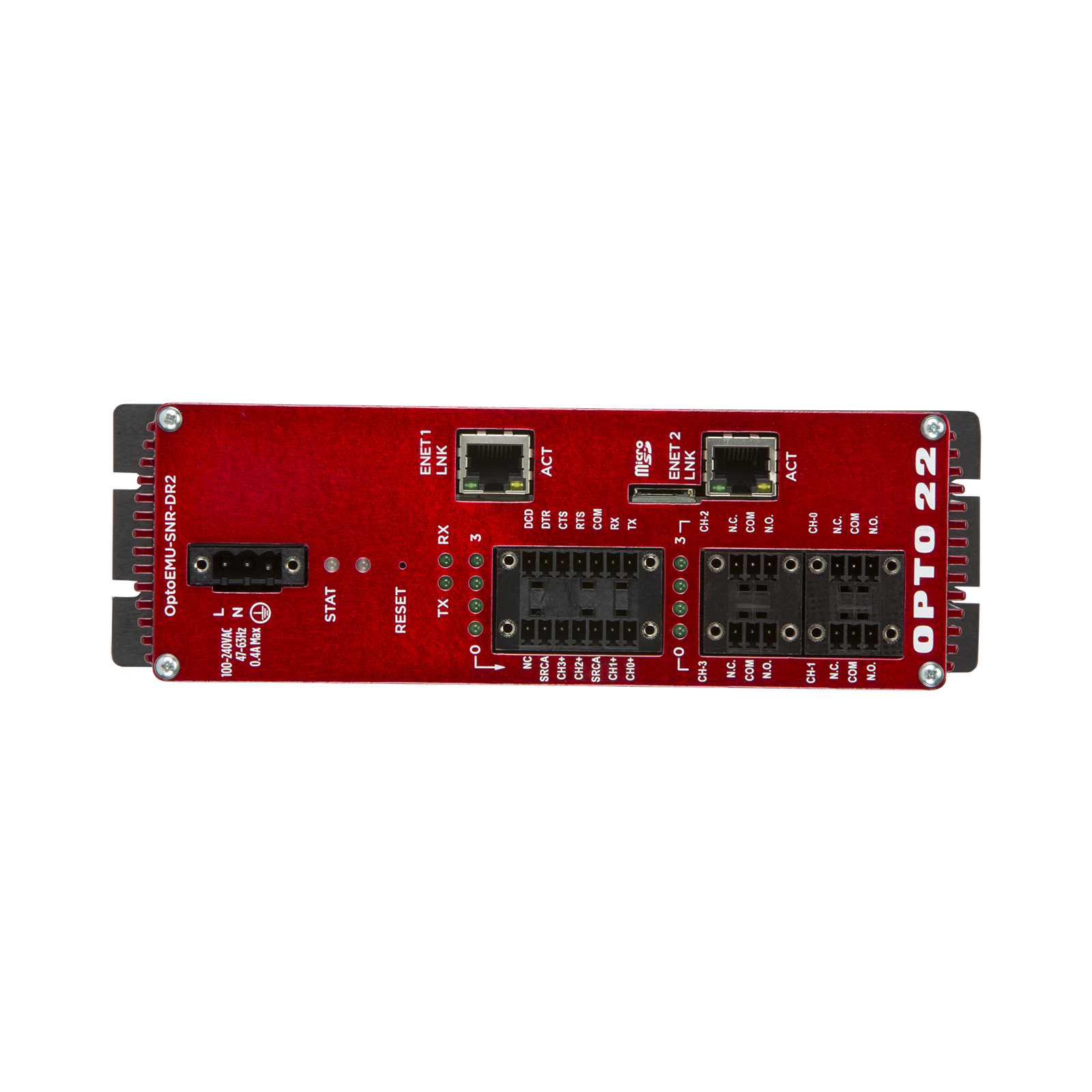

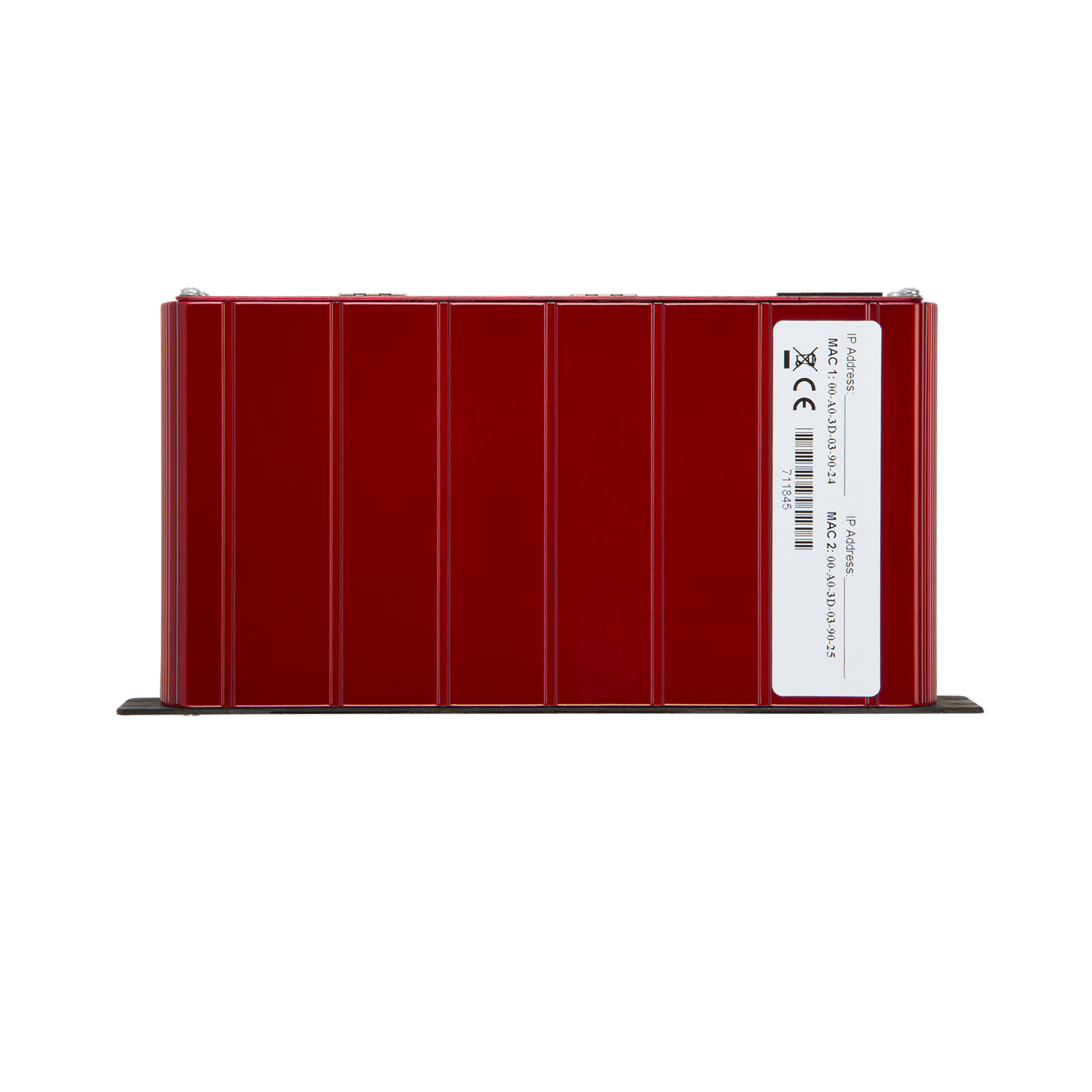

OPTOEMU-SNR-DR2

$1,205.00 (USA and Canada only)

Availability: In stock
OBSOLETE - Energy monitoring unit with Demand Response capability (wired Ethernet)

Production Specification

NOTE: This product is obsolete when stock is depleted.

The OPTOEMU-SNR-DR2 energy monitoring unit monitors the electrical energy used in your facility and then signals electrical equipment to turn on or off in response to a request from an electric utility, demand response aggregator, or curtailment service provider (CSP). To reduce peak energy use that triggers demand charges, electrical equipment loads can also be shed on predefined usage thresholds.

OPTOEMU-SNR-DR2 monitors up to two KY or KYZ pulsing devices, such as a pulsing meter or submeter, and up to 64 data inputs from Modbus devices over serial and Ethernet. The unit sends this data to an online service of your choosing, so you can see and analyze energy usage. The unit can also send energy data to control systems and company databases.

The unit's four signal relay outputs can be used to automatically respond to a DR event by signaling equipment such as HVAC fans and chillers to turn on or off, or signaling existing energy or building management systems to perform load shedding. Each Form C output can be wired for normally open or normally closed.

The OPTOEMU-SNR-DR2 communicates with online services and computer networks over a standard 10/100 Mbps wired Ethernet network. An easy-to-use utility program for configuring the unit is included. You can download this OptoEMU Sensor Manager for free; it also comes on a CD with the unit.

If you need to monitor voltage and current directly from an electrical panel or electrical equipment (not through a pulsing meter or Modbus device), see the OPTOEMU-SNR-3V.

Overall Unit Specifications



[OBSOLETE] OPTOEMU-SNR-DR1

OPTOEMU-SNR-DR2

Power Requirements

100–240 VAC, 47–63 Hz, 0.4 A maximum, 8 W

100–240 VAC, 47–63 Hz, 0.4 A maximum, 8 W

Dimensions

Overall 2.45" w x 8.08" h x 4.76" d (6.23 cm x 20.53 cm x 12.09 cm)

Overall 2.45" w x 8.08" h x 4.76" d (6.23 cm x 20.53 cm x 12.09 cm)

Enclosure

Sturdy metal case

Sturdy metal case

Removable storage

MicroSD card slot (for future use)

MicroSD card slot (for future use)

Backup battery

Rechargeable (recharges whenever the unit has power), 3-year power-off data retention

Rechargeable (recharges whenever the unit has power), 3-year power-off data retention

Ethernet Communication (wired)

Two independent 10/100 Mbps Ethernet network interfaces (RJ-45 connectors), each with a sepa­rate IP address (separate subnets).

Two independent 10/100 Mbps Ethernet net­work interfaces (RJ-45 connectors), each with a separate IP address (separate subnets).

Ethernet Comm (wireless)

Wireless LAN interface with separate IP address (separate subnet).

Security:
AES - Compatible with WPA2 Personal (802.11i);
TKIP - Compatible with WPA Personal


Frequency 802.11a:
5.180–5.240 GHz, 5.745–5.825 GHz

Frequency 802.11b/g:
2.412–2.472 GHz, 2.484 GHz

Transmit Power:
15 dBm maximum

Antenna Connector:
Reverse polarity SMA (RP-SMA or RSMA)

Roaming:
Supported within an SSID (Service Set Identifier) only

No wireless capability

Serial Communication

One serial port, software configurable for RS-232 (TX, RX, COM, DTR, DCD, RTS, CTS) or RS-485 (2-wire, 4-wire, optional termination, optional biasing).

One serial port, software configurable for RS-232 (TX, RX, COM, DTR, DCD, RTS, CTS) or RS-485 (2-wire, 4-wire, optional termination, optional biasing).

Indicators

Status of unit
Wireless: WLAN activity
Serial: Receiving, Transmitting (future use)
Ethernet interfaces (2): Link, Activity
Pulse inputs: On/Off status
Mechanical relay outputs: On/Off status

Status of unit
Serial: Receiving, Transmitting (future use)
Ethernet interfaces (2): Link, Activity
Pulse inputs: On/Off status
Mechanical relay outputs: On/Off status

Other features

Real-time clock

Real-time clock

Operating Temperature

0 to 60 °C (32 to 140° F)

0 to 60 °C (32 to 140° F)

Storage Temperature

-25 to 85 °C (-13 to 185° F)

-25 to 85 °C (-13 to 185° F)

Humidity

0% to 95% relative humidity, non-condensing

0% to 95% relative humidity, non-condensing

Agency Approvals

UL, cUL, DFARS
Wireless: U.S., FCC Part 15 Subpart C; Canada, IC RSS-210

UL, cUL, CE, RoHS, DFARS; UKCA



Warranty

30 months

30 months



Dry Contact Pulse Inputs

OptoEMU Sensor DR supplies 15 volts to each external dry contact switch and senses switch closure.



Open Circuit Voltage (Switch Open)

15 VDC typical (supplied by OptoEMU Sensor DR)

Short Circuit Current (Switch Closed)

7 milliamps nominal

Minimum Off Resistance

>20 K ohms

Maximum Allowable ON Resistance
(Wire + Contact Resistance)

500 ohms

Turn-on Time

5 msec

Turn-off Time

25 msec

Input-to-output Isolation

1500 VAC/VDC

Minimum Pulse Width

>=7 milliseconds

Maximum Frequency

<=30 Hz

Status indicators

1 LED per channel



Signal Relay Outputs

Contact Configuration

SPDT relay (with NO and NC contacts)

Line Voltage - Range

0–240 VAC or 0–30 VDC

Current Rating

100 mA switching @ 0 240 VAC or 0 100 VDC

Surge Current

600 mA

Minimum Load

0.1 VDC, 5 mA

Contact Resistance

100 milliohms

Peak Blocking Voltage

250 VAC/VDC

Channel-to-channel isolation

300 VAC (1500 V transient)

Turn-on Time

6 milliseconds

Turn-off Time

6 milliseconds

Temperature

0 to 70 °C, operating
-30 to 85 °C, storage

Mechanical Life

5 x 106 operations

Operational Life

1 x 103 operations

Status indicators

1 LED per channel
