SNAP-OAC5-IFM

SNAP-OAC5-IFM

Please contact your local distributor for pricing. Please contact your local distributor for pricing.

Availability: In stock

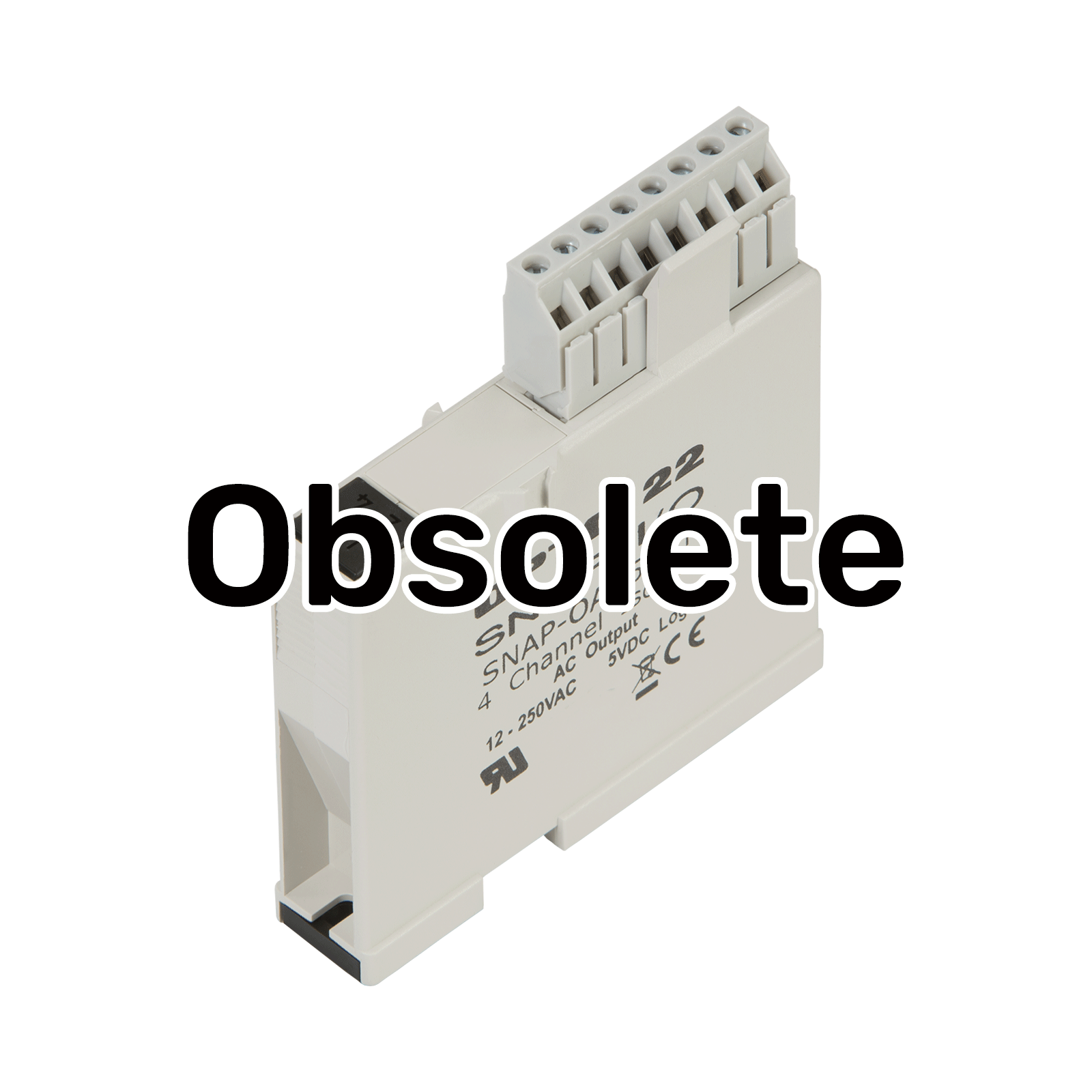

SNAP 4-Ch Isolated 12-250 VAC Digital (Discrete) Output Module, FM Approved

Please call (800) 321-6786 to order.

Production Specification

The SNAP-OAC5-iFM provides four isolated channels of 12-250 VAC digital output, each switching a separate AC load. AC outputs use zero voltage turn on and zero current turn off for transient-free switching. The module features channel-specific LEDs for troubleshooting.

This module is Factory Mutual approved.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For easier, faster wiring, see SNAP TEX cables and breakout boards.

Build your system in the SNAP I/O Configurator.



SNAP-OAC5-FM

SNAP-OAC5-i-FM

Key Feature

Factory Mutual approved

Four isolated channels
Factory Mutual approved

Torque, hold-down screws

4 in-lb (0.45 N-m)

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

5.26 in-lb (0.6 N-m)

Field Side Ratings (each channel)

Line Voltage - Range

12–250 VAC

12–250 VAC

Line Voltage - Nominal

120/240 VAC

120/240 VAC

Current Rating
0 °C to 70 °C Ambient

3 amps per module

3 amps per module

One Cycle Surge

80 amps peak (50/60 Hz)

80 amps peak (50/60 Hz)

Minimum Load Current

20 mA

20 mA

Output Voltage Drop

1.6 volts max.@ 0.75 amps

1.6 volts max.@ 0.75 amps

Off-state Leakage at Nominal Voltage - 60 Hz

2.5 mA @ 240 VAC
1.25 mA @ 120 VAC

2.5 mA @ 240 VAC
1.25 mA @ 120 VAC

Peak Blocking Voltage

500 V

500 V

Operating Frequency

25–65 Hz

25–65 Hz

dV/ dt - Off-state

200 volts/msec

200 volts/msec

dV/ dt - Commutating

Snubbed for rated 0.5 power factor load

Snubbed for rated 0.5 power
factor load

Fuse
(Common to all Channels)

250 VAC - 4A 5x20 mm
Fast-acting Bell Fuse Part No. BEL 5HF4
Opto 22 Part No. SNAP-FUSE4AB

Has four isolated channels.
User must provide own fusing.

Channel-to-channel isolation

Not applicable

300 VAC
(1500 V transient)

Logic Side Ratings

Pickup Voltage

4 V @ 5.5 mA

4 V @ 5.5 mA

Dropout Voltage

1 VDC

1 VDC

Control Resistance

220 ohms

220 ohms

Logic Supply Voltage

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

Logic Supply Current

50 mA maximum

50 mA maximum

Module Ratings

Channels Per Module

4

4

Turn-on Time

0.5 cycle maximum
(zero volts crossover)

0.5 cycle maximum
(zero volts crossover)

Turn-off Time

0.5 cycle maximum
(zero current crossover)

0.5 cycle maximum
(zero current crossover)

Isolation (Field Side to Logic Side)

4,000 volts (transient)

4,000 volts (transient)

Temperature

-20 ° to 70 °C, operating
-40 ° to 85 °C, storage

-20 ° to 70 °C, operating
-40 ° to 85 °C, storage

Wire size range

22 to 14 AWG

22 to 14 AWG

Agency Approvals

CE, FM, RoHS, DFARS

CE, FM, RoHS, DFARS

Warranty

Lifetime

Lifetime
