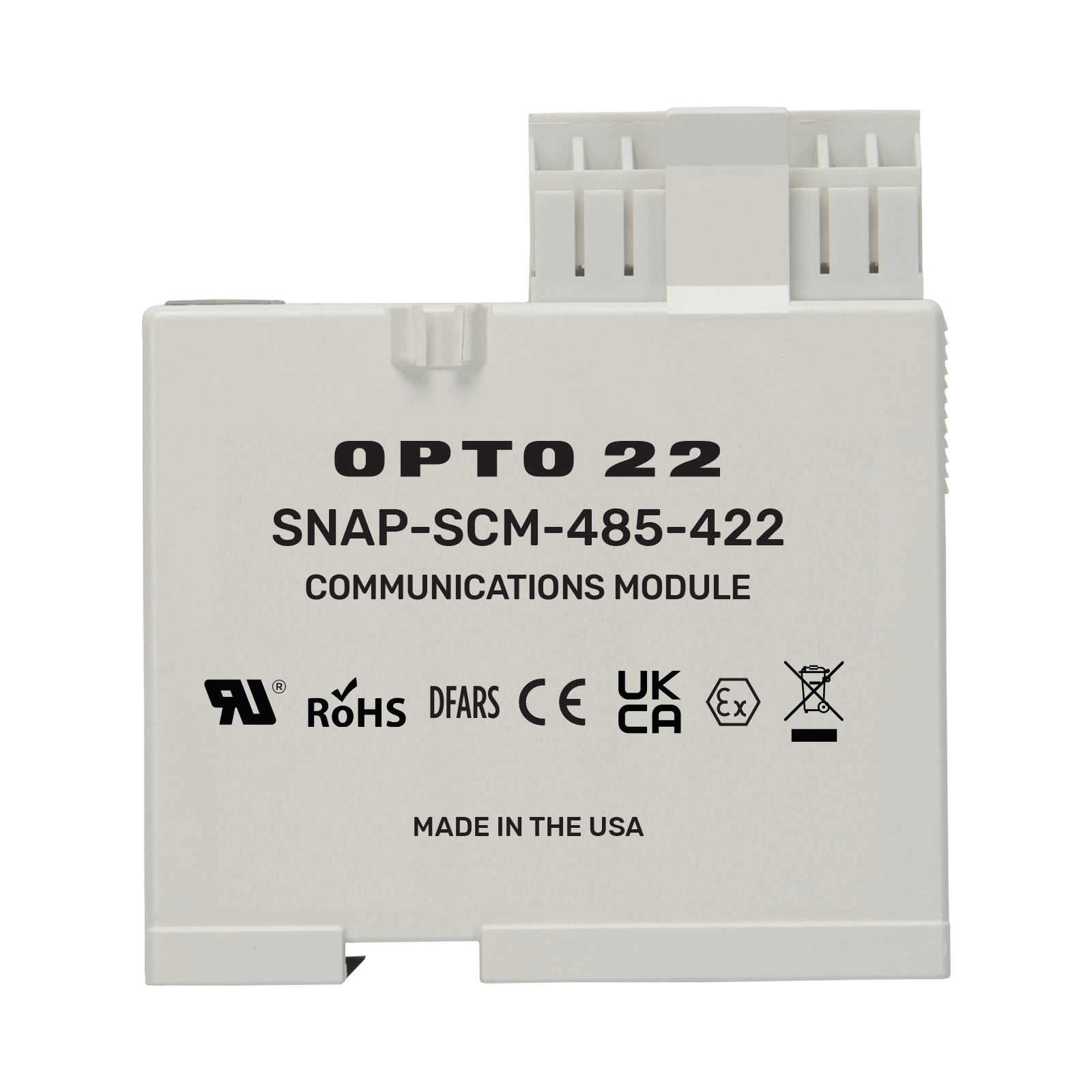

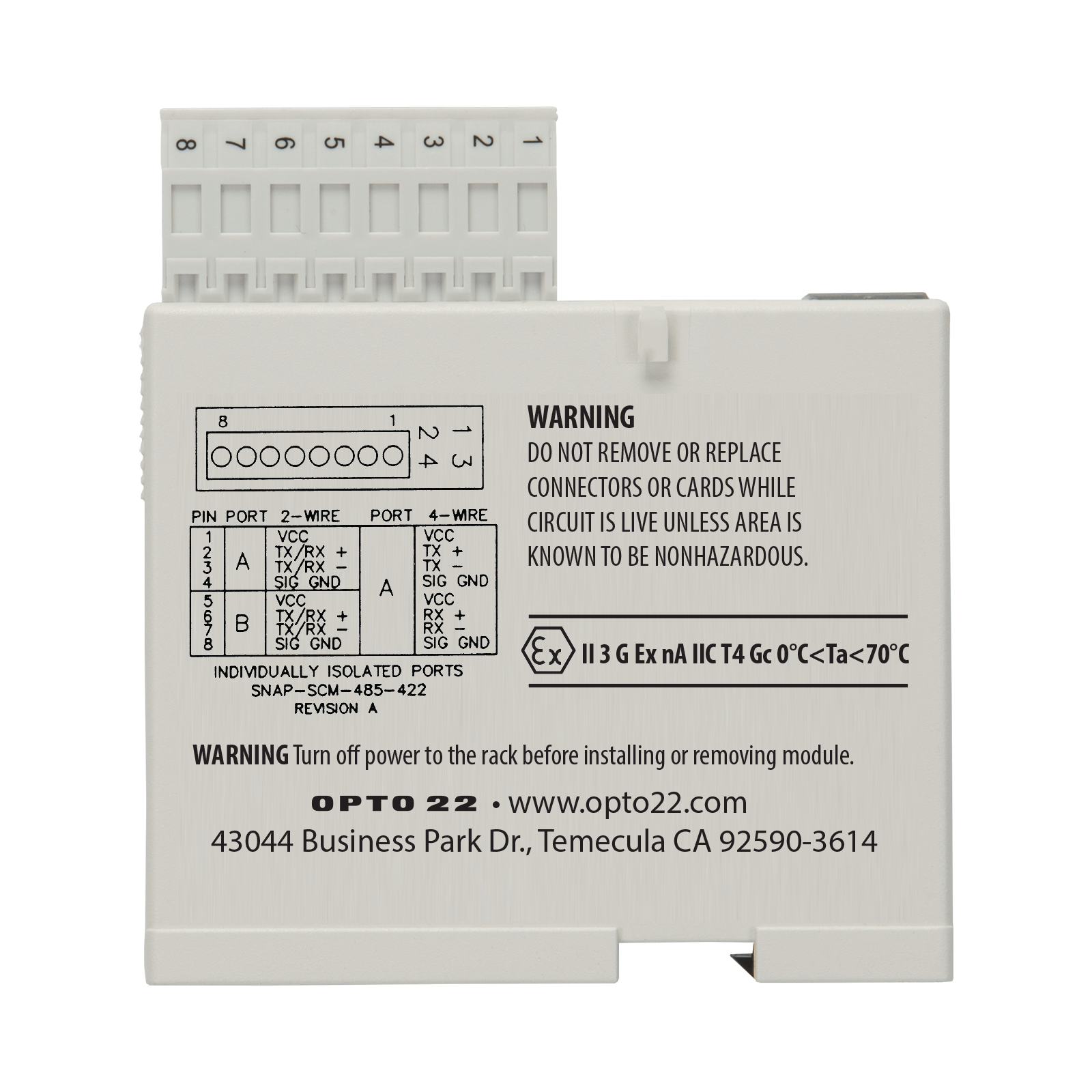

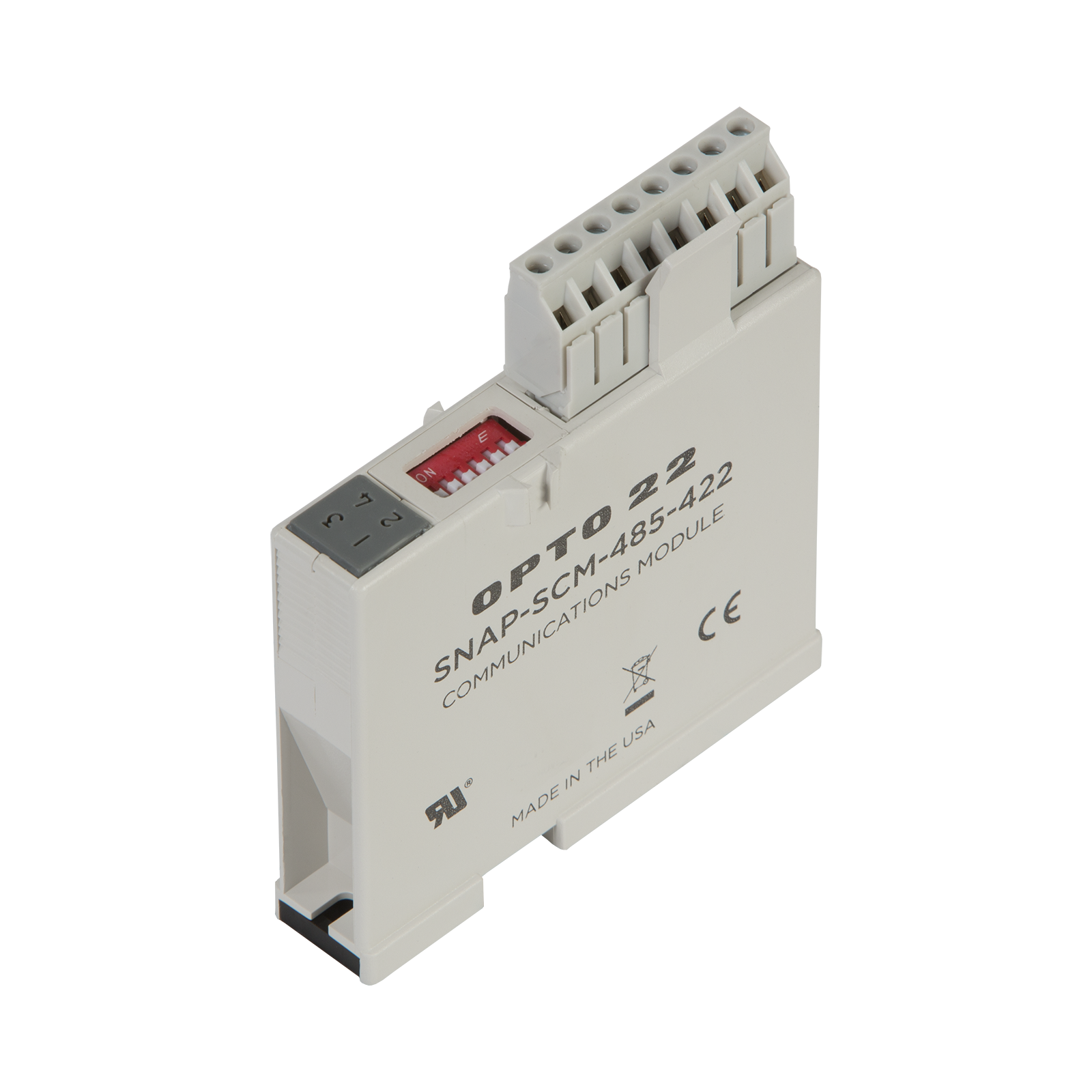

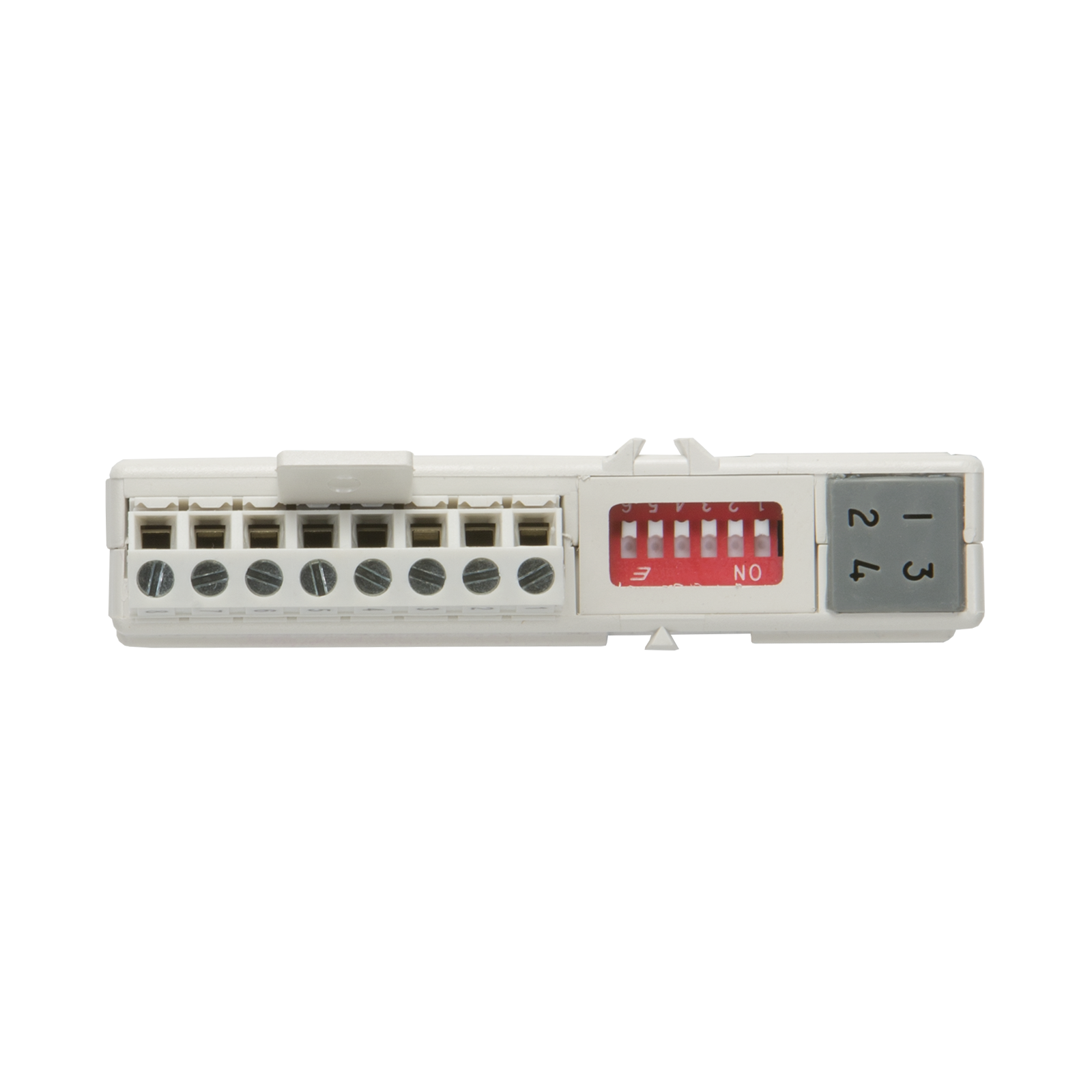

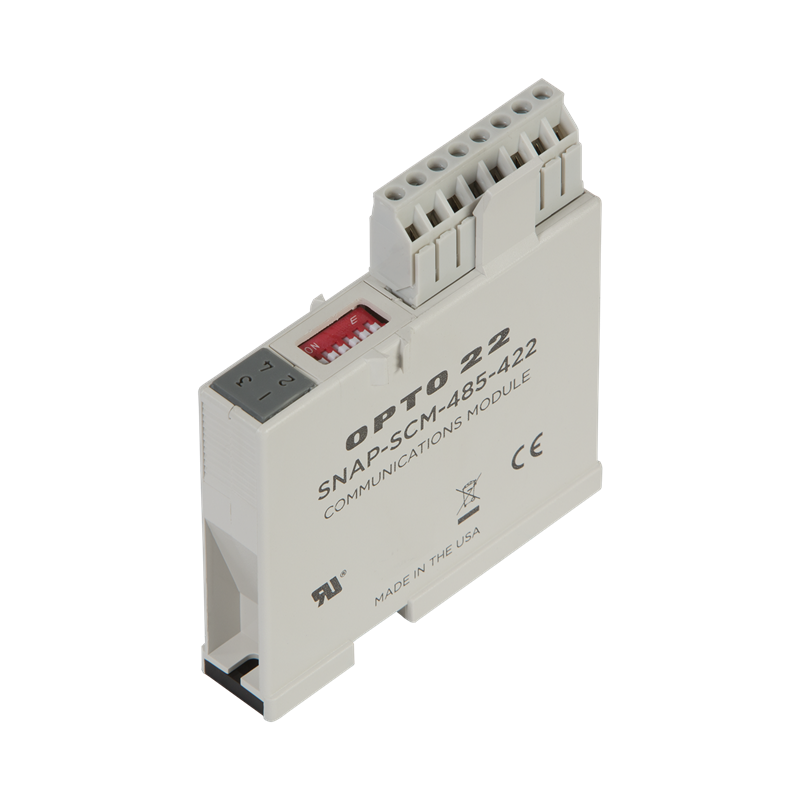

SNAP-SCM-485-422
Hover over image to zoom in

SNAP-SCM-485-422

$451.00 (USA and Canada only)

Availability: In stock
SNAP 2-Ch RS-485/422 (2-wire or 4-wire) Serial Communication Module

Production Specification

The SNAP-SCM-485-422 provides two 2-wire RS-485 serial communication ports for two channels of high-speed, isolated serial data, or one 4-wire serial communication port for a single channel. Used with a brain or R-series controller, the module connects serial devices such as printers, scales, chart recorders, and barcode systems to an Ethernet network for control, monitoring, or data acquisition.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley MicroLogix PLC system, or other RSLogix-based system, such as ControlLogix or CompactLogix.

NOTE: The SNAP-SCM-485-422 is also compatible with SNAP Ethernet, SNAP Simple, and SNAP Ultimate brains.

For similar serial communication using RS-232, see SNAP-SCM-232.

Build your system in the SNAP I/O Configurator.

Baud rates

300–115,200*

Channel-to-channel isolation

750 VRMS

Logic supply voltage

5.0 VDC

Logic supply current

250 mA DC

Number of ports per module

2 (1 if SNAP-SCM-485-422 in 4-wire mode)

Max. number of modules per rack**

8

Maximum cable length, point-to-point (SNAP-SCM-232)

50 feet

Maximum cable length, multidrop (SNAP-SCM-485-422)

1,000 feet at 115,200 Kbd

Processor compatibility

SNAP PAC R-series controllers and SNAP PAC EB brains, both standard wired and Wired+Wireless models.

Also SNAP-B3000-ENET, SNAP-ENET-RTC, SNAP-ENET-S64, SNAP-UP1-ADS, and SNAP-UP1-M64.

Operating temperature

-20 to 70 °C

Storage temperature

-30 to 85 °C

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Agency Approvals

UL, CE, RoHS, DFARS; UKCA
NEBS (SNAP-SCM-232 only)
ATEX (SNAP-SCM-485-422 only)

Warranty

30 months

* Module performance is limited by the number of serial modules on the SNAP rack. Each rack backplane provides approximately 2.5 Mbps of bandwidth.

** Maximum number of modules per rack assumes a 4A power supply (i.e. SNAP-PS5).
