SNAP-SCM-CAN2B
Hover over image to zoom in

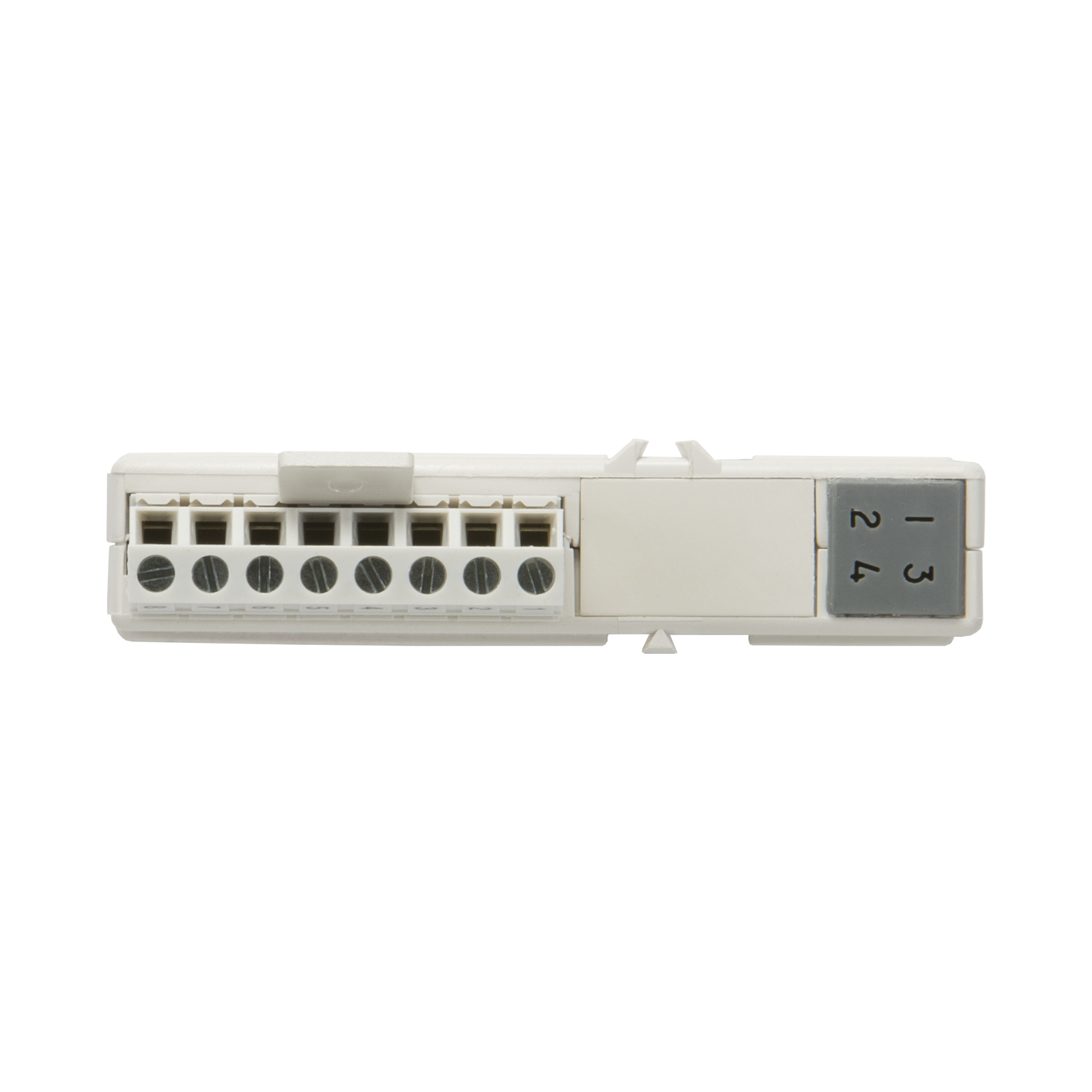

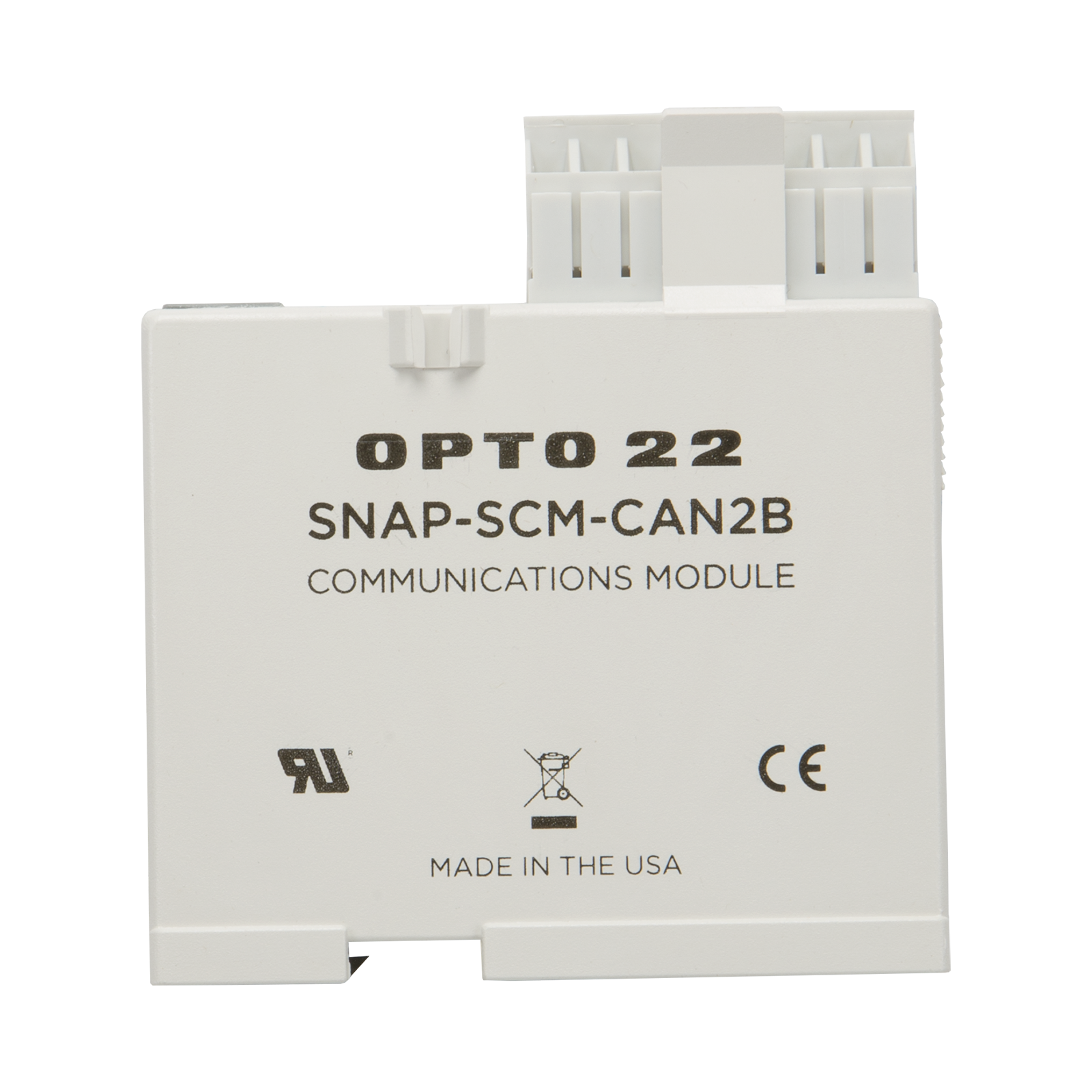

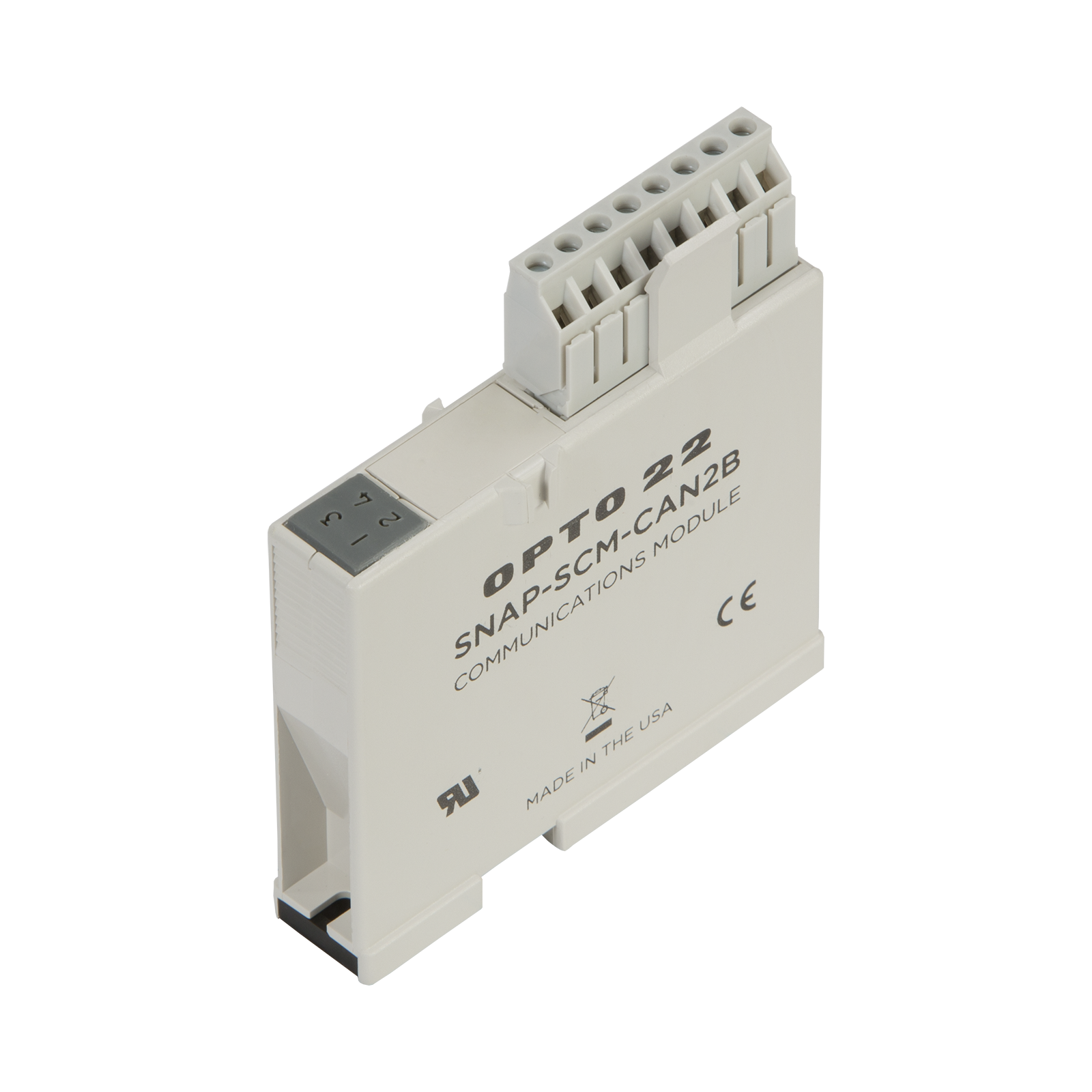

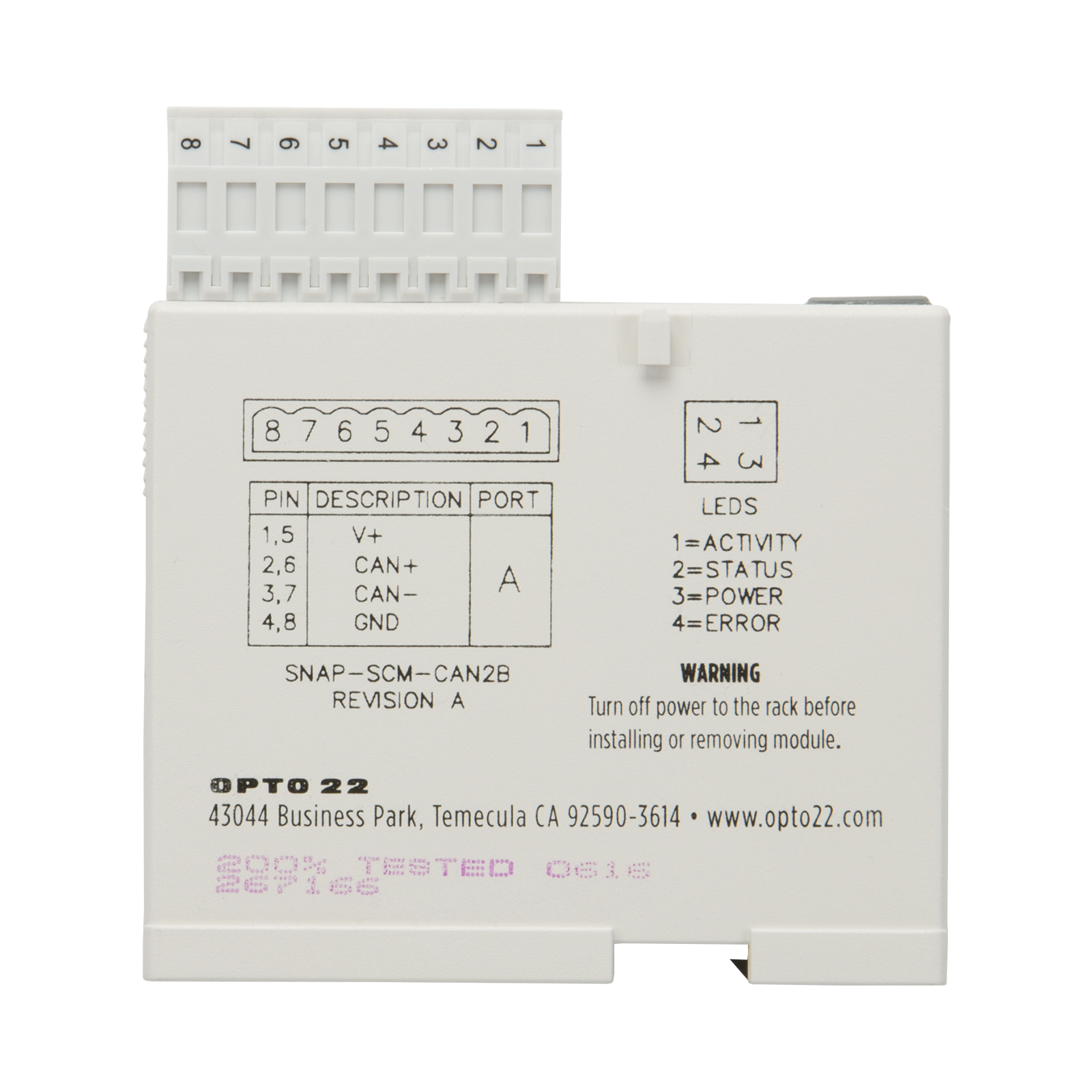

SNAP-SCM-CAN2B

$451.00 (USA and Canada only)

Availability: In stock
SNAP CAN (Controller Area Network) Communication Module

Production Specification

The SNAP-SCM-CAN2B serial communication module provides one channel for transmitting and receiving data from devices on a Controller Area Network (CAN).

The SNAP-SCM-CAN2B module is designed for use with Opto 22 ’s SNAP PAC R-series controllers and SNAP PAC EB-series brains, both the standard wired models and the Wired+Wireless™ models. The brain or controller processes the data from the module and can communicate the data to other parts of an Opto 22 SNAP PAC System or to another system (such as a Modbus® system or an OPC client).

The SNAP-SCM-CAN2B requires PAC Project version R9.2a or newer, and the R-series controller or EB-series brain used with the module must have firmware version R9.2a or newer. This module does not work with legacy brains or controllers.

The SNAP-SCM-CAN2B mounts on a SNAP PAC rack alongside other SNAP I/O modules (analog, digital, and serial) to provide the mix of signals needed at any location.

Opto 22's CAN Integration Kit for PAC Project - Transmit and Receive (part number PAC-INT-CAN-RXTX) provides sample PAC Control subroutines and flowcharts to help you configure your module and exchange data. You can modify the subroutines and charts as necessary for your application. To use the integration kit, see form 2151, the CAN RX/TX Integration Kit for PAC Project Technical Note.

IMPORTANT: This module includes both transmit and receive capability beginning with module firmware R2.0b. Modules with firmware R1.0d and lower can only receive data; these modules use a different integration kit (PAC-INT-CAN-RX).

To add transmit capability to an existing module, download the newer firmware and then follow steps in the PAC Manager User's Guide (form 1704) to update the firmware.

Baud rates

10–1000 Kbps*

Logic supply voltage

5.0 VDC

Logic supply current

250 mA DC

Number of ports per module

1

Max. number of modules per rack**

8

Processor compatibility

SNAP PAC R-series controllers and SNAP PAC EB brains, both standard wired and Wired+Wireless models, with firmware 9.2a or newer.

Operating temperature

-20 to 70 °C

Storage temperature

-30 to 85 °C

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Agency Approvals

UL, CE, RoHS, DFARS

Warranty

30 months from date of manufacture

* Module performance is limited by the number of serial modules on the SNAP rack. Each rack backplane provides approximately 2.5 Mbps of bandwidth.

** Maximum number of modules per rack assumes a 4A power supply (i.e. SNAP-PS5).

SNAP-SCM-CAN2B Communication Module Data Sheet

The SNAP-SCM-CAN2B serial communications module provides one channel for transmitting data to or receiving data from devices on a Controller Area Network (CAN).

The SNAP-SCM-CAN2B module is designed for use with Opto 22’s SNAP PAC R-series controllers and SNAP PAC EB-series brains. The brain or controller processes the data from the module and can communicate the data to other parts of an Opto 22 SNAP PAC System™ or to another system (such as a Modbus® system or an OPC client).

SNAP Serial Communication Modules User's Guide

The SNAP-SCM-232, SNAP-SCM-485-422, SNAP-SCM-PROFI, SNAP-SCM-W2, SNAP-SCM-CAN2B, and SNAP-SCM-ST2 serial communication modules are designed for use with the SNAP PAC System and can also be used in standalone SNAP I/O units.

Each of these modules conveniently provides serial data at a remote Ethernet location.

  • The SNAP-SCM-232 and SNAP-SCM-485-422 typically interface with printers, scales, chart recorders, and barcode systems.
  • The SNAP-SCM-PROFI provides a standard electrical interface with PROFIBUS DP® networks.
  • The SNAP-SCM-CAN2B provides an interface to a Controller Area Network (CAN), so your SNAP PAC system can receive data from CANbus devices.
  • The SNAP-SCM-ST2 provides pulse and direction signals for stepper motor drives.
  • The SNAP-SCM-W2 complies with the Wiegand interface format and is used for access control applications.

CAN RX/TX Integration Kit for PAC Project Technical Note

The Opto 22 CAN Integration Kit for PAC Project - Transmit and Receive (part number PAC-INT-CAN-RXTX) provides sample PAC Control subroutines and charts so that your Opto 22 SNAP PAC System equipped with one or more SNAP-SCM-CAN2B modules can communicate with devices on the CAN network.

This technical note shows you how to install and use the integration kit.

New SNAP I/O Module from Opto 22 Adds Controller Area Network (CAN) Connectivity to SNAP PAC System

Press release: New SNAP I/O Module from Opto 22 Adds Controller Area Network (CAN) Connectivity to SNAP PAC System - the SNAP-SCM-CAN2B high-speed serial communication module for use with Controller Area Network (CAN).

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

SNAP-SCM-CAN2B Module Firmware

This download contains current firmware for the SNAP-SCM-CAN2B serial communication module. This firmware adds transmit capability to a SNAP-SCM-CAN2B serial communication module, which communicates with devices on a Controller Area Network (CAN). (A SNAP-SCM-CAN2B module with firmware R1.0d or lower can receive data but not transmit.)

For a list of bug fixes and enhancements included in this firmware, see the RM SNAP-SCM-CAN2B Module Firmware Readme.

See the Opto 22 CAN Integration Kit for PAC Project - Transmit and Receive (part number PAC-INT-CAN-RXTX) for helpful sample PAC Control subroutines and charts to help you integrate devices on a CAN network with your Opto 22 SNAP PAC controller.

To update firmware on an existing SNAP-SCM-CAN2B module, follow steps in Form 1704, PAC Manager User's Guide.
