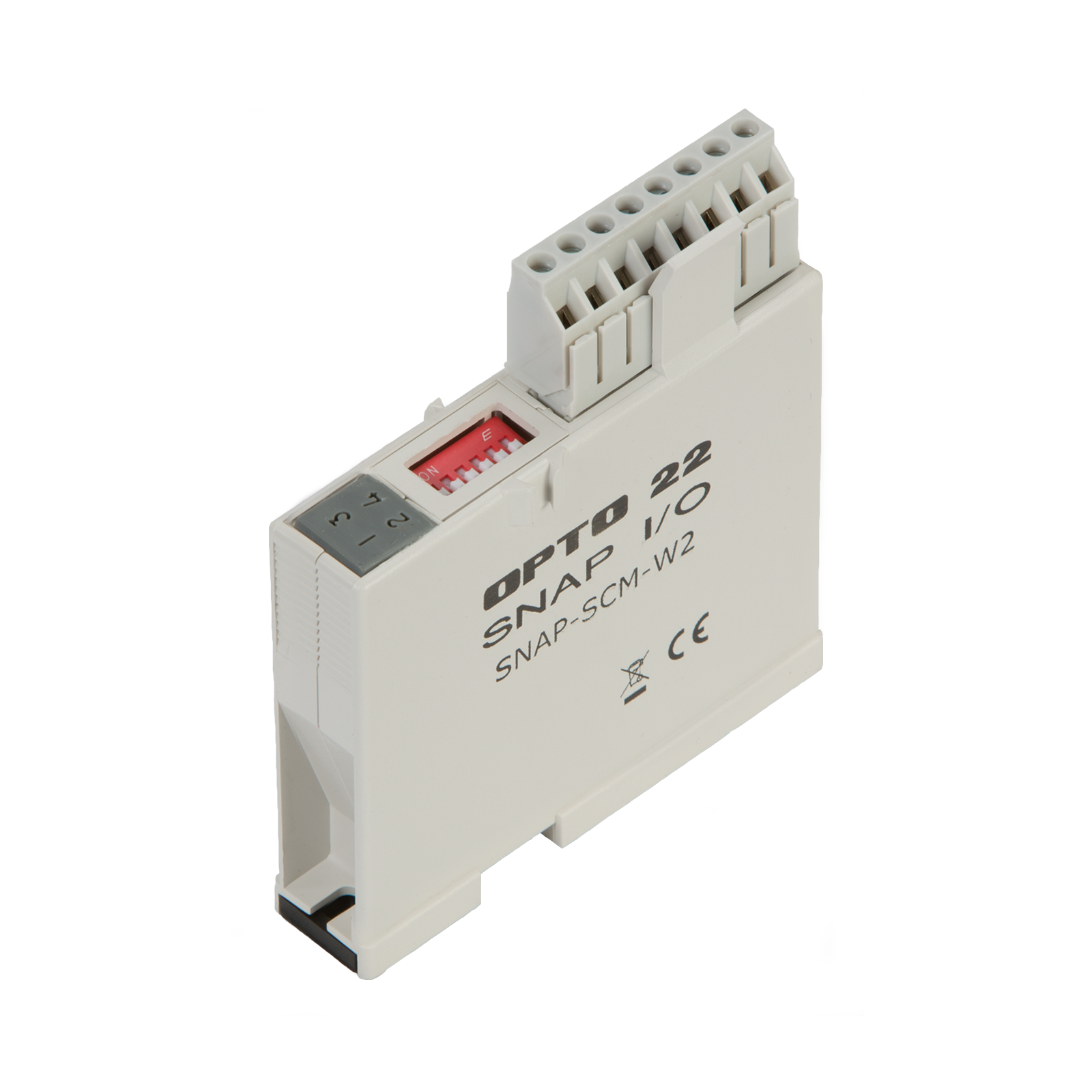

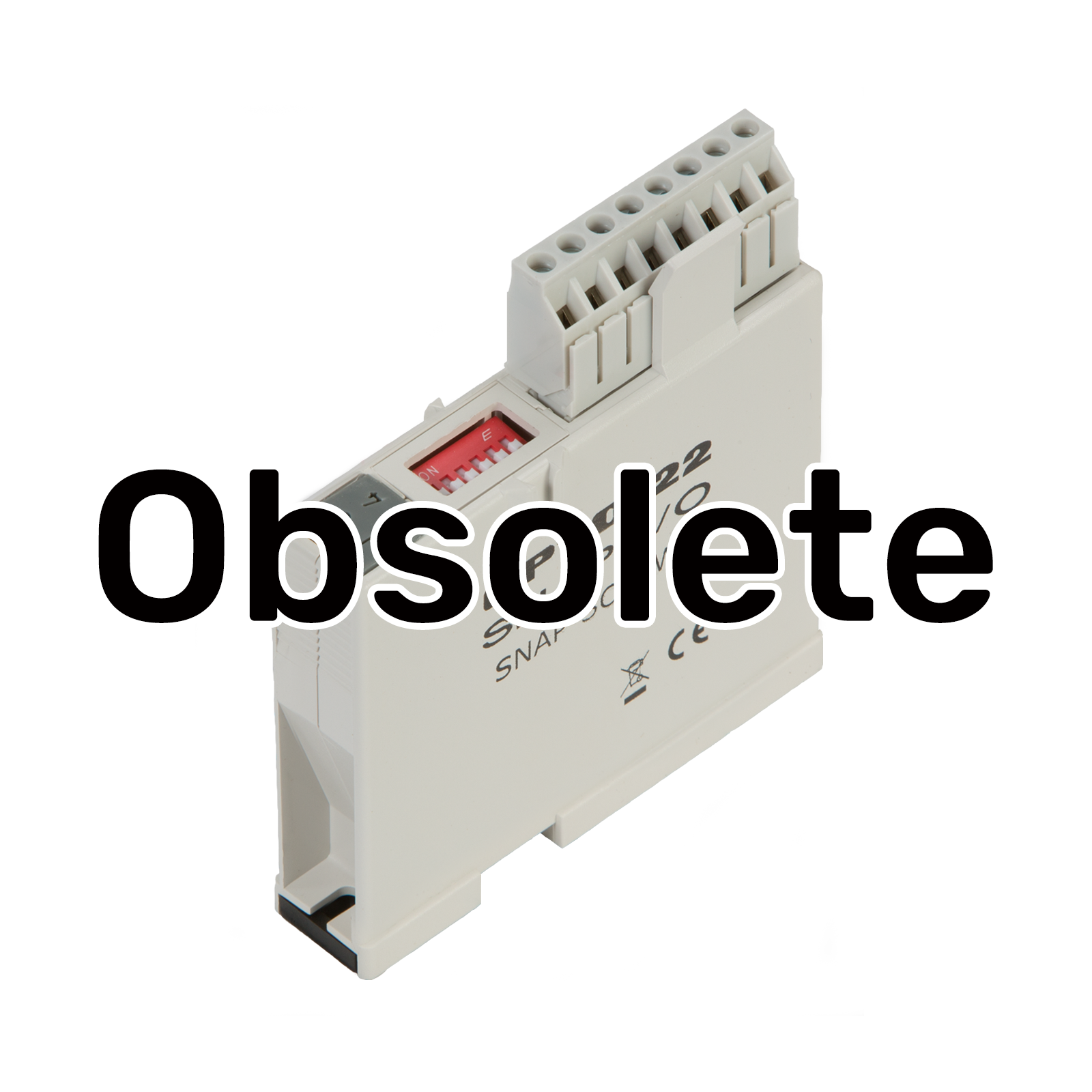

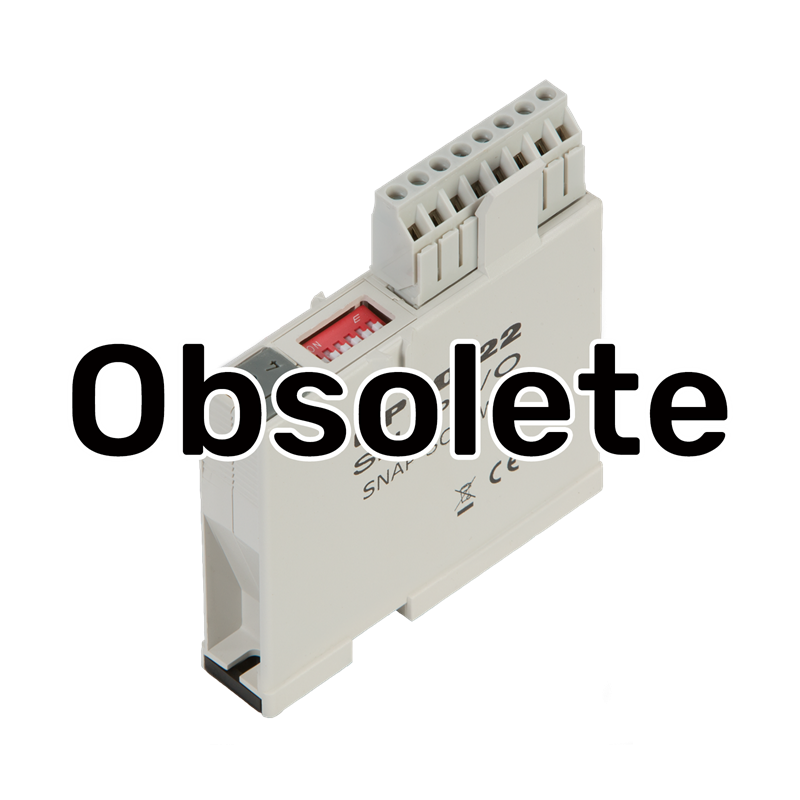

OBSOLETE SNAP 2-Ch Wiegand Interface Serial Communication Module

Production Specification

*** NOTE: This part is OBSOLETE and no longer available when current stock is depleted. ***

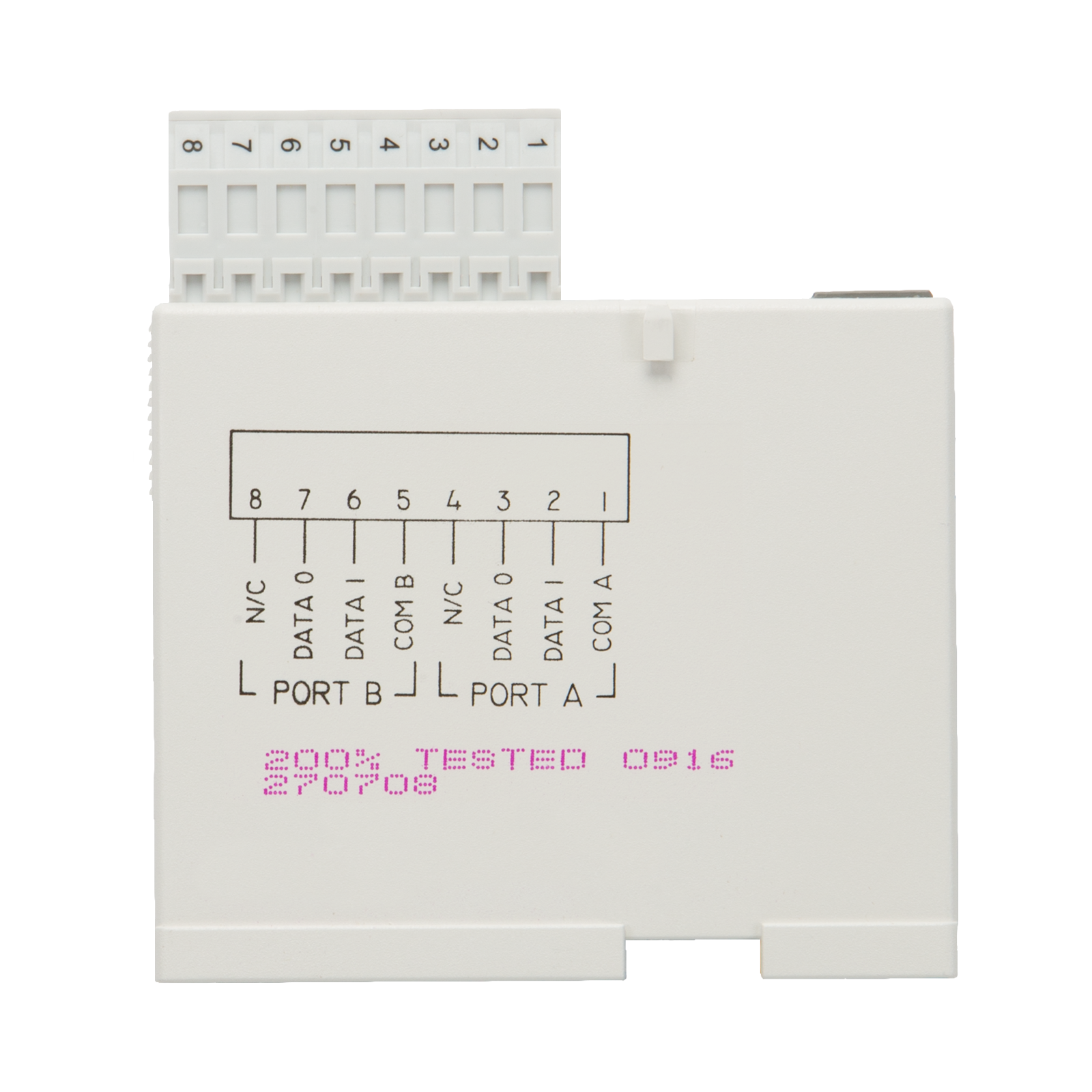

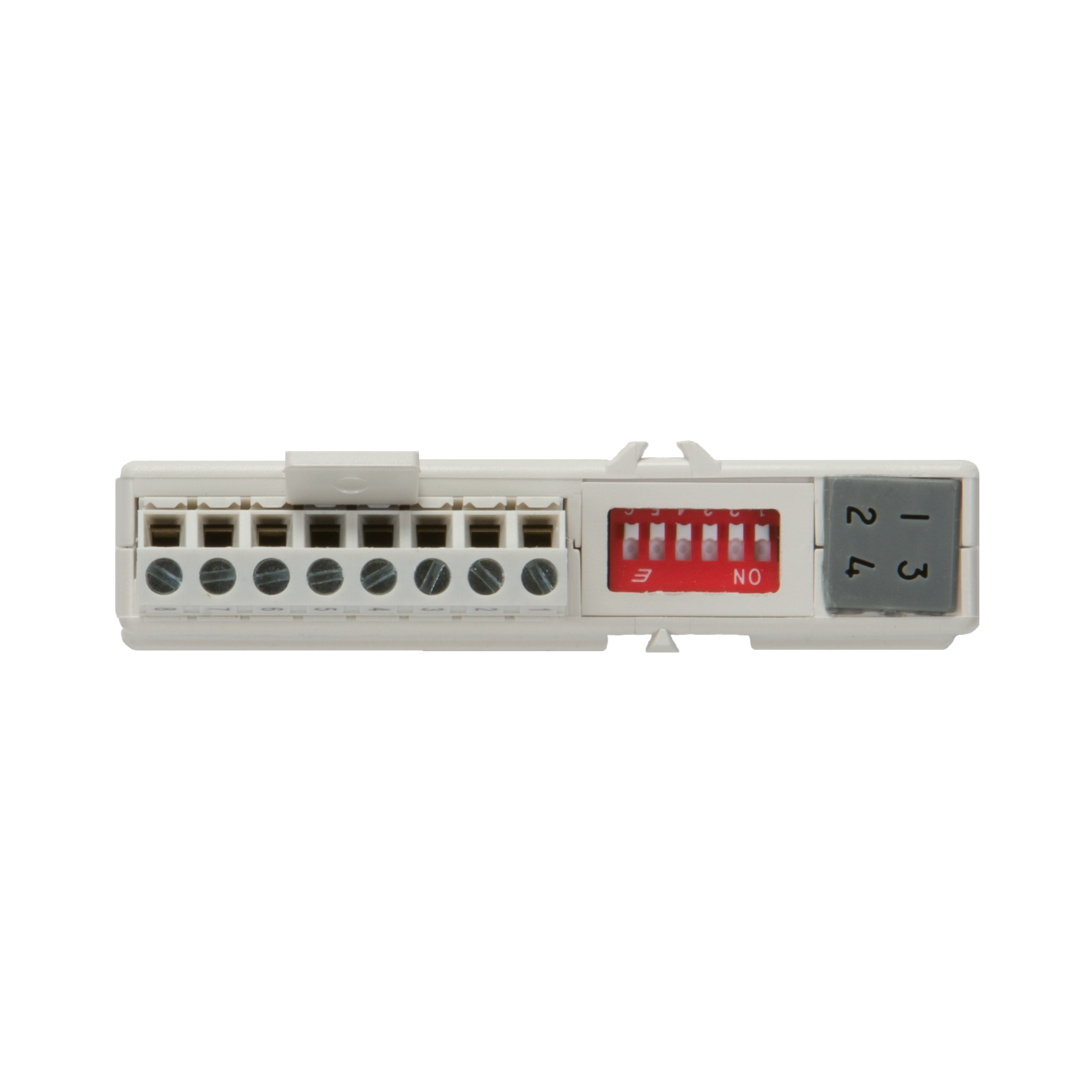

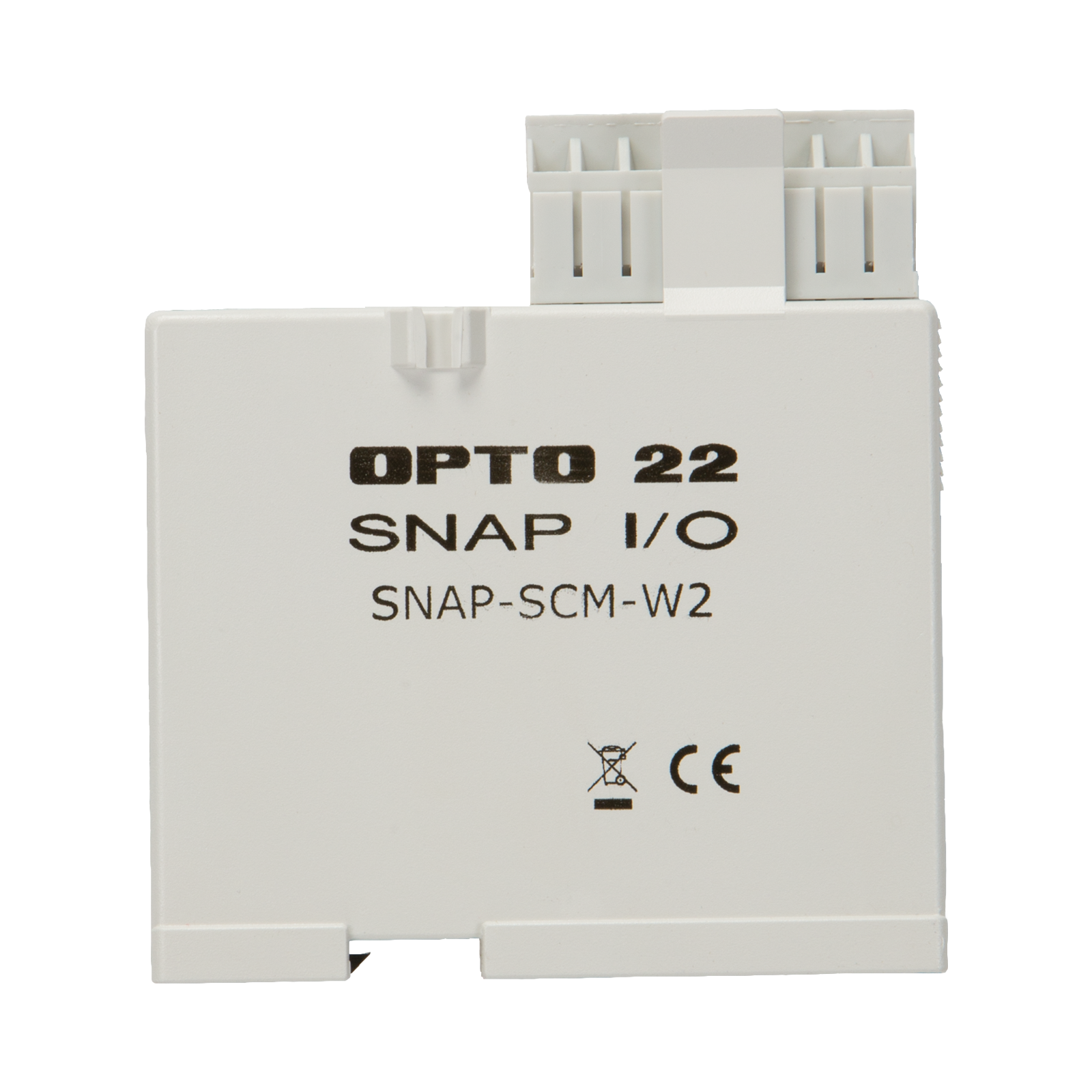

The SNAP-SCM-W2 provides two isolated channels of data input from attached devices that comply with the Wiegand interface format. The module complies with the Security Industry Association Standard Protocol for the 26-bit Wiegand Reader Interface and is ideal for access control applications using that protocol.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley MicroLogix PLC system, or other RSLogix-based system, such as ControlLogix or CompactLogix.

NOTE: The module is also compatible with legacy SNAP Ethernet, SNAP Simple, and SNAP Ultimate I/O.

Build your system in the SNAP I/O Configurator.
*** NOTE: This part is OBSOLETE and no longer available when current stock is depleted. ***

Channel-to-channel isolation

250 Vrms

Logic supply voltage

5.0 VDC (± 0.15)

Logic supply current

250 mA

Number of ports per module

2

Maximum number of modules per rack*

8

Maximum cable length

See table below

Processor compatibility

SNAP PAC R-series controllers and SNAP PAC EB brains, both standard wired and Wired+Wireless models.

Also SNAP-B3000-ENET, SNAP-ENET-RTC, SNAP-ENET-S64, SNAP-UP1-ADS, and SNAP-UP1-M64.

Operating Temperature
Storage Temperature

-20 to 70 °C operating
-30 to 85 °C storage

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Agency Approvals

CE, RoHS, DFARS

Warranty

30 months

* With Opto 22 SNAP power supply and SNAP rack

SNAP PAC System Product Guide

This document lists and describes all current Opto 22 SNAP PAC System part numbers, including PAC Project software, SNAP PAC controllers, and SNAP I/O modules of all kinds. SNAP PAC mounting racks and SNAP power supplies are also listed.

SNAP Wiegand Module Data Sheet

Ideal for access control applications, the SNAP-SCM-W2 serial communication module provides two channels of data input from attached devices that comply with the Wiegand interface format. The module works with analog/digital/serial SNAP PAC controllers and brains, SNAP Ultimate and SNAP Ethernet brains, and SNAP-IT units.

SNAP Serial Communication Modules User's Guide

The SNAP-SCM-232, SNAP-SCM-485-422, SNAP-SCM-PROFI, SNAP-SCM-W2, SNAP-SCM-CAN2B, and SNAP-SCM-ST2 serial communication modules are designed for use with the SNAP PAC System and can also be used in standalone SNAP I/O units.

Each of these modules conveniently provides serial data at a remote Ethernet location.

  • The SNAP-SCM-232 and SNAP-SCM-485-422 typically interface with printers, scales, chart recorders, and barcode systems.
  • The SNAP-SCM-PROFI provides a standard electrical interface with PROFIBUS DP® networks.
  • The SNAP-SCM-CAN2B provides an interface to a Controller Area Network (CAN), so your SNAP PAC system can receive data from CANbus devices.
  • The SNAP-SCM-ST2 provides pulse and direction signals for stepper motor drives.
  • The SNAP-SCM-W2 complies with the Wiegand interface format and is used for access control applications.
