GRV-IDCIFQ-12
Hover over image to zoom in

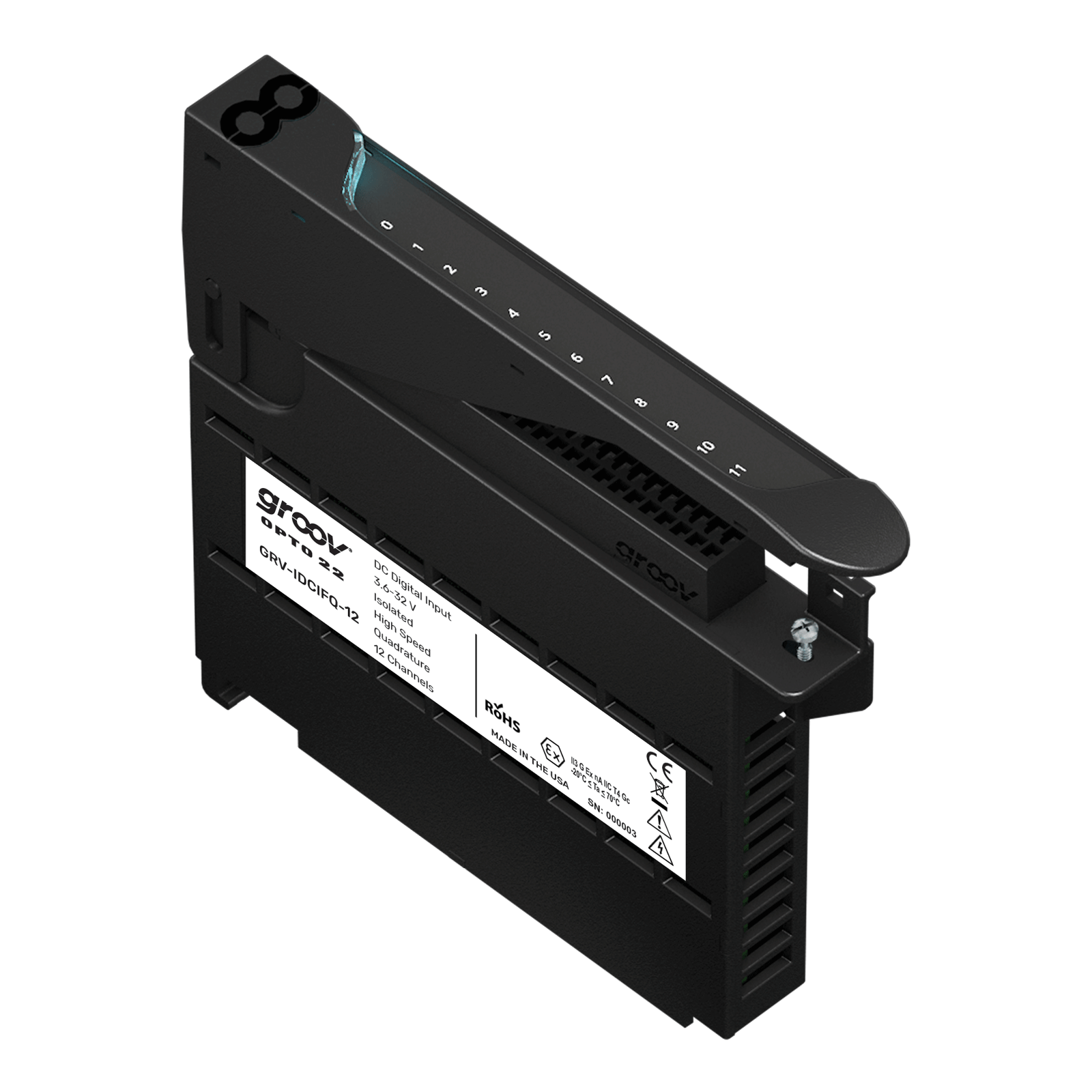

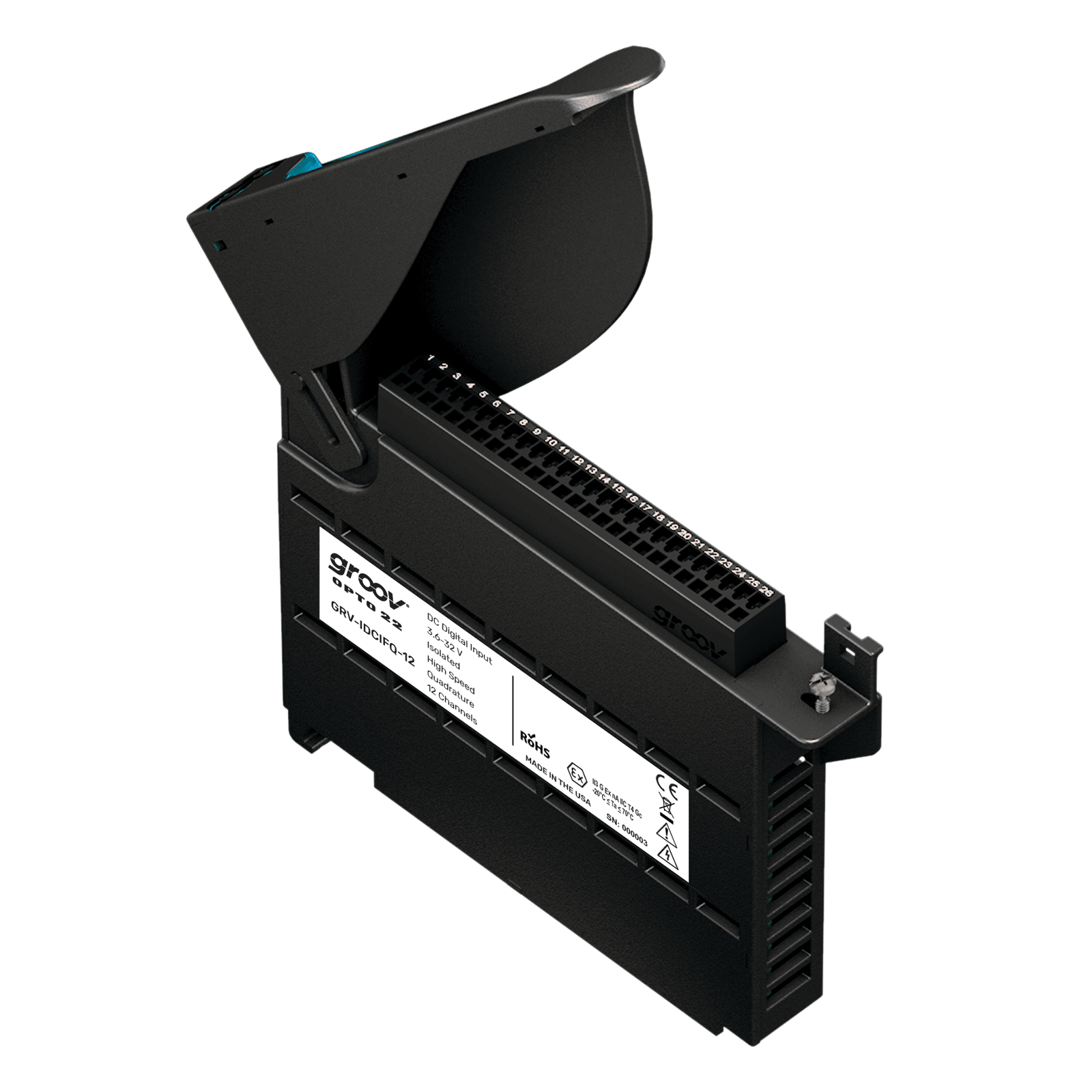

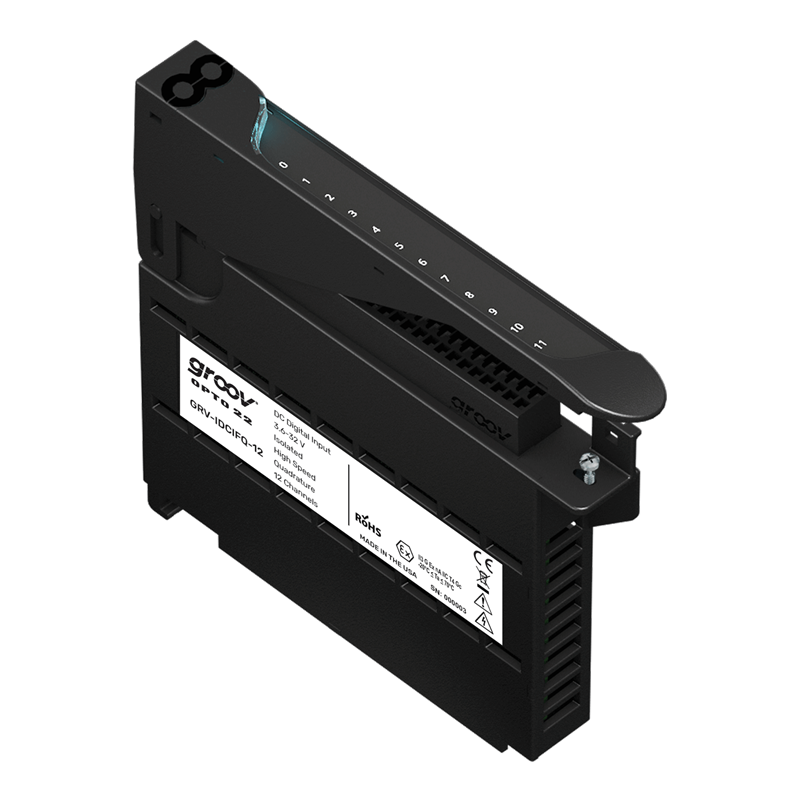

GRV-IDCIFQ-12

$445.00 (USA and Canada only)

Availability: In stock

DC digital input, 12 channels, 2.5-30 V, channel-to-channel isolation, high speed, quadrature

Data Sheet

Production Specification

The GRV-IDCIFQ-12 module is part of the groov EPIC® system. This DC digital input module senses the on or off status for 2.5–30 VDC input devices such as proximity switches, push buttons, and auxiliary contacts. The module's 12 high-speed digital input channels are capable of measuring frequencies up to 200 kHz when wired for basic counting. It provides channel-to-channel isolation. The input channels can be configured to provide up to 4 axes of quadrature input with an index signal for each axis, running at up to 50 kHz.

The GRV-IDCIFQ-12 module offers a full set of features, including:

  • On/off state
  • On/off latching
  • On/off totalization
  • Counting
  • Frequency measurement
  • Period measurement
  • Pulse measurement
  • Quadrature

The GRV-IDCIFQ-12 module mounts on a groov EPIC® chassis with a GRV-EPIC-PR1 processor and assorted discrete, analog, and serial groov I/O modules.

Feature GRV-IDC-24 GRV-IDCS-24 GRV-IDCI-12 GRV-IDCIS-12 GRV-IDCIFQ-12

Number of channels

24

24

12

12

12

Channel-to-channel isolation





x

x

x

On/off state

x

x

x

x

x

On/off latching

x



x



x

Counting

x



x



x

On/off totalization

x



x



x

Frequency measurement

x



x



x

Period measurement

x



x



x

Pulse measurement

x



x



x

Quadrature









x


Specification GRV-IDC-24 GRV-IDCS-24 GRV-IDCI-12 GRV-IDCIS-12 GRV-IDCIFQ-12
Input Voltage 15–30 VDC 15–30 VDC 10–30 VDC
10–25 VAC		 10–30 VDC 2.5–30 VDC
IEC Input Type Type I Type I Type III Type III N/A
Turn ON Characteristic 15 V, > 2 mA 15 V, > 2 mA 10 V, > 2 mA 10 V, > 2 mA 2.5 V
Turn OFF Characteristic 5 V, < 0.5 mA 5 V, < 0.5 mA 5 V, < 1.5 mA 5 V, < 1.5 mA 1.8 V
Input Impedance (± 5%) See Note 1. See Note 1. See Note 1. See Note 1. 1.1 K at 5 V,
2.2 K at 12 V,
3.5 K at 24 V
Max. On/Off Freq. (DC Input, 50% square wave) 1000 Hz (24 Vp-p) 1000 Hz (24 Vp-p) 1000 Hz (24 Vp-p) 1000 Hz (24 Vp-p) Counting: 200 kHz, Quadrature: 50 kHz
Max. On/Off Freq. (AC Input, 24 VAC, 60 Hz) N/A N/A 20 Hz N/A N/A
Operating Frequency for AC Input N/A N/A 45–100 Hz N/A N/A
Isolation (field-to-logic) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute)
Isolation (channel-to-channel) None None 300 V working 300 V working 300 V working
Number of Channels 24 24 12 12 12
Chassis Power Consumption 1.2 W 1.2 W 1.2 W 1.2 W 1.0 W
Minimum groov EPIC Firmware Version 1.0.0 1.0.0 1.0.0 (3.3.0 for VAC input) 1.0.0 1.3.0
Minimum PAC Project Version 10.0000 10.0000 10.0000 (10.4000 for VAC input) 10.0000 10.2000
Minimum Library Package for CODESYS Version 1.0.0.0 1.0.0.0 1.0.0.0 (2.0.3.0 for VAC input) 1.0.0.0 1.0.0.0 (2.0.1.0 for quadrature)
Wire Size 28–14 AWG 28–14 AWG 28–14 AWG 28–14 AWG 28–14 AWG
Torque, connector screw 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m)
Torque, hold-down screw 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m)
Temperature (operating) -20 °C to +70 °C -20 °C to +70 °C -20 °C to +70 °C -20 °C to +70 °C -20 °C to +70 °C
Temperature (storage) -40 °C to +85 °C -40 °C to +85 °C -40 °C to +85 °C -40 °C to +85 °C -40 °C to +85 °C
Relative Humidity (non-condensing) 5–95% 5–95% 5–95% 5–95% 5–95%
Agency Approvals UL/cUL(Class 1 Div. 2) (See Note 2.); CE, ATEX(Category 3, Zone 2), RoHS; DFARS; CB Scheme; UKCA
Warranty Lifetime Lifetime Lifetime Lifetime Lifetime

Note 1: IEC inputs have non-linear impedance. See the tables in the data sheet for typical V-I curves.
Note 2: For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).
