Products > GRV-TERM26-5
GRV-TERM26-5
Hover over image to zoom in

GRV-TERM26-5

$125.00 (USA and Canada only)

Availability: In stock

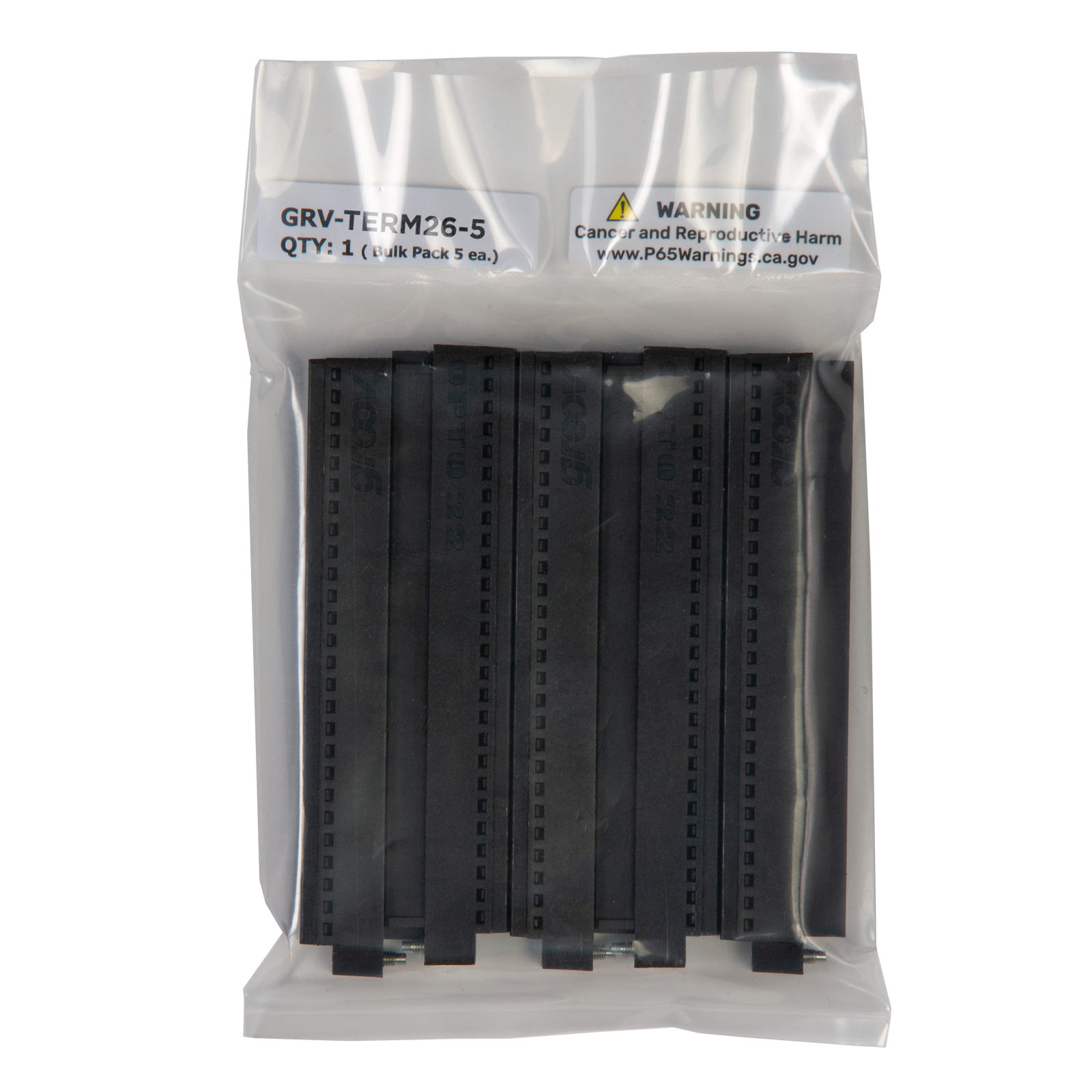

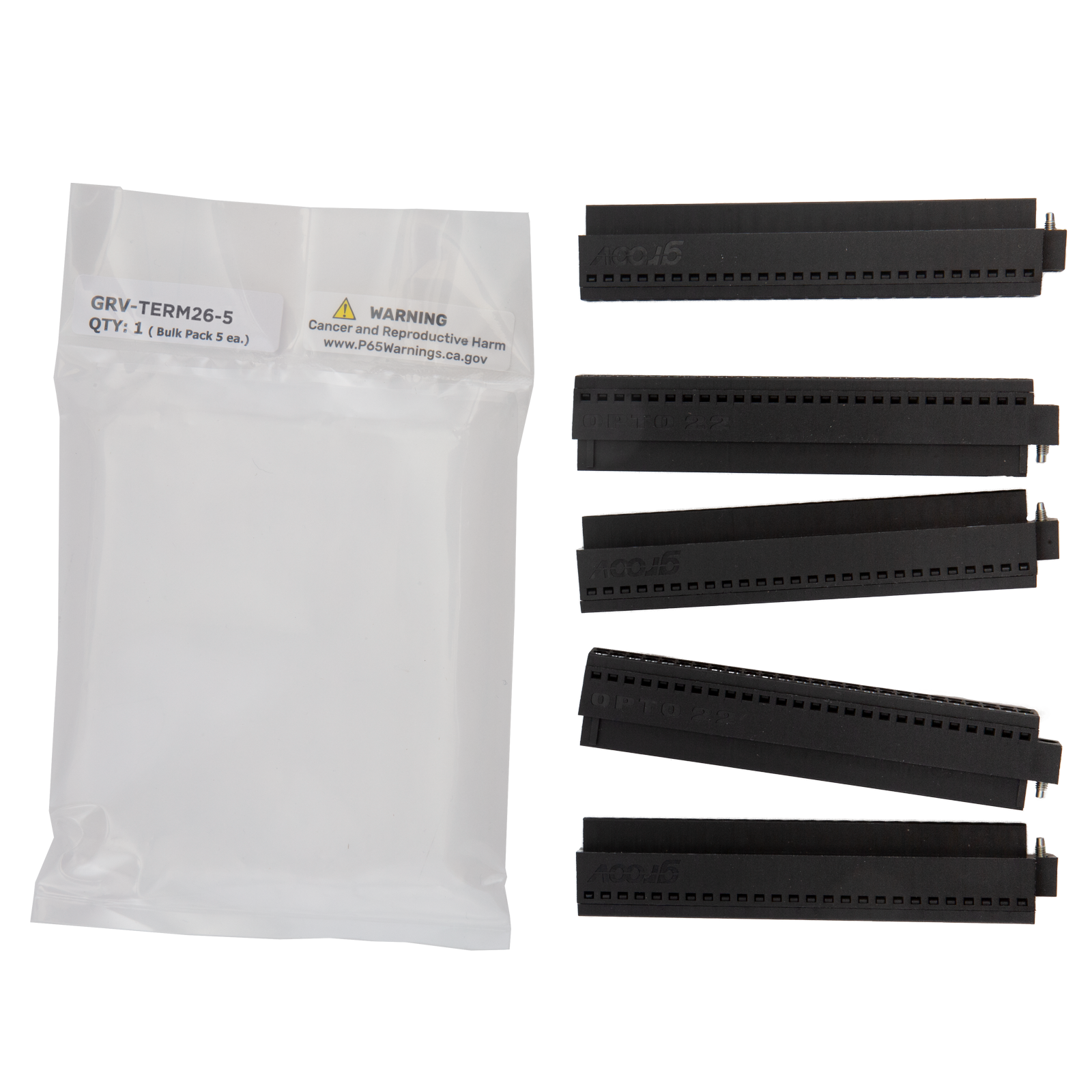

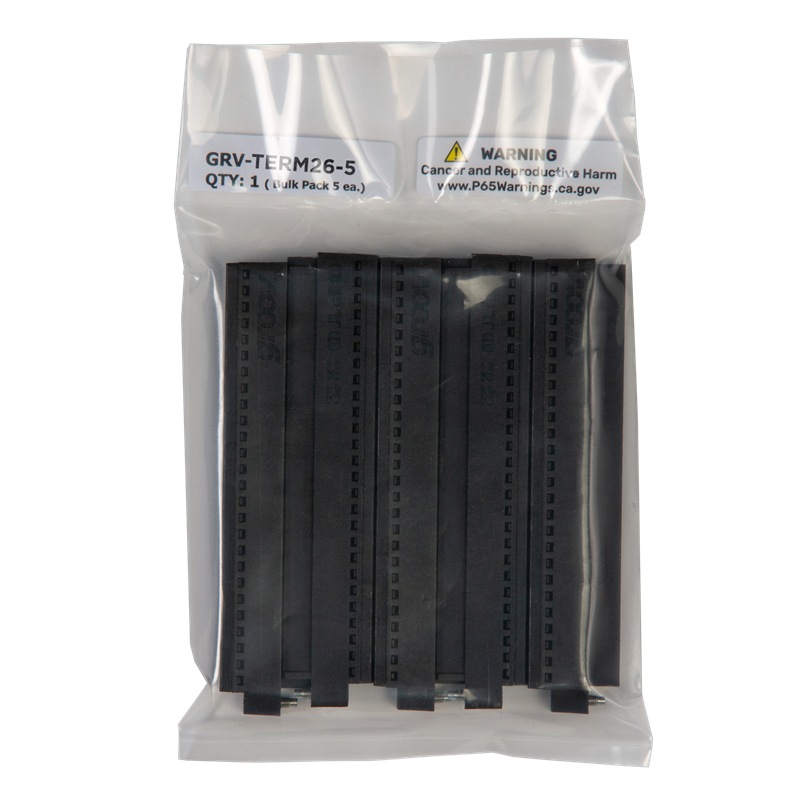

groov I/O Module Terminal, Black, 5-pack
Data Sheet

Production Specification

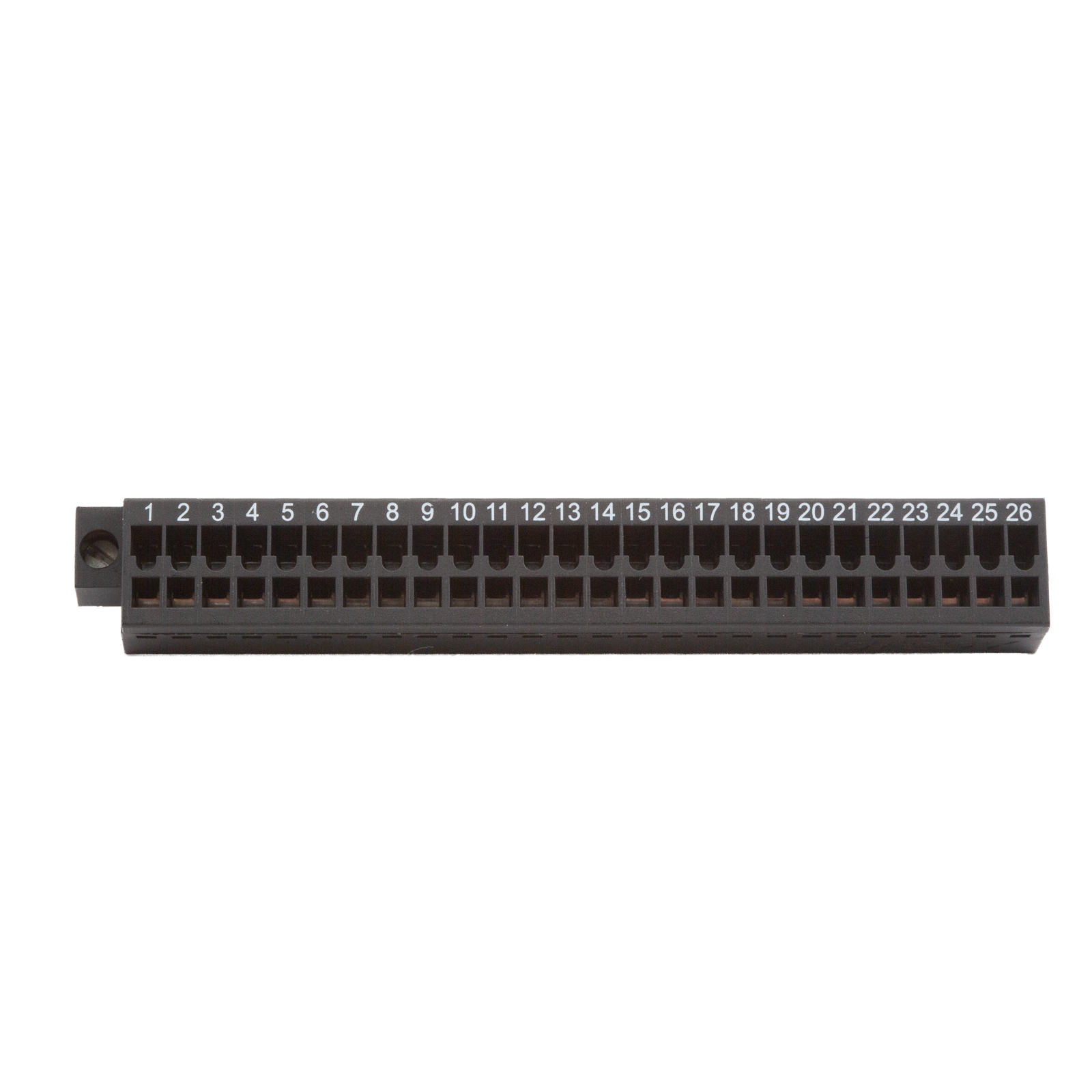

GRV-TERM26-5 is a pack of five pluggable terminal connectors for field wiring, used with most groov I/O modules. These connectors have a spring-clamp wiring system.

Compatible groov I/O modules include:
GRV-CSERI-4
GRV-IAC-24
GRV-IACDCTTL-24
GRV-IACDCTTLS-24
GRV-IACHV-24
GRV-IACHVS-24
GRV-IACI-12
GRV-IACIHV-12
GRV-IACIHVS-12
GRV-IACIS-12
GRV-IACS-24		 GRV-IDC-24
GRV-IDCI-12
GRV-IDCIFQ-12
GRV-IDCIS-12
GRV-IDCS-24
GRV-IDCSW-12
GRV-IICTD-12
GRV-IMA-24
GRV-IMAI-8
GRV-IRTD-8
GRV-ITR-12
GRV-IV-24
GRV-IVIRMS-10		 GRV-OAC-12
GRV-OACI-12
GRV-OACIS-12
GRV-OACS-12
GRV-ODCI-12
GRV-ODCIS-12
GRV-ODCSRC-24
GRV-OMRIS-8
GRV-OVMAILP-8
GRV-OVMALC-8

NOTE: If you have a GRV-IVAPM-3 or GRV-R7-I1VAPM-3, see GRV-TERMPM13-5. If you have a groov RIO or groov I/O module with thermocouple channels (GRV-ITM-12, GRV-ITMI-8, GRV-MM1001-10, GRV-R7-MM1001-10, or GRV-R7-MM2001-10), see GRV-TERMG26-5 instead. If you have any other groov I/O module, see GRV-TERM26-5.
Accepts wire sizes from 28–14 AWG.
Torque specification for connector screw: 2.5 in-lb (0.28 N-m)

2314

groov Accessories Data Sheet

groov accessories are additional or replacement parts designed specifically for the groov EPIC system. This data sheet covers items like groov I/O terminal connectors and cables that save you time and money when wiring field devices to groov RIO and groov I/O modules.

This data sheet covers the following part numbers:

View
No downloads are available for this product.
No videos or demos are available for this product.
