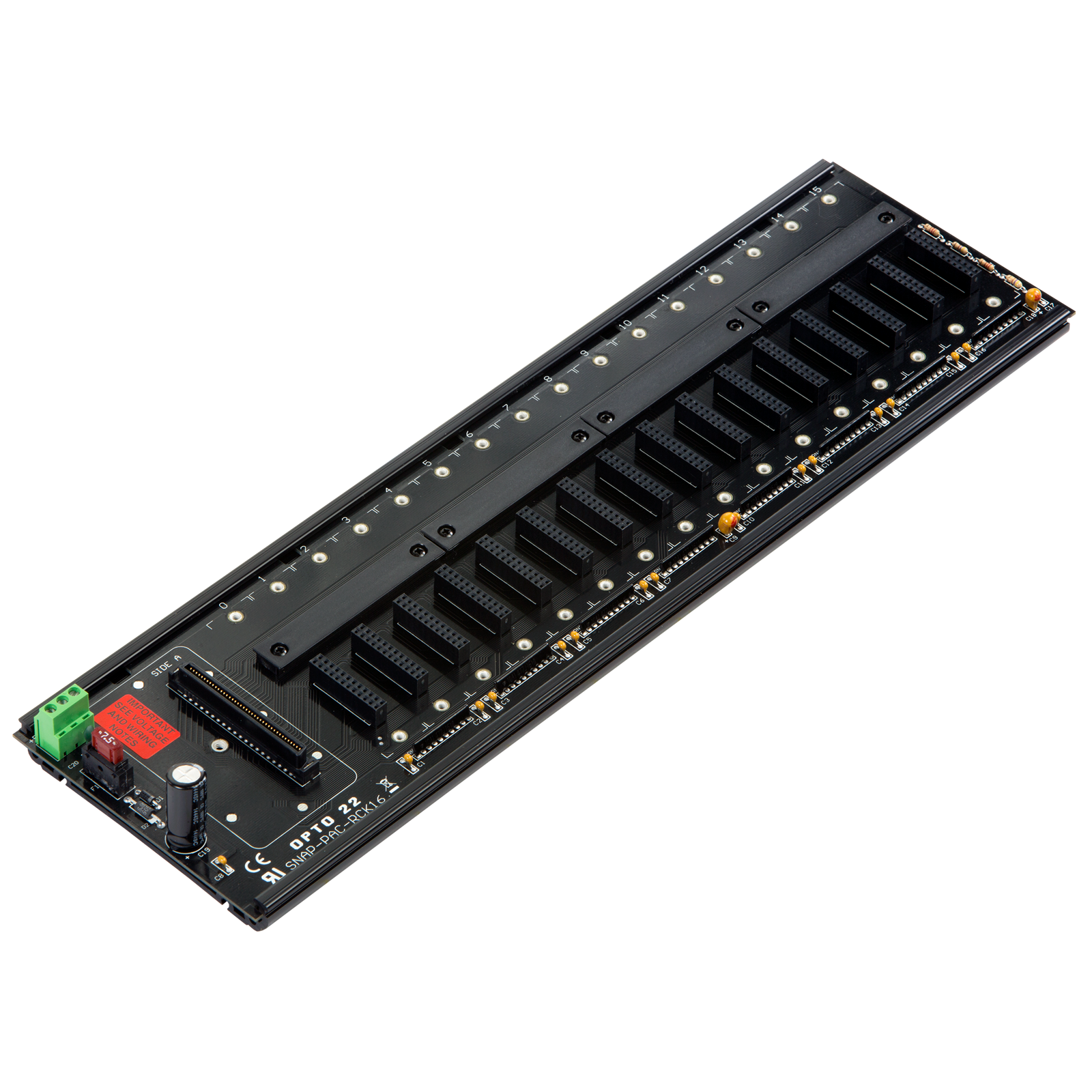

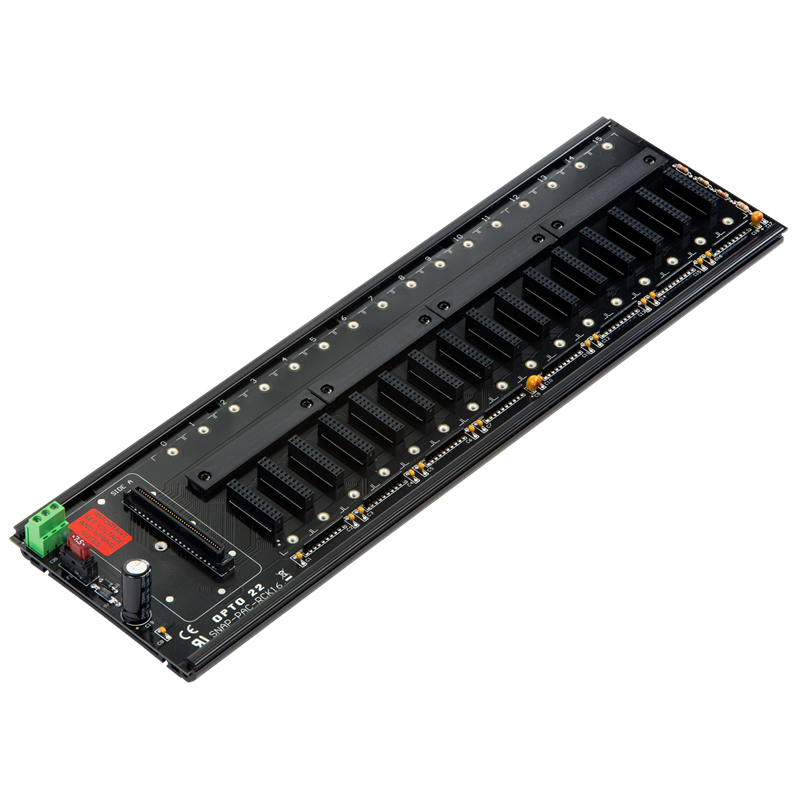

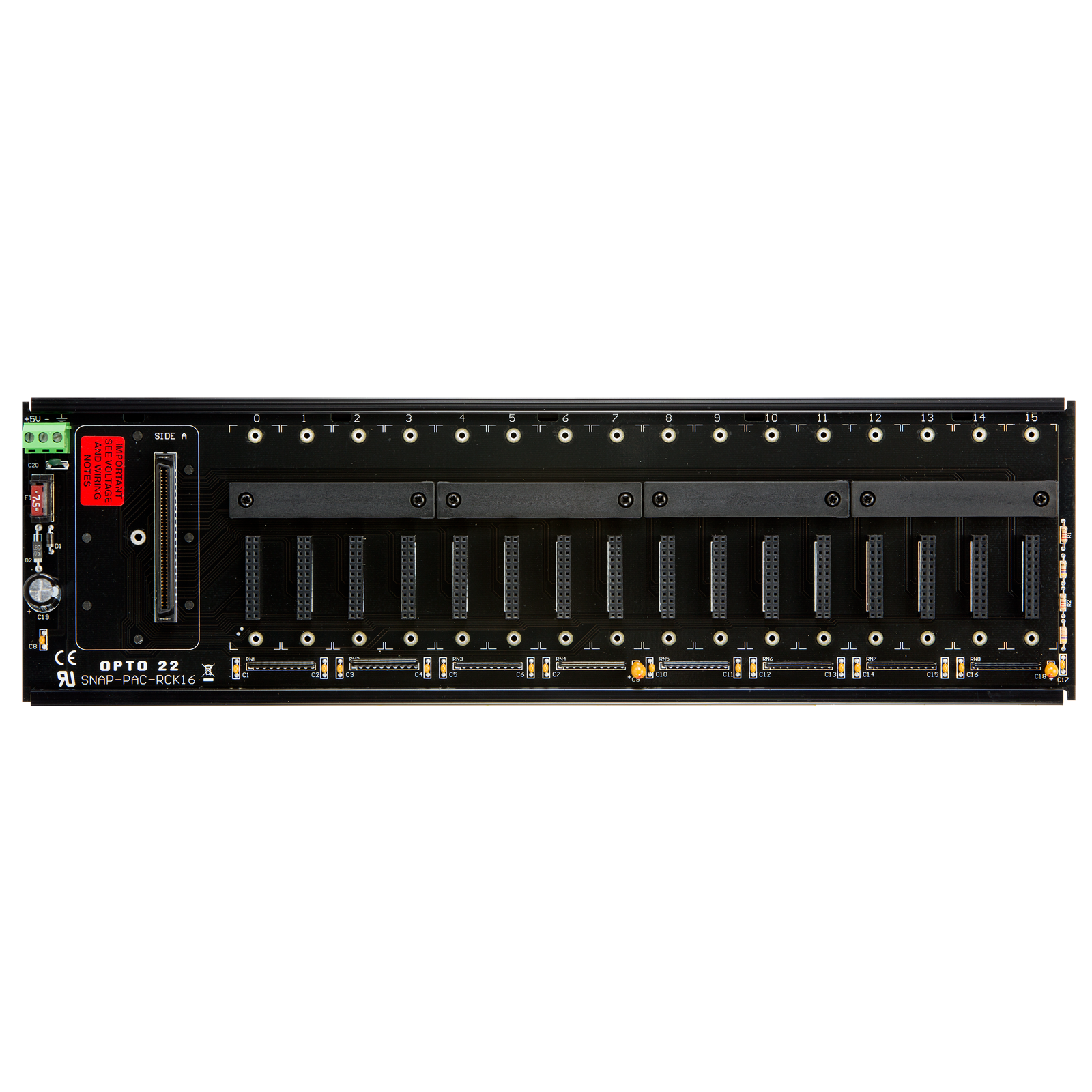

The SNAP-PAC-RCK16 mounts one SNAP PAC brain
or on-the-rack controller
and up to 16 analog, digital, serial, and special-purpose SNAP I/O modules. The SNAP-PAC-RCK16 can be DIN-rail or panel mounted.
This rack works with all SNAP I/O modules on the Opto 22 website. Analog, digital, and serial modules can be mixed on the rack and placed in any position. (Some serial modules are limited to a maximum of eight on one rack. See module data sheets for limitations and power requirements.)
Together with I/O modules and a brain or rack-mounted controller, this rack forms an I/O unit that provides distributed control in a SNAP PAC System. The I/O unit can also be used for PC-based control or as intelligent remote I/O for an Allen-Bradley MicroLogix PLC
or other RSLogix-based system, such as ControlLogix or CompactLogix.
If you need Factory Mutual approval, see the SNAP-PAC-RCK16-FM
Need an enclosure with this rack? See the SNAP-IT-RM16
which includes an I/O mounting rack and a power supply, already wired. You add the I/O processor and the SNAP input and output (I/O) modules needed for your application. This rack-mounted metal enclosure makes it easy to install Opto 22 I/O where you need it, providing convenience and protection for your SNAP PAC System.
Other SNAP PAC racks available:
NOTE: This rack replaces part number SNAP-M64. All brains that mount on a SNAP-M64 can also be mounted on this rack.
Build your system in the SNAP I/O Configurator
