SNAP-TEX-DRC10

$31.00 (USA and Canada only)

Availability: In stock

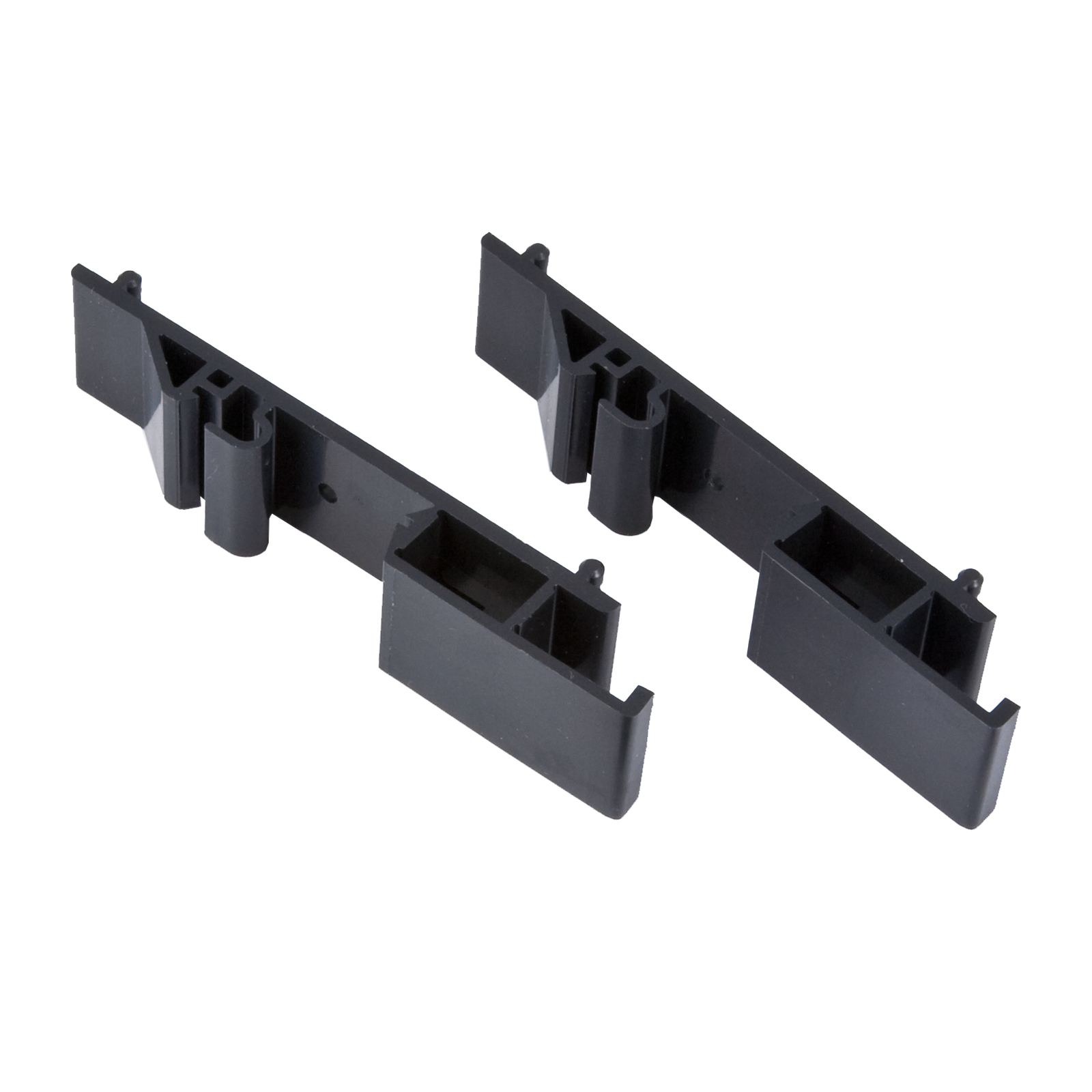

SNAP PAC Rack DIN-rail Adapter Clips-10 Pack

Please call (800) 321-6786 to order.

SNAP-TEX-DRC10

Production Specification

Pack of 10 adapter clips for mounting a SNAP PAC rack or breakout board on a 35mm DIN rail. For use with either narrow or wide end caps. Each SNAP rack requires 2 to 4 clips (depending on rack length) for secure mounting.
Specifications are not currently available for this product.

DIN-Rail Mounting Clip Compatibility Chart

This compatibility chart shows which DIN-rail kit or clip to use with your SNAP power supply, controller, I/O mounting rack, breakout board, or classic brain board.

SNAP TEX Mounting/Wiring Tools and Spare Parts Data Sheet

SNAP TEX wiring and mounting accessories are covered in two data sheets. This document includes DIN-rail mounting kits, rack accessories, spare parts, and tools.

For cables and breakout boards, see Form 1756, SNAP TEX Cables and Breakout Boards Data Sheet
.

SNAP PAC Racks Data Sheet

SNAP PAC racks mount one SNAP PAC brain or on-the-rack controller, plus up to 4, 8, 12, or 16 SNAP input/output (I/O) modules. Both standard wired controllers and brains and Wired+Wireless models are mounted on these racks.

I/O modules may be analog, digital, or serial modules. All module types can be mixed together on the same rack in any position.

Declaration of Conformity (LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

DIN-Rail Clips in-the-box

This short document shows you how to install DIN-rail clips on SNAP racks and how to attach the clips to a 35mm DIN rail.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CAD 3D Drawing: SNAP-TEX-DRC10 DIN-Rail Adapter Clips

This CAD file contains a 3-dimensional drawing of the SNAP-TEX-DRC10 DIN-rail adapter clips for mounting a SNAP PAC rack or breakout board on a DIN rail. For use with either narrow or wide end caps.

No videos or demos are available for this product.
