SNAP-D4MC-P
Hover over image to zoom in

SNAP-D4MC-P

Availability: Obsolete

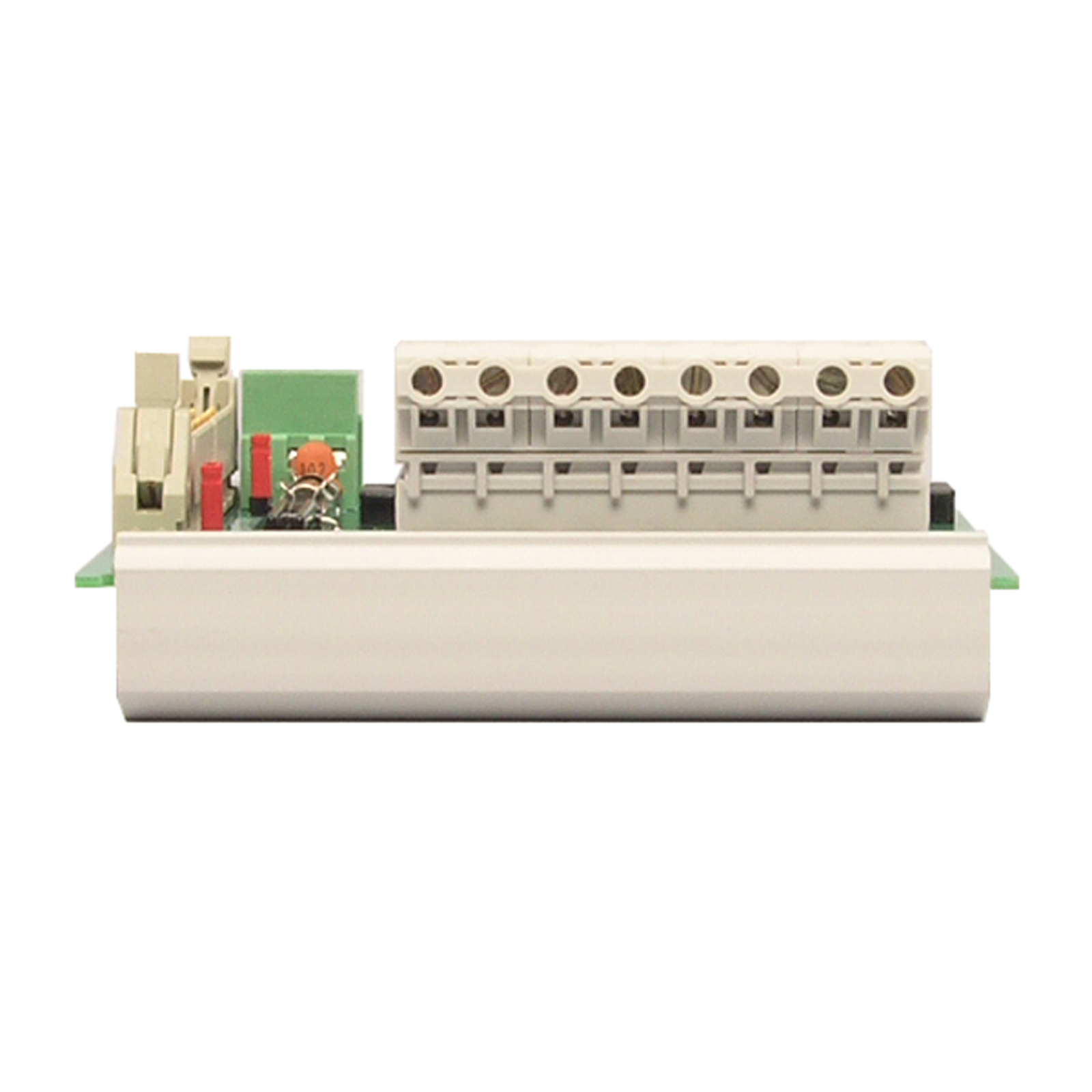

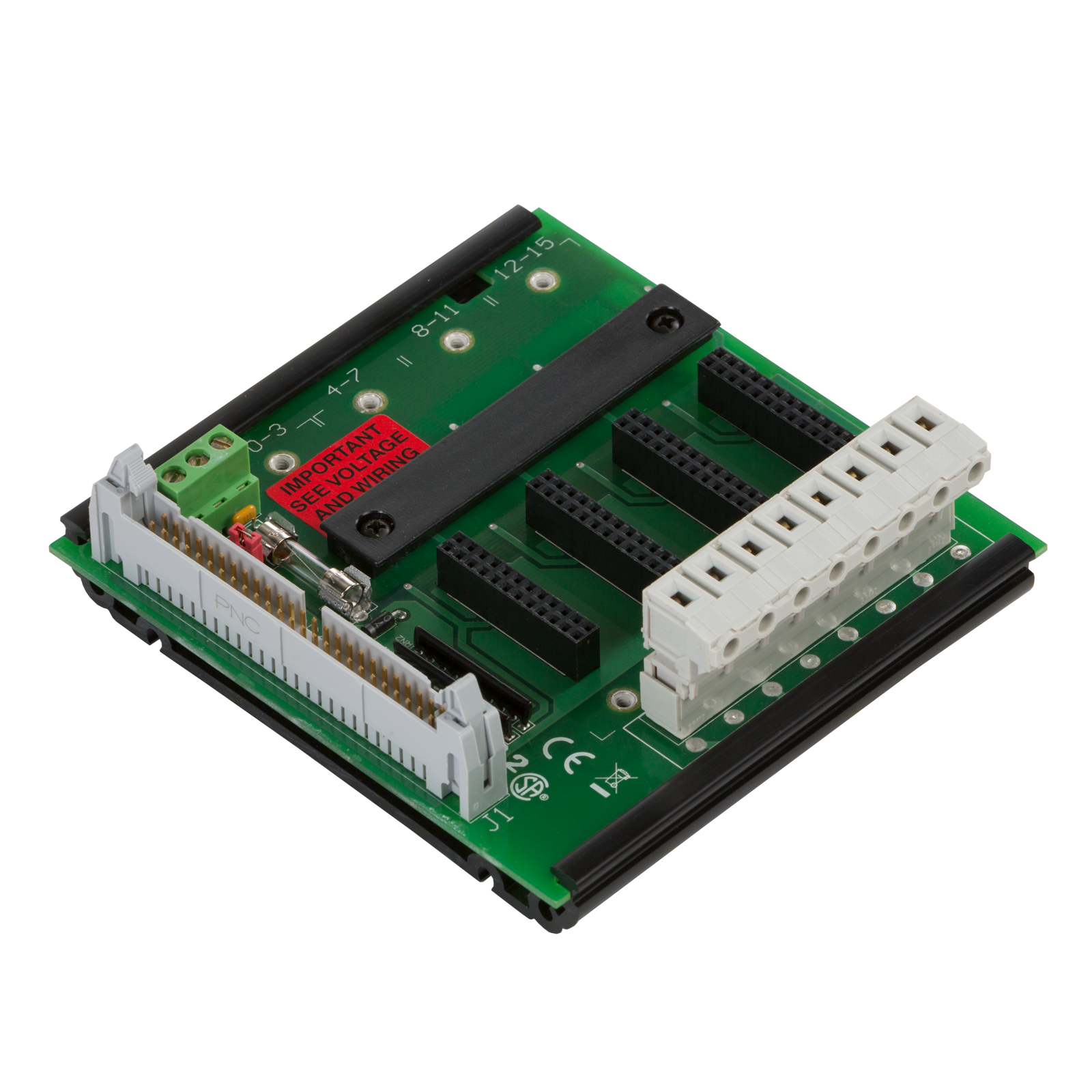

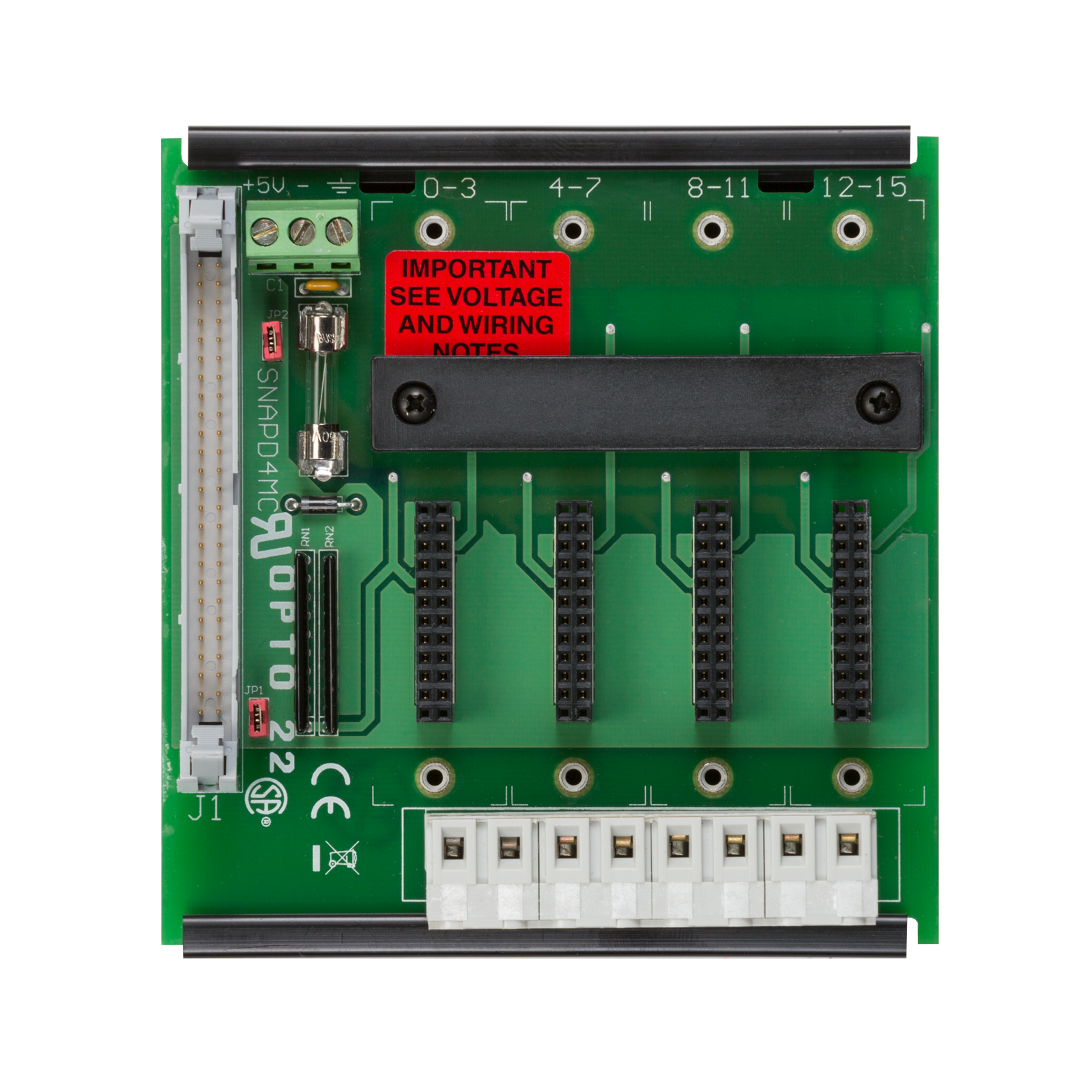

OBSOLETE SNAP D-Series 4-module Rack With Extra Pluggable Terminal Block

Production Specification

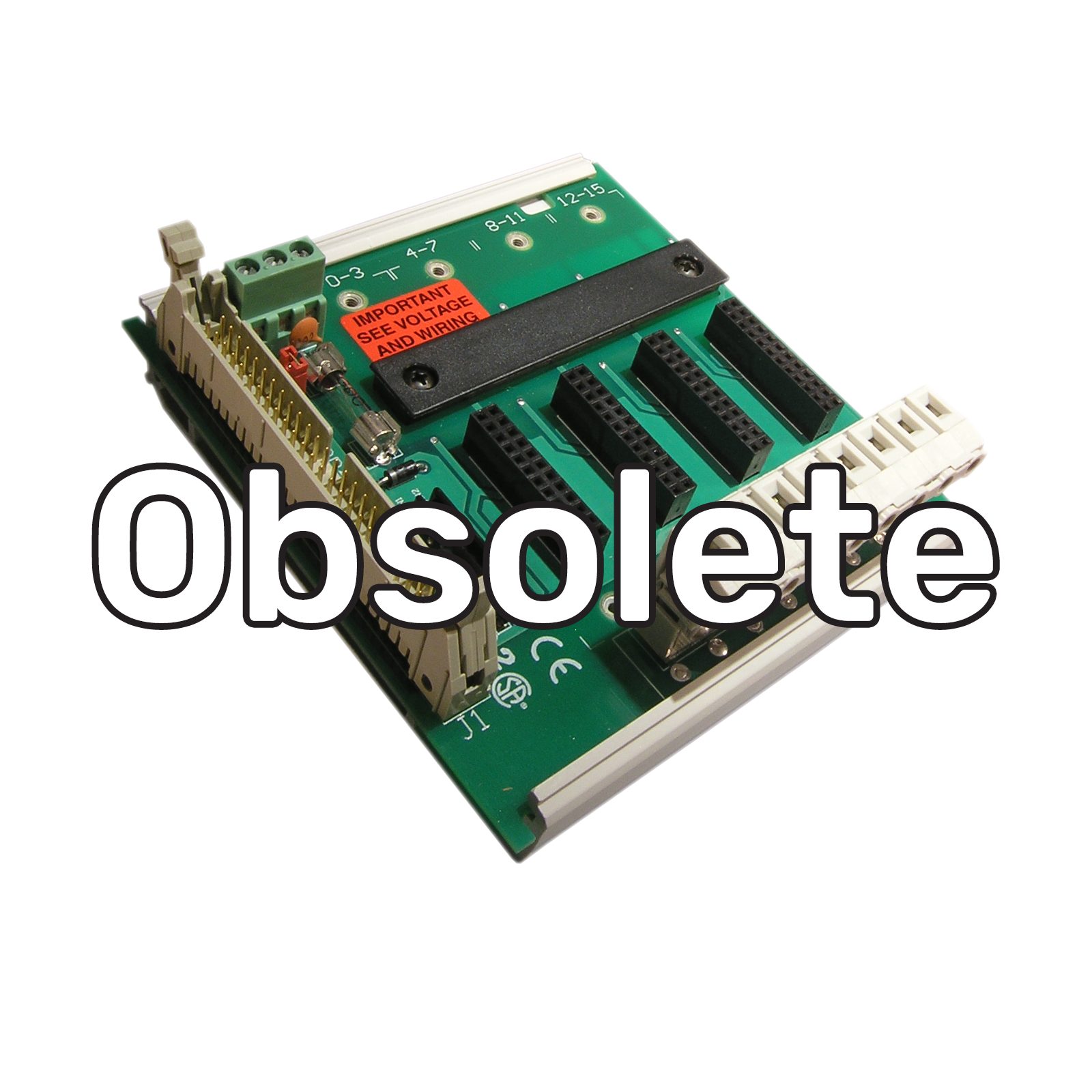

*** NOTE: This part is OBSOLETE and no longer available. ***

SNAP D-Series 4-module Rack With Extra Terminal Block For Field Wiring, Pluggable

SNAP D Series (with Auxiliary Terminal Strip)



SNAP-
D4MC

SNAP-
D4MC-P
[Obsolete]

SNAP-
D6MC

SNAP-
D6MC-P
[Obsolete]

SNAP-
D8MC

SNAP-
D8MC-P
[Obsolete]

SNAP-
D12MC

SNAP-
D12MC-P
[Obsolete]

Description

4-module rack with extra terminal block for field wiring

4-module rack rack with extra terminal block for field wiring, pluggable

6-module rack with extra terminal block for field wiring

6-module rack with extra terminal block for field wiring, pluggable

8-module rack with extra terminal block for field wiring

8-module rack with extra terminal block for field wiring, pluggable

12-module rack with extra terminal block for field wiring

12-module rack with extra terminal block for field wiring, pluggable

Power
Requirements

5 VDC ± 0.1 VDC
@ 200mA max.
(700mA with brain board)

5 VDC ± 0.1 VDC
@ 200mA max.
(700mA with brain board)

5 VDC ± 0.1 VDC
@ 300mA max.

5 VDC ± 0.1 VDC
@ 300mA max.

5 VDC ± 0.1 VDC
@ 400mA max.

5 VDC ± 0.1 VDC
@ 400mA max.

5 VDC ± 0.1 VDC
@ 1200mA max.

5 VDC ± 0.1 VDC
@ 1200mA max.

Operating
Temperature
Range

0 to 70 °C

0 to 70 °C

0 to 70 °C

0 to 70 °C

0 to 70 °C

0 to 70 °C

0 to 70 °C

0 to 70 °C

Relative
Humidity

95%, non-condensing

95%, non-condensing

95%, non-condensing

95%, non-condensing

95%, non-condensing

95%, non-condensing

95%, non-condensing

95%, non-condensing

Lenght (inches)

4.19

4.19

5.74

5.74

7.74

7.74

10.74

10.74

Length (mm)

106.43

106.43

145.8

145.8

196.6

196.6

272.8

272.8

Center to
Center Length

1.98”

1.98”

3.53”

3.53”

5.53”

5.53”

4.26”

4.26”

# of Center
Postions

2

2

2

2

2

2

3

3

Agency Approvals UL, CE, RoHS, DFARS; UKCA UL, CE, RoHS, DFARS; UKCA UL, CE, RoHS, DFARS; UKCA UL, CE, RoHS, DFARS; UKCA UL, DFARS UL, DFARS UL, CE, RoHS, DFARS; UKCA UL, CE, RoHS, DFARS; UKCA



SNAP D Series Racks (with Terminal Strip) Data Sheet

The SNAP I/O D Series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4-channel digital modules. These MC and MC-P model racks provide a screw-type terminal strip for additional wiring requirements. This data sheet applies to these parts:

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

Using Power Supplies with Opto 22 Systems

This technical note gives an overview of power supplies for use with many Opto 22 control systems and recommends types of power supplies for Opto 22 mounting racks.

This note applies to SNAP, mistic, Optomux, Pamux, and direct I/O. It does NOT apply to groov EPIC systems, which have their own integrated power supplies.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

No downloads are available for this product.

Video: Verifying Voltage at the I-O Rack

Verifying the voltage level at the I/O rack is very important for equipment safety and point value accuracy. This is the proper technique for reading the voltage level at the rack.
