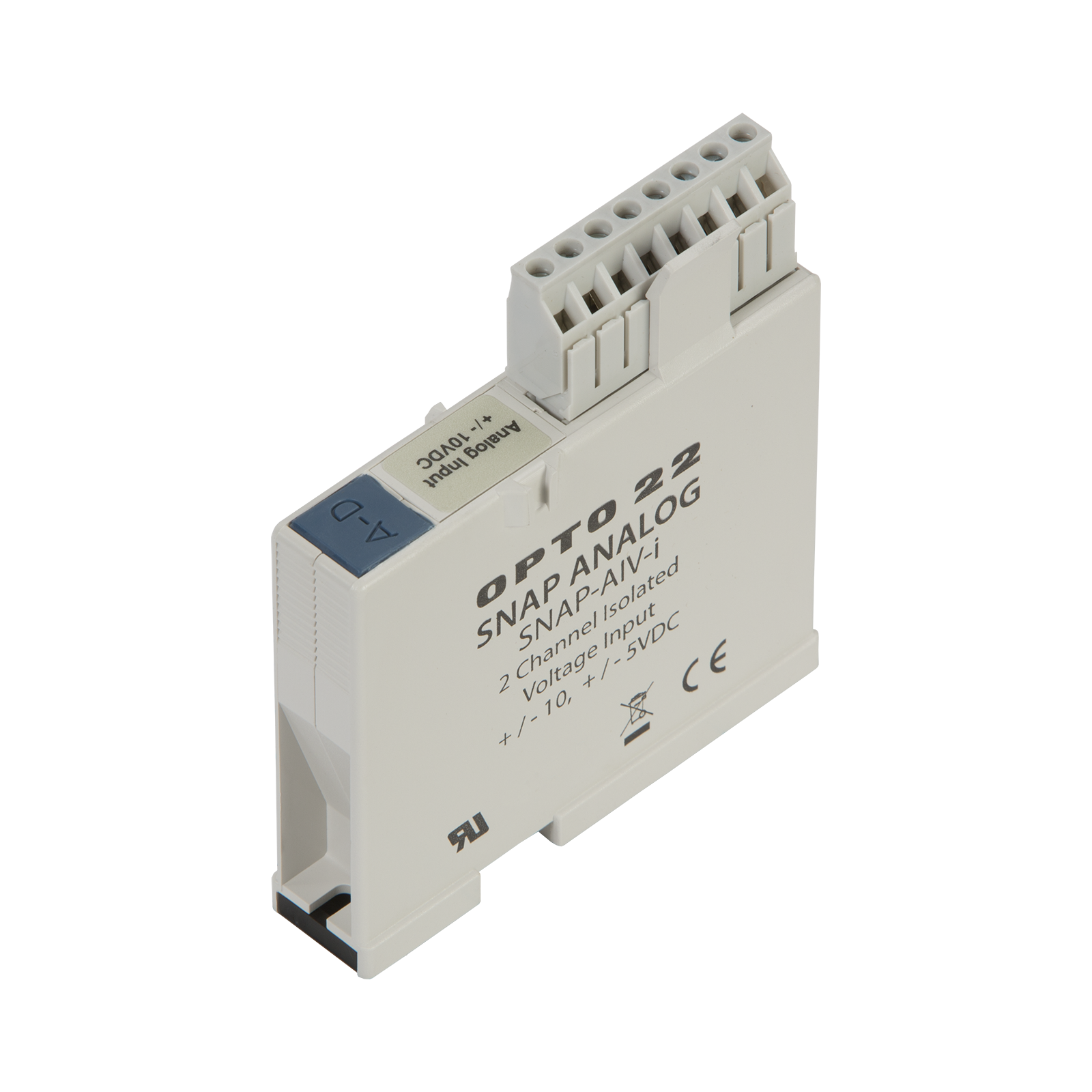

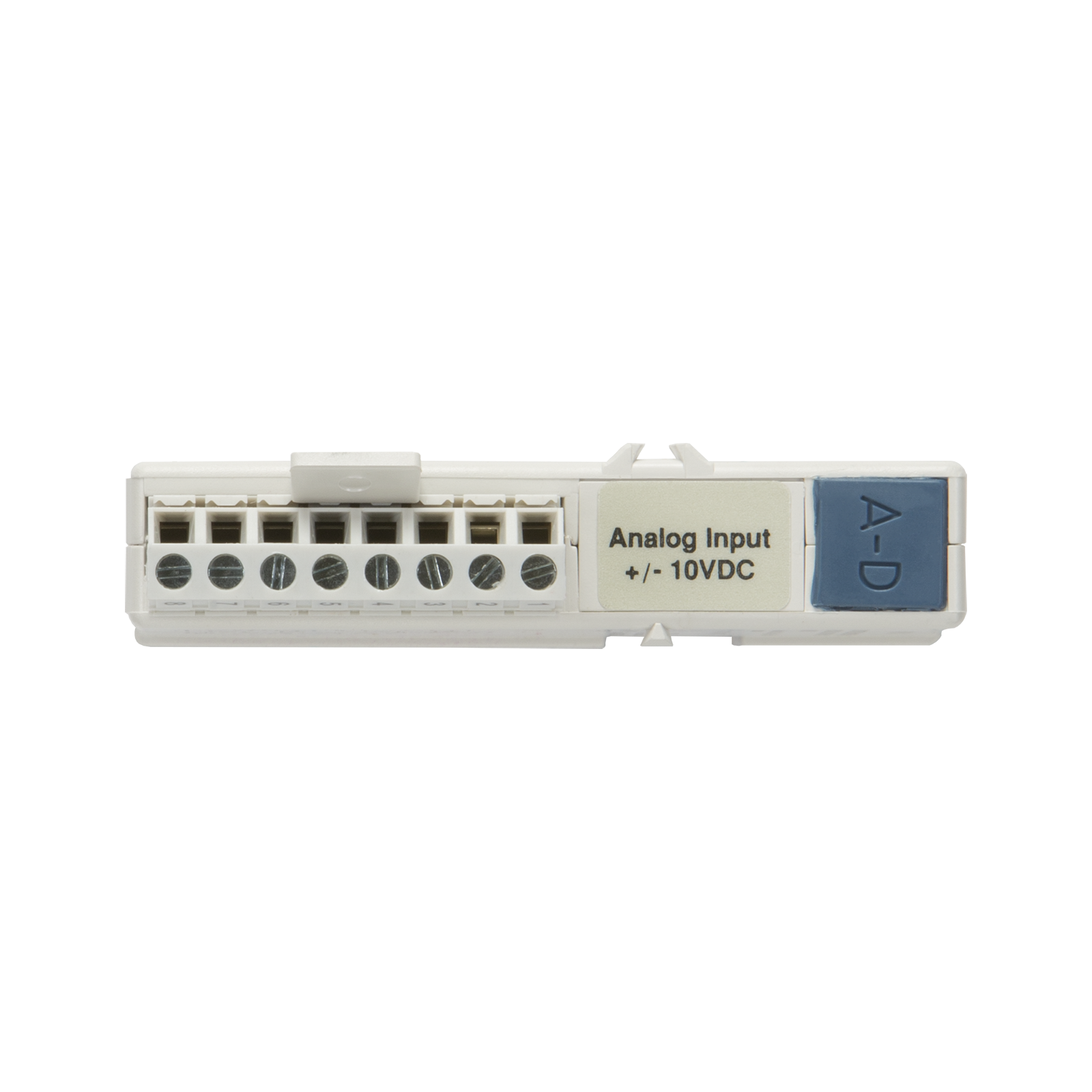

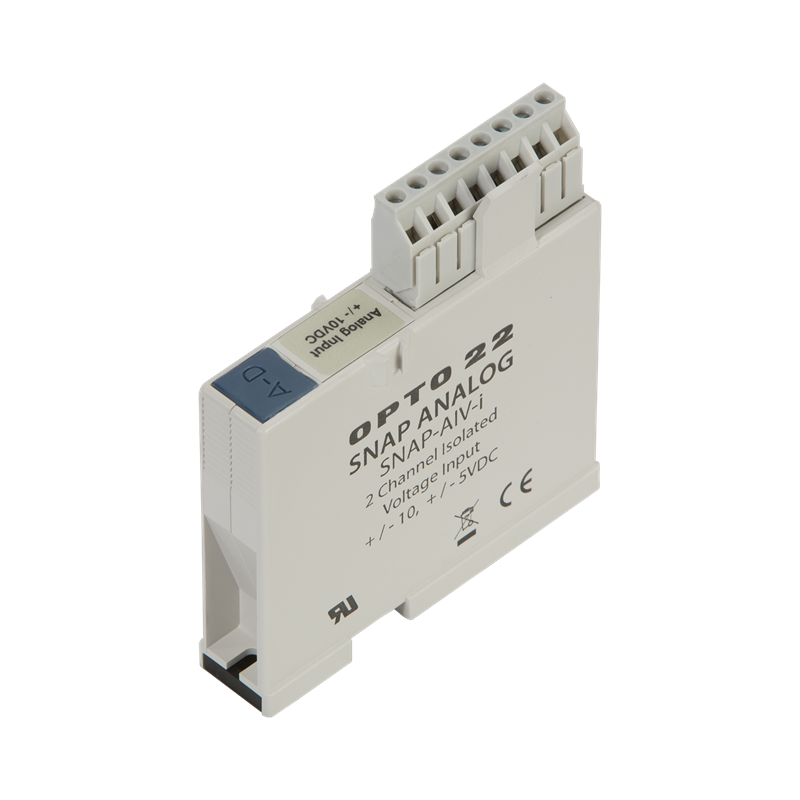

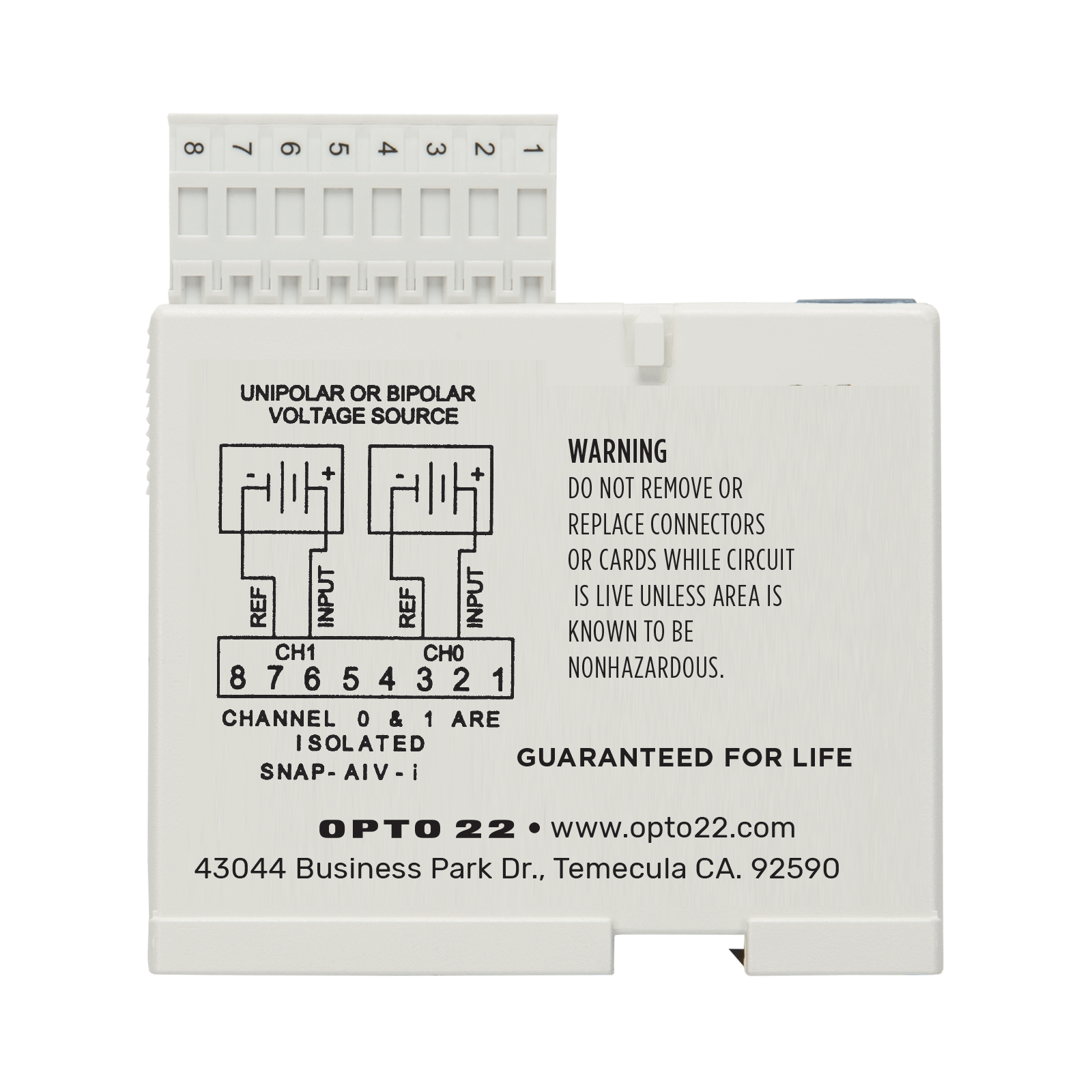

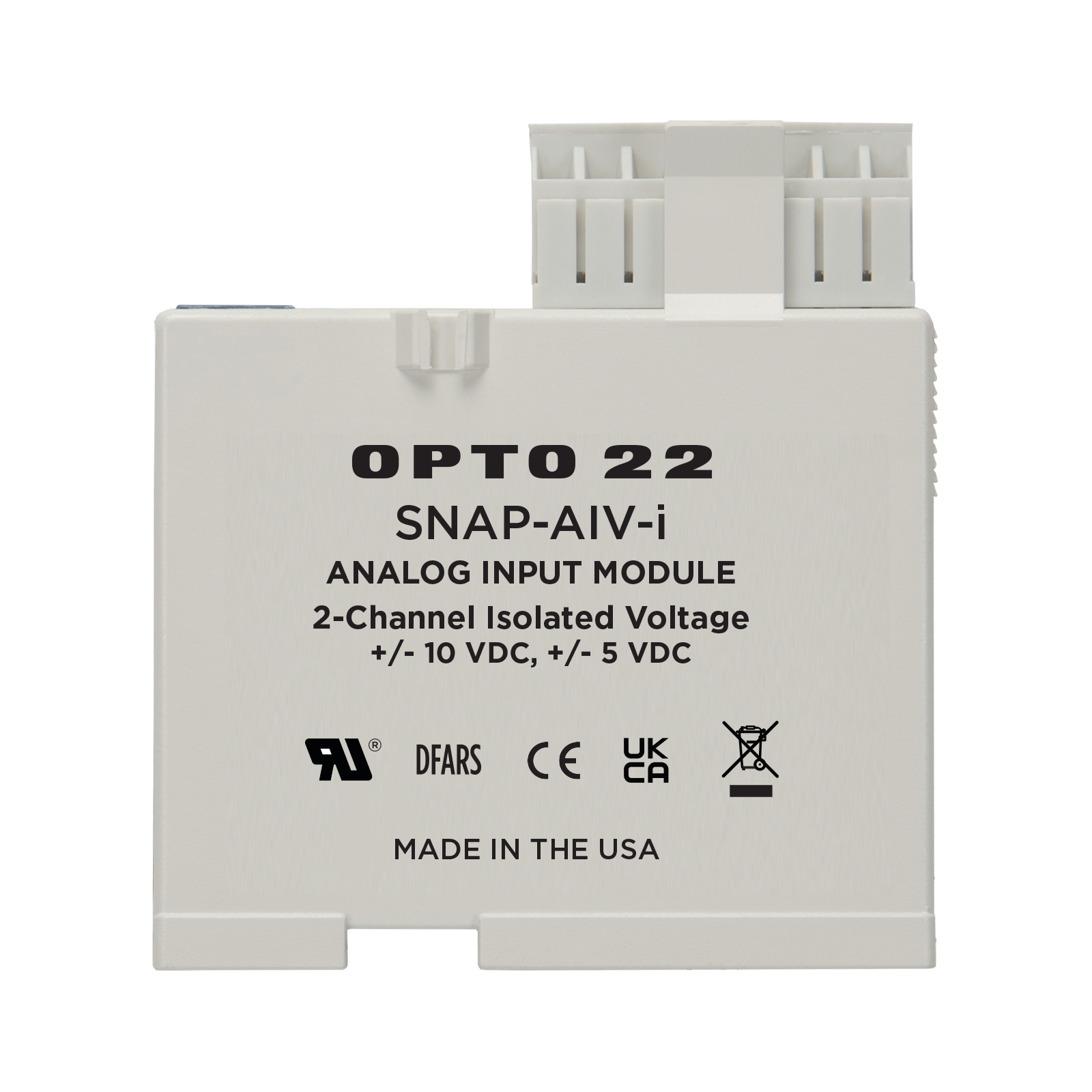

SNAP 2-Ch Isolated -10VDC to +10VDC Analog Voltage Input Module

Production Specification

The SNAP-AIV-i provides two isolated channels of analog voltage input. Each channel can be configured for -10 to +10 VDC or for -5 to +5 VDC operation. In addition to having two channels isolated from each other, the module is also transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

If you do not need channel-to-channel isolation, see SNAP-AIV.

Build your system in the SNAP I/O Configurator.

Input Range

From -10 volts to +10 volts
From -5 volts to +5 volts

Maximum Over Range

± 10%
(= ± 27500 counts)

Resolution

0.4 mV when configured
-10 volts to +10 volts
0.2 mV when configured
-5 volts to +5 volts

Input Filtering

-3 dB @ 64 Hz

Input Response Time
(% of span/ DV / Dt)

63.2% / 6.7 V / 10 mS

Data Freshness

0.011 s for +/- 10 V

0.018 s for +/- 5 V

DC Common Mode Rejection

>-120 dB

AC Common Mode
Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

220 VAC or 300 VDC

Maximum Operating Common Mode Voltage

250 V

Accuracy

0.05%, 5 mV @ 10 VDC
2.5 mV @ 5 VDC

Gain Temperature
Coefficient

30 PPM/ °C

Offset Temperature
Coefficient

15 PPM/ °C

Isolation: Optical

4000 V

Isolation: Transformer

1500 V

Isolation: Channel to Channel

250 V continuous
(1500 V transient)

Power Requirements

5 VDC (±0.15) @ 200 mA

Input Resistance

1 megohms (each channel)

Ambient Temperature:
 Operating
 Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

UL, CE, RoHS, DFARS; UKCA

Warranty

Lifetime
