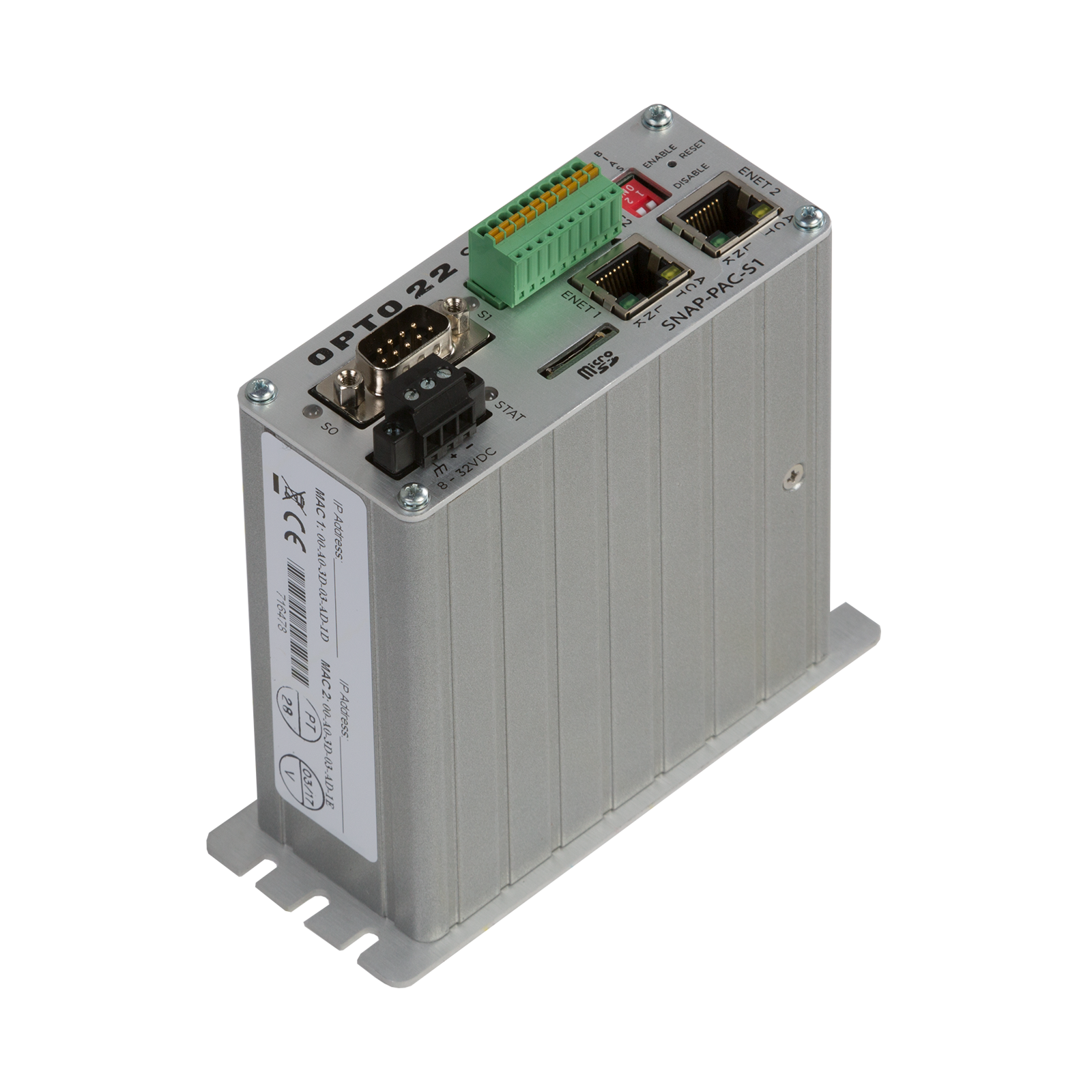

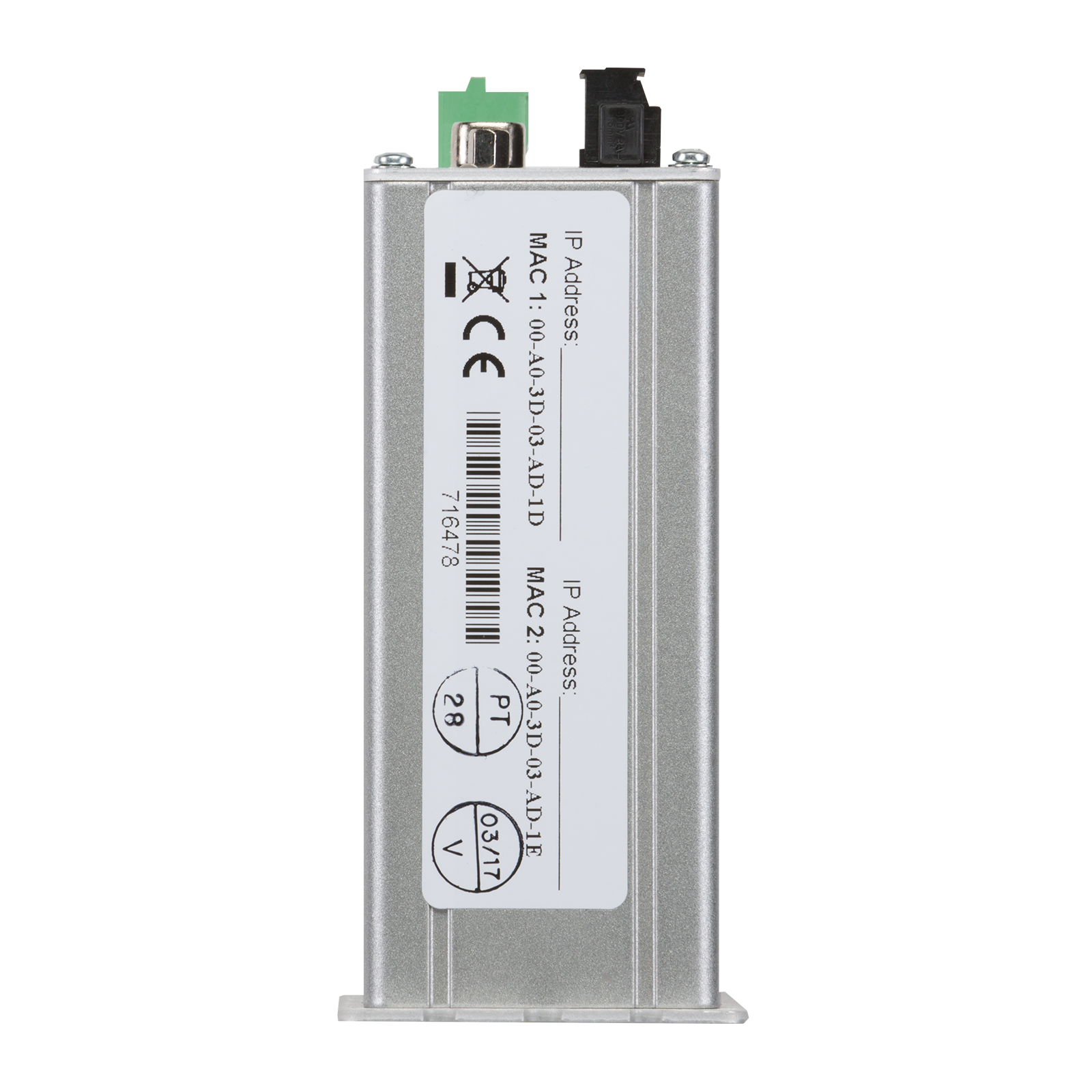

SNAP-PAC-S1
Hover over image to zoom in

SNAP-PAC-S1

$1,535.00 (USA and Canada only)

Availability: In stock
SNAP PAC S-series Programmable Automation Controller for Ethernet Networks - REST API

Production Specification

Now developer and IoT ready with a built-in HTTP/HTTPS server and RESTful API. See Programming, below.

** Compatible with groov EPIC. You can control groov EPIC I/O units with a SNAP PAC S-series controller running PAC Control R10.a or higher. **

The SNAP-PAC-S1 programmable automation controller provides powerful, real-time control and communications to meet your industrial control, monitoring, and data acquisition needs.

One of the four components of the SNAP PAC System, the SNAP-PAC-S1 is fully integrated with PAC Project software, SNAP PAC I/O processors, and SNAP I/O modules to form a complete control system. The SNAP PAC System includes digital and analog control, serial string handling, PID loops, and enterprise connectivity.

Programming
The SNAP-PAC-S1 is programmed using the included PAC Control software. PAC Control is a flowchart-based tool for developing control applications, or strategies. You create and debug the strategy on your computer and then download it to the PAC, where it runs independently.

REST API: All I/O point and strategy variable data is available for secure access using the built-in HTTPS server and RESTful API, with data delivered in JSON format. For complete API documentation and steps for getting started, see developer.opto22.com. In addition, two Node-RED nodes are available. Note that minimum firmware R9.5a and PAC Project R9.5a are required to use the REST API.

You can build full-featured operator interfaces (HMIs) using the included PAC Display software, which taps the same tagname database you've already developed in PAC Control.  SNAP PAC S-series controllers are also compatible with Opto 22's groov products and groov View HMI tool.​

Networking
The controller is compact and industrially hardened. It includes two independent Ethernet network interfaces with separate IP addresses, which can be used to segment the control network from the company network or for redundant Ethernet network links.

The SNAP-PAC-S1 also has three serial ports: an RS-232 port with full hardware handshaking, ideal for PPP communication using a modem; another RS-232 port for connecting directly to serial devices; and an RS-485 port for connecting to SNAP PAC Serial brains or to legacy mistic I/O units. (Note: If you are using the S1 with misticI/O units, use the legacy versions of the PAC Control, PAC Display, and PAC Manager guides.)

If you need additional serial ports, see the SNAP-PAC-S2
To compare controller features, see the SNAP PAC Controller and Brain Comparison Chart.

For more details, see the Specifications tab and the Data Sheet.

Processor

266 MHz 32-bit ColdFire® 5475 with integrated floating-point unit (FPU)

Memory

SNAP-PAC-S1 and SNAP-PAC-S2
  Total RAM: 32 MB
  Total RAM for PAC Control Strategies: 16 MB
  Battery-backed RAM: 8 MB
  RAM File Storage: 2.5 MB
  Flash File Storage: 4 MB

Removable storage

(Models with manufacture dates of June 2014 and newer. Requires firmware R9.4a or higher and loader R6.1a or higher) MicroSD card slot: supports microSD or microSDHC cards to 32 GB.
(Models with manufacture dates of November 2008 through May 2014 with firmware R8.4 or higher) McroSD card slot: supports microSD cards up to 2 GB.

Backup battery

SNAP-PAC-S1s with serial number 625654 or higher and all SNAP-PAC-S2s: Rechargeable (recharges whenever the brain has power), 1-year power-off data retention (replacement part number: SNAP-PAC-BATTERY-ML2430).
SNAP-PAC-S1s with serial number 625653 or lower: User-replaceable 3.6-volt TL 5242 /W lithium, 10-year minimum power-off data retention (replacement part number: G4BATT32)

Ethernet Communication to host and I/O

Two independent 10/100 Mbps Ethernet network interfaces (RJ-45 connec­tors). Each interface has a separate IP address (separate subnet). Supports Auto MDI-X (crossover cable not needed).

Serial Communication

SNAP-PAC-S1
RS-232 serial: Two RS-232 serial ports (one DB-9 and one pluggable connector); one port has full handshaking. PPP is supported only on port 0. Buffer size: 512 bytes each for RX and TX.
RS-485 serial: One RS-485 serial port (pluggable connector); two-wire RS-485; optional mistic signal interrupts. Range (serial multidrop): 32 stations maximum on a segment (including PC, controller, and I/O units); up to 3000 ft (914 m) on a segment. Buffer size: 512 bytes each for RX and TX.

SNAP-PAC-S2
Four serial ports that can be used as general purpose ports or for serial I/O units; each port is software configurable as either RS-232 (Tx, Rx, COM, DTR, DCD, RTS, CTS) or as RS-485 (2-wire, 4-wire, optional termination, optional biasing); optional mistic signal interrupts. Buffer size: 512 bytes each for RX and TX.

Power requirements

8–32 VDC ±0.5, 11.3 VA maximum
(SNAP-PAC-S1 controllers with serial numbers below 500,000 use 8–24 VDC)

Operating temperature
Storage temperature
Humidity

-20 °C to 60 °C
-40 °C to 85 °C
0% to 95% relative humidity, non-condensing

Software
 PAC Project Basic

 PAC Project Professional

 REST API




Includes programming, HMI software, and configuration software; included with purchase of controller.
PAC Project Basic plus OPC 2.0-compliant OPC server, OptoControl strategy and OptoDisplay project importing, support for serial mistic I/O units, and Ethernet link redundancy support.
Use HTTPS to access data (read/write or read-only) from controller tags using your chosen programming language. Data returned in JSON. More information at developer.opto22.com

Number of charts that can run simultaneously

32

Other features

Multiple protocol support including TCP/IP, FTP, SNMP v2.0c (with firmware 8.2a), Modbus/TCP, EtherNet/IP™, and OptoMMP™.
Real-time clock
FTP server/client with file system (in RAM and in removable storage)
Ethernet link redundancy or network segmenting

Agency certifications

All models: CE, RoHS, DFARS; UKCA

Warranty

30 months from date of manufacture
