SNAP-HD-CBF6

$114.00 (USA and Canada only)

Availability: In stock
Wiring harness with flying leads for SNAP 32-channel I/O modules - 6 ft. (1.8 m)

Please call (800) 321-6786 to order.

SNAP-HD-CBF6

Production Specification

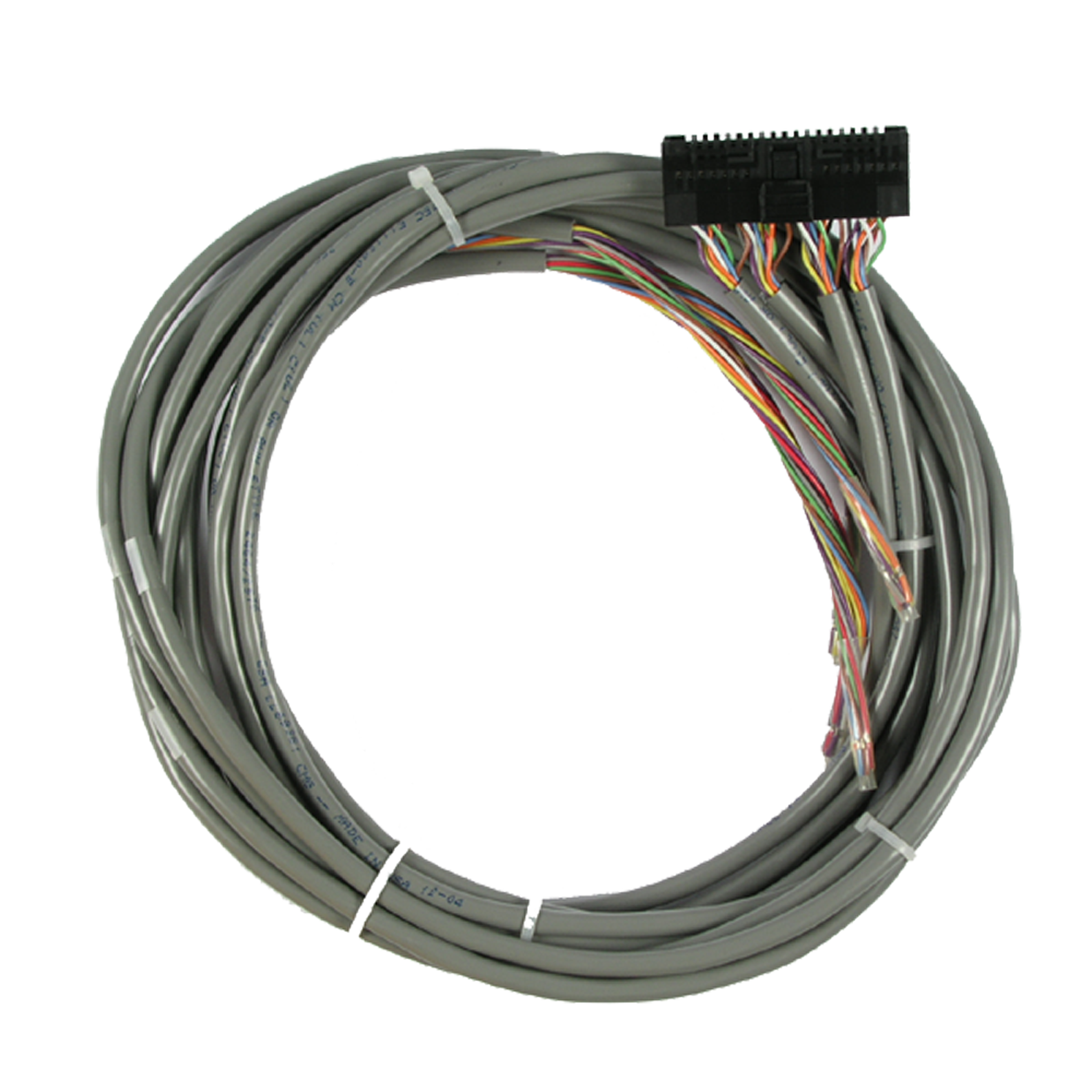

The SNAP-HD-CBF6 is a 6-foot (1.8 m) wiring harness for SNAP 32-channel digital and analog modules. The wiring harness attaches to the top of the 32-channel module and provides flying leads for wiring to field devices.

The SNAP-HD-CBF6 is suitable for use with the following modules:

  • SNAP-IDC-32 digital input module
  • SNAP-ODC-32-SNK digital output module
  • SNAP-ODC-32-SRC digital output module
  • SNAP-AIV-32 analog input module

For reference: Modules, Cables, and Breakout Boards Compatibility Charts

Build your system in the SNAP I/O Configurator.



Feature

SNAP-HD-ACF6

SNAP-HD-CBF6

SNAP-HD-BF6

Cable length

6 feet (1.8 meters)

6 feet (1.8 meters)

6 feet (1.8 meters)

Connectors

Two-cable assembly; 16-pin connector at module end; flying leads at other end

One 40-pin connector at module end; flying leads at other end

One connector at module end; one connector at breakout board end

Wires

Pre-stripped, color-coded,
22-gauge wires

Pre-stripped, color-coded,
24-gauge wires

24 gauge wires

Use with

Modules:
SNAP-IAC-16
SNAP-IAC-A-16
SNAP-IDC-16

Modules:
SNAP-IDC-32
SNAP-ODC-32-SNK
SNAP-ODC-32-SRC
SNAP-AIV-32

Modules to breakout boards:
SNAP-IDC-32 to SNAP-IDC-HDB
SNAP-ODC-32-SNK to SNAP-ODC-HDB
SNAP-ODC-32-SRC to SNAP-ODC-HDB
SNAP-AIV-32 to SNAP-AIV-HDB
SNAP-AIMA-32 to SNAP-AIMA-HDB

SNAP TEX Cables and Breakout Boards Data Sheet

SNAP TEX cables and breakout boards are part of the SNAP TEX family of wiring and mounting accessories. These parts save time and expense during installation, maintenance, and debugging by reducing the time and effort required to wire field devices to SNAP I/O modules.

SNAP High-Density Digital Modules Data Sheet

SNAP I/O high-density digital modules from Opto 22 provide 16 or 32 digital input or output points in one compact SNAP module. These modules are ideal for OEMs and others who have high point-count applications, or for anyone requiring more than 64 digital points on a single SNAP PAC rack. The high-density configuration reduces per-point costs of digital I/O systems by providing up to eight times as many I/O points in the same space.

SNAP high-density digital modules are part of the SNAP PAC System. They can also be used as part of intelligent remote I/O with an Allen-Bradley Logix PLC system.

HDD modules require a SNAP PAC R-series controller or a SNAP PAC brain for I/O processing. These modules work with standard wired controllers and brains and with Wired+Wireless models.

SNAP High-Density Digital Module User's Guide

This guide covers how to install and test SNAP 16-channel and 32-channel digital modules. These modules provide 16 or 32 points of digital input or digital output in the same space as a 4-channel digital module. They are ideal for OEMs and for anyone who needs up to 512 digital points on a single mounting rack.

Declaration of Conformity (RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

No downloads are available for this product.

Video: SNAP TEX Wiring and Mounting Accessories

A quick overview of SNAP TEX wiring and mounting accessories.
