SNAP-UDC-HDB-G4

$202.00 (USA and Canada only)

Availability: In stock
G4 I/O breakout board for one SNAP 32-point digital module

Production Specification

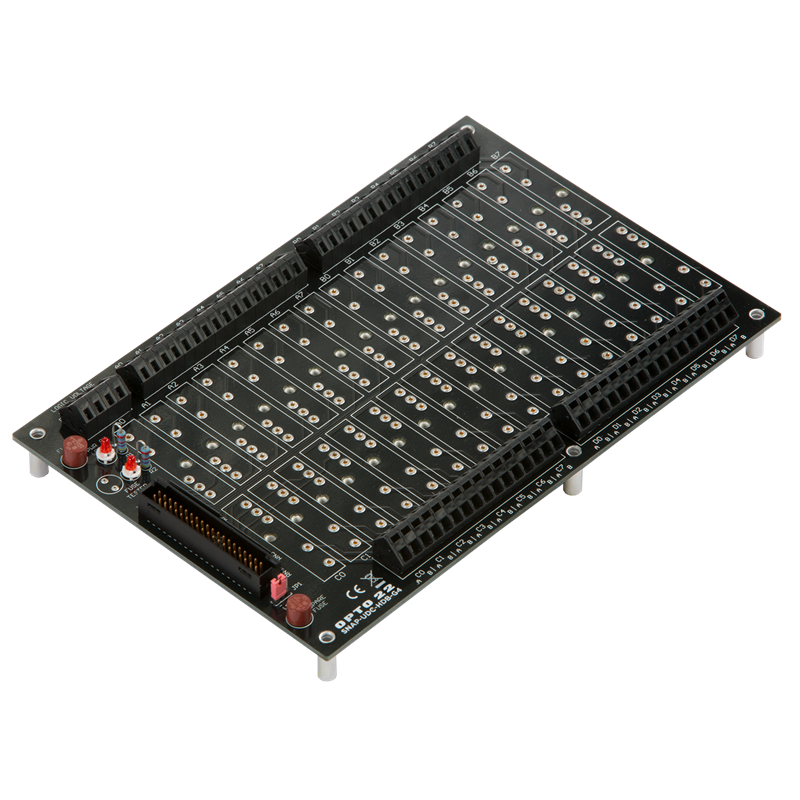

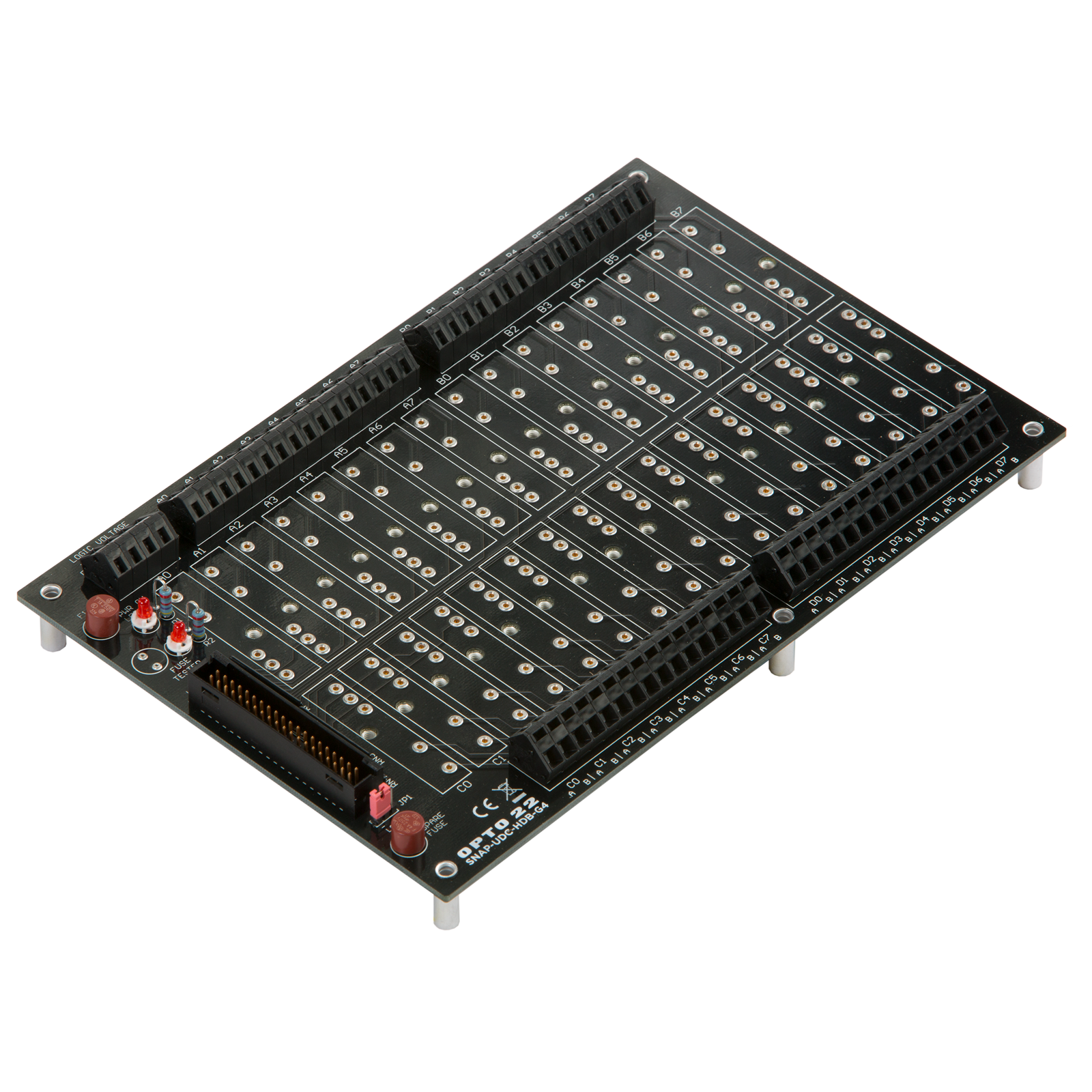

The SNAP-UDC-HDB-G4 breakout board connects a SNAP 32-point digital module to Opto 22 G4 modules on the board, so you can switch or monitor much larger loads than the SNAP module can handle by itself.

For example, a SNAP 32-point digital output module like the SNAP-ODC-32-SNK can switch loads of 0.25 amps per point, but by going through G4 output modules on the board, it can switch loads of up to 3 amps per point.

The SNAP-UDC-HDB-G4 holds 32 G4 modules (sold separately), one for each point on the SNAP module. G4 modules on the board can be a mix of AC and DC, but they must all be the same voltage (5 V, 15 V, or 24 V), and they must be all inputs or all outputs, depending on the SNAP module they are connected to.
Use the following SNAP high-density digital modules with this rack: The module connects to the board using a SNAP-HD-BF6 cable. The board provides spring-clamp terminals for easier field wiring.
SNAP-UDC-HDB-G4 Breakout Rack for High-Density Digital Input or Output Module
Used with Outputs: SNAP-ODC-32-SNK or SNAP-ODC-32-SNK-FM (all G4 modules must be the same voltage) Inputs: SNAP-IDC-32DN for 5 V G4 modules; SNAP-IDC-32N for 15 V or 24 V G4 modules
Connectors 40-pin header connects to 32-point module using SNAP-HD-BF6 cable.
64 spring-clamp terminals provide 2 connections for each of 32 channels.
Additional 4 spring-clamp terminals are for logic power + and – (2 each).
Wire size Field connectors: 12-28 AWG
Indicators 1 LED for logic power; 1 LED for G4 fuse test
Jumpers When using a SNAP-ODC-32-SNK output module, install JP1 in the negative (–) position. When using a SNAP-IDC-32 input module, install JP1 in the positive (+) position.
Voltage 32 VDC maximum, 12–24 VDC nominal
Agency Approvals UL, CE, RoHS, DFARS
Warranty 30 months from date of manufacture
