SNAP-HD-G4F6N

$158.00 (USA and Canada only)

Availability: In stock

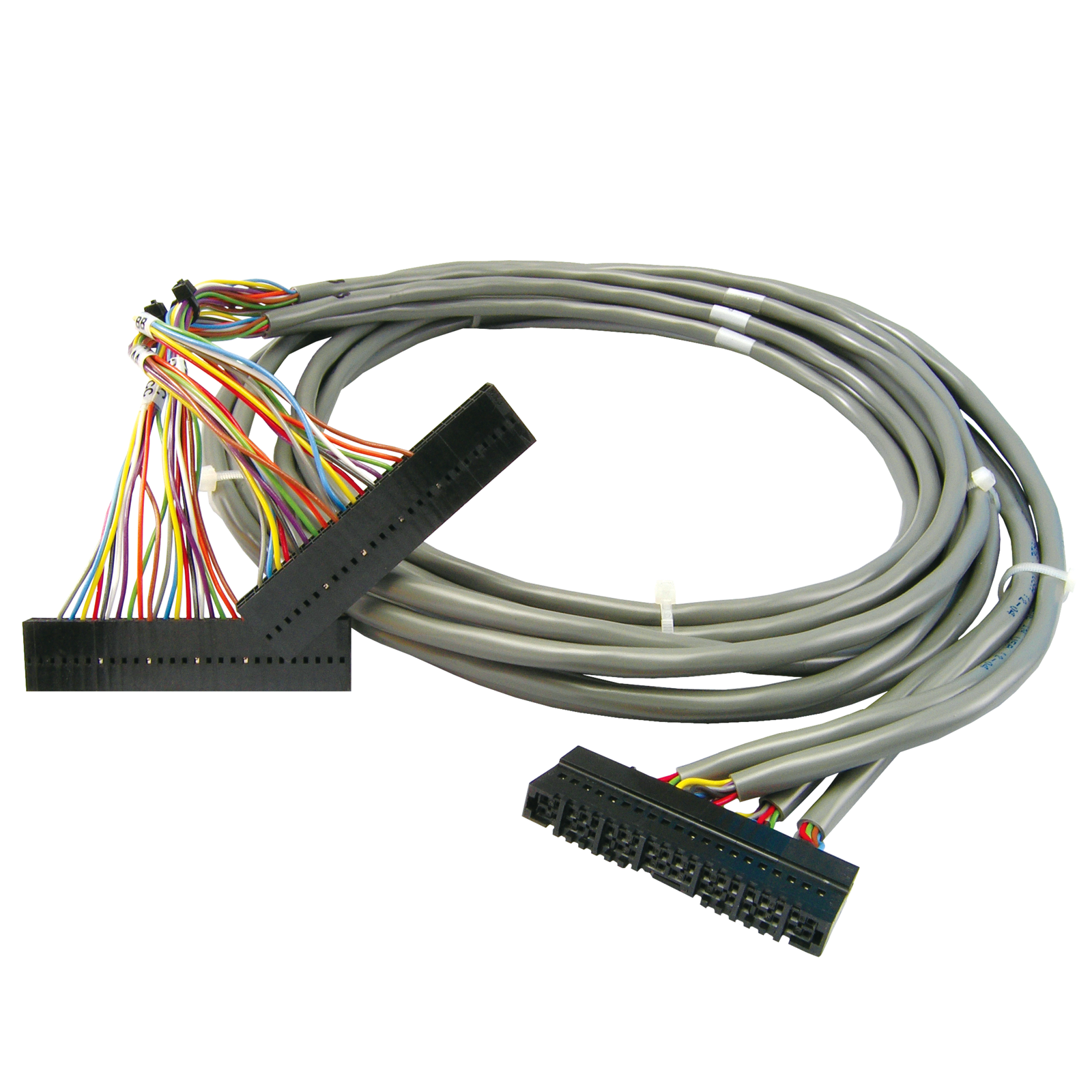

Header cable for SNAP-IDC-32N modules and G4 digital racks, 6 ft. (1.8 m)

Please call (800) 321-6786 to order.

SNAP-HD-G4F6N

Production Specification

The SNAP-HD-G4F6N header cable connects a SNAP-IDC-32N high-density digital input module to two G4 digital I/O racks. This allows older G4 (or even G1) digital output systems to be integrated with modern Opto 22 products like SNAP PAC controllers, SNAP Ethernet-based brains, and PAC Project software.

The SNAP-HD-G4F6N connects one SNAP-IDC-32N with two G4PB16H, G4PB16HC, PB16H, or PB16HC racks. All G4 or G1 modules on the rack must be of the same type (input) and of the same logic voltage (15 or 24 VDC). Five-volt G4 modules cannot be used.

The SNAP-IDC-32N module returns typical negative-true logic.

See the SNAP TEX Cables and Breakout Boards Data Sheet for more information.

To connect other HDD modules to G4 or G1 racks, see the SNAP-HD-G4F6 cable.
Specifications are not currently available for this product.

SNAP TEX Cables and Breakout Boards Data Sheet

SNAP TEX cables and breakout boards are part of the SNAP TEX family of wiring and mounting accessories. These parts save time and expense during installation, maintenance, and debugging by reducing the time and effort required to wire field devices to SNAP I/O modules.

SNAP High-Density Digital Modules Data Sheet

SNAP I/O high-density digital modules from Opto 22 provide 16 or 32 digital input or output points in one compact SNAP module. These modules are ideal for OEMs and others who have high point-count applications, or for anyone requiring more than 64 digital points on a single SNAP PAC rack. The high-density configuration reduces per-point costs of digital I/O systems by providing up to eight times as many I/O points in the same space.

SNAP high-density digital modules are part of the SNAP PAC System. They can also be used as part of intelligent remote I/O with an Allen-Bradley Logix PLC system.

HDD modules require a SNAP PAC R-series controller or a SNAP PAC brain for I/O processing. These modules work with standard wired controllers and brains and with Wired+Wireless models.

Declaration of Conformity (RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

No downloads are available for this product.

Video: SNAP TEX Wiring and Mounting Accessories

A quick overview of SNAP TEX wiring and mounting accessories.
