SNAP-AIV-32
Hover over image to zoom in

SNAP-AIV-32

$1,381.00 (USA and Canada only)

Availability: In stock

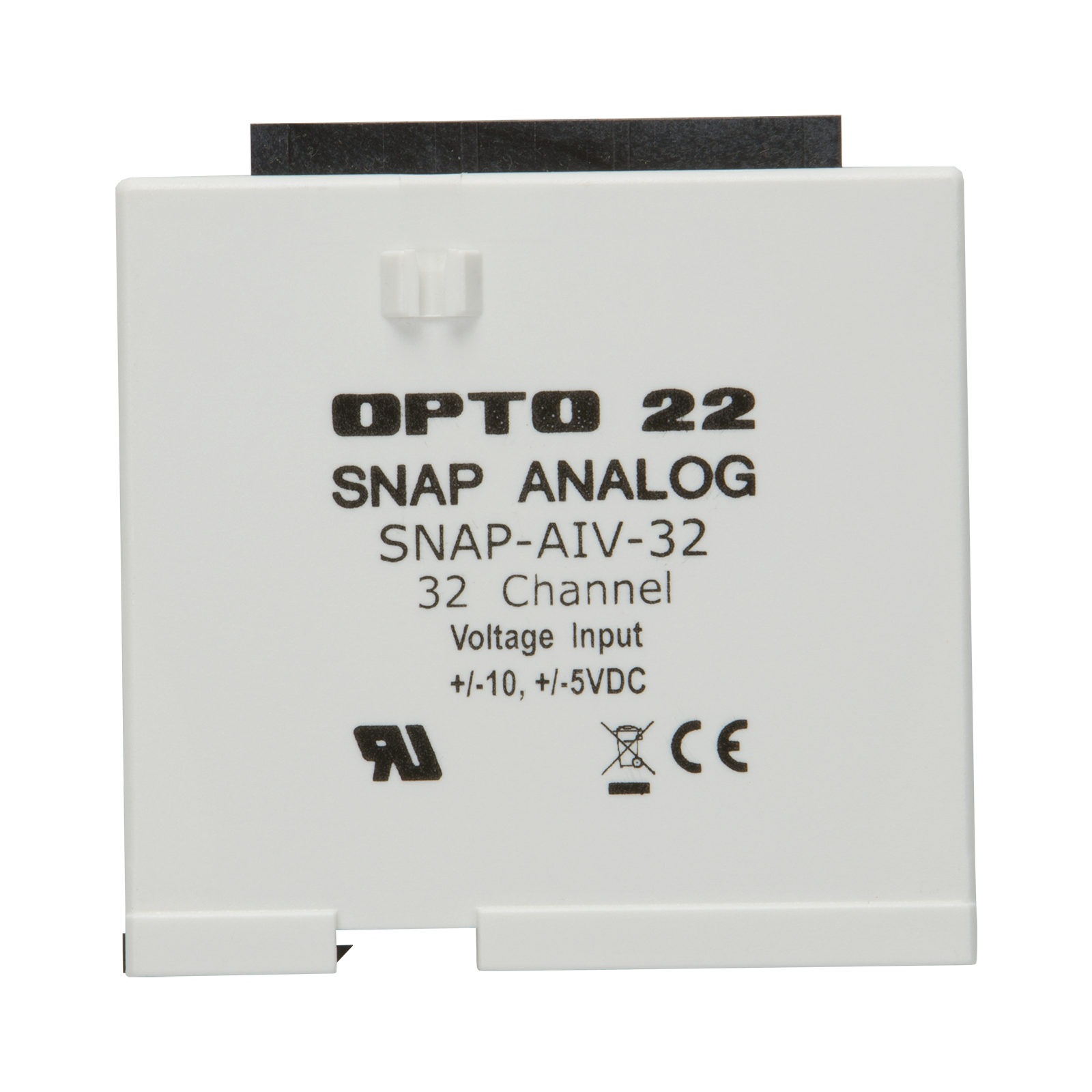

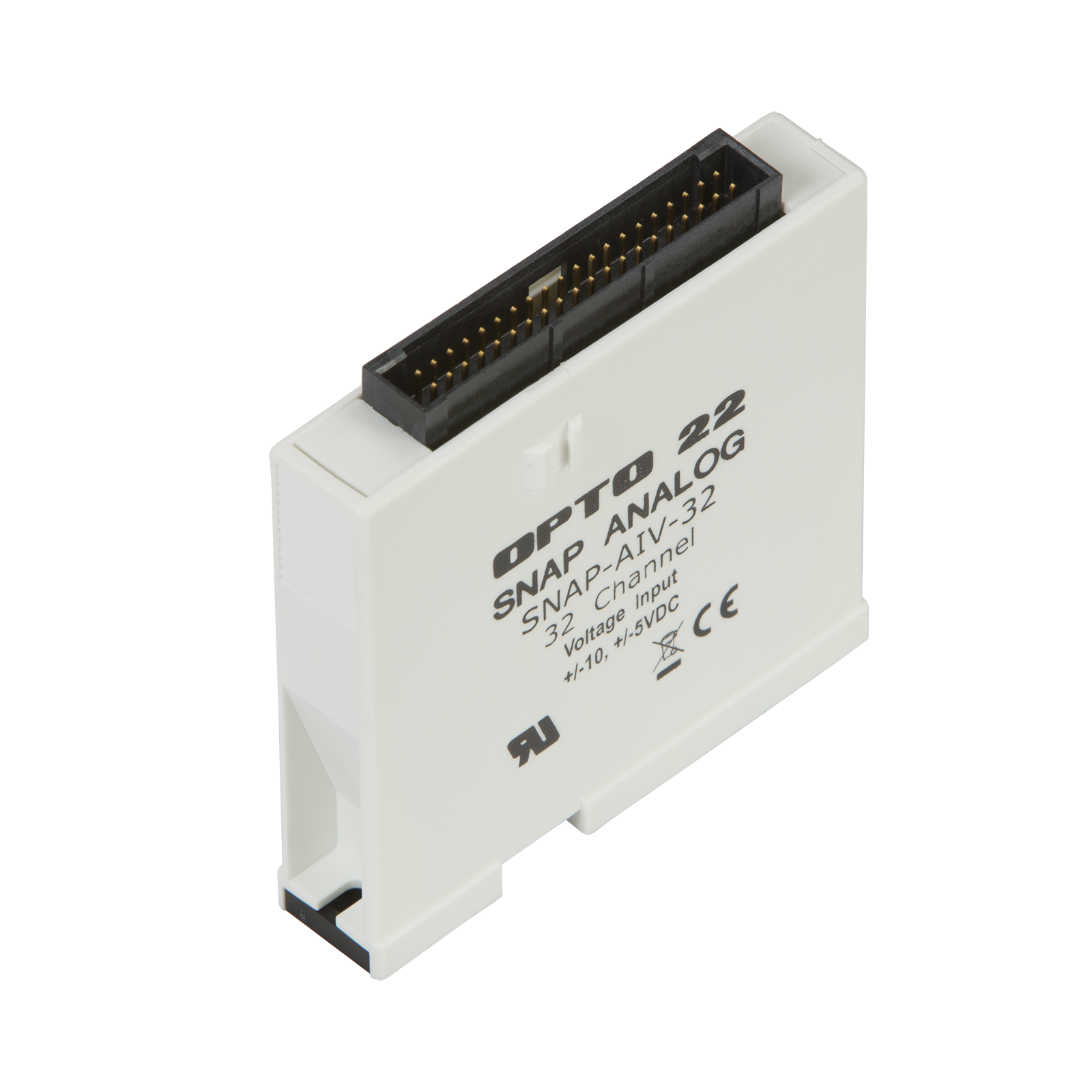

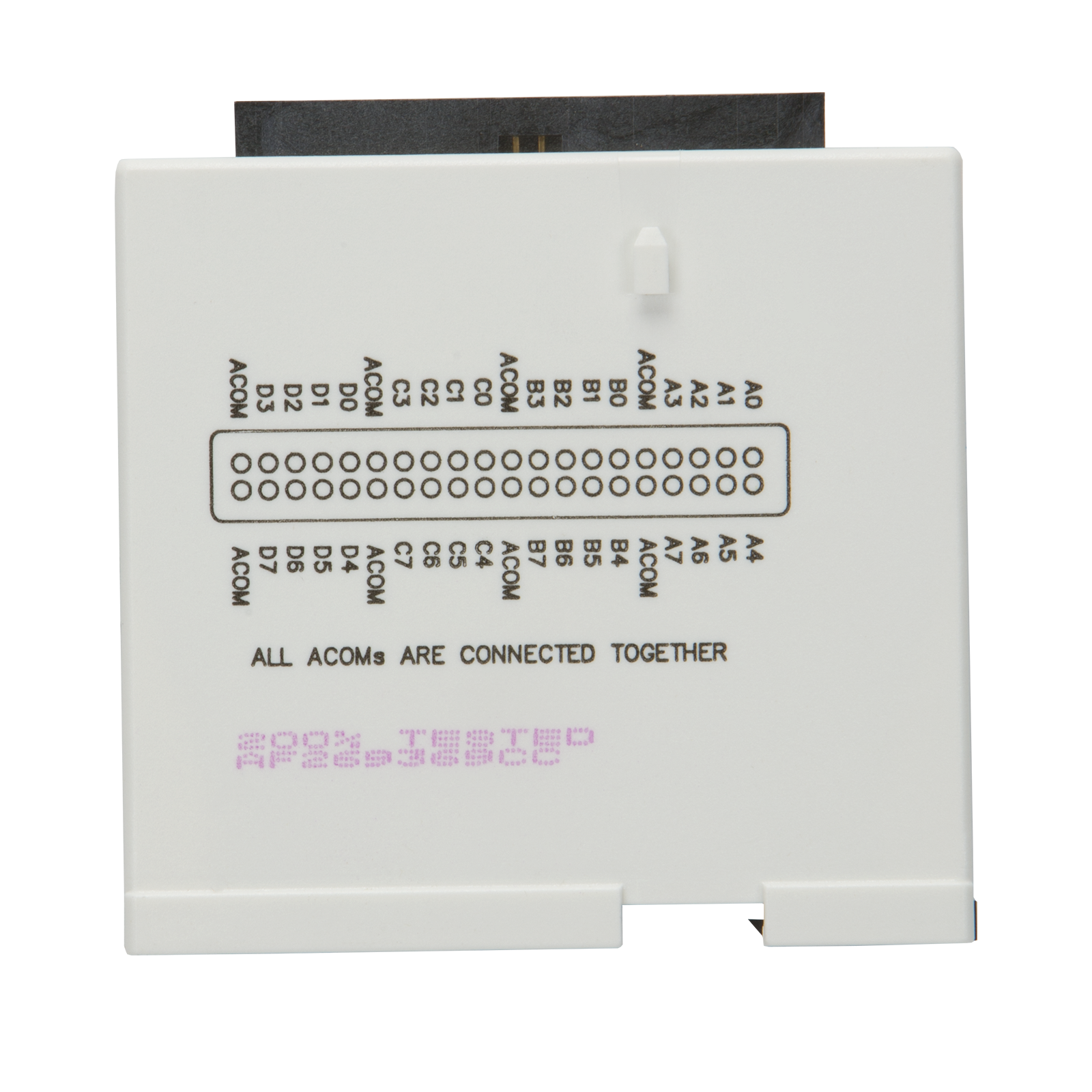

SNAP 32-Ch -10VDC to +10VDC Analog Input Module

Production Specification

The SNAP-AIV-32 analog input module provides 32 channels of analog voltage input. Each channel can be configured for -10 to +10 VDC or -5 to +5 VDC operation. Although the 32 channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Compatibility: This module can be used only with SNAP PAC brains and on-the-rack controllers.

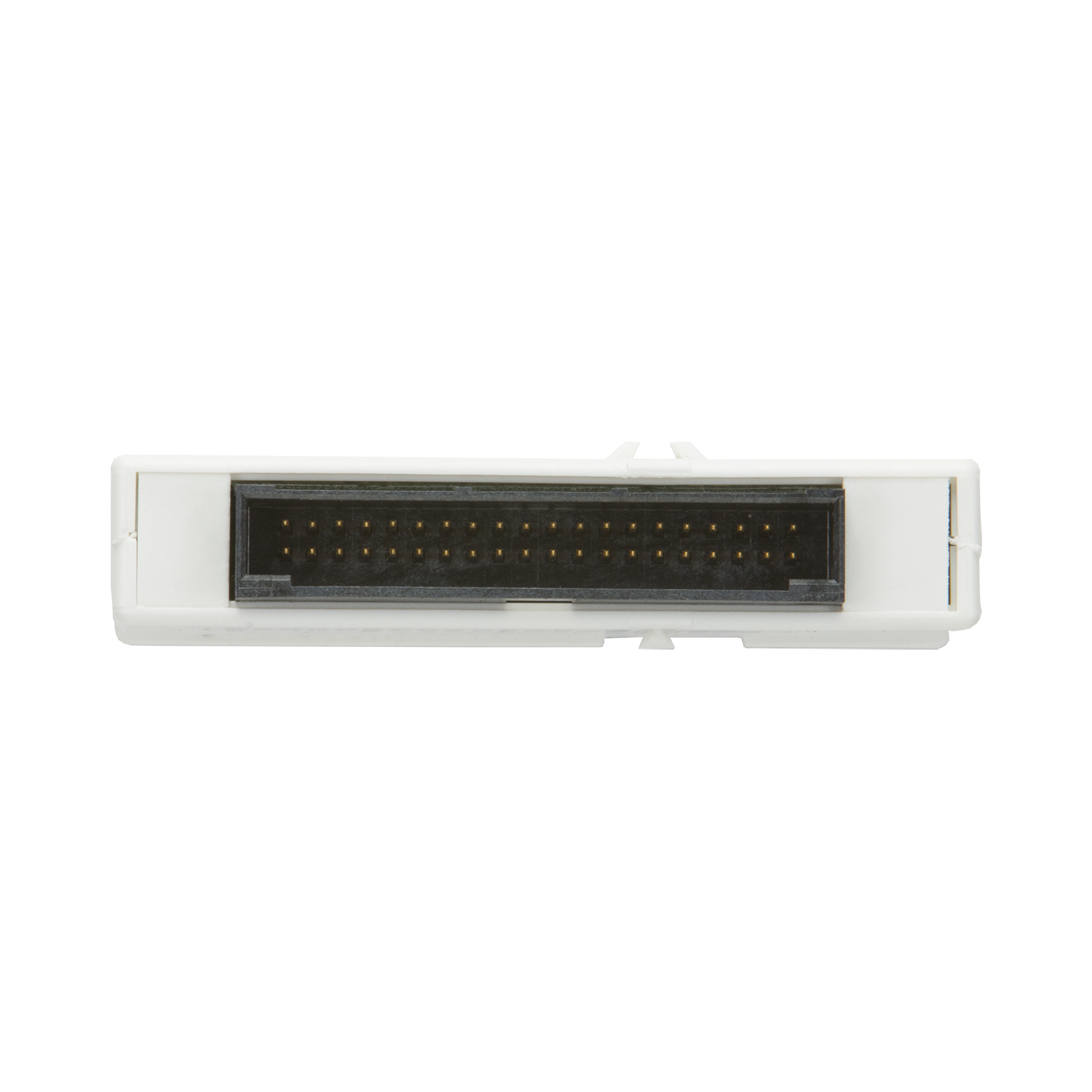

For field wiring, use the SNAP-HD-CBF6 wiring harness with flying leads, or the convenient SNAP-AIV-HDB breakout board with a SNAP-HD-BF6 cable.
Other options: Build your system in the SNAP I/O Configurator.

Input Range

From -10 volts to +10 volts
From -5 volts to +5 volts

Over-Range Limits

From -11 to +11 volts (+/-10 V range)
From -5.5 to +5.5 volts (+/-5 V range)

Resolution

0.4 mV when configured -10 to +10 volts
0.2 mV when configured -5 to +5 volts

Input Filtering

-3 dB @ 31 Hz

Data Freshness (Max)

1.1 s

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

220 VAC or 300 VDC

Maximum Operating Common Mode Volt­age

250 V

Accuracy

0.05%, 5 mV @ 10 VDC
2.5 mV @ 5 VDC

Gain Temperature
Coefficient

30 PPM/ °C

Offset Temperature Coefficient

15 PPM/ °C

Isolation

1500 V

Power Requirements

5 VDC (±0.15) @ 150 mA

Input Resistance

1 M ohms (each channel; all channels share the same reference point)

Ambient Temperature:
 Operating
 Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque,
hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque,
connector screws

5.22 in-lb (0.59 N-m)

Agency Approvals

UL, CE, RoHS, DFARS; UKCA

Warranty

Lifetime
