The rugged groov product line is your easy, flexible way to securely acquire and share data you need from remote equipment, legacy PLCs, processes, building systems, and more. This page lists all part numbers for groov RIO edge I/O and the groov EPIC System. For a printed version, see the groov EPIC & groov RIO System Product Guide (form 2250, pdf).

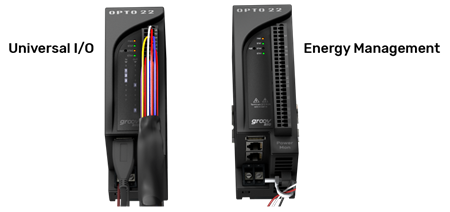

groov RIO Edge I/O



groov
RIO Modules

Intelligent edge I/O modules that can independently acquire and communicate data, or act as remote I/O units with groov EPIC.
GRV-R7-MM1001-10 (groov RIO MM1) Remote Universal I/O; 8 software-configurable channels; 2 form C electromechanical relay output channels
GRV-R7-MM2001-10 (groov RIO MM2) Remote Universal I/O; 8 software-configurable channels; 2 form C electromechanical relay output channels, Ignition 8
GRV-R7-I1VAPM-3 groov RIO edge EMU; 3-phase power and energy monitoring, 18 data & accumulation values per phase; 10 summation values

groov RIO Software and Learning Centers
groov RIO comes with groov Manage and Node-RED and with Secure Shell pre-installed. groov RIO MM2 also includes Ignition Edge 8 pre-installed. Ignition Edge and Secure Shell require a license to enable; order part number below.

GROOV-LIC-EDGE8 groov EPIC/RIO license for Ignition Edge version 8
GROOV-LIC-SHELL groov EPIC/RIO license for Secure Shell access
GRV-RIO-LC groov RIO Learning Center (includes GRV-R7-MM1001-10)
GRV-RIO2-LC groov RIO Learning Center (includes GRV-R7-MM2001-10 module, which adds Ignition and Ignition Edge® software from Inductive Automation®)

groov RIO Accessories are listed below in groov EPIC & groov RIO Accessories.

groov EPIC


groov EPIC Processors

GRV-EPIC-PR1  Programmable automation controller, with Ignition 7
GRV-EPIC-PR2  Programmable automation controller, with increased RAM & storage and Ignition 8

groov EPIC Software and Learning Centers
groov EPIC processors come with groov Manage, groov View, PAC Control Runtime, and Node-RED. They also come with CODESYS® Runtime, Ignition Edge®, and Secure Shell pre-installed; however, they require a license to enable or remove time limits (trial). To order, use part number below.
GROOV-LIC-CRE groov EPIC license for CODESYS Runtime
GROOV-LIC-EDGE groov EPIC license for Ignition Edge version 7
GROOV-LIC-EDGE8 groov EPIC/RIO license for Ignition Edge version 8
GROOV-LIC-SHELL groov EPIC/RIO license for Secure Shell access
GRV-EPIC-LC2 groov EPIC Learning Center

groov EPIC Chassis
GRV-EPIC-CHS0  Processor and power supply only mounting chassis
GRV-EPIC-CHS4 4-module analog/digital/serial mounting chassis
GRV-EPIC-CHS8 8-module analog/digital/serial mounting chassis
GRV-EPIC-CHS16 16-module analog/digital/serial mounting chassis

groov EPIC Power Supplies
GRV-EPIC-PSAC Power supply, 110-240 VAC
GRV-EPIC-PSDC Power converter, 24-48 VDC
GRV-EPIC-PSPT Pass-through power adapter, 11.4–12.6 VDC, up to 9 A

groov Universal I/O Modules
GRV-MM1001-10 8 multifunction, mixed signal channels; 2 form C electromechanical relay output channels

groov Discrete Input Modules
GRV-IAC-24  AC input, 24 channels, 85-140 VAC
GRV-IACS-24  AC input, 24 channels, 85-140 VAC, on/off state only
GRV-IACI-12 AC input, 12 channels, 85-140 VAC, ch-to-ch isolation
GRV-IACIS-12  AC input, 12 channels, 85-140 VAC, ch-to-ch isolation, on/off state only
GRV-IACHV-24  AC input, 24 channels, 180-280 VAC
GRV-IACHVS-24 AC input, 24 channels, 180-280 VAC, on/off state only
GRV-IACIHV-12  AC input, 12 channels, 180-280 VAC, ch-to-ch isolation
GRV-IACIHVS-12 AC input, 12 channels, 180-280 VAC, ch-to-ch isolation, on/off state only
GRV-IDC-24 DC input, 24 channels, 15-30 V
GRV-IDCS-24 DC input, 24 channels, 15-30 V, on/off state only
GRV-IDCSW-12 DC input, 12 channels, switch status
GRV-IDCI-12  AC/DC discrete input, 12 channels, 10–30 VDC, 10–25 VAC, ch-to-ch isolation
GRV-IDCIS-12 DC input, 12 channels, 10-30 V, ch-to-ch isolation, on/off state only
GRV-IDCIFQ-12 DC input, 12 channels, 2.5-30 V, ch-to-ch isolation, on/off state only, high speed, quadrature
GRV-IACDCTTL-24 AC/DC input, polarity insensitive, 24 channels, 2–16 V AC/DC
GRV-IACDCTTLS-24 AC/DC input, polarity insensitive, 24 channels, 2–16 V AC/DC, on/off state only

groov Discrete Output Modules
GRV-OAC-12  AC output, 12 channels, 12-250 VAC
GRV-OACS-12  AC output, 12 channels, 12-250 VAC, on/off state only
GRV-OACI-12 AC output, 12 channels, 12-250 VAC, ch-to-ch isolation
GRV-OACIS-12  AC output, 12 channels, 12-250 VAC, ch-to-ch isolation, on/off state only
GRV-ODCI-12  DC output, 12 channels, 5-60 VDC, ch-to-ch isolation
GRV-ODCIS-12 DC output, 12 channels, 5-60 VDC, ch-to-ch isolation, on/off only
GRV-ODCSRC-24  DC output, 24 channels, 5-60 VDC, sourcing
GRV-OMRIS-8  AC/DC output, 8 channels, mechanical relay, 0-250 VAC/5-30 VDC, 5 A

groov Analog Input Modules
GRV-IICTD-12 Analog input, temperature, ICTD, 12 channels
GRV-IMA-24 Analog input, 24 channels, configurable input ranges of 4-20 mA, 0-20 mA, ±20 mA
GRV-IMAI-8 Analog input, 0–20 mA, isolated, field or chassis-powered loop, 8 channels
GRV-ITM-12 Analog input, 12 channels, thermocouple or mV
GRV-ITMI-8 Analog input, 8 channels, thermocouple or mV, ch-to-ch isolation
GRV-IRTD-8 Analog input, temperature (RTD) or resistor, 8 channels
GRV-ITR-12 Analog input, 12 channels, temperature (thermistor) or resistor
GRV-IV-24 Analog input, 24 channels, 8 configurable input ranges from ±1.25 VDC to ±160 VDC
GRV-IVAPM-3 Input, power monitoring, 3 phase, 600 V with 0.333 V, 1 V, or 5 A CT
GRV-IVI-12 Analog voltage input, 12 channels, configurable input ranges from ±1.25 to ±160 VDC, channel-to-channel isolation
GRV-IVIRMS-10 Analog RMS voltage input, 10 channels, 0–300 VAC/VDC, channel-to-channel isolation

groov Analog Output Modules
GRV-OVMALC-8  Analog output, 8 channels, voltage or current, chassis-powered loop
GRV-OVMAILP-8 Analog output, 8 channels, voltage or current, ch-to-ch isolation, field or chassis-powered loop

groov Serial Modules
GRV-CCANI-2 Serial communication, 2 channels, CAN2.0B, channel-to-channel isolation
GRV-CSERI-4 Serial communication, 4 channels, RS-232 or RS-485, channel-to-channel isolation


groov EPIC & groov RIO Learning Centers

GRV-EPIC-LC2 groov EPIC Learning Center
GRV-RIO-LC groov RIO Learning Center (includes GRV-R7-MM1001-10)
GRV-RIO2-LC groov RIO Learning Center (includes GRV-R7-MM2001-10 module, which adds Ignition and Ignition Edge® software from Inductive Automation®)


groov EPIC & groov RIO Accessories

GRV-TERM26-5 groov I/O module terminal, 5 pack
GRV-TERMG26-5 I/O module terminal for thermocouple modules, gray, 5 pack
GRV-TERMPM13-5 Terminal connector for groov power monitoring Modules, 5-pack
GRV-TEX-26F6  26-wire cable for groov I/O modules, straight-through, no common terminals, flying leads
GRV-TEX-SCTOOL Spring-clamp tool for module terminal connector
GRV-TEX-RCTM-5 groov RIO cable tie push mount, 5 pack
GRV-ENC-POLY-SM groov EPIC/RIO enclosure, 1–2 devices/chassis, polycarbonate, wall or panel mount, IP65
GRV-ENC-POLY-MD groov EPIC/RIO enclosure, 1–4 devices/chassis, polycarbonate, wall or panel mount, IP69
GRV-EPIC-PSAC-FUSE-5 Pack of 5 2-amp 250 V slow fuses for the GRV-EPIC-PSAC power supply
GRV-EPIC-PSDC-FUSE-5 Pack of 5 4-amp 250 V slow fuses for the GRV-EPIC-PSDC power converter
GRV-EPIC-PSPT-FUSE-5 Pack of 5 10-amp 125 V fast fuses for the GRV-EPIC-PSPT power adapter
